Mercusys AX1800 Dual-Band Gigabit WiFi 6 Router | MR70X

Mercusys AX1800 Dual-Band Gigabit WiFi 6 Router | MR70X

Description:

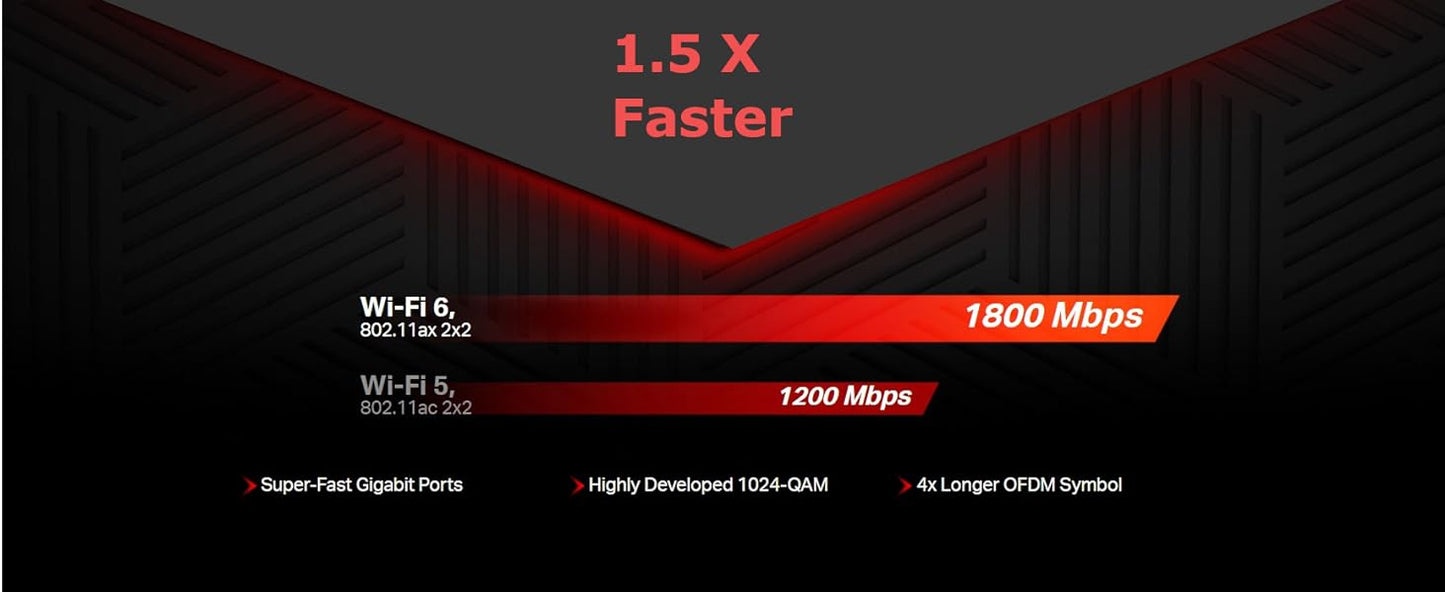

Next-Gen WiFi 6 Speeds – Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)

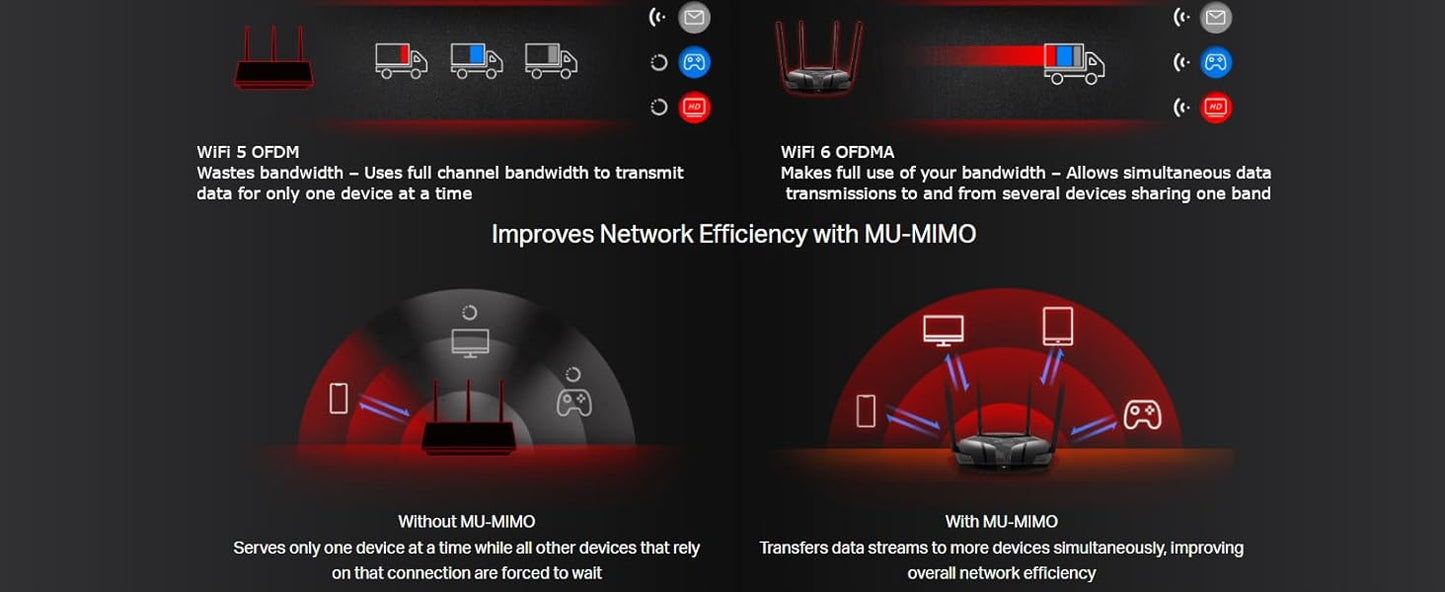

4× More Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency

Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

Overall Security Protection – The latest WPA3 provides improved WiFi security

Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance

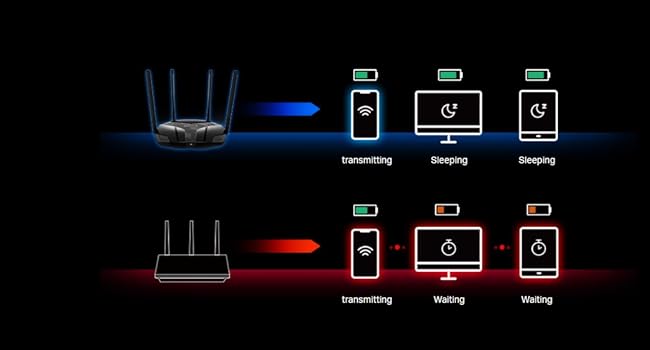

Eco-Friendly Power Saving – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions

Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color

Smart Connect – Intelligently chooses the best available band for each device

Access Point Mode – Extends a wired network and makes it wireless

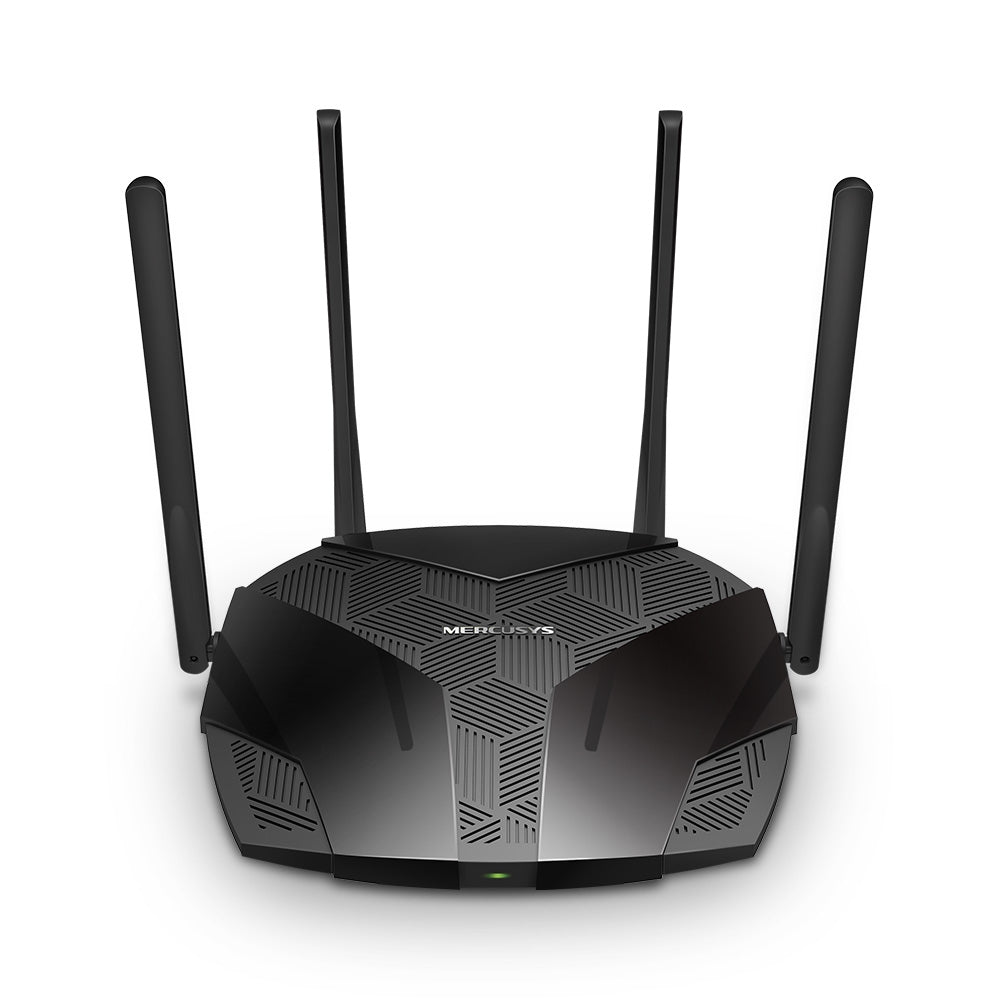

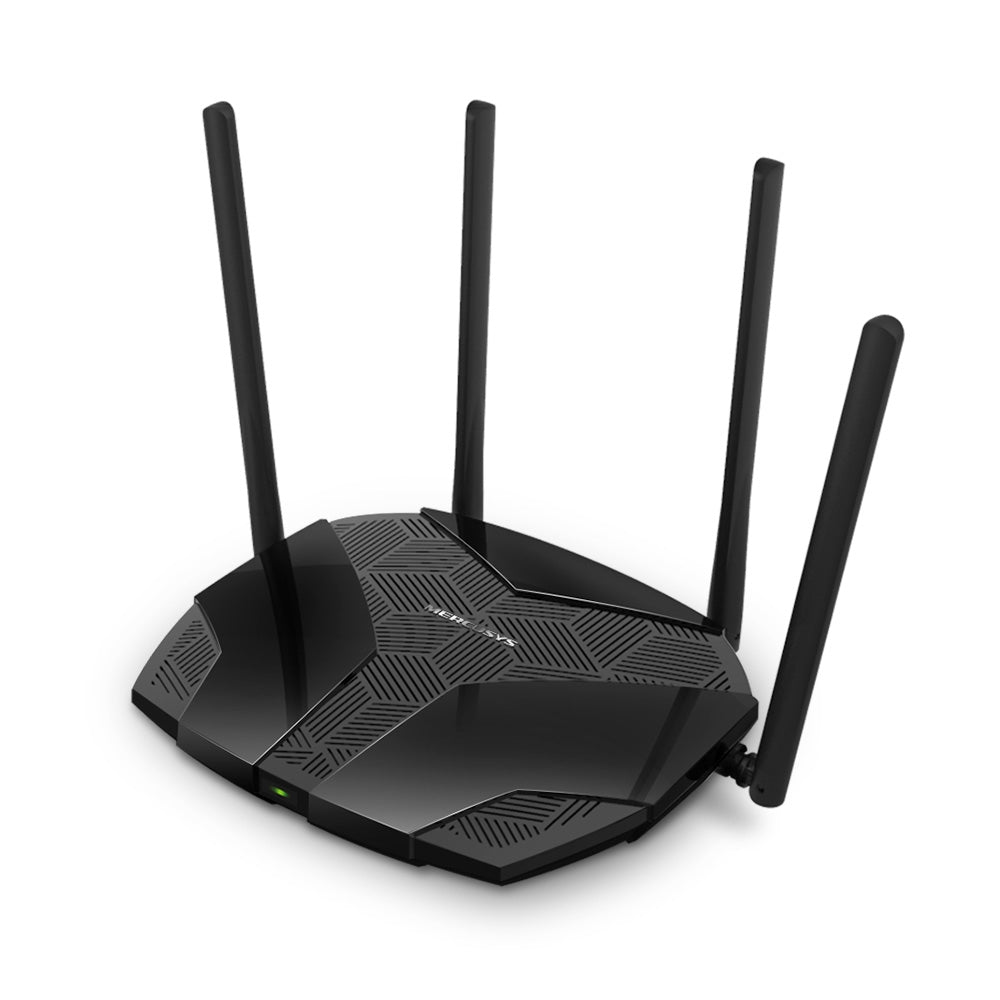

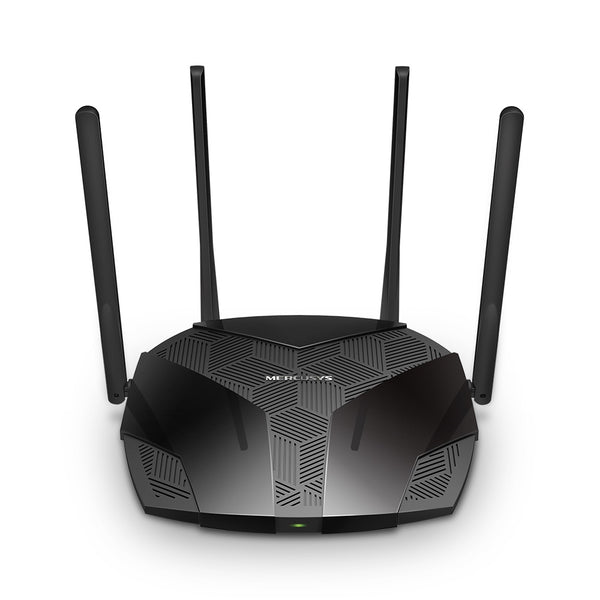

MERCUSYS MR70X – AX1800 Dual-Band Wi-Fi 6 Router

Wireless

Wi-Fi Class

◆ AX1800

Wi-Fi Speeds

◆ 5 GHz: 1201 Mbps
◆ 2.4 GHz: 574 Mbps

Wireless Standards

◆ 802.11ax/ac/a/b/g/n
◆ Max Channel Width: 80 MHz
◆ Max Wi-Fi Modulation: 1024-QAM
◆ Wireless Security: WPA / WPA2 / WPA3

Reception Sensitivity

2.4 GHz:
◆ 11g 6Mbps: -96 dBm
◆ 11g 54Mbps: -78 dBm
◆ 11ax HE20 MCS11: -65 dBm
◆ 11ax HE40 MCS11: -63 dBm

5 GHz:
◆ 11a 6Mbps: -96 dBm
◆ 11a 54Mbps: -78 dBm
◆ 11ax HE20 MCS11: -66 dBm
◆ 11ax HE40 MCS11: -63 dBm
◆ 11ax HE80 MCS11: -60 dBm

Wireless Functions

◆ Guest Network
◆ Smart Connect
◆ Wireless Schedule
◆ WPS
◆ AP Isolation
◆ Airtime Fairness
◆ OFDMA
◆ BSS Color
◆ Beamforming

Hardware

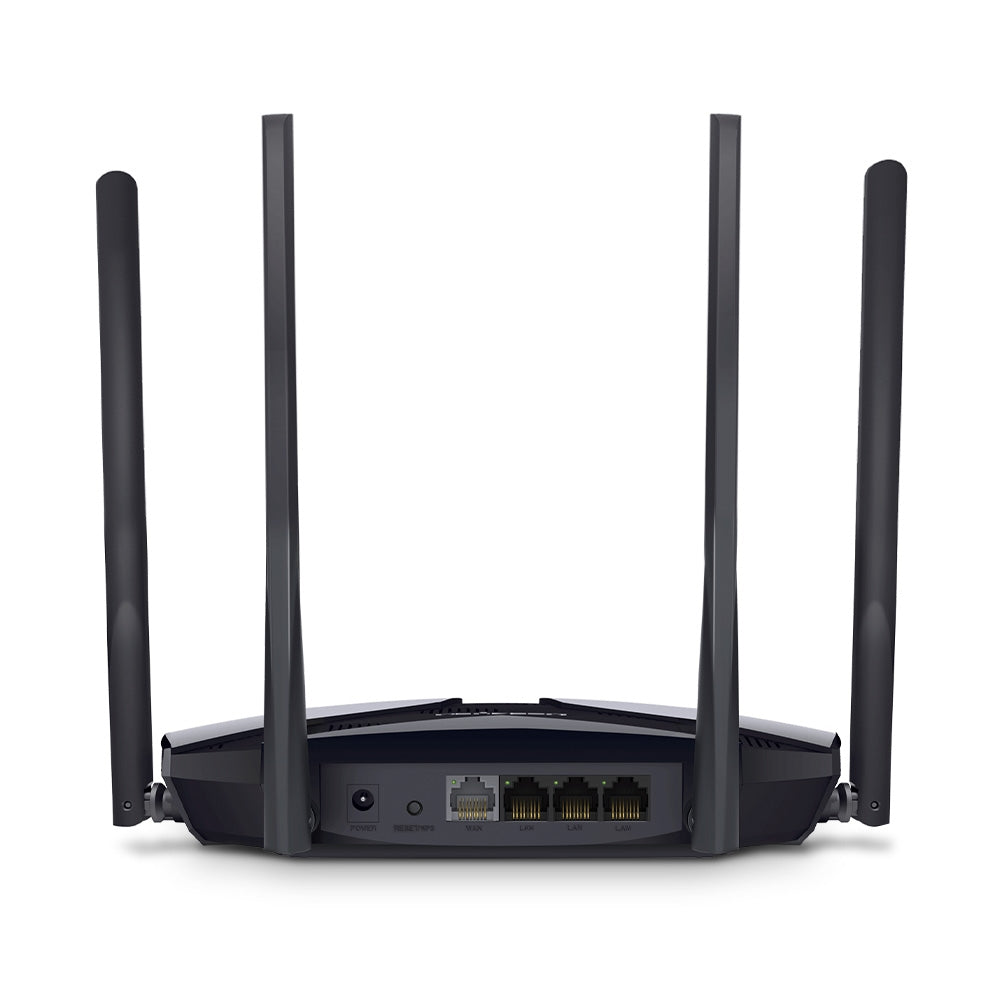

◆ Dimensions: 208.8 × 171.6 × 41.7 mm
◆ Interfaces: 1× Gigabit WAN, 3× Gigabit LAN
◆ Antennas:
– 2× 5 GHz External
– 2× 2.4 GHz External
◆ Button: 1× WPS/Reset
◆ LED: 1× SYS

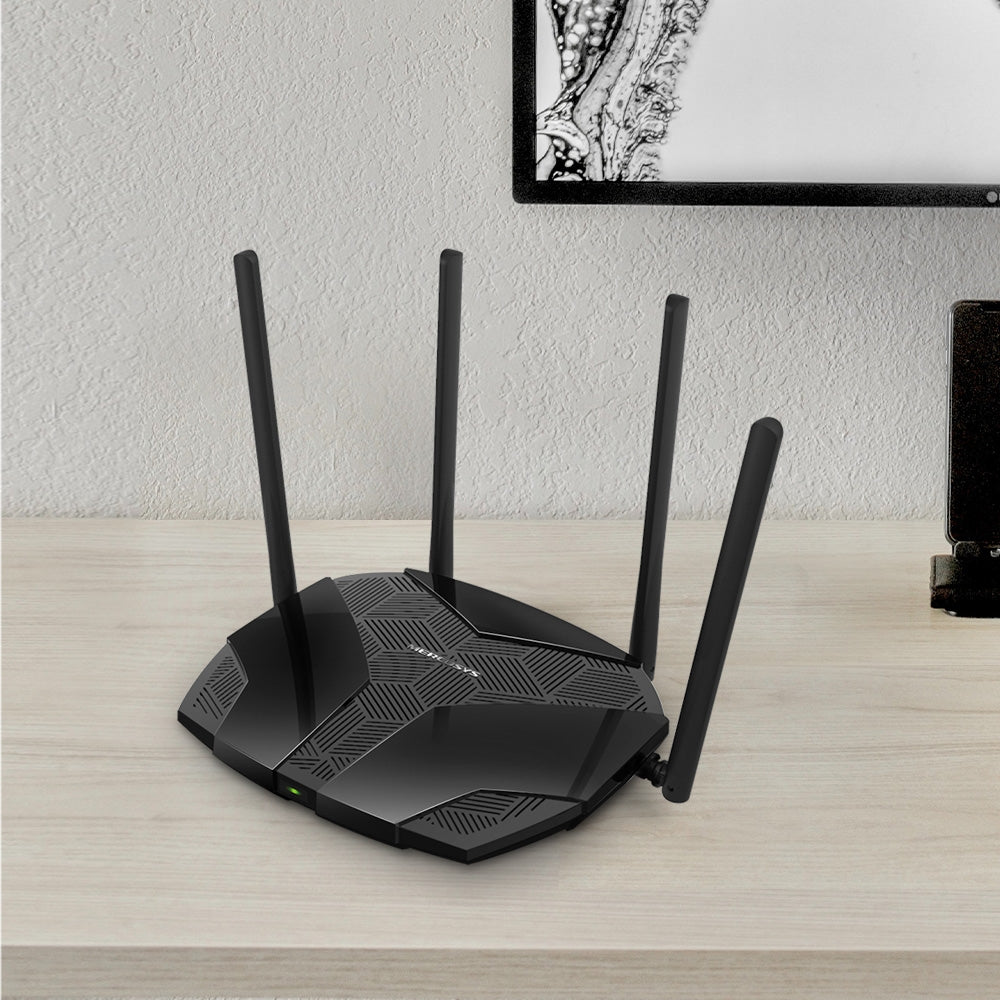

◆ Installation: Desktop / Wall Mount

Software

WAN Modes

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ PPTP
◆ L2TP

NAT Forwarding

◆ Port Forwarding
◆ Port Triggering
◆ DMZ
◆ UPnP

Protocols

◆ IPv4
◆ IPv6

IPTV

◆ IGMP Proxy
◆ IGMP Snooping
◆ Bridge/Custom
◆ Tag VLAN

Guest Network

◆ 2.4 GHz Guest Network
◆ 5 GHz Guest Network

Parental Controls

◆ Profile Settings
◆ Time Control
◆ Pause Internet
◆ Website Filtering

DHCP

◆ Server
◆ Address Reservation
◆ DHCP Client List

DDNS

◆ MERCUSYS
◆ NO-IP
◆ DynDNS

VPN Client

◆ OpenVPN
◆ WireGuard
◆ PPTP
◆ L2TP/IPSec

◆ Kill Switch: Supported

QoS

◆ Time Settings
◆ Priority Control

Security

◆ SPI Firewall
◆ Access Control
◆ IP & MAC Binding

ISP Features

◆ CWMP
◆ ISP Preset (Agile Config)
◆ Superadmin

System Tools

◆ Firmware Upgrade
◆ Backup & Restore
◆ Administration
◆ System Log
◆ Time & Language Settings
◆ Reboot
◆ Diagnostics: Ping, Traceroute
◆ LED Control / Night Mode

Device Management

◆ MERCUSYS App
◆ Web Interface
◆ MERCUSYS ID (Cloud)

Network Services Enabled by Default

◆ Web Server (HTTP/HTTPS) – Port 80/443 (TCP)
◆ DNS – Port 53 (TCP & UDP)
◆ DHCP Server – Port 67 (UDP)
◆ App Management – Ports 20001/30001 (TCP), 20002 (UDP)

Environment

◆ Operating Temperature: 0°C to 40°C
◆ Operating Humidity: 10%–90% Non-Condensing
◆ Storage Humidity: 5%–90% Non-Condensing

Package Contents

◆ MR70X AX1800 Wi-Fi Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
