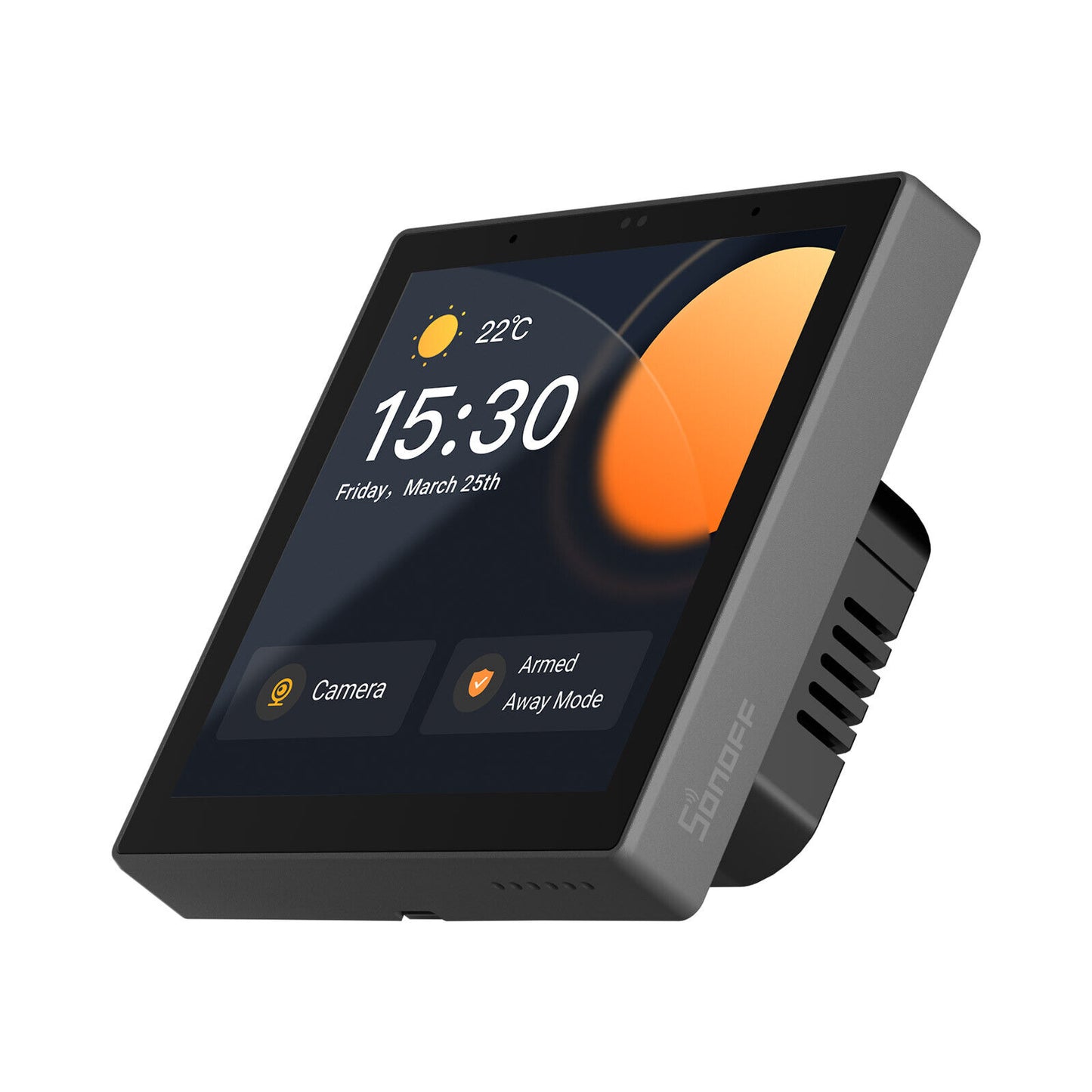

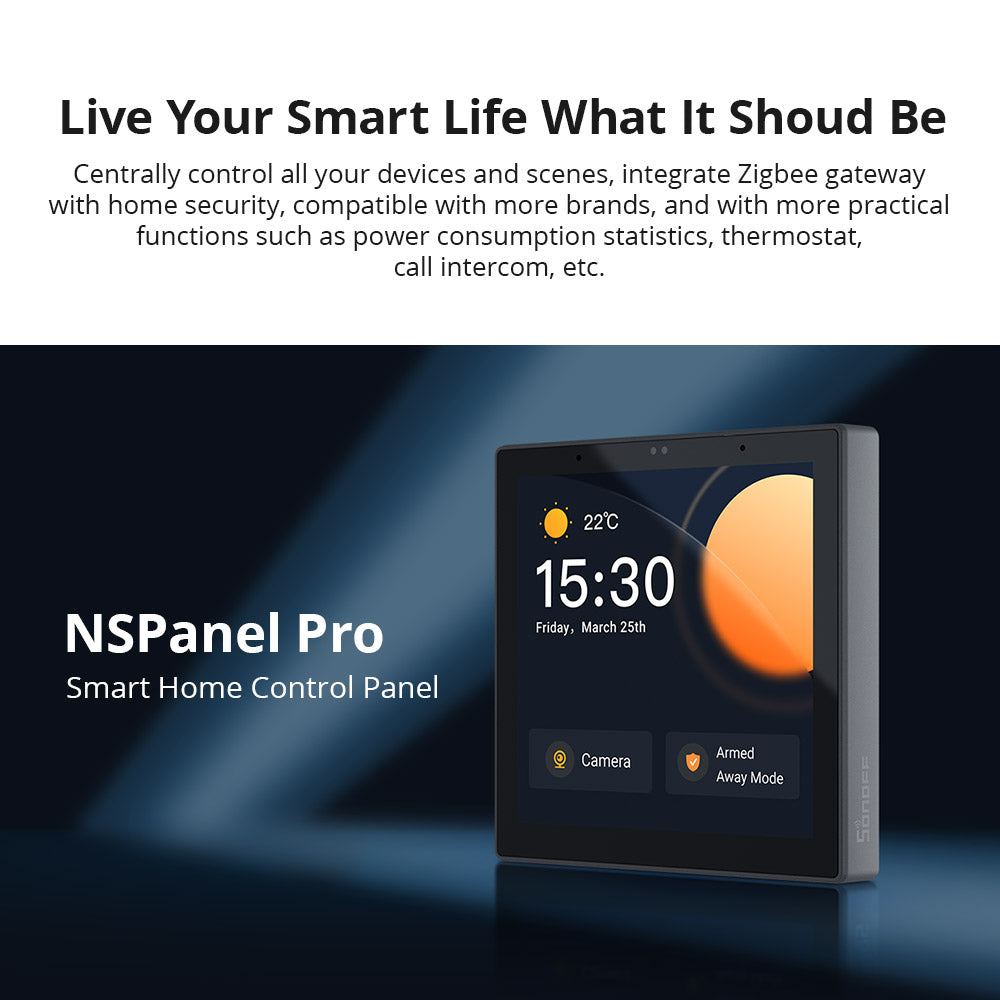

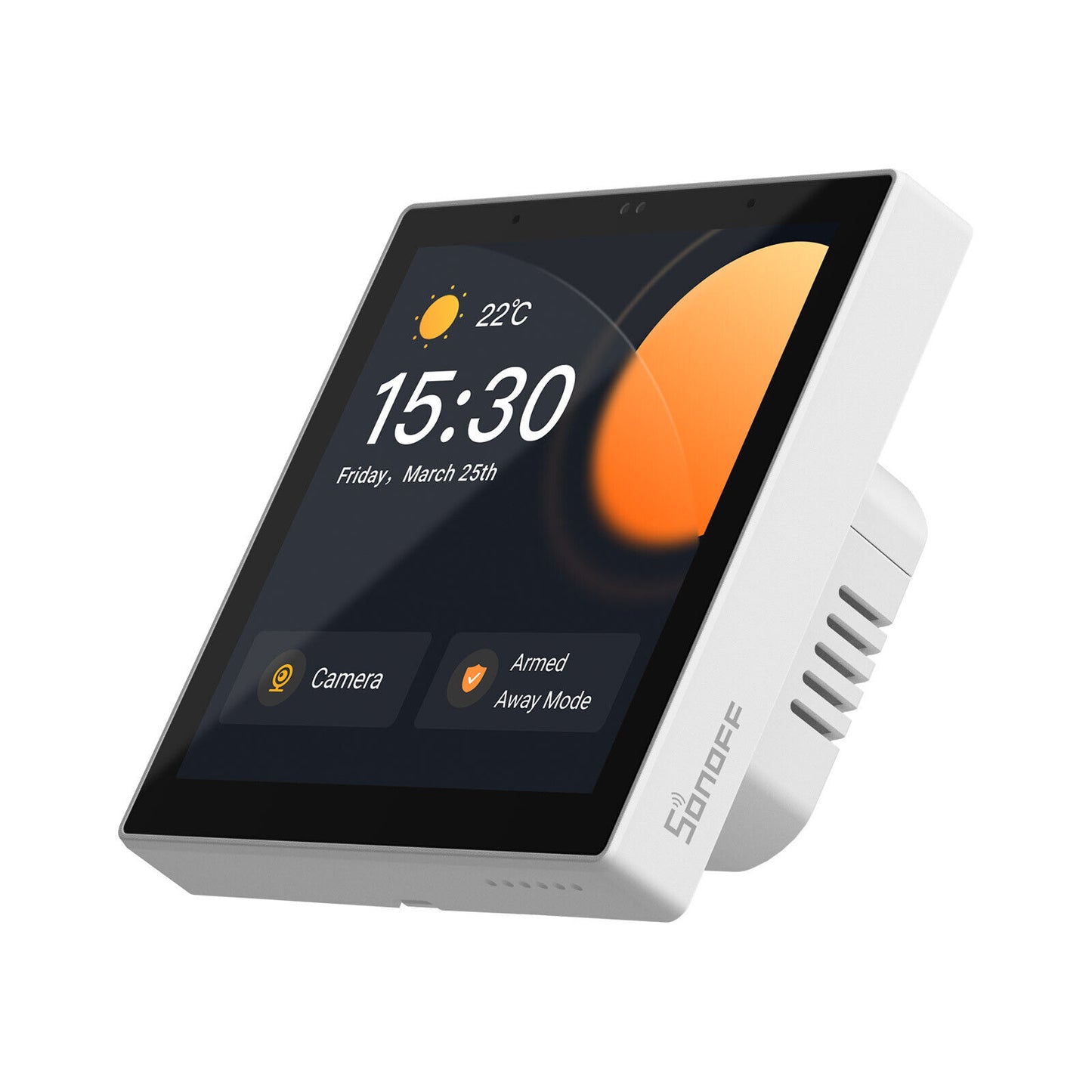

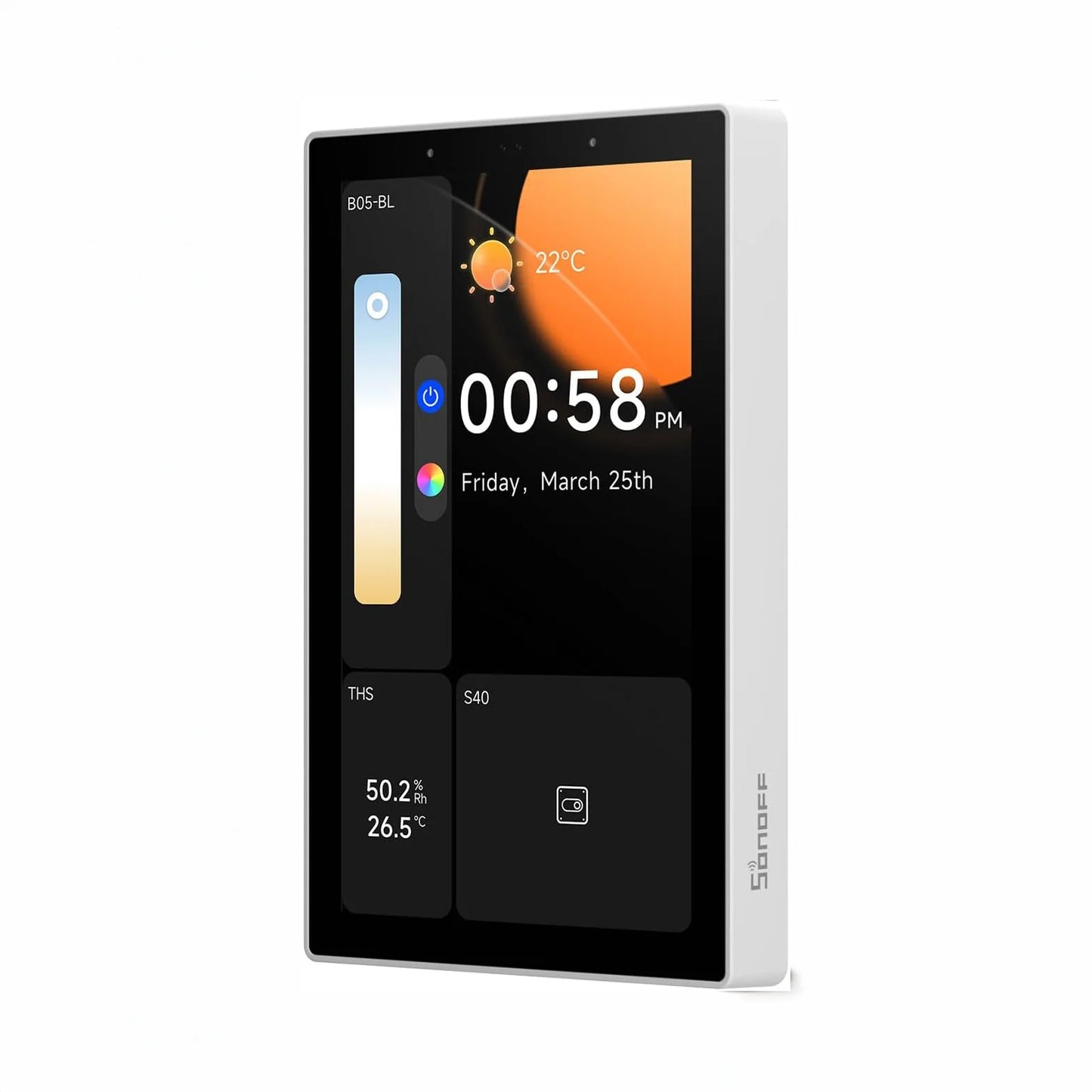

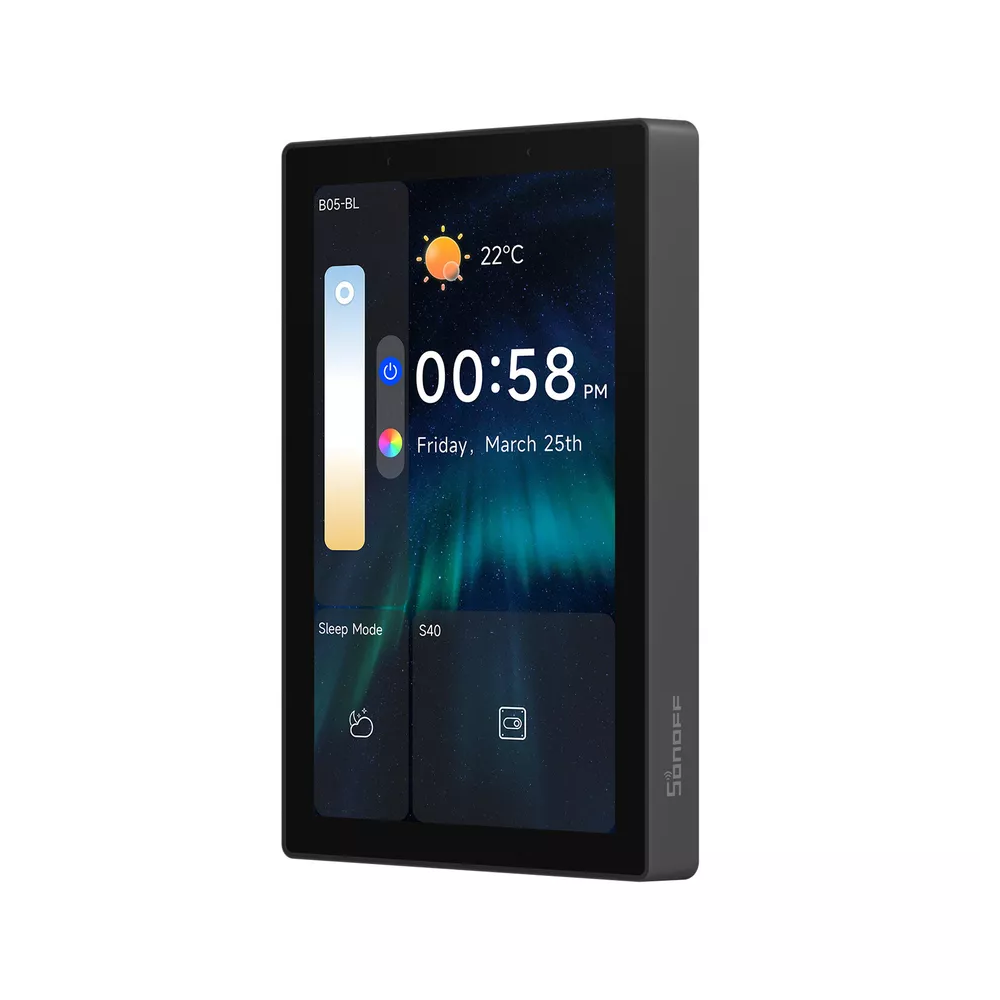

The SONOFF NSPanel Pro is an all-in-one smart home control panel with a built-in Zigbee 3.0 gateway. From one touchscreen on the wall you control lights, switches, sensors and cameras, run scenes, arm your security modes and follow energy use. It comes in two sizes: the 86 type with a 3.95-inch screen for square wall boxes, and the 120 type with a 4.7-inch screen for rectangular (US-style) boxes, each in white or dark gray.

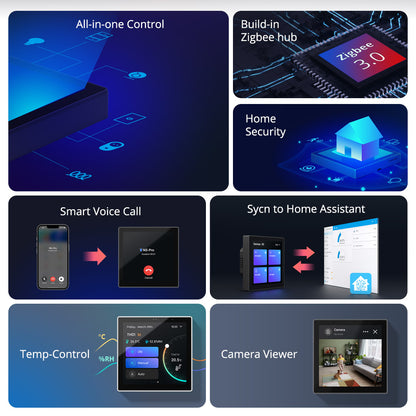

Built-in Zigbee 3.0 gateway: The panel works as a Zigbee hub, so you can add SONOFF and other Zigbee 3.0 devices directly from the screen without buying a separate hub.
Works with your ecosystem: A built-in Matter bridge lets the panel work with Amazon Alexa, Google Home and Home Assistant. Without rooting the device, you can install Home Assistant from the built-in F-Droid store and use the panel as a Home Assistant dashboard.
Security modes: You can arm the system with custom security modes such as Away and Home. When a sensor is triggered in an armed mode, you get an alert.

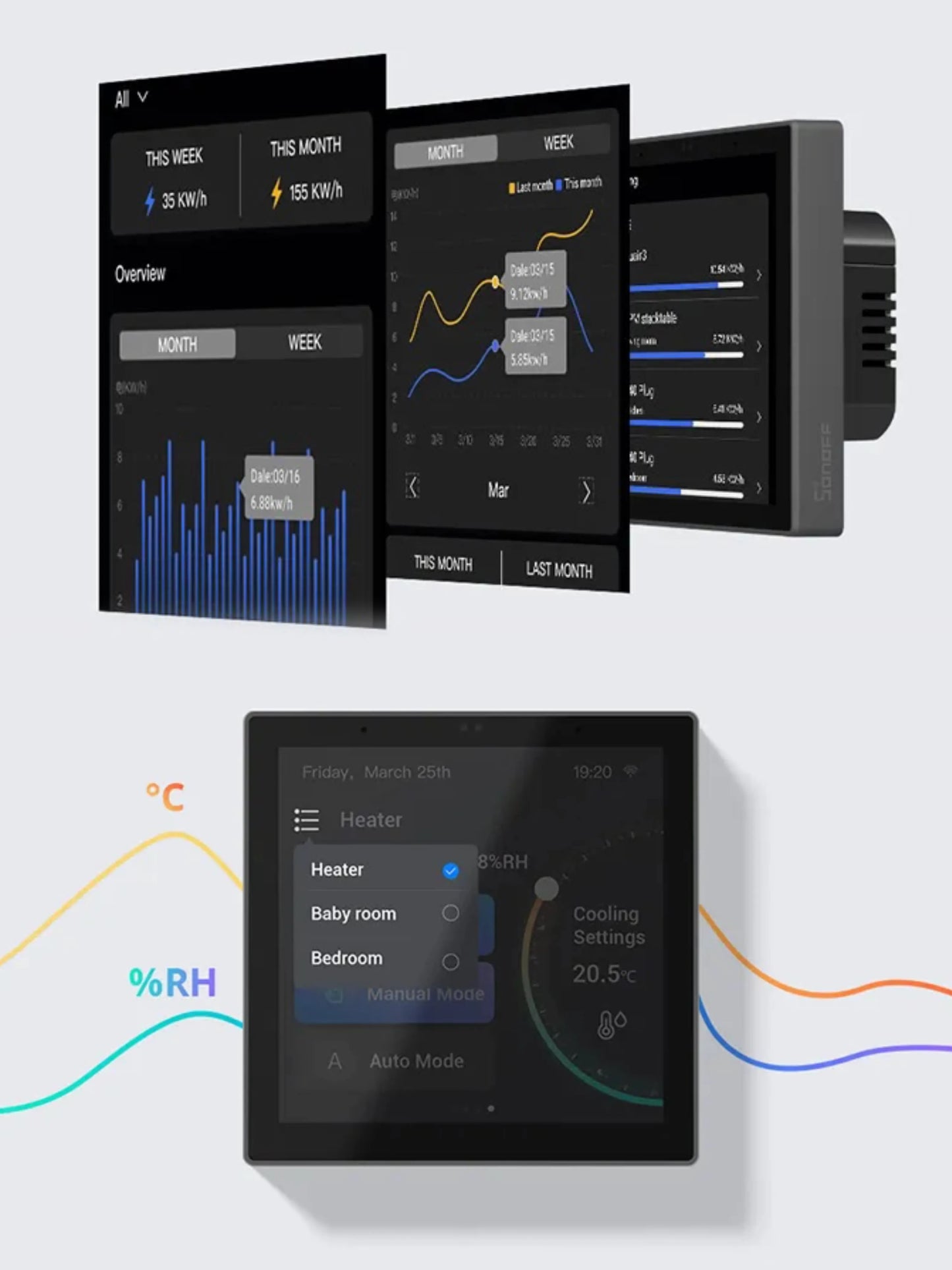

Smart thermostat: Pair it with Zigbee temperature sensors to create schedules for heating and cooling room by room, with the panel controlling the devices that do the work.
Cameras, energy and your own dashboard: View live feeds from supported cameras, monitor energy with supported devices, and customise the home screen, themes and wallpapers. You can also install third-party apps.
Who it's for / Works with
Amazon Alexa, Google Home and Home Assistant through the built-in Matter bridge. SONOFF Zigbee devices such as SNZB-02P temperature sensors, SNZB-03P motion sensors and SNZB-04P door/window sensors, and other Zigbee 3.0 devices.
Good to know
- This NSPanel Pro is a control panel without a built-in relay: to switch a light circuit, pair it with a SONOFF smart switch or relay.
- Wi-Fi is 2.4GHz only.
- Choose the size that matches your wall box: 86 type (86 x 86 mm) or 120 type (122.5 x 74.5 mm).
Technical Specifications
| Models | 86 type: NSPanel86PW (White), NSPanel86PB (Dim Gray); 120 type: NSPanel120PW (White), NSPanel120PB (Dim Gray) |
| Screen | 86 type: 3.95" capacitive, 480 x 480; 120 type: 4.7", 750 x 1334 |
| Zigbee | Zigbee 3.0 (IEEE 802.15.4) |
| Wi-Fi | IEEE 802.11 b/g/n 2.4GHz |
| Power input | 100-240V AC 50/60Hz |

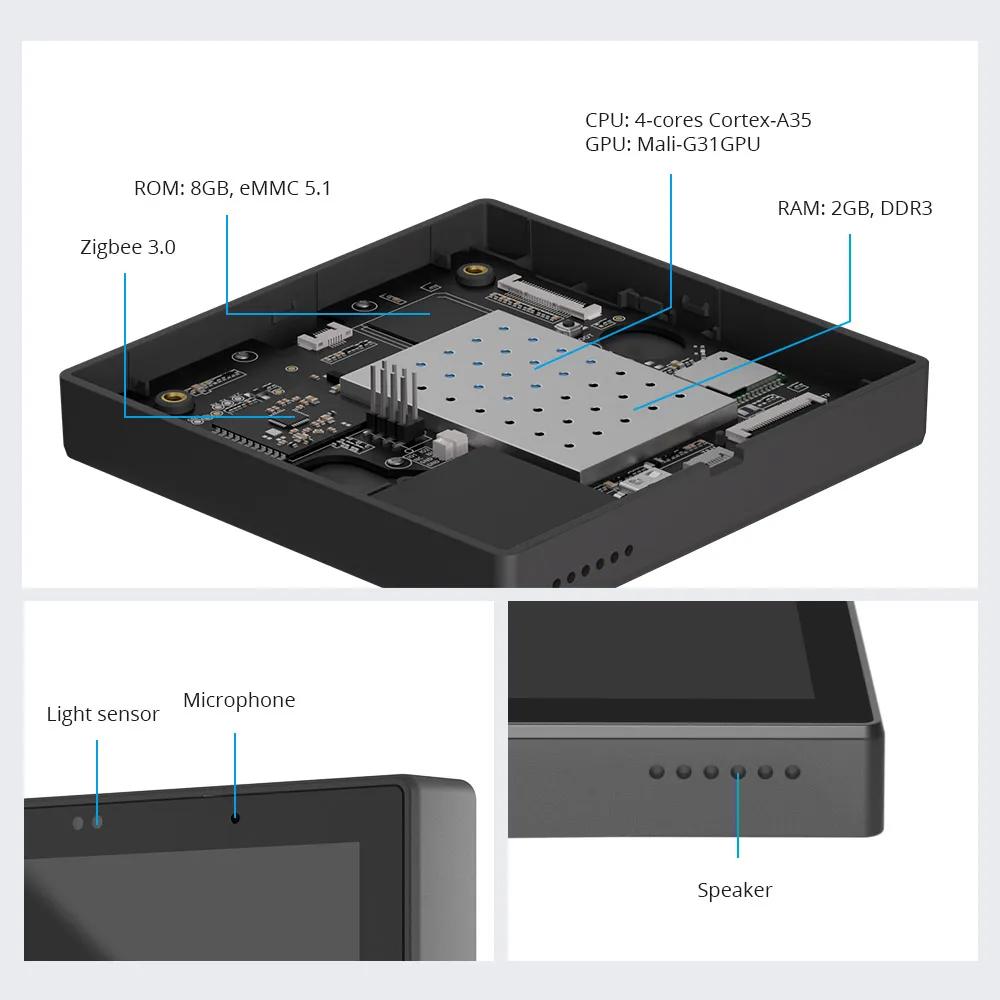

| CPU | Quad-core ARM Cortex-A35 |
| GPU | 86 type: Mali-G31; 120 type: Mali G31-2EE |
| Memory (86 type) | 2GB DDR3 RAM, 8GB eMMC |
| Casing material | PC V0 + CRS + tempered glass |
| Dimensions | 86 type: 86 x 86 x 39.5 mm; 120 type: 122.5 x 74.5 x 39.5 mm |
