Ranger 2 Dual 10MP Indoor Smart Camera | IMOU

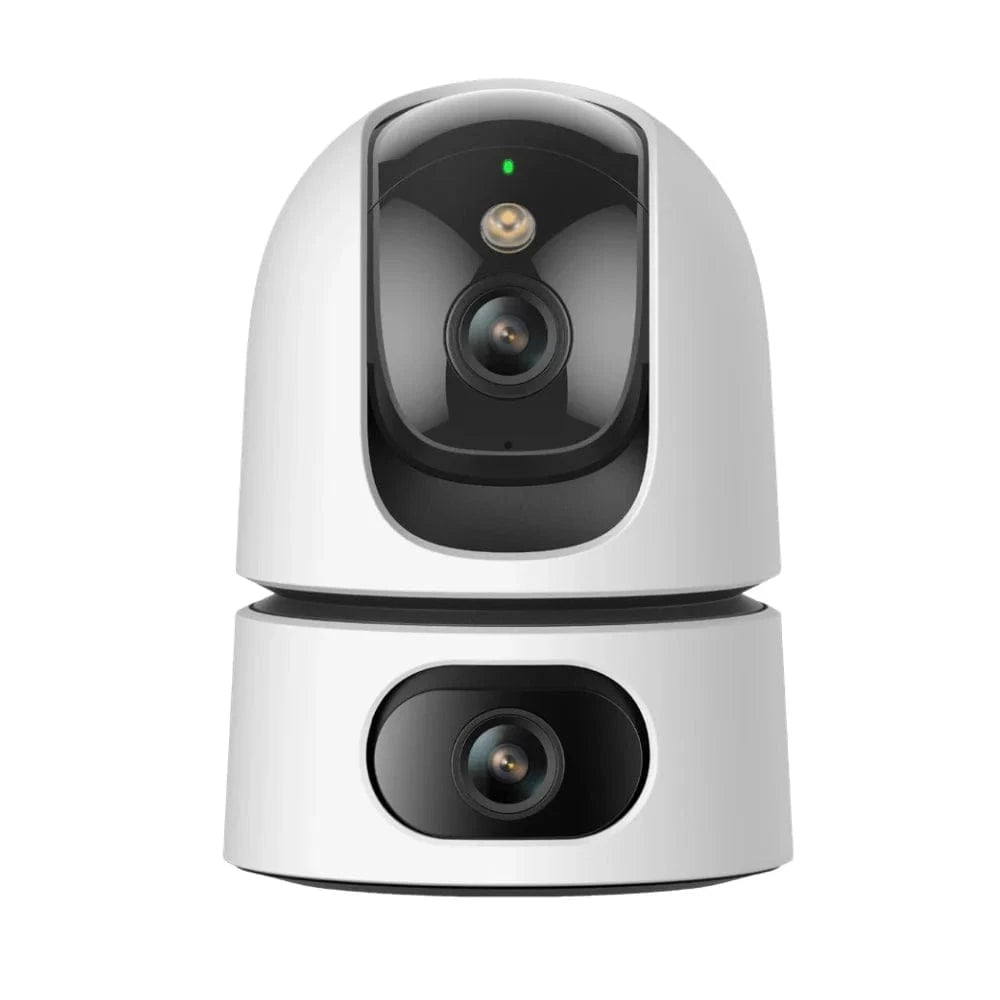

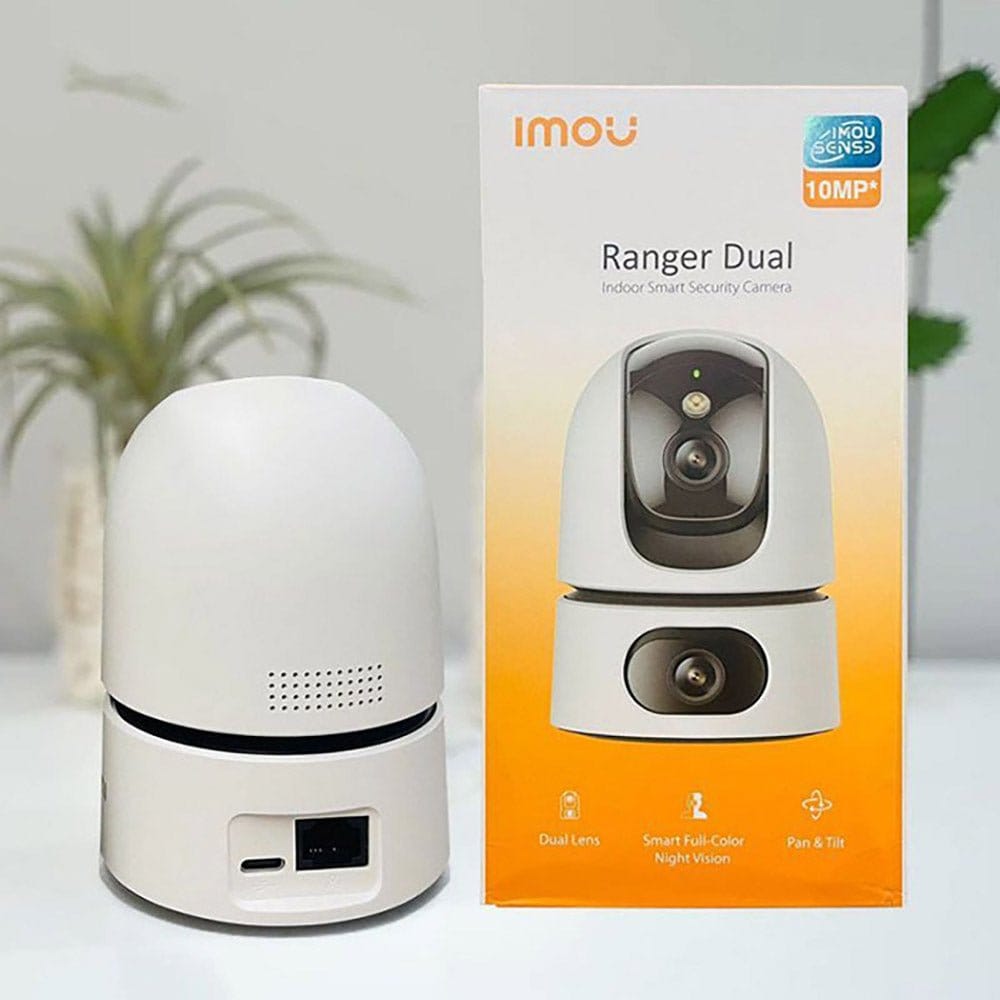

The IMOU Ranger 2 Dual 10MP (model IPC-S20EP-10M0S) is an indoor Wi-Fi camera with two 5MP lenses (2880 x 1620 each): a fixed lens and a motorized pan & tilt lens, for 10MP in total. It shows two images at the same time in the Imou app, connects over dual-band Wi-Fi 6 or Ethernet, and has a one-touch call button so family members can call your phone.
Two lenses, two views: The pan & tilt lens turns 355° horizontally and -5° to 80° vertically from the app, while the fixed lens can be set by hand (0-355° pan, 0-15° tilt) to watch a fixed spot such as a door. Both lenses have a 3.6 mm lens with an 88° horizontal field of view.
One-touch call: Pressing the touch button on the camera sends a call to the Imou app, so family members at home can reach you quickly.
Smart full-colour night vision: The camera switches automatically from infrared to colour mode and supports four night vision modes, with a night vision distance of up to 15 m.
Smart detection and tracking: The camera supports human and pet detection, and smart tracking follows moving objects. It also supports IMOU's AIgo Play algorithm platform, and privacy mode hides the lens when you are home.
Flexible storage: Recordings can be saved on a microSD card of up to 512 GB, in IMOU Cloud, or on an NVR (ONVIF supported). Always-on-record (AOR) mode helps save storage space.
Good to know
The microSD card is not included. The camera is for indoor use (operating temperature -10°C to +45°C) and is powered by a DC 5 V 1.5 A adapter through a USB-C port.
Technical Specifications
| Model | IPC-S20EP-10M0S |
| Image Sensors | 2 x 1/3" progressive CMOS (fixed lens + pan & tilt lens) |
| Resolution | 5MP (2880 x 1620) per lens |
| Lens | 3.6 mm |
| Field of View | 88° (H), 47° (V), 107° (D) |
| Pan & Tilt Lens | 355° pan, -5° to 80° tilt |
| Fixed Lens | 0-355° pan, 0-15° tilt (manual) |
| Night Vision | Up to 15 m |
| Video | H.265 / H.264, up to 15 fps, 8x digital zoom |
| Audio | Built-in mic and speaker, two-way audio |
| Wi-Fi | Dual-band Wi-Fi 6: 2.4 GHz (IEEE 802.11b/g/n/ax), 5 GHz (IEEE 802.11a/n/ac/ax) |
| Wired | Ethernet port |
| Protocols | ONVIF |
| Storage | microSD up to 512 GB, IMOU Cloud, NVR |
| Power | DC 5 V 1.5 A (USB-C), < 7.5 W |
| Operating Environment | -10°C to +45°C, < 95% RH |
| Dimensions | 77.4 x 77.4 x 106.8 mm |
| Weight | 0.21 kg |
What's in the Box
Camera, power adapter, power cable, screw package, mounting plate, installation position map, quick start guide.
📄 Datasheet: Download the official IMOU Ranger 2 Dual 10MP datasheet (PDF)
