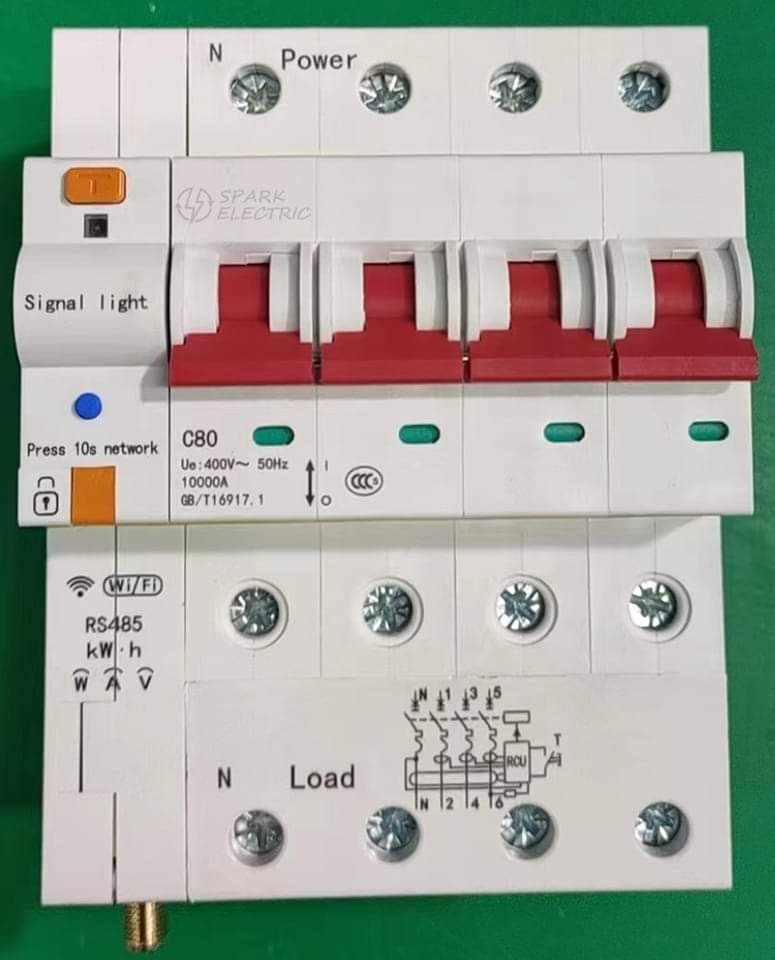

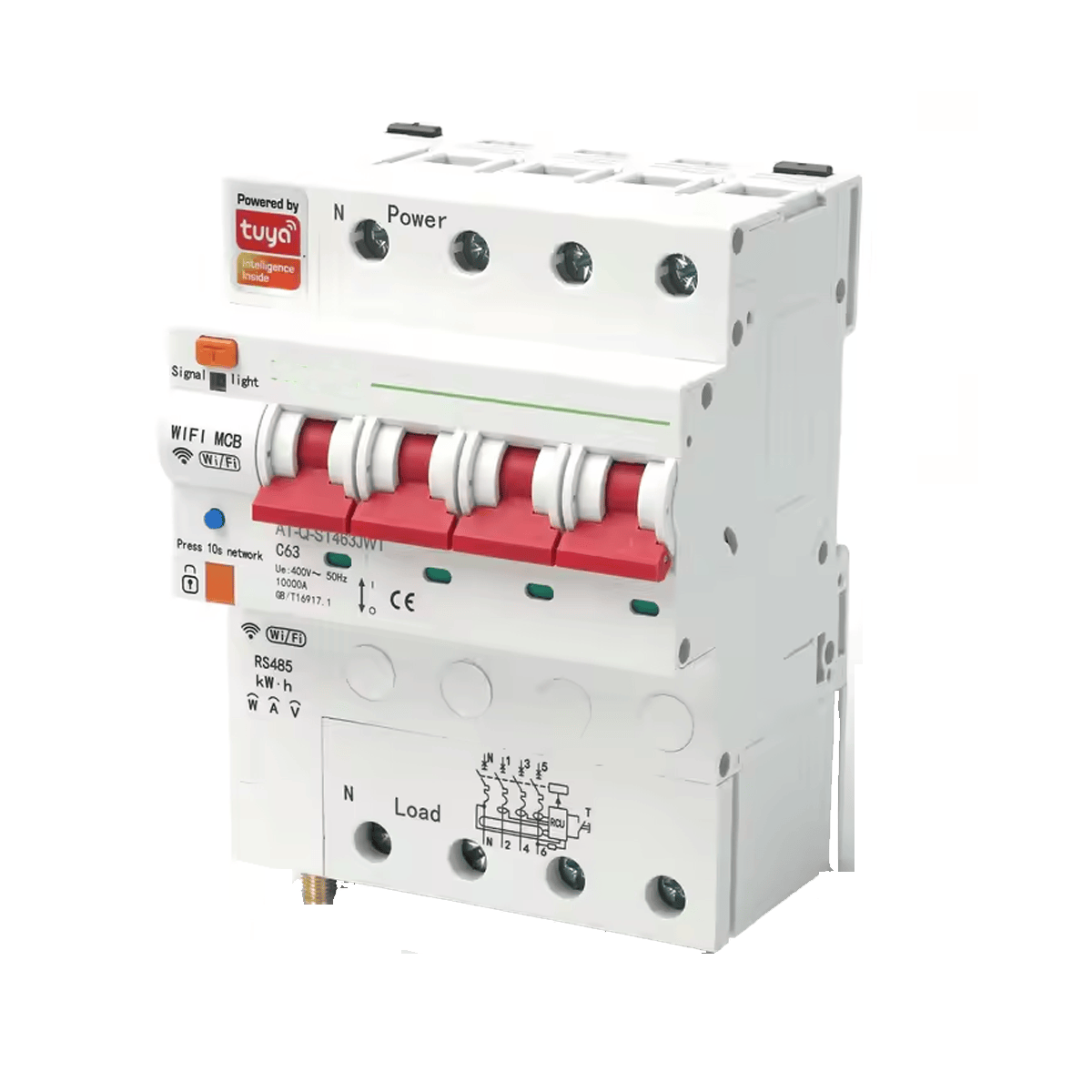

Smart Breaker 4 Pole (Handle) (90mm / 100A) (Earth Leakage/Energy Meter)

Smart Breaker 4 Pole (Handle) (90mm / 100A) (Earth Leakage/Energy Meter)

Number OF Poles: 3P+N
Maximum Frame Current: 100A
Power Supply Mode: common power supply, with gateway
Short Circuit Breaking Capacity: Icn=Ics=10KA
Mechanical Life > 10000 times
Electrical Life > 6000 times
Trip Type: Type C
Electricity Metering Accuracy: 1.0 class

Low Current Protection, High Current Protection, High Voltage Protection, Low Voltage Protection, Power Protection.

1. Remote opening and closing
2. Can monitor power, voltage, current, power, temperature, and other grid parameters
3. It can protect the voltage, and overload current. Parameters such as temperature and power limit can be Protection value settings and function settings
4. And remote APP. Remote operation and parameter setting.
