EZVIZ Smart Door Lock | L2S

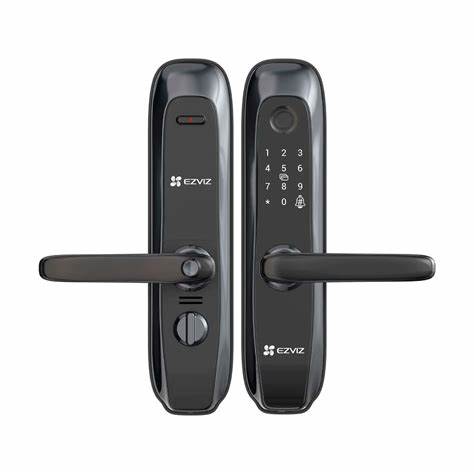

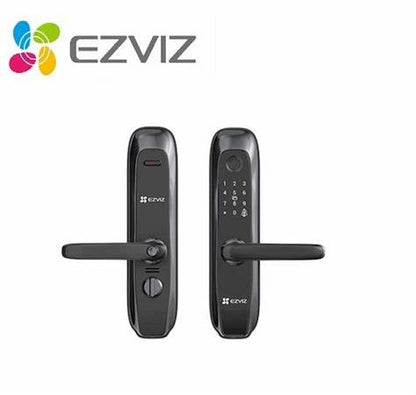

The EZVIZ L2S (CS-L2S-11FCP) is a smart fingerprint door lock with an aluminium-alloy panel and a mechanical lock body, made for wooden and metal doors 40 to 110 mm thick. It opens with a fingerprint, a passcode, a proximity card or an emergency mechanical key, and connects to the EZVIZ app through its included gateway over Zigbee 3.0.

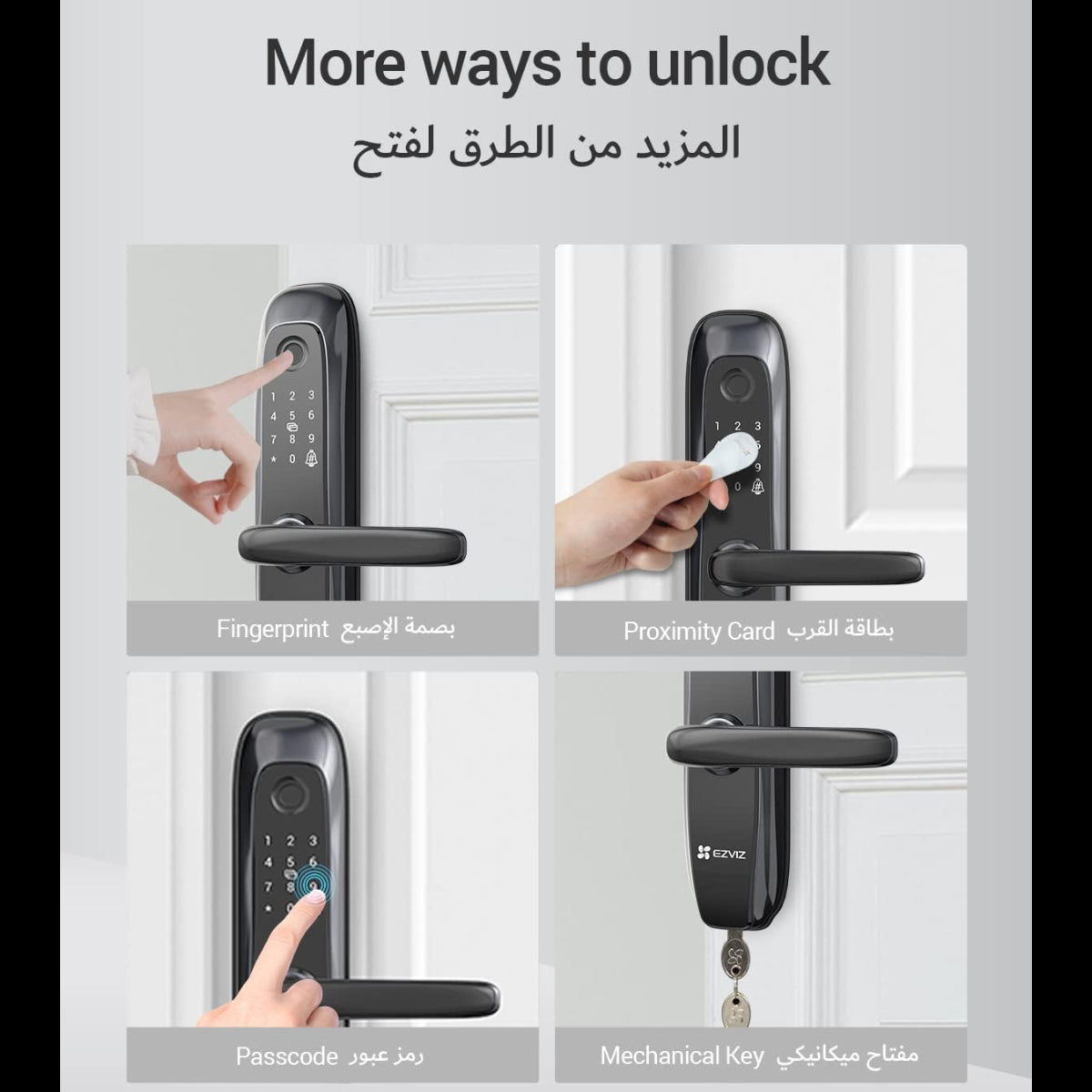

Four ways to unlock: Use your fingerprint, enter a passcode, tap a proximity card, or use the mechanical key in an emergency. The lock stores up to 50 fingerprints, 50 passcodes and 50 EZVIZ cards, so every family member can have their own access.
Secure fingerprint reading: A semiconductor fingerprint sensor reads prints accurately. After 5 failed unlock attempts in a row, the lock disables itself for 3 minutes to stop guessing attempts.
Passcodes for visitors: Anti-peeping virtual passwords let you type extra digits around your real code so nobody can copy it by watching. You can also create temporary passcodes in the EZVIZ app for a babysitter or guest.
Built-in doorbell and app alerts: Visitors can ring the built-in doorbell. The EZVIZ app sends real-time alerts and keeps a log of when the door was opened, so you can check from anywhere.
Auto-lock and extra locking: The L2S locks automatically after the door closes. From inside you can double-lock it by lifting the indoor handle, and a handle safety lock helps prevent children from opening the door.

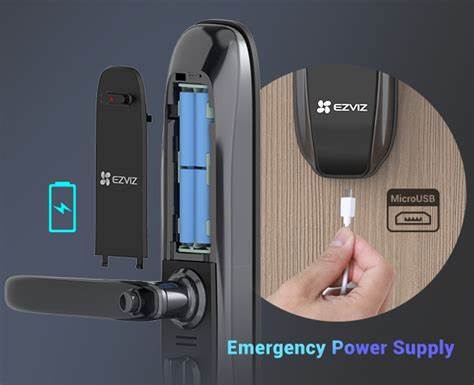

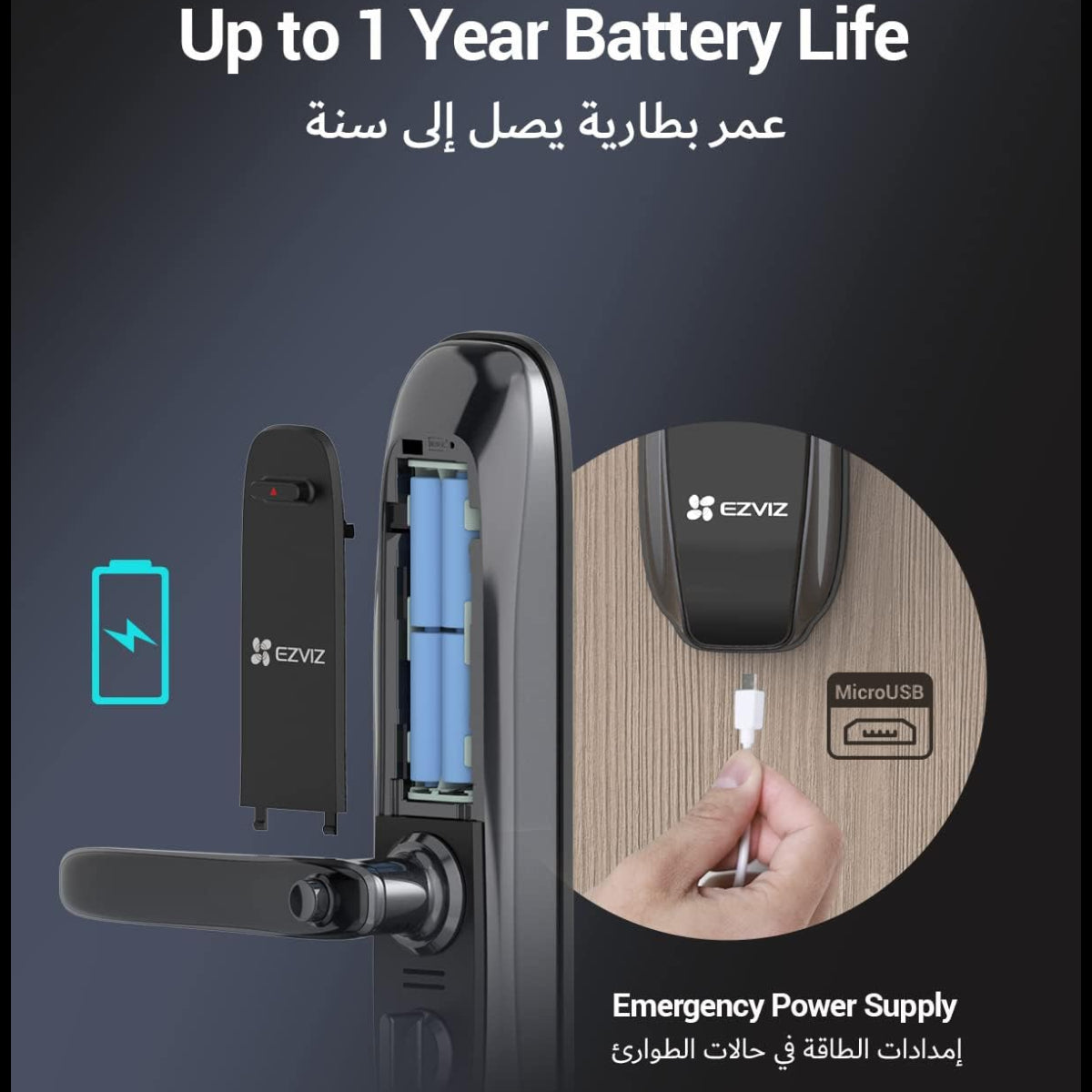

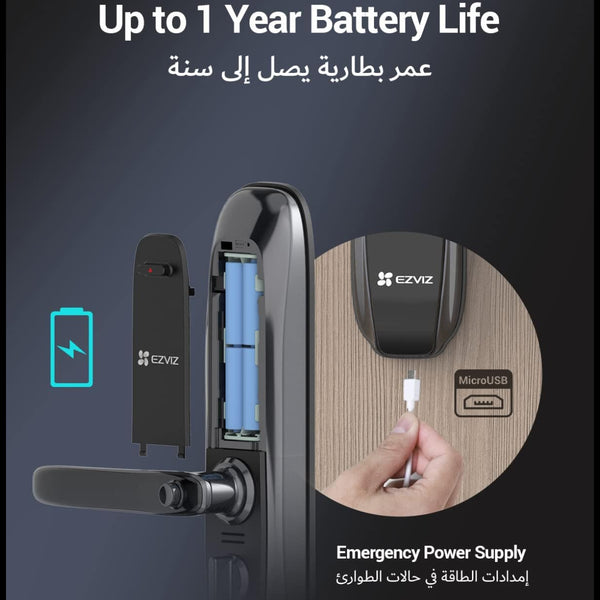

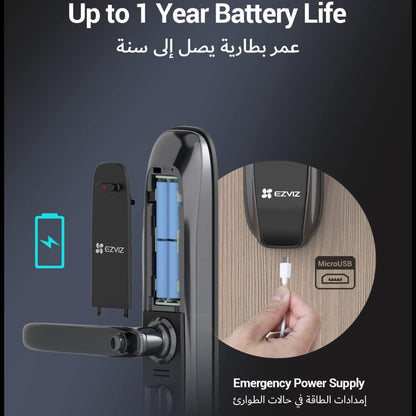

Battery power with emergency backup: Four 1.5 V AA alkaline batteries power the lock for up to one year, based on 10 openings per day. A low-battery alarm warns you in time, and if the batteries run out you can connect a power bank to the Micro-USB port to open the door.

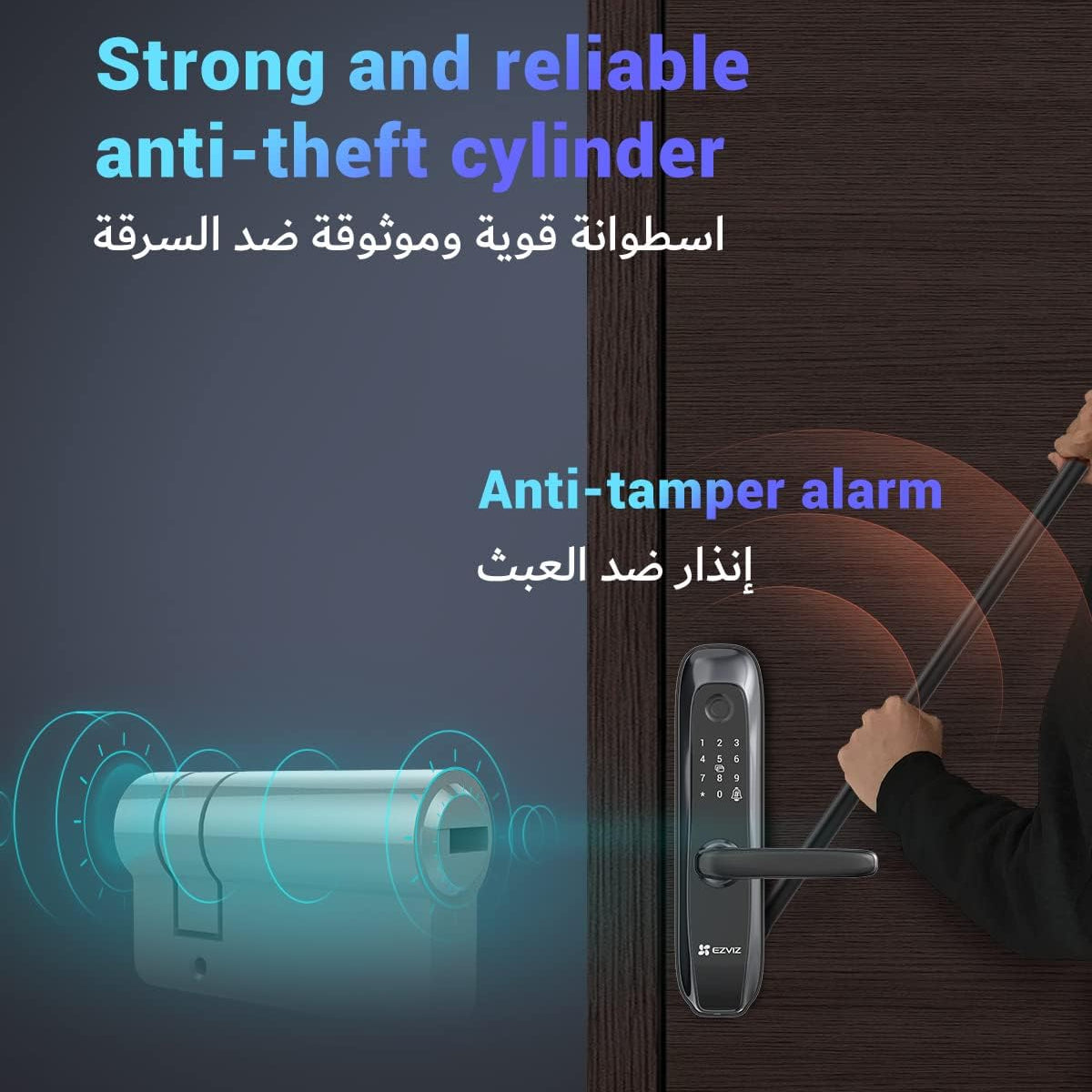

Anti-theft design: A C-grade lock cylinder resists forced opening, and the anti-tamper alarm sounds a loud siren if someone tries to remove the lock.
Works with
Wooden and metal (iron) doors 40 to 110 mm thick (standard wooden doors 40 to 55 mm, standard iron doors 55 to 75 mm). The handle can be set up for right-handed or left-handed doors.
Good to know
The lock connects over Zigbee 3.0 through the gateway included in the box, not directly to Wi-Fi. It runs on four AA alkaline batteries (included); the emergency power bank is not included.
Technical Specifications
| Model | CS-L2S-11FCP |
| Unlock Methods | Fingerprint, passcode, proximity card, mechanical key |
| Fingerprints | Up to 50 |
| Passcodes | Up to 50; anti-peeping virtual passwords; temporary passcodes via EZVIZ app |
| Proximity Cards | Up to 50 EZVIZ cards |
| Fingerprint Sensor | Semiconductor |
| Communication | Zigbee 3.0 (gateway included) |
| Panel Material | Aluminium alloy |
| Panel Size | 307 × 74 × 32 mm |
| Lock Body | Mechanical lock body |
| Lock Cylinder | C grade |
| Lock Face Plate | Standard 240 × 24 mm |
| Strike Plate | Wooden door 30 × 218 mm; iron door 30 × 260 mm |
| Door Thickness | 40 to 110 mm |
| Door Type | Wooden and iron doors |
| Safety Functions | Auto-lock, indoor double lock, handle safety lock, anti-tamper alarm, 3-minute lockout after 5 failed attempts |
| Doorbell | Built-in |
| App Functions | Real-time alerts, door activity log, user access management, temporary passcodes |
| Power | 4 × 1.5 V AA alkaline batteries |
| Battery Life | Up to 1 year (10 openings per day) |
| Emergency Power | Micro-USB power bank |
| Operating Temperature | -25 °C to 70 °C |
What's in the Box
L2S lock (front and rear panels), lock body, gateway, 4 × AA alkaline batteries, 2 × proximity cards, 2 × mechanical keys, square rod, drilling template, standard screw kit, lock body screw kit, quick start guide.
📄 Datasheet: Download the official EZVIZ L2S datasheet (PDF)
