Sonoff-C NSPanel Pro Gen2 Smart Home Control Panel with 2-Channel Relay (86 Type) | NSPanel86PB-Relay

Sonoff NSPanel Pro Gen2 Smart Home Control Panel with 2-Channel Relay (86 Type) | NSPanel86PB-Relay

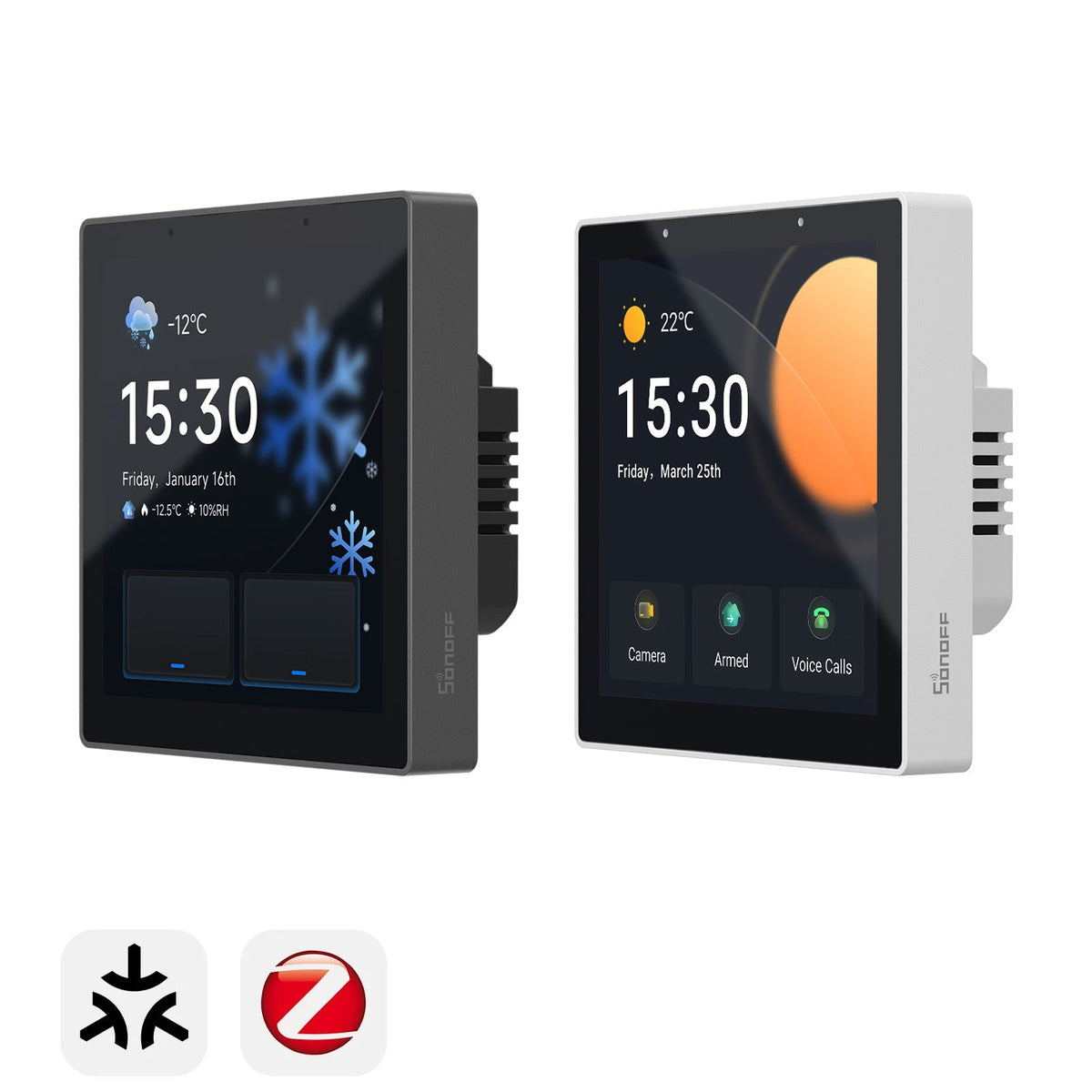

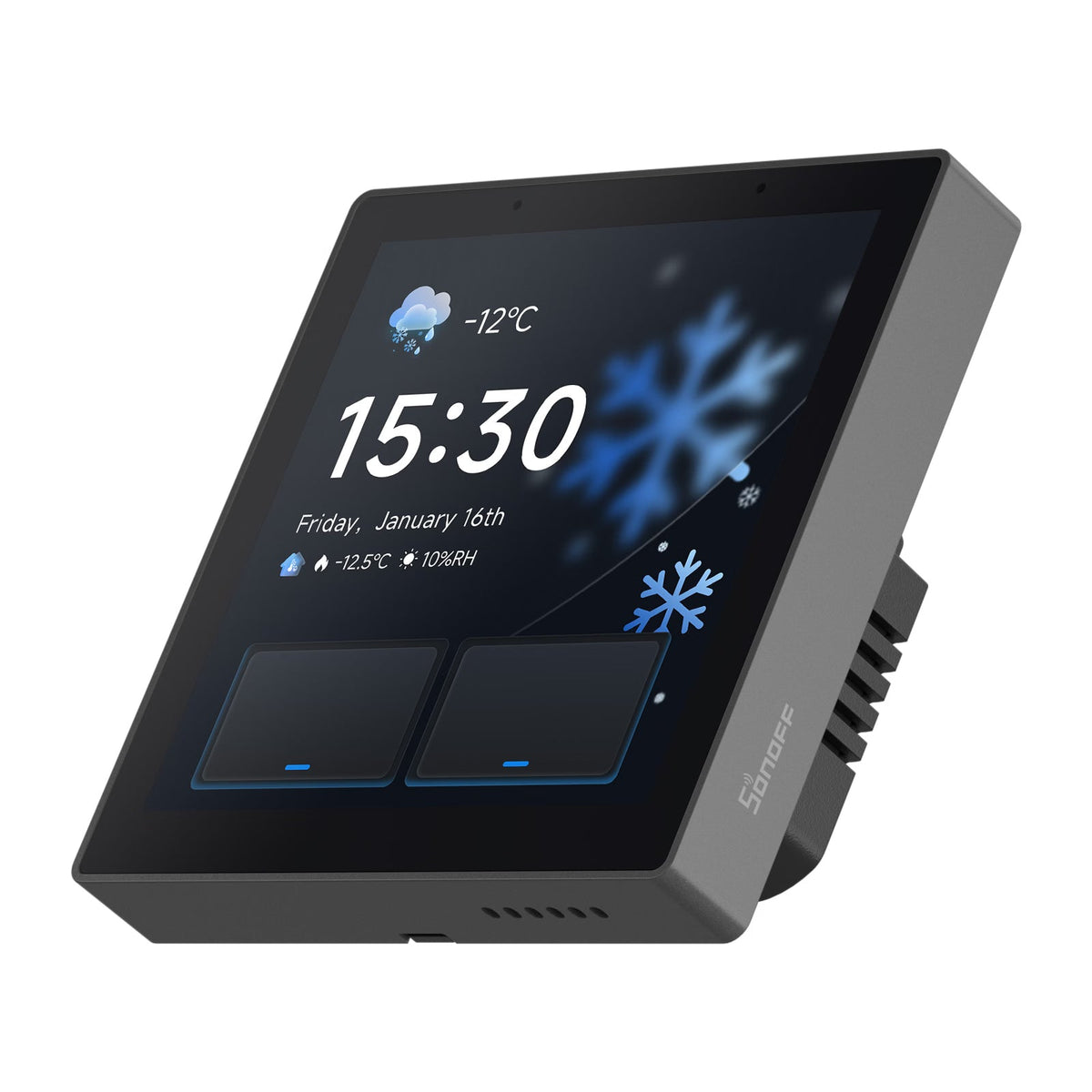

The SONOFF NSPanel Pro Gen2 is an 86-type wall touchscreen that combines a smart home control panel, a built-in Zigbee 3.0 gateway, a Matter bridge and a 2-channel relay in one unit. It replaces a traditional 2-gang wall switch, so you get direct control of two lighting circuits plus a dashboard for your whole smart home.

Color: Dim Gray (NSPanel86PB-Relay)

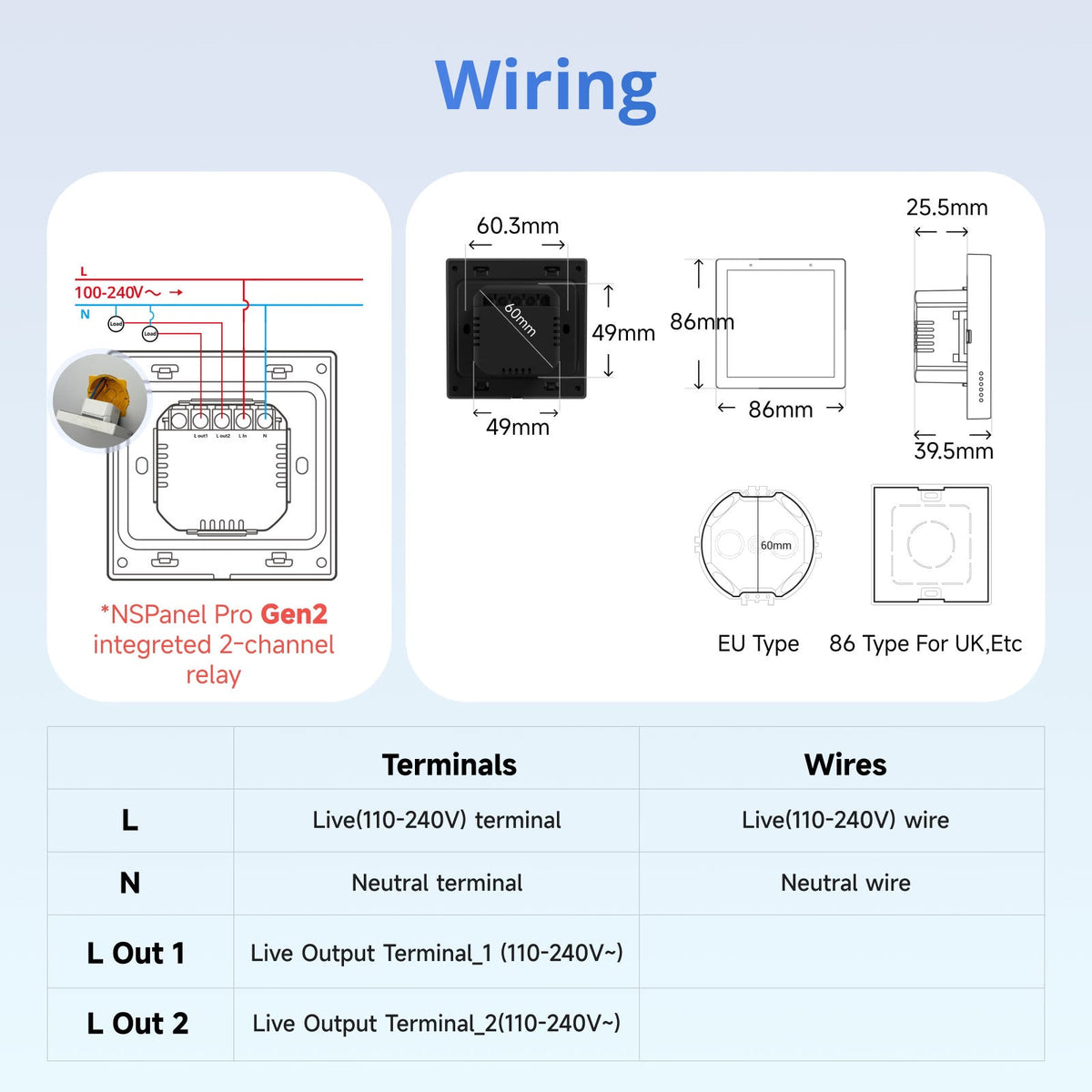

2-Channel Relay Built In: The integrated relay controls two lighting circuits (up to 5A per channel, 10A total resistive load) and replaces a standard 2-gang wall switch on the existing wiring (L, N, L Out1, L Out2).

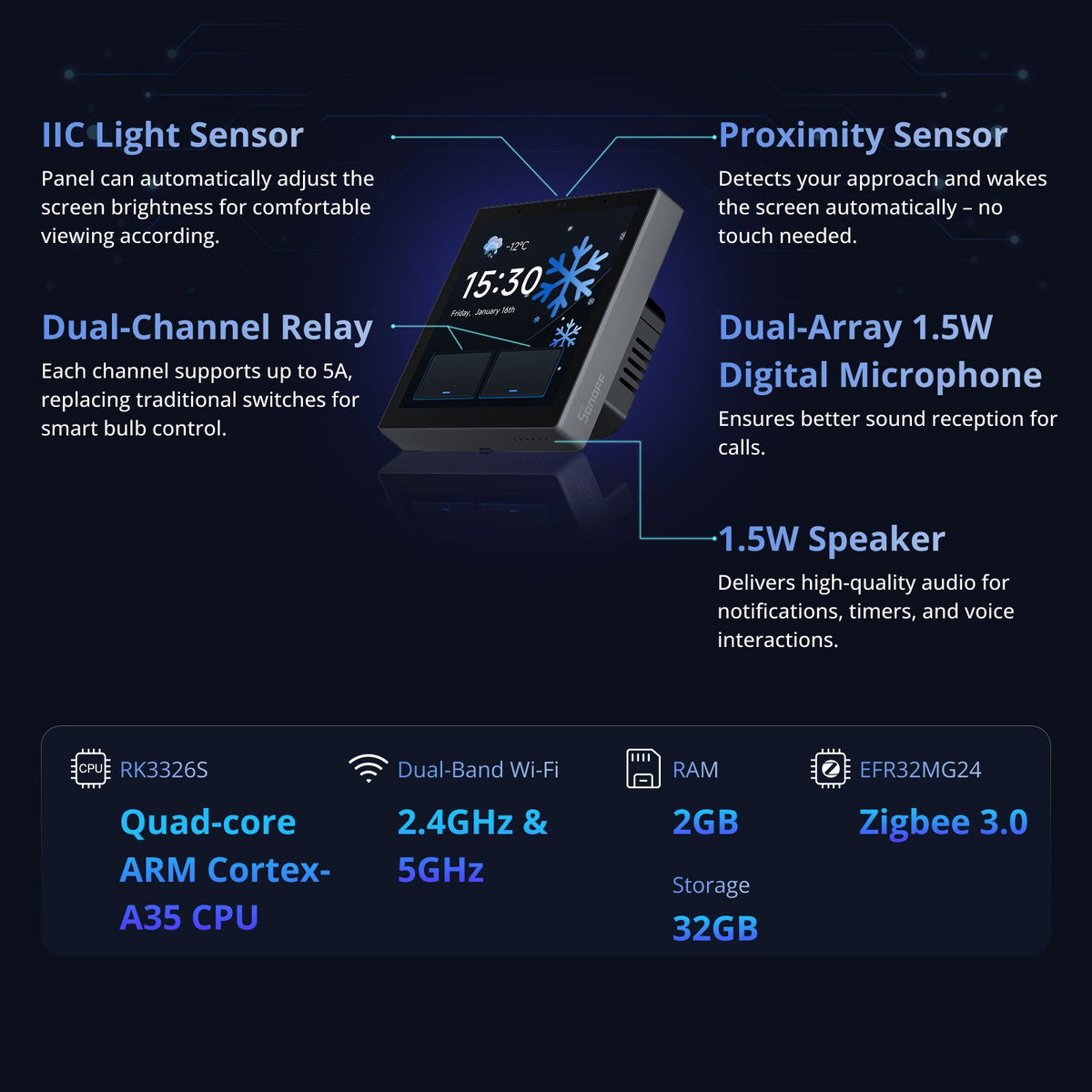

Powerful Hardware: A quad-core ARM Cortex-A35 processor (Rockchip RK3326-S) with 2GB RAM and 32GB storage drives a 3.95-inch 480 × 480 capacitive touchscreen. A proximity sensor wakes the screen as you approach, and a light sensor adjusts the brightness automatically.

Matter Bridge: The built-in Matter bridge exposes Zigbee, eWeLink Wi-Fi and Home Assistant devices to Apple Home, Google Home, Amazon Alexa and other Matter platforms.

Zigbee 3.0 Gateway: A Silicon Labs EFR32MG24 chip lets the panel add and control Zigbee sensors, switches, lights and other devices directly, without a separate hub.

Home Assistant & Apps: The Home Assistant app can be installed through F-Droid without rooting, so the panel can be used as a wall-mounted Home Assistant dashboard. Third-party apps can be installed the same way.

Comfort & Energy: Smart thermostat control, energy monitoring, scenes, security modes and camera viewing are available from the screen, and the 1.5W speaker with dual microphones supports voice features.

Who it's for / Works with: Anyone who wants a wall-mounted smart home controller in place of a 2-gang light switch. It works with the eWeLink app, Home Assistant, and Apple Home, Google Home and Alexa through Matter.

Good to know: Fits standard 86-type wall boxes (86 × 86 mm). A neutral wire is required (L and N plus the two load wires). The relay is meant for lighting circuits, not high-power loads. Installation involves mains wiring and should be done by a qualified electrician.

Technical Specifications

📄 User manual: Download the official SONOFF NSPanel Pro Gen2 (NSPanel86PB-Relay) user manual (PDF)
