SONOFF NSPanel Smart Panel
The SONOFF NSPanel is a versatile smart scene wall switch that combines physical control buttons with a touch-sensitive display, enabling seamless management of various smart home devices. Below are its detailed specifications:
Display:
◆ Size: 3.5-inch capacitive touchscreen
◆ Resolution: 480 x 320 pixels
Power Specifications:
◆ Input Voltage: 100-240V AC, 50/60Hz, 4A Max
◆ Output Voltage: 100-240V AC, 50/60Hz
◆ Total Output: Up to 4A
Load Capacity:
◆ LED Load:
◆ 220V: 300W per channel, 600W total
Wireless Connectivity:
◆ Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
◆ Bluetooth: BLE 4.2
Physical Dimensions:

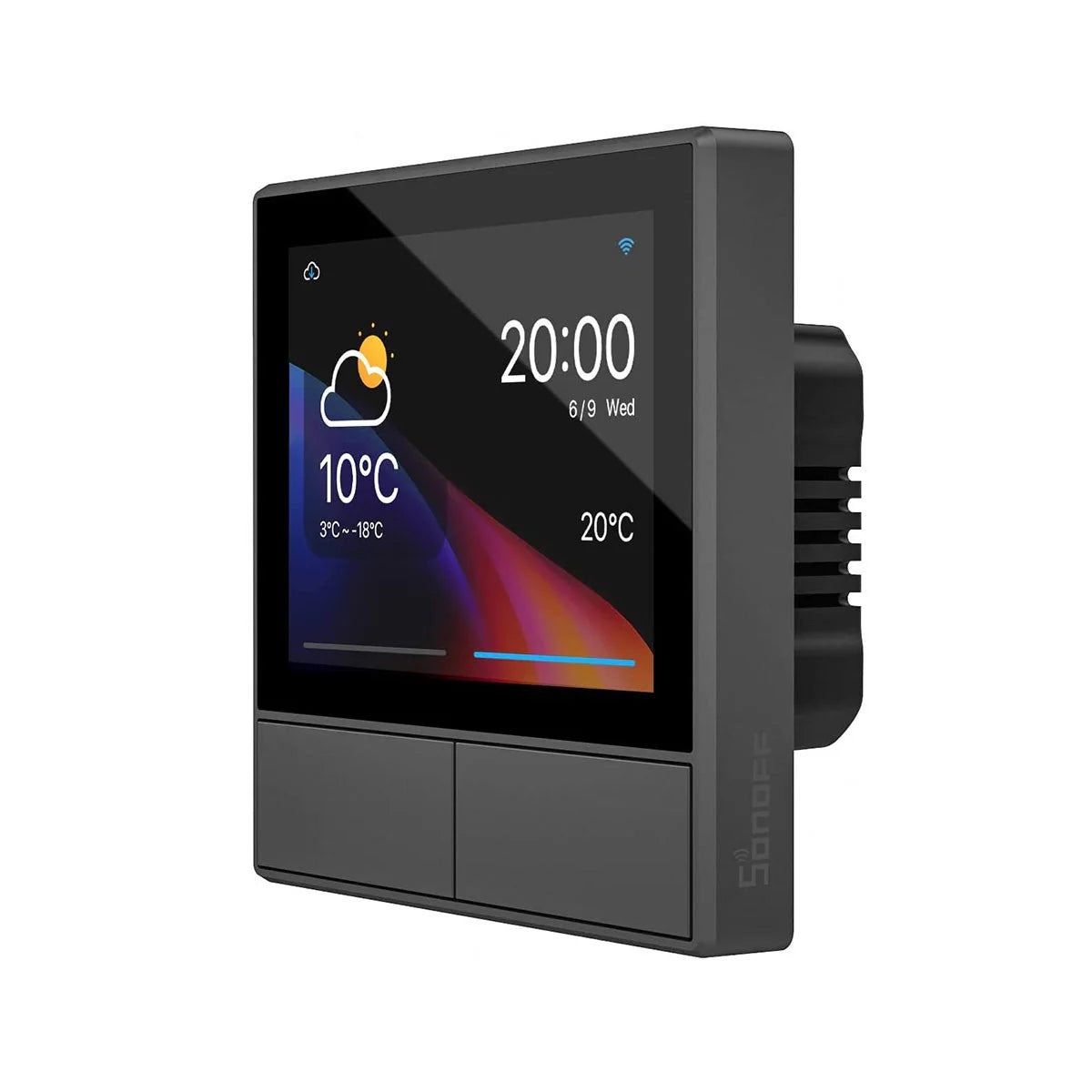

◆ EU Version: 86 x 86 x 41.7 mm

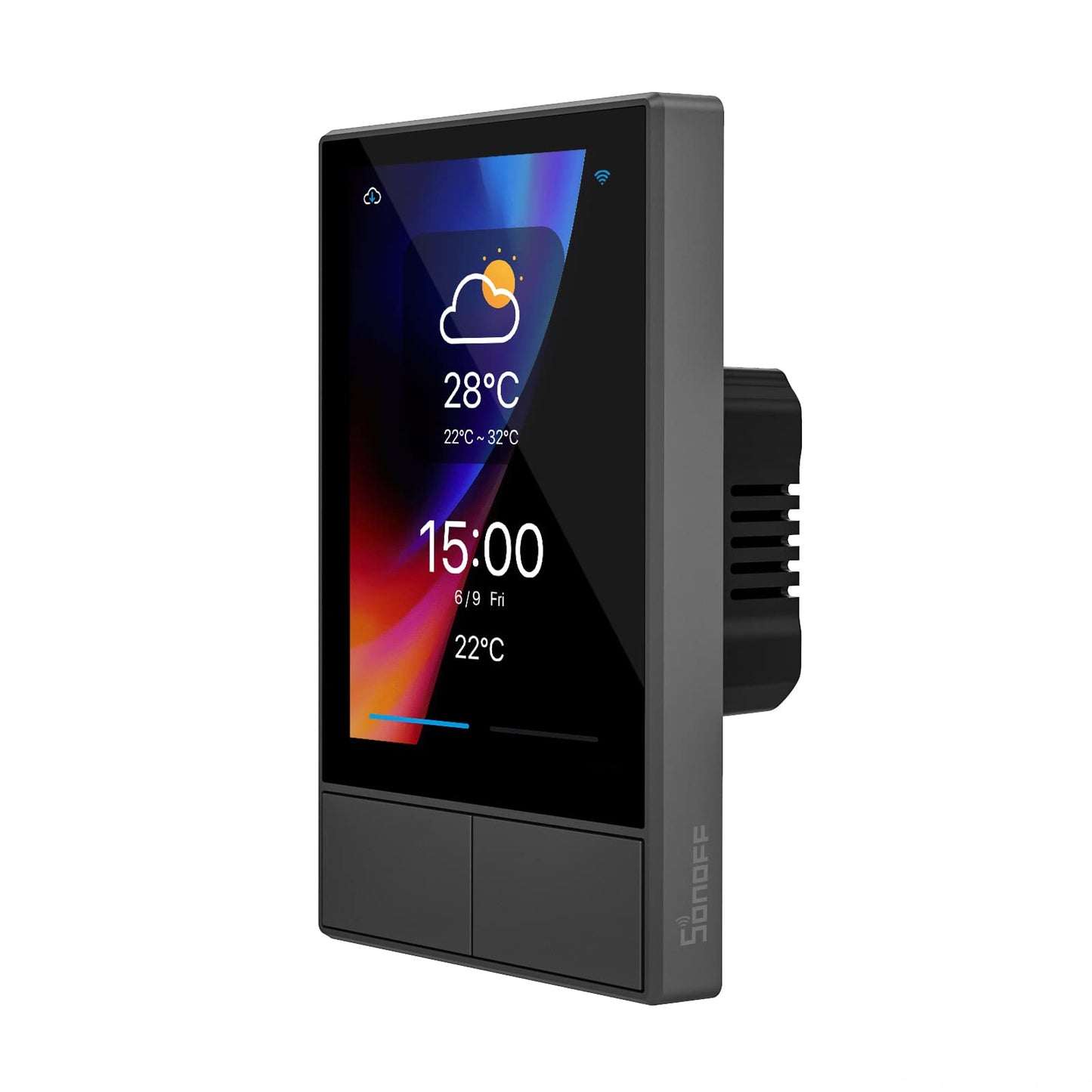

◆ US Version: 120 x 71 x 41.7 mm
Control Features:
◆ Dual-Channel Switches: Two independent physical buttons for direct device control.
◆ Touchscreen Interface: For managing connected devices and scenes.
◆ App Control: Remote management via the eWeLink app.
◆ Voice Control: Compatible with Amazon Alexa and Google Assistant for hands-free operation.
Additional Features:
◆ Thermostat Functionality: Built-in temperature sensor for climate control.
◆ Scene Customization: Create and activate smart scenes to automate device interactions.
For comprehensive installation instructions and further details, refer to the user manual.
