5 autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection
Up to 200Mbps full duplex bandwidth on each port
Compact size fits into any environment
Address learning and aging and data flow control for enhanced transmission
◆ Brand: Tenda
◆ Series: TE-S105
◆ Model Number: S105
◆ Color: White
◆ Country of Origin: China
◆ Hardware Platform: PC
◆ Batteries Included: No
◆ Product Dimensions: 5.18 × 2.24 × 8.2 cm
◆ Item Height: 3.23 inches
◆ Item Width: 0.88 inches
◆ Item Weight: 68 g
◆ S105 Unit
◆ Power Adapter (DC 9V / 0.6A)
◆ User Manual
|
Network standards |
IEEE 802.3, IEEE 802.3u , IEEE 802.3x |
| LED Indicator | 1* Power, 5* Link/Act |
| Interfaces | 5*10/100 Base-TX Ethernet ports (Auto MDI/MDIX) |
| Transmission media | Recommended: CAT5/5e UTP or better |

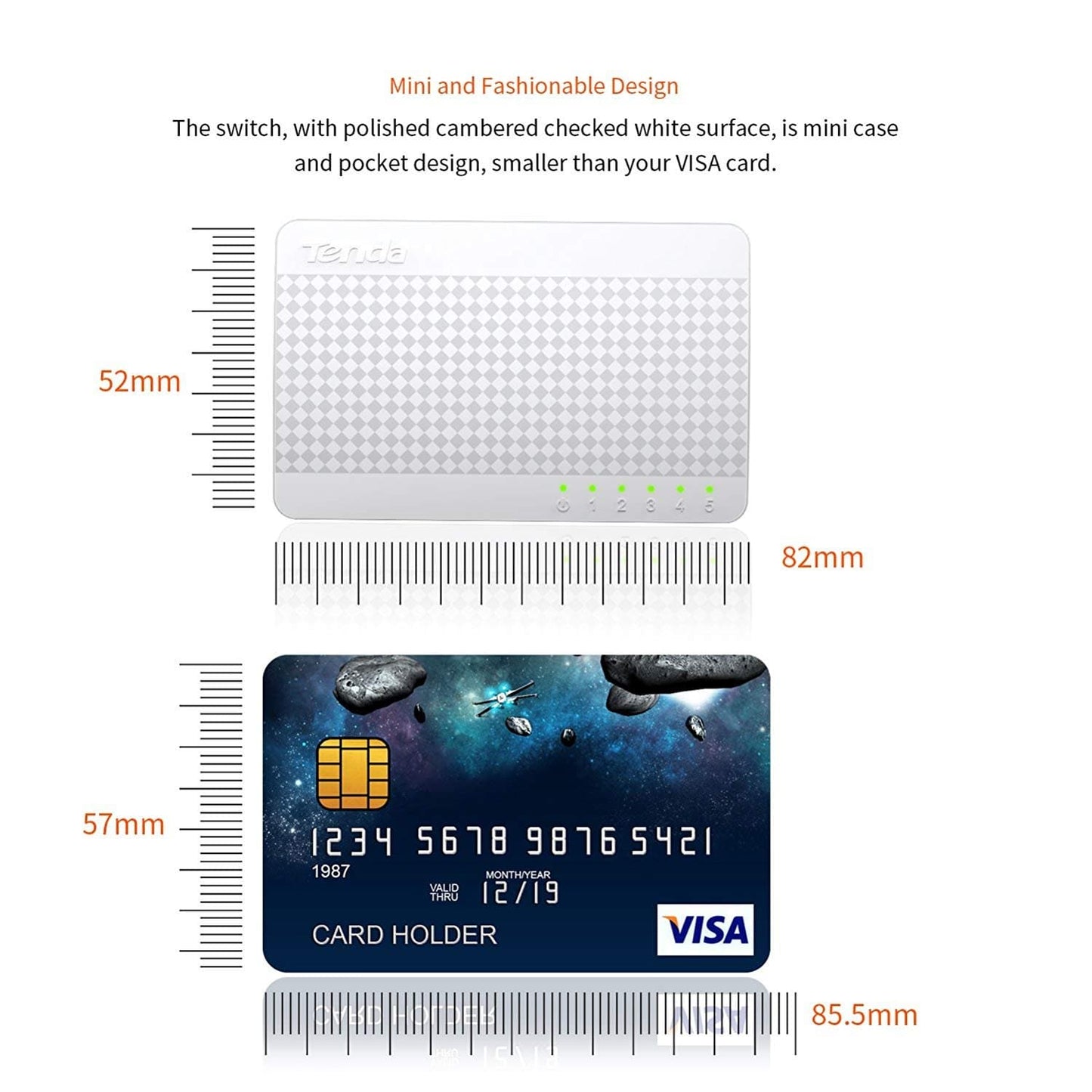

| Dimension | 82.0mmx52.0mmx22.3mm |
| Material | Plastic |
| Level of protection | ESD: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 1.0Gbps |
| Packet forwarding rate | 0.74Mpps |
| Buffer | 448K |
| MAC address table | 1K |
| Power | Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A ( External Power Adapter ) |
| Power consumption | Max:<1.6W |

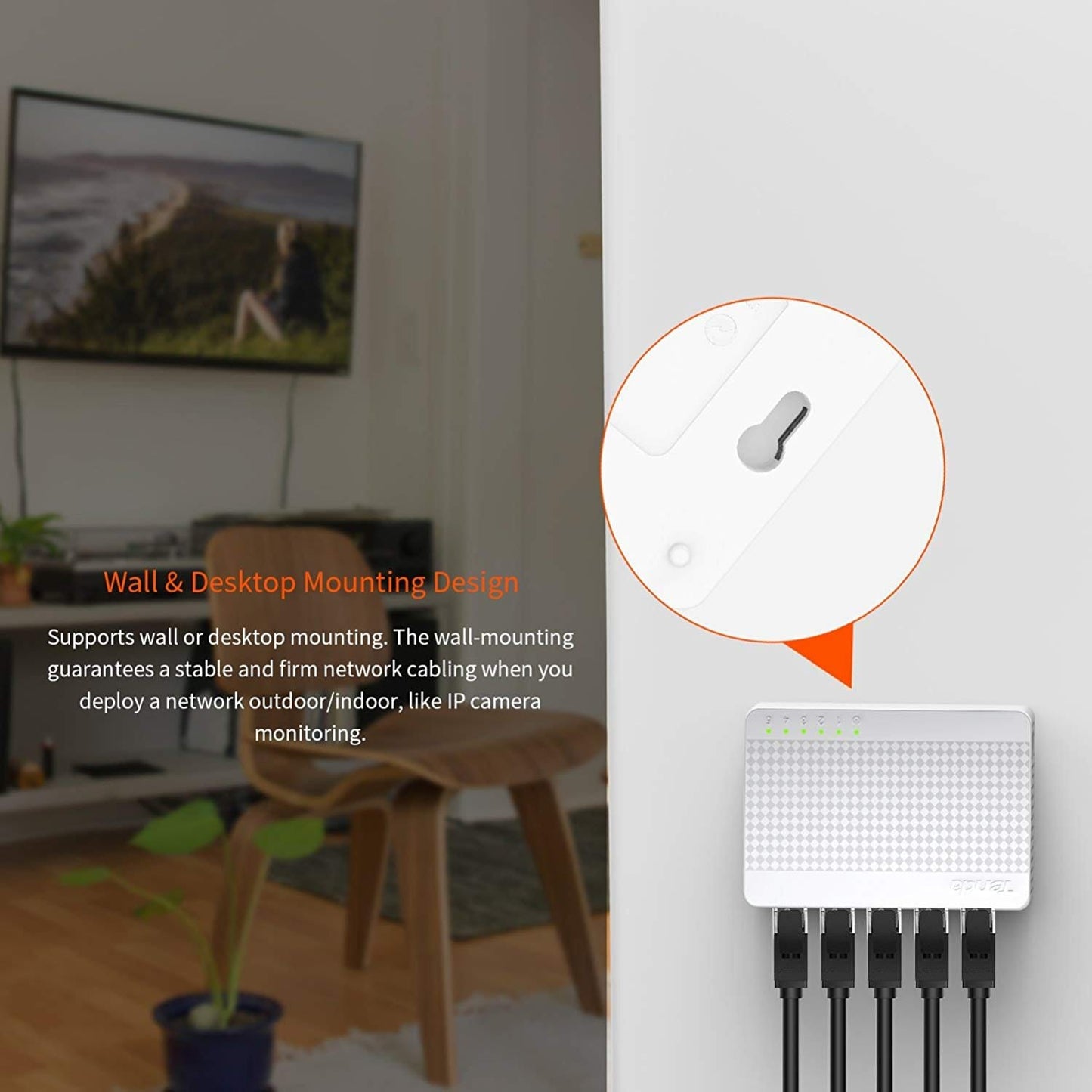

| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC address learning | Auto-Learning and Auto-Aging |
| Funtions | plug-and-play |
