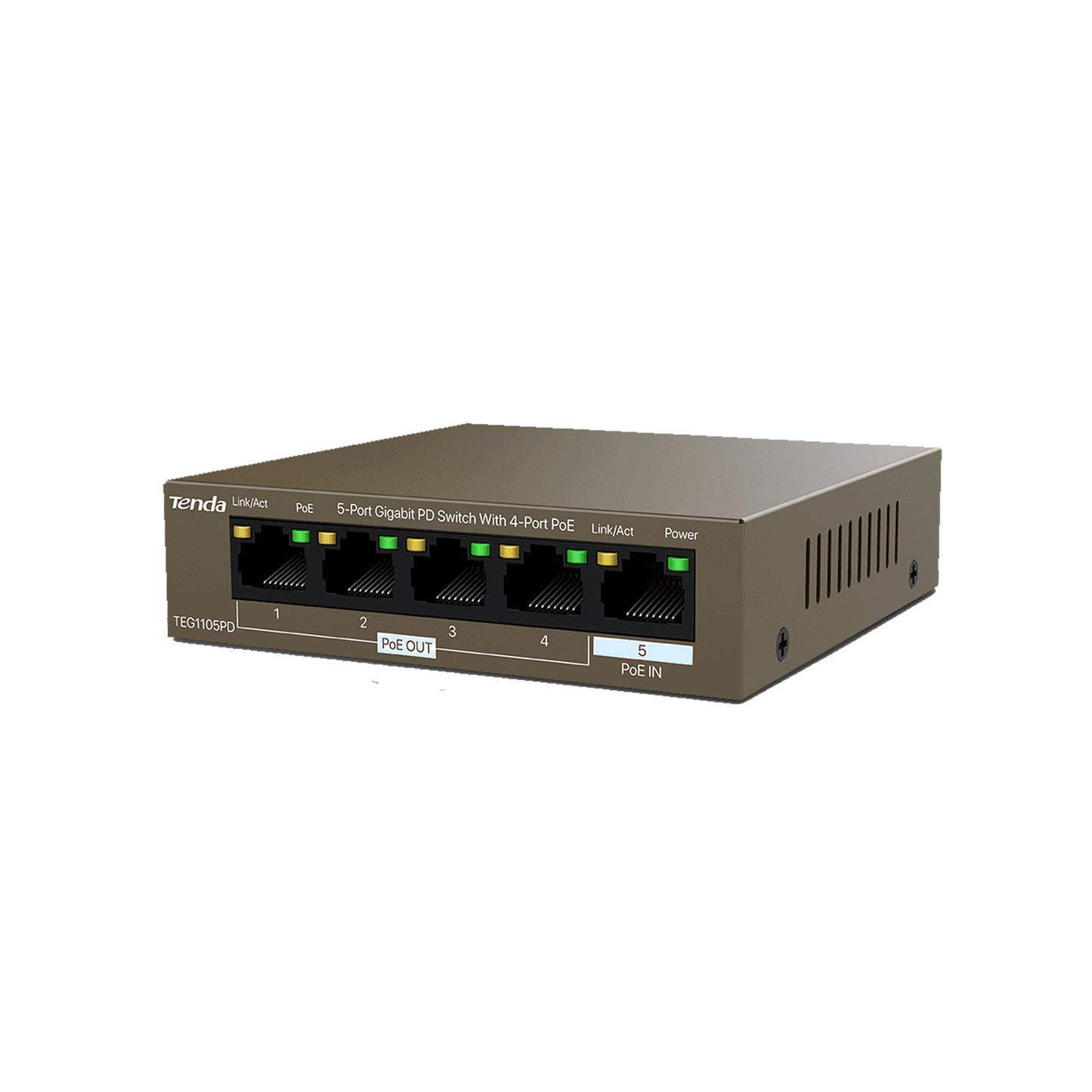

Tenda 5-Port Gigabit PD Switch With 4-Port PoE (Powered By POE Uplink) /TEG1105PD

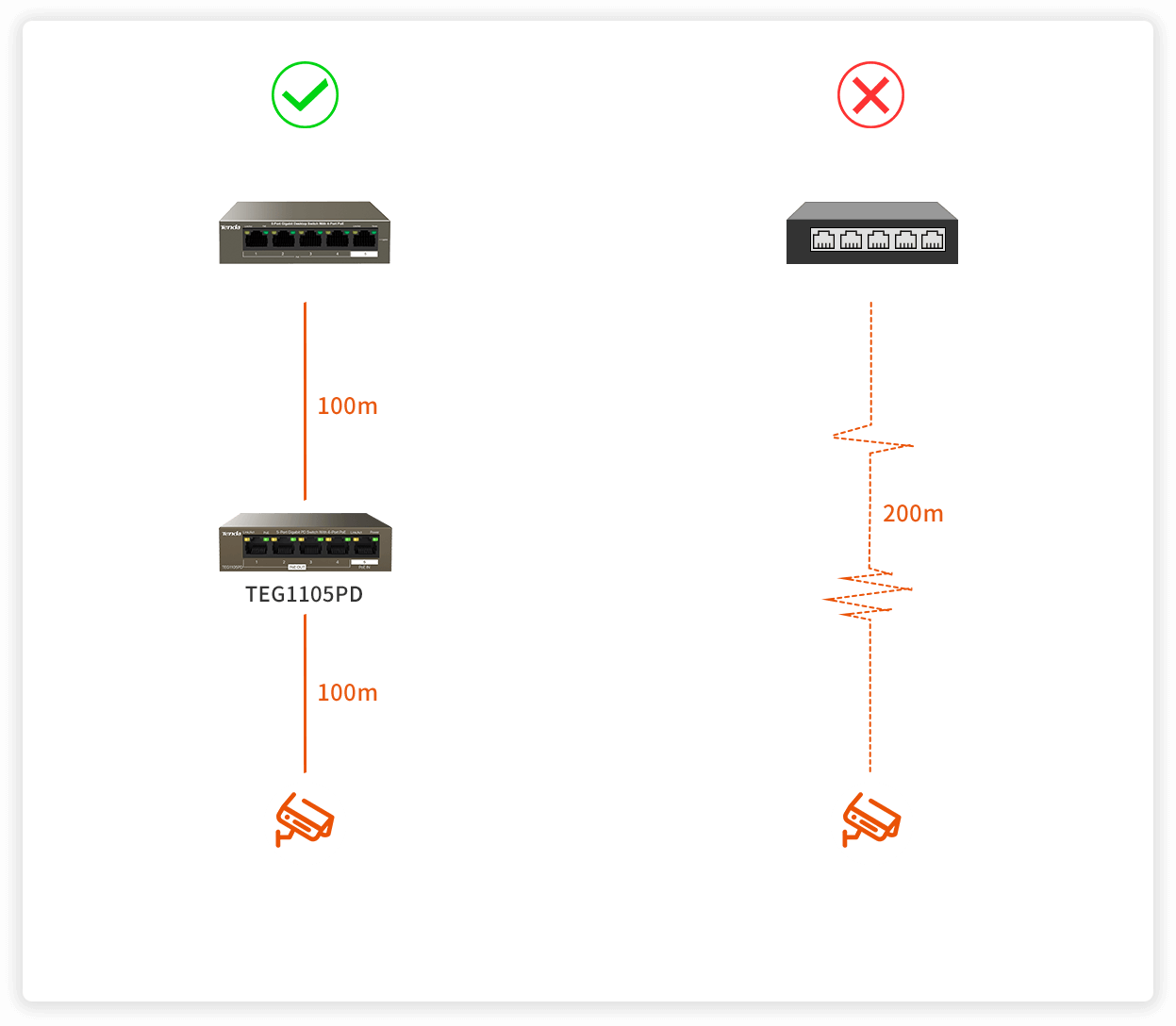

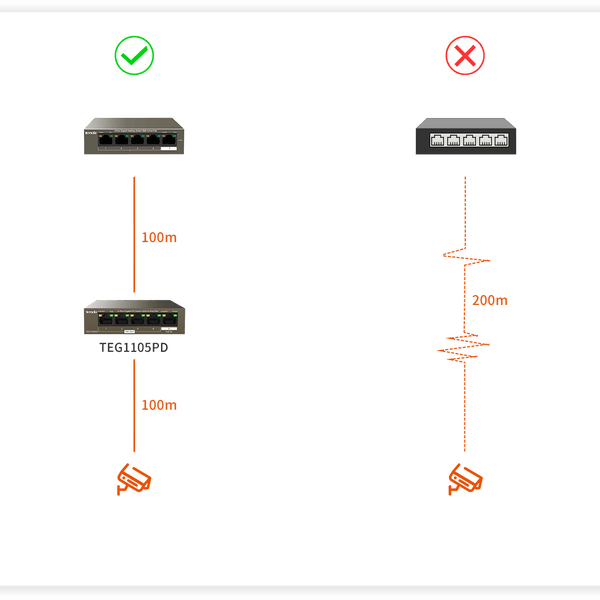

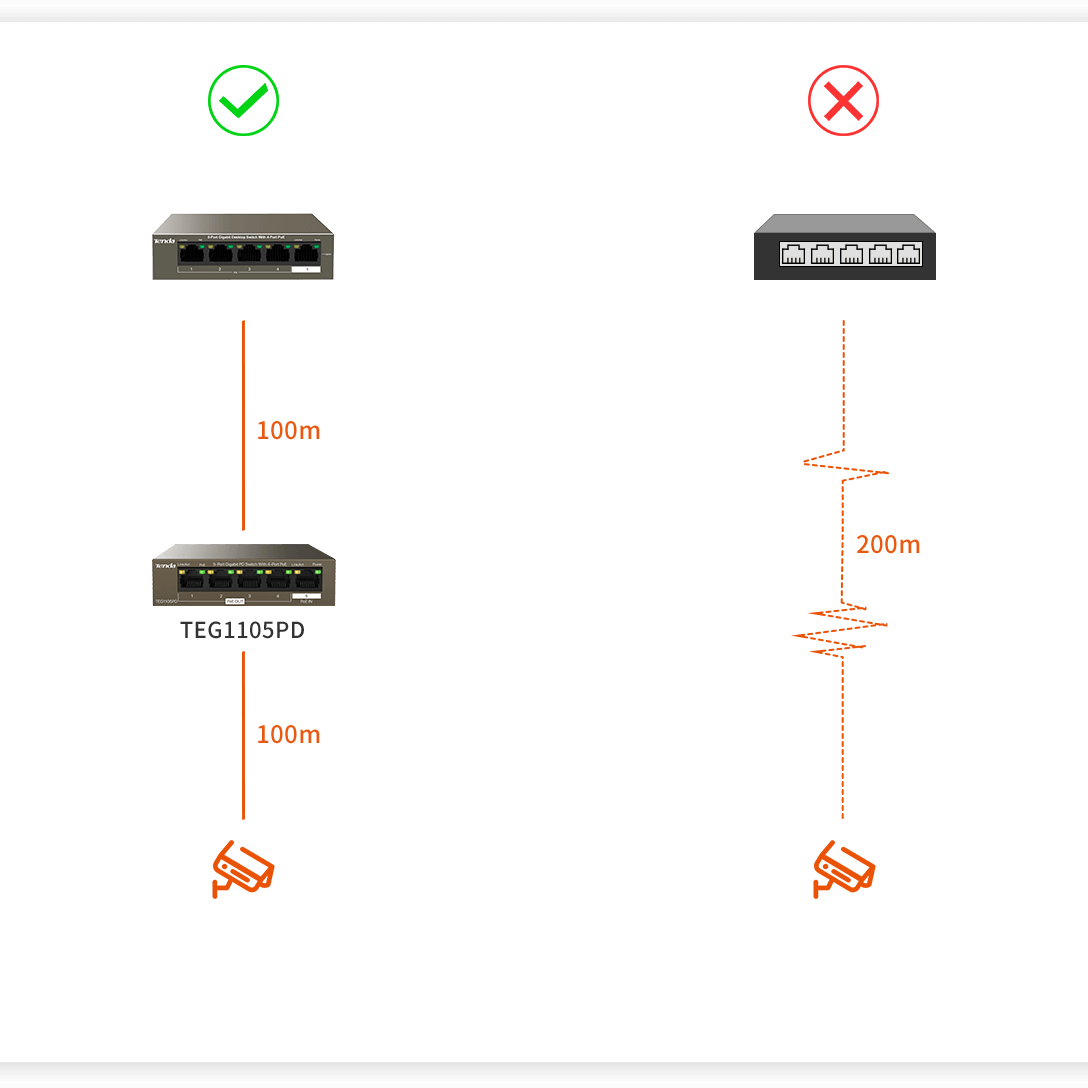

Featuring low cost, high performance and plug & play, the PoE switch TEG1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.

Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
LED Indicator	1* Power LED indicator 4* PoE LED indicators 5* Link/Act LED indicators
Interfaces	4*10/100/1000 Base-T Ethernet Ports(Data/PoE UT) 1*10/100/1000 Base-T Ethernet Port(Data/PoE IN)
Transmission media	Recommended: CAT5/5e UTP or better
Dimension	100.0 mm x 100.0 mm x 26.0 mm
Level of protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	10 Gbps
Packet forwarding rate	7.44Mpps
Buffer	1 Mb
MAC address table	2K
Jumbo frame	9K
PoE budget	Single port: AF: 15.4W
Power consumption	/
Input voltage	50-57V DC, 0.6A
Mounting	Desktop mounting: support Wall mounting: non-support Rack mounting : non-support
Environment	Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification	FCC、CE、RoHS
