Tenveo VA612-EX Video 4K 12x Optical Zoom PTZ Camera with Bluetooth Speakerphone Office Equipment Conference System

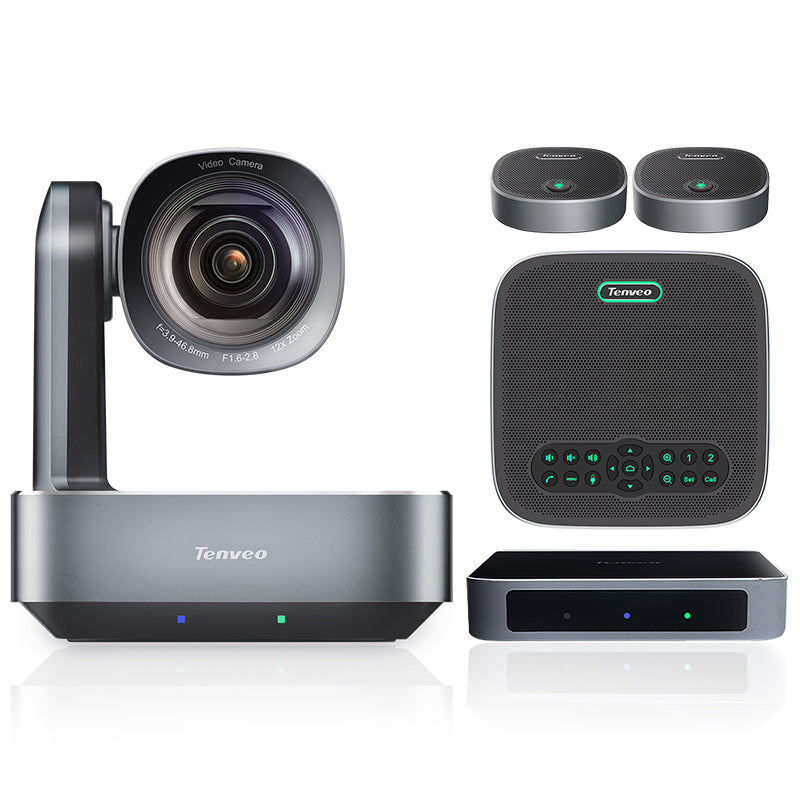

The Tenveo VA612-EX is a complete audio and video conferencing kit for medium to large meeting rooms. It combines a 4K PTZ camera with 12x optical zoom, a speakerphone with two expansion microphones and a hub, and it connects to a laptop or PC over USB to work with common video meeting software.
Features
4K PTZ camera with 12x optical zoom: A 1/2.8" SONY CMOS sensor records up to 4K at 30 fps, and the 3.9–46.8 mm lens zooms from a 70.82° wide view down to 6.48° for close-ups of a speaker or whiteboard. Focus and exposure can run automatically or be set by hand.
Pan, tilt and presets: The camera pans ±175° and tilts from -90° to +90°. You can save up to 255 preset positions (10 from the IR remote) to jump quickly between seats or areas of the room.

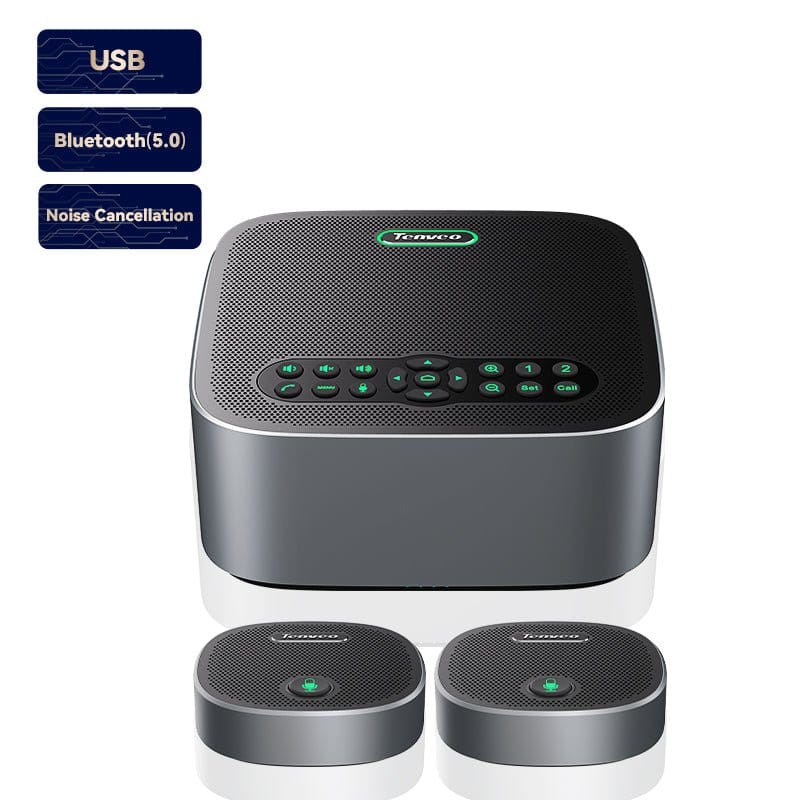

Speakerphone with expansion mics: The speakerphone has acoustic echo cancellation above 65 dB, and with its two expansion microphones the voice pickup range reaches up to 9 metres, so people at the far end of the table can be heard.

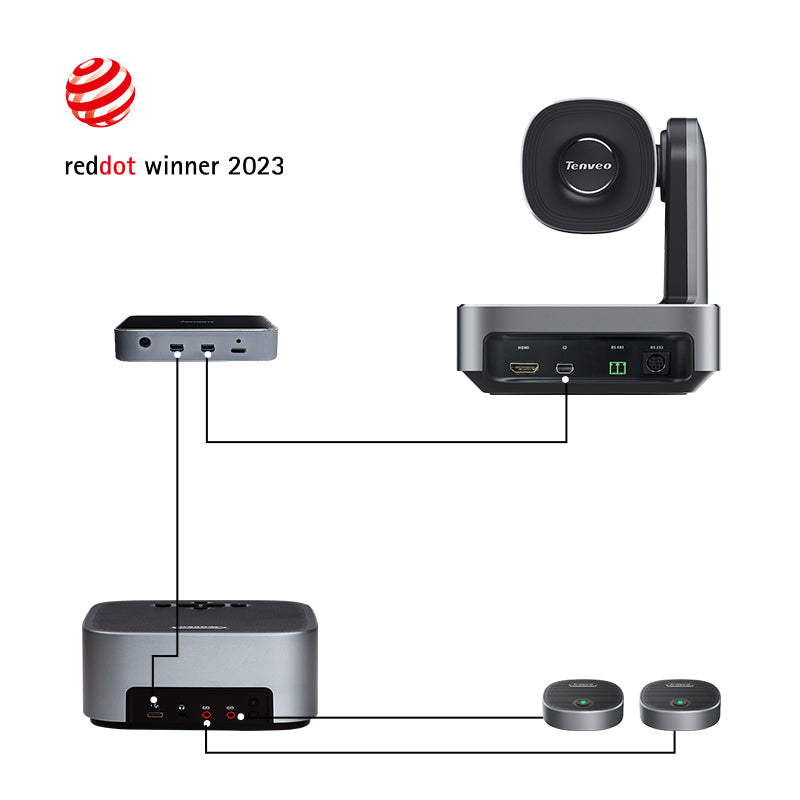

Hub and long cables: The hub has two DP ports, a USB Type-C port and a power input. A 3 m USB cable and two 5 m DP cables are part of the kit, which makes it easier to place the camera and speakerphone where they are needed.
Works with: Windows 7 or higher, macOS 10.10 or higher, Android and Linux (UVC required), with meeting software such as Zoom, Microsoft Teams and Skype.
Technical Specifications
| Brand | Tenveo |
| Model | VA612-EX |
| Kit | PTZ camera + speakerphone + hub + 2 expansion microphones |
| Image Sensor | 1/2.8" SONY CMOS, 8.29 MP effective |
| Optical Zoom | 12x |
| Lens | f = 3.9 mm – 46.8 mm |
| Aperture | F1.6 – F2.8 |
| Video Formats | 4K @ 30 fps; 1080P @ 60/50/30/25 fps; 720P @ 60/50/30/25 fps |
| Horizontal Angle | 70.82° (wide) – 6.48° (tele) |
| Focus / Exposure | Auto / Manual |
| Noise Reduction | 2D and 3D |
| Video Interfaces | HDMI, DP |
| Video Compression | H.264, H.265, MJPG, YUY2 |
| Control Protocols | VISCA, Pelco-D, Pelco-P |
| Baud Rate | 38400 / 9600 / 4800 / 2400 |
| Pan / Tilt Range | Pan ±175°, Tilt -90° to +90° |
| Pan / Tilt Speed | Pan 0.1 – 80°/s, Tilt 0.1 – 60°/s |
| Presets | Up to 255 (10 via IR remote) |
| Speakerphone AEC | >65 dB |
| Pickup Range | Up to 9 m with the 2 expansion microphones |
| Hub Interfaces | 2 × DP, 1 × power, 1 × USB Type-C |
| Cables | 1 × 3 m USB cable, 2 × 5 m DP cable |
| Operating Systems | Windows 7 or higher, Android, macOS 10.10 or higher, Linux (UVC required) |
| Camera Dimensions | 171.6 × 192.6 × 171.6 mm |
| Hub Dimensions | 98 × 98 × 20 mm |
