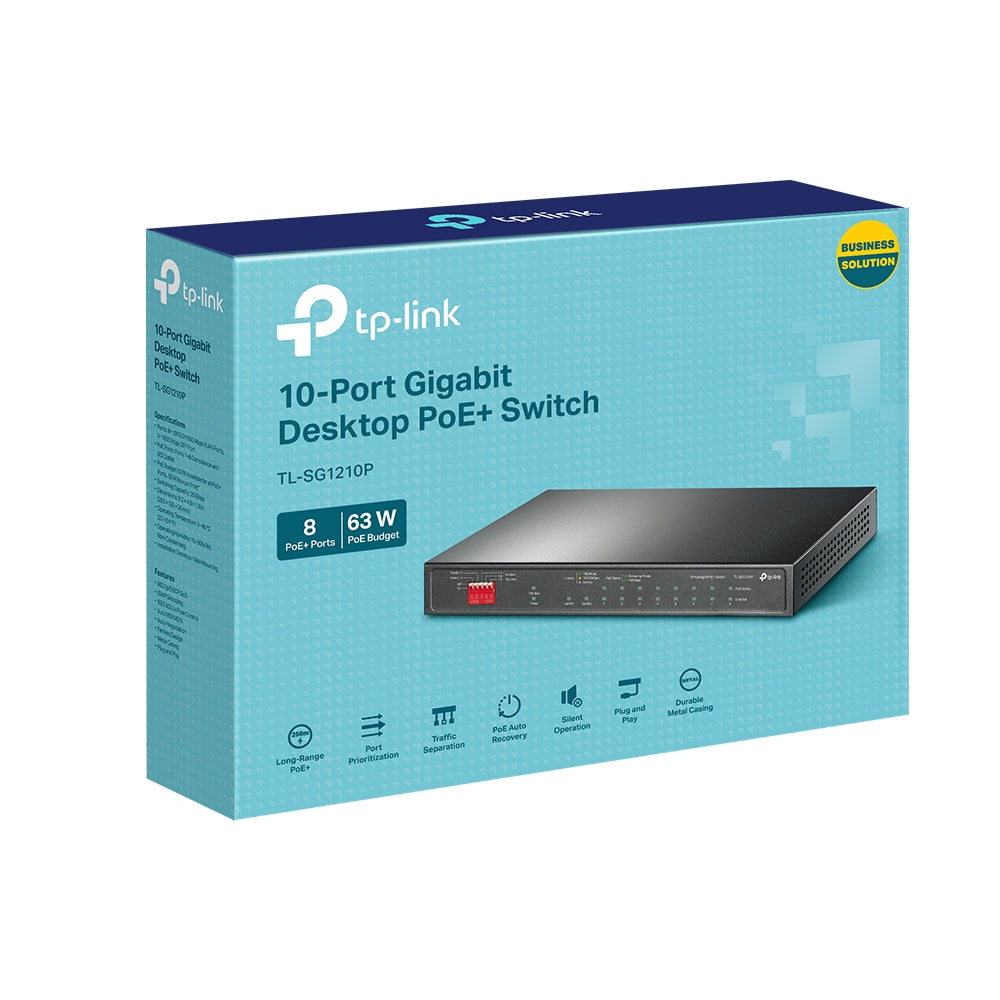

TP-Link® 10-Port Gigabit Desktop PoE Switch with 8-Port PoE+ and SFP, 63W | TL-SG1210P
TP-Link® 10-Port Gigabit Desktop PoE Switch with 8-Port PoE+ and SFP, 63W | TL-SG1210P
Couldn't load pickup availability
TP-Link 10-Port Gigabit Desktop PoE Switch with 8-Port PoE+ and SFP, 63W | TL-SG1210P
The TP-Link TL-SG1210P is a plug-and-play 10-port Gigabit desktop switch with eight 802.3af/at PoE+ RJ45 ports, one extra Gigabit RJ45 port and one Gigabit SFP slot. It supplies up to 30 W per PoE port with a 63 W total PoE budget*, and adds hardware buttons for Extend, Priority, Isolation and PoE Auto Recovery modes.
8 PoE+ Ports, Uplink RJ45 and SFP: Ports 1–8 power cameras, APs and phones; the extra Gigabit RJ45 port and Gigabit SFP slot connect the router or a fiber link. Switching capacity is 20 Gbps.
Extend Mode up to 250 m: Extend Mode on ports 1–4 carries data and power up to 250 m** for distant cameras; in this mode those ports run at 10 Mbps.
Priority and Isolation Modes: Priority Mode gives ports 1–2 higher priority for sensitive video or voice traffic. Isolation Mode separates the traffic of ports 1–4 / 5–8 with one switch for security and to contain broadcast storms.
PoE Auto Recovery and QoS: Offline or unresponsive PoE devices are rebooted automatically, and 802.1p/DSCP QoS plus IGMP Snooping keep voice, video and IPTV traffic smooth.
Who it's for / Works with: CCTV systems, small offices and shops that need 8 powered ports for IP cameras, access points or IP phones, with an optional fiber uplink.
Good to know: This is an unmanaged switch (modes are set with physical buttons; no web interface). The 63 W budget is shared by ports 1–8. Power is from an external adapter (53.5 V DC / 1.31 A, included). SFP modules are not included.
Technical Specifications
| Specification | TP-Link TL-SG1210P |
|---|---|
| Interface | 8× PoE+ 10/100/1000 Mbps RJ45 ports, 1× 10/100/1000 Mbps RJ45 port, 1× Gigabit SFP slot |
| PoE | 802.3af/at, ports 1–8, up to 30 W per port |
| Total PoE budget | 63 W* |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 4K |
| Jumbo frame | 16 KB |
| Advanced features | 802.1p/DSCP QoS, IGMP Snooping, IEEE 802.3x flow control, Extend Mode (ports 1–4, up to 250 m**), Priority Mode (ports 1–2), Isolation Mode (ports 1–4 / 5–8), PoE Auto Recovery (ports 1–8) |
| Power supply | External power adapter, output 53.5 V DC / 1.31 A |
| Max. power consumption | 7.0 W (no PD); 77.24 W (with 63 W PD) |
| Fan | Fanless |
| Mounting | Desktop / wall mounting |
| Dimensions (W×D×H) | 209 × 126 × 26 mm |
| Operating temperature | 0–40 °C |
| Certification | CE, FCC |
* PoE budget figures are based on TP-Link laboratory testing; the actual PoE budget is not guaranteed and varies with the connected devices and the environment.
** In Extend Mode the port speed drops to 10 Mbps, and the real distance depends on the cable quality and the power drawn by the device.
📄 Datasheet: Download the official TP-Link TL-SG1210P datasheet (PDF)
