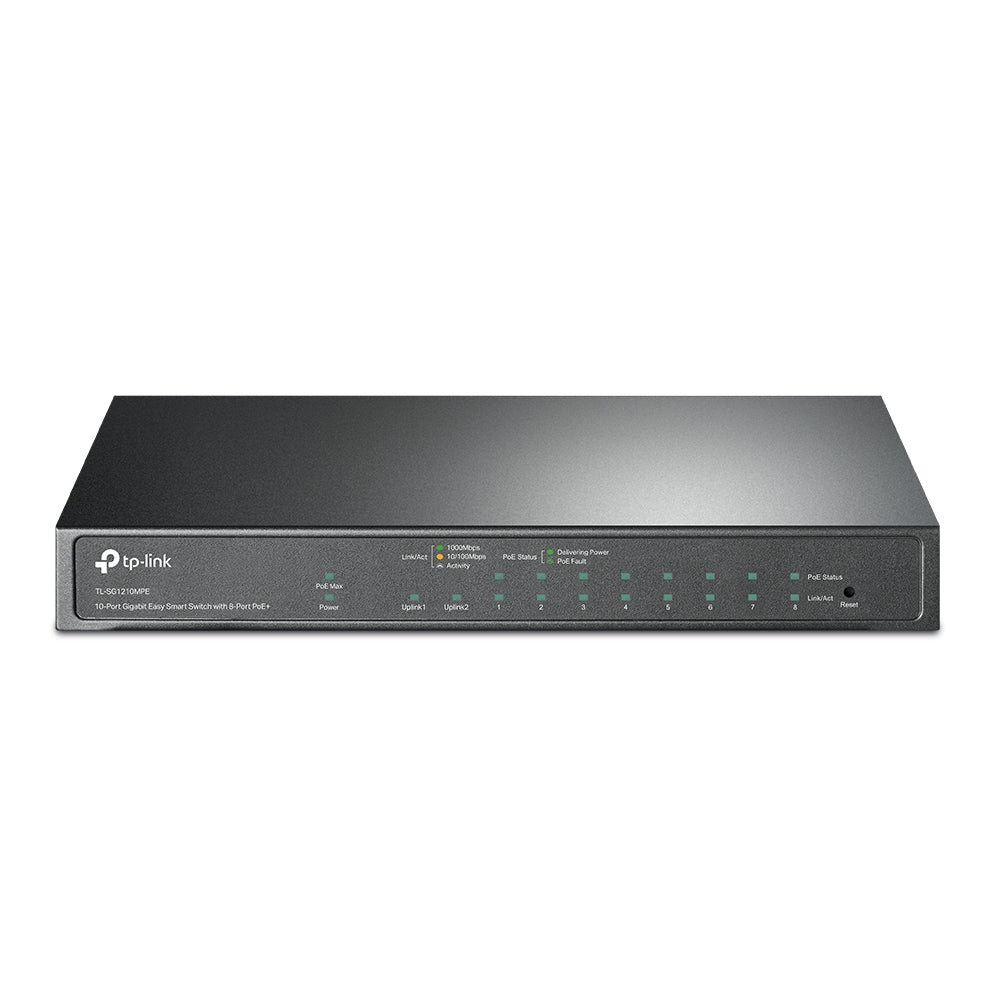

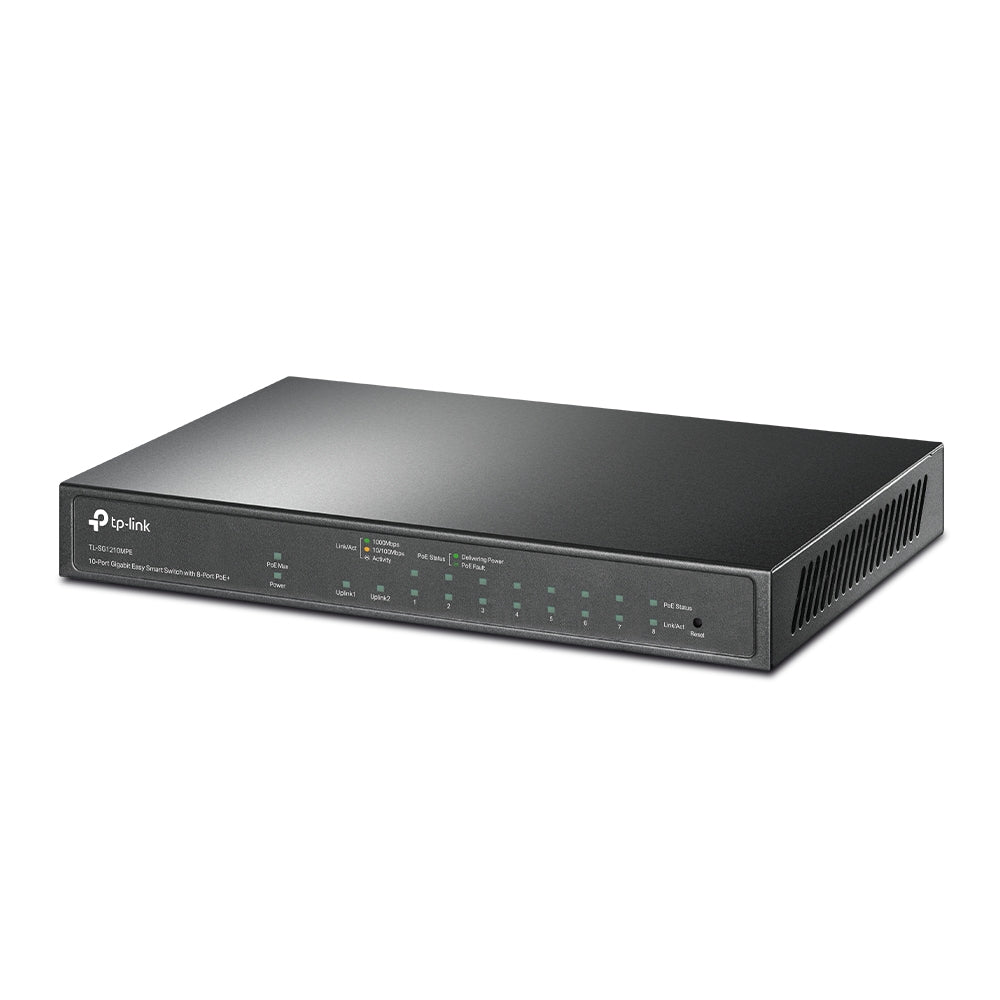

TP-Link® 10-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+, 123W | TL-SG1210MPE
TP-Link® 10-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+, 123W | TL-SG1210MPE
Couldn't load pickup availability
TP-Link 10-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+, 123W | TL-SG1210MPE
The TP-Link TL-SG1210MPE is a compact 10-port Gigabit Easy Smart switch with nine Gigabit RJ45 ports and one Gigabit combo SFP/RJ45 port. Ports 1–8 are 802.3af/at PoE+ with up to 30 W each and a 123 W total PoE budget*, so it can power IP cameras, access points and IP phones while also connecting PCs, printers and NVRs.

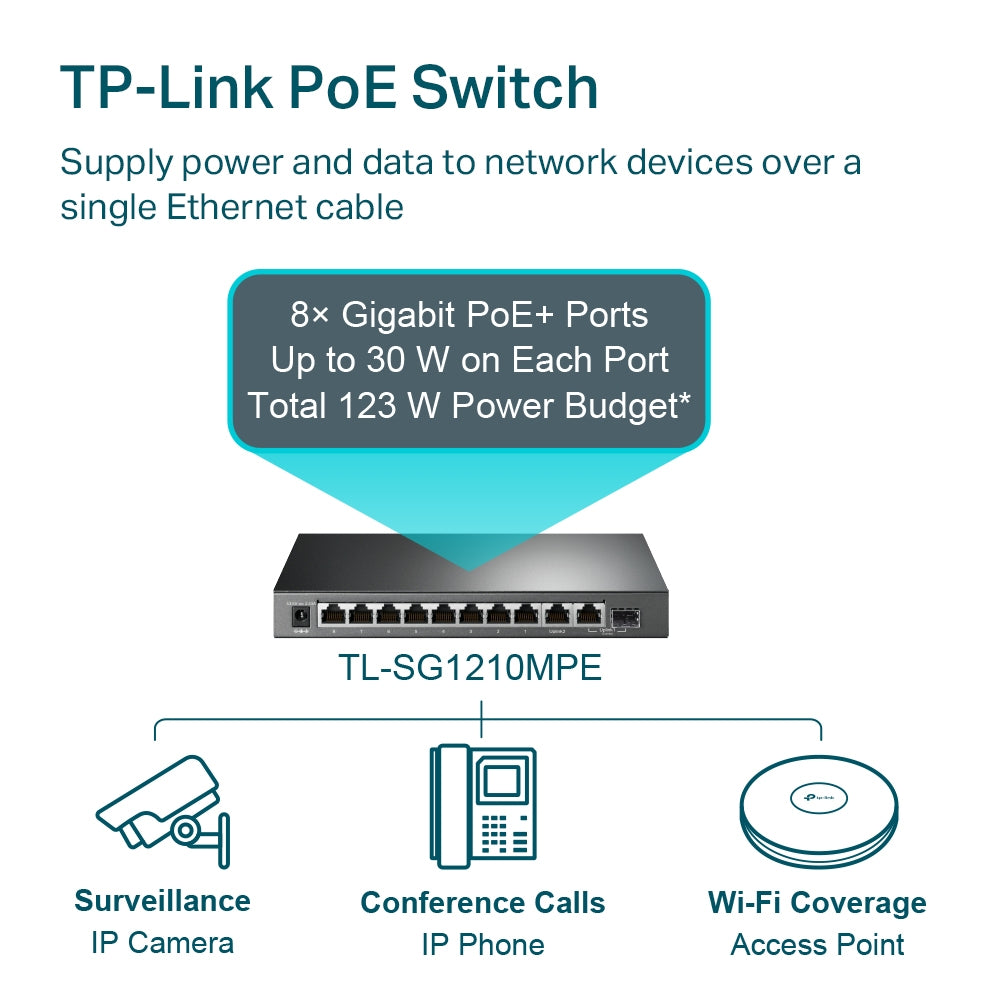

8× PoE+ with 123 W Budget: Eight Gigabit PoE+ ports deliver data and power over one cable. If total consumption goes above 123 W, the switch automatically cuts power to lower-priority ports to protect itself and keep high-priority devices running.

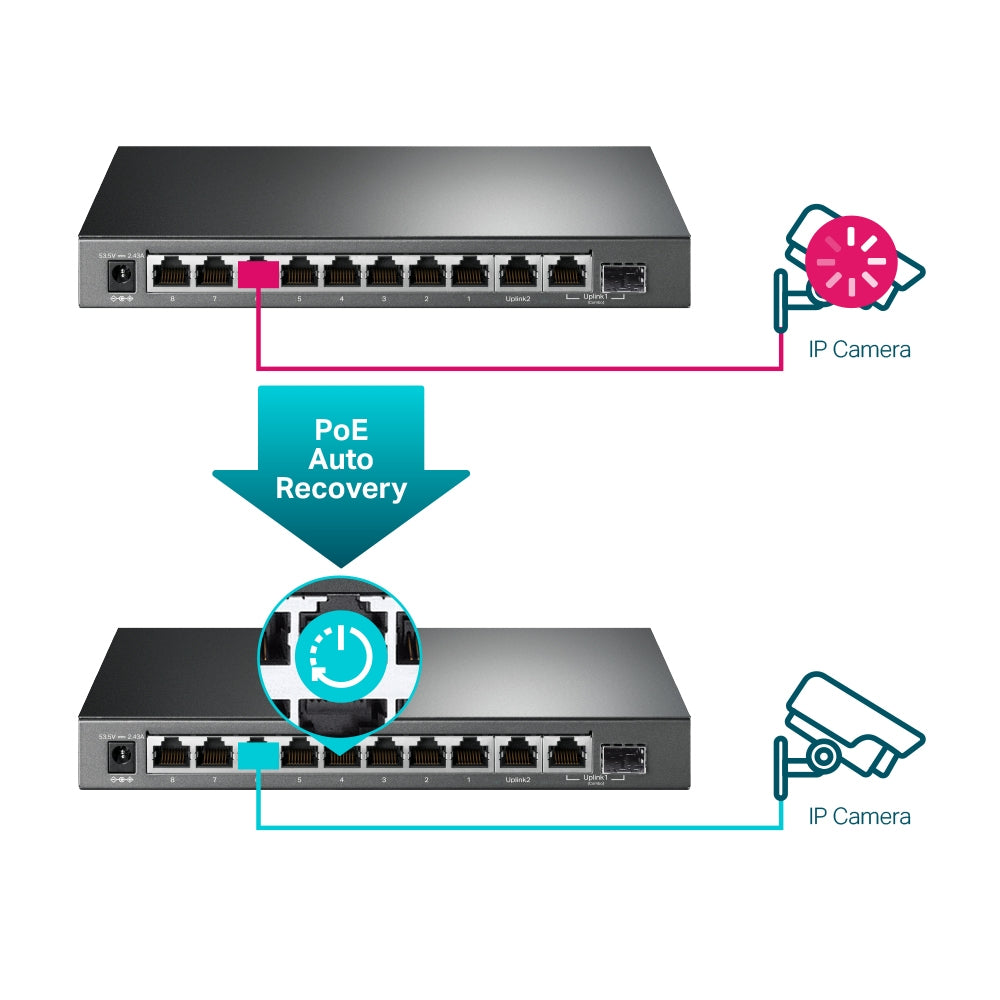

PoE Auto Recovery: The switch detects powered devices such as cameras and APs that go offline or stop responding and reboots them automatically, without manual restarts.
Easy Smart Features: Through the web interface or Easy Smart Configuration Utility you get QoS (port-based, 802.1p, DSCP, 4 queues), up to 32 VLANs, IGMP Snooping for IPTV, static link aggregation, port mirroring, cable diagnostics and loop prevention.
Silent Metal Desktop Design: A fanless metal case with desktop or wall mounting keeps operation silent.

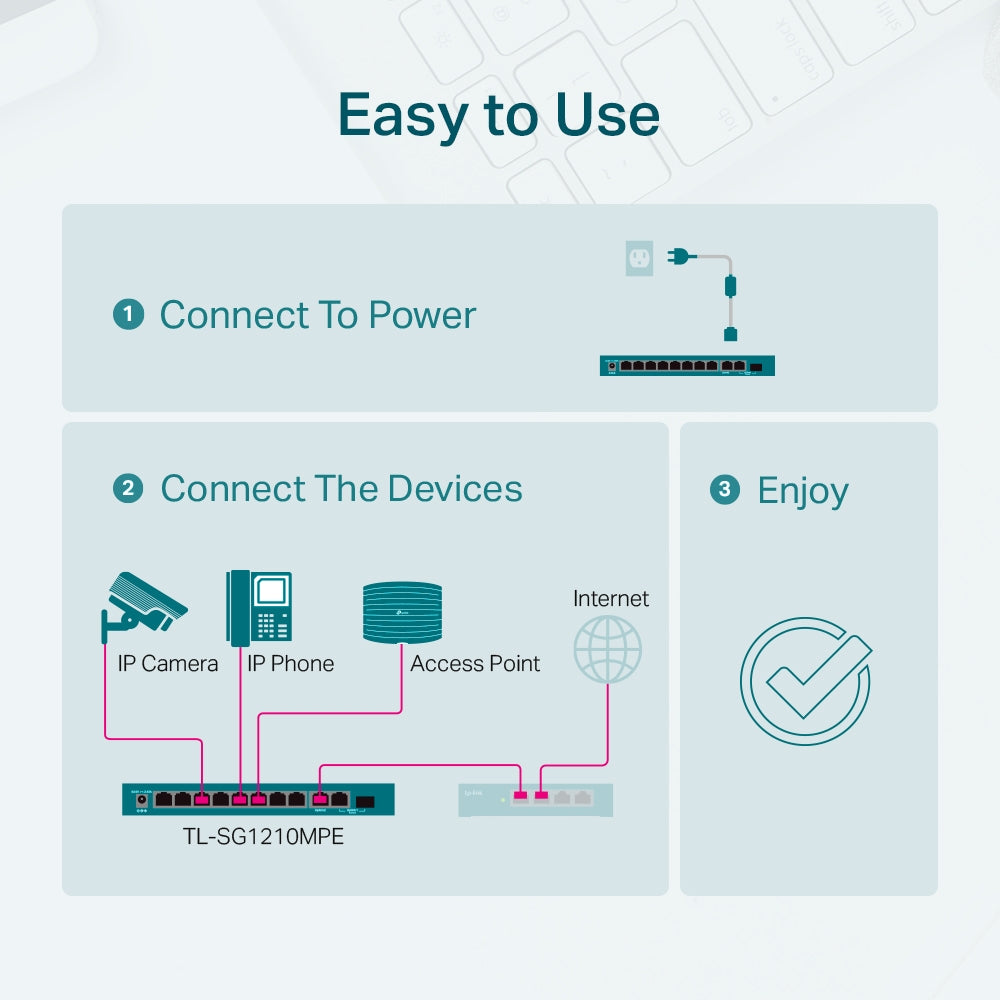

Who it's for / Works with: Small offices, shops and surveillance installations with up to 8 PoE devices (IP cameras, IP phones, Omada EAPs) that also want basic VLAN and QoS control.
Good to know: The 123 W PoE budget is shared by ports 1–8. Power comes from an external adapter (53.5 V DC / 2.43 A, included). SFP modules are not included.
Technical Specifications
| Specification | TP-Link TL-SG1210MPE |
|---|---|
| Interface | 9× 10/100/1000 Mbps RJ45 ports, 1× Gigabit combo SFP/RJ45 port |
| PoE ports | Ports 1–8, IEEE 802.3af/at, up to 30 W per port |
| Total PoE budget | 123 W* |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 4K |
| Jumbo frame | 16 KB |
| QoS | Port-based / 802.1p / DSCP, 4 priority queues, rate limit, storm control |
| L2 features | IGMP Snooping v1/v2/v3, static link aggregation, port mirroring, cable diagnostics, loop prevention |
| VLAN | Up to 32 VLANs (out of 4K VLAN IDs), MTU / Port / Tag VLAN |
| PoE features | Extend Mode, PoE Auto Recovery |
| Management | Web-based GUI, Easy Smart Configuration Utility (Windows) |
| Power supply | External power adapter, output 53.5 V DC / 2.43 A |
| Max. power consumption | 7.66 W (no PD); 141.54 W (with 123 W PD), 220 V/50 Hz |
| Fan | Fanless |
| Mounting | Desktop / wall mounting |

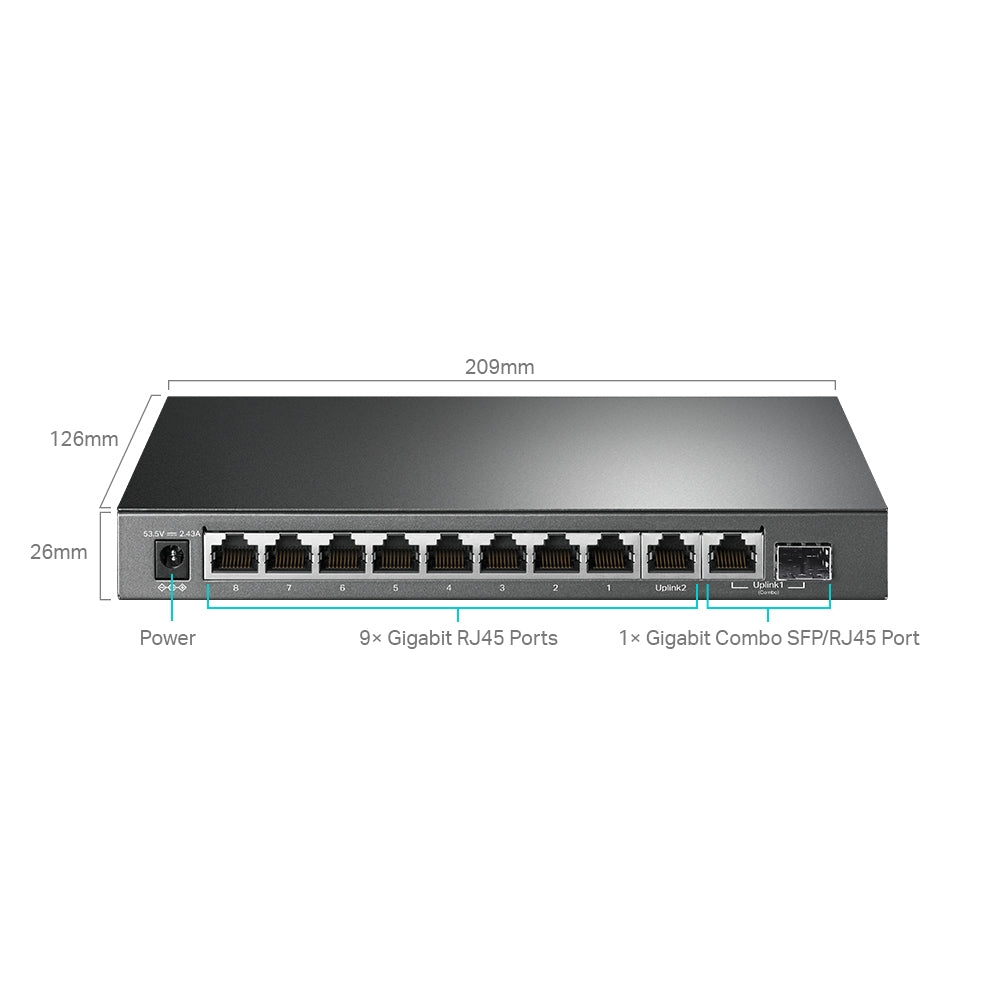

| Dimensions (W×D×H) | 209 × 126 × 26 mm |
| Operating temperature | 0–40 °C |
| Certification | FCC, CE |
* PoE budget figures are based on TP-Link laboratory testing; the actual PoE budget is not guaranteed and varies with the connected devices and the environment.
📄 Datasheet: Download the official TP-Link TL-SG1210MPE datasheet (PDF)
