TP-Link TL-WR840N 300 Mbps Wireless N Router - White

Description:

300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work

Supports Access Point mode to create a new Wi-Fi access point

Supports Range Extender mode to boost the existing wireless coverage in your room

Parental Controls manage when and how connected devices can access the internet

IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming

Compatible with IPv6 (Internet Protocol version 6)

Guest Network provides separate access for guests while securing the home network

TP-Link TL-WR840N – N300 Wi-Fi 4 Router

Wireless

Standards

◆ Wi-Fi 4 (802.11n)
◆ IEEE 802.11n/b/g – 2.4 GHz

Wi-Fi Speed

◆ 2.4 GHz: 300 Mbps (N300)

Coverage

◆ Suitable for 2 Bedroom Houses
◆ 2× Fixed Antennas

Capacity & Modes

◆ Legacy Wi-Fi Capacity
◆ Working Modes:
– Router Mode
– Access Point Mode
– Range Extender Mode
– WISP Mode

Security

◆ SPI Firewall
◆ Access Control
◆ IP & MAC Binding
◆ Application Layer Gateway
◆ 1× 2.4 GHz Guest Network
◆ Wi-Fi Encryption: WEP / WPA / WPA2 / WPA/WPA2-Enterprise (802.1x)

Hardware

◆ Processor: Single-Core CPU

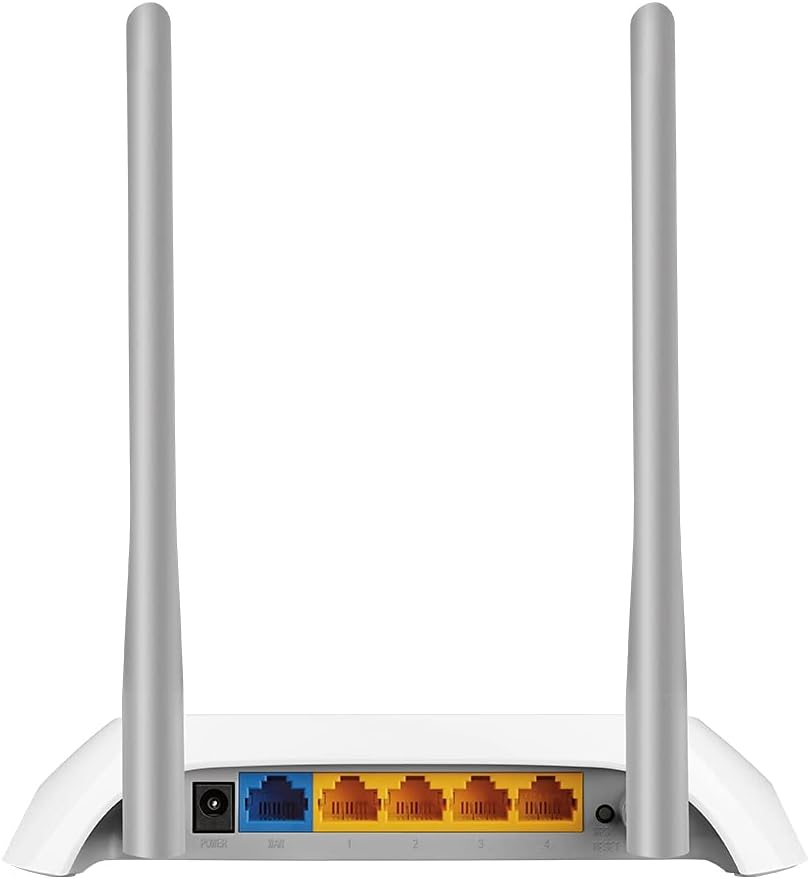

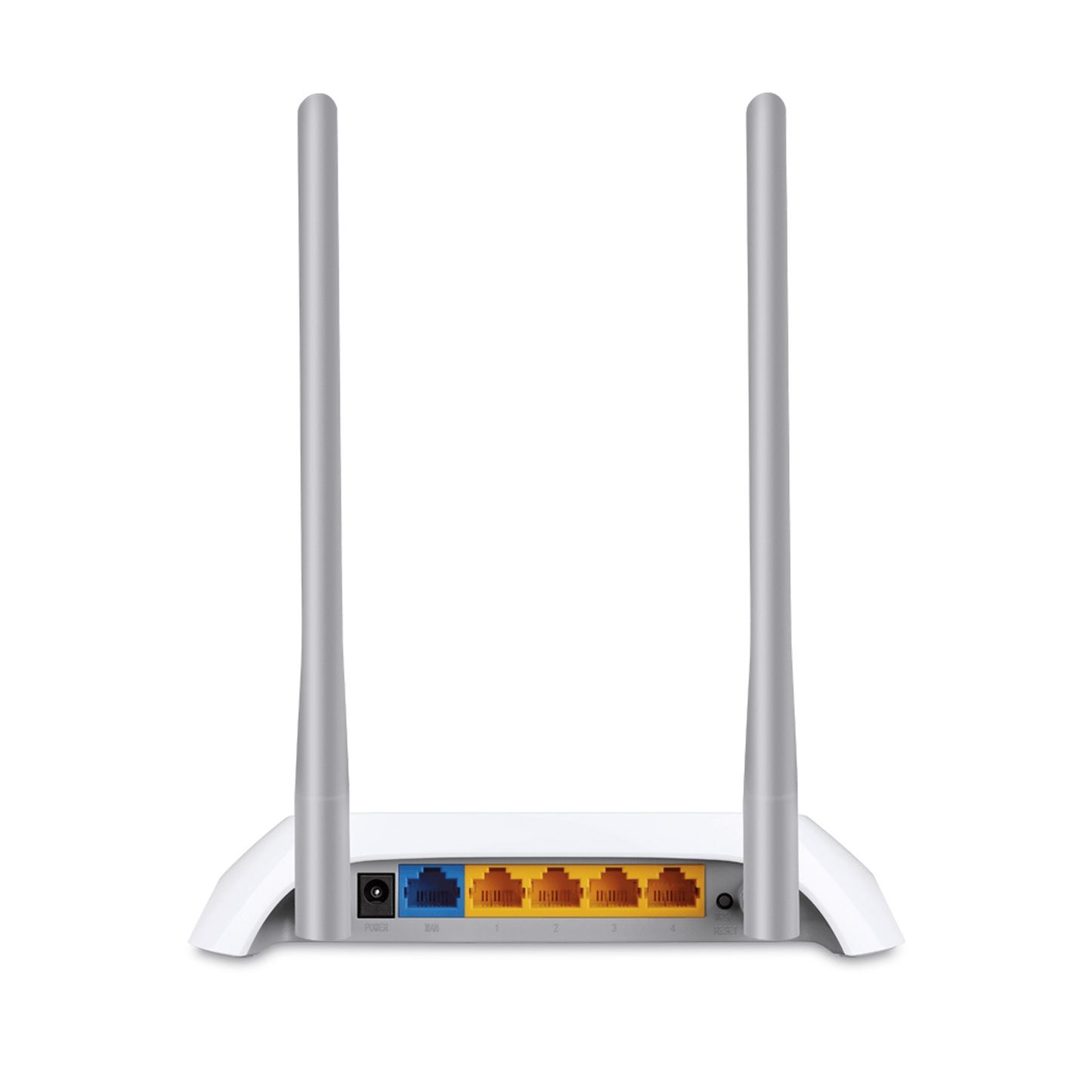

◆ 1× 10/100 Mbps WAN Port
◆ 4× 10/100 Mbps LAN Ports
◆ Reset Button
◆ Power: 9V ⎓ 0.6A

Software

Protocols

◆ IPv4
◆ IPv6

Parental Controls

◆ URL Filtering
◆ Time Controls

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ PPTP
◆ L2TP

QoS

◆ QoS by Device

NAT Forwarding

◆ Port Forwarding
◆ Port Triggering
◆ DMZ
◆ UPnP

IPTV

◆ IGMP Proxy
◆ IGMP Snooping

DHCP

◆ Server
◆ Address Reservation
◆ DHCP Client List

DDNS

◆ NO-IP
◆ Comex
◆ DynDNS

Management

◆ Tether App
◆ Web Interface

Test Data

Transmission Power

◆ CE: <20 dBm (2.4 GHz)
◆ FCC: <30 dBm

Reception Sensitivity

◆ 270 Mbps: -68 dBm @10% PER
◆ 130 Mbps: -68 dBm @10% PER
◆ 108 Mbps: -68 dBm @10% PER
◆ 54 Mbps: -68 dBm @10% PER
◆ 11 Mbps: -85 dBm @8% PER
◆ 6 Mbps: -88 dBm @10% PER
◆ 1 Mbps: -90 dBm @8% PER

Physical

◆ Dimensions: 182 × 128 × 35 mm
◆ Operating Temperature: 0°C ~ 40°C
◆ Storage Temperature: -40°C ~ 70°C
◆ Operating Humidity: 10% ~ 90% Non-Condensing
◆ Storage Humidity: 5% ~ 90% Non-Condensing
◆ Certifications: FCC, CE, RoHS

Package Contents

◆ TL-WR840N Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
