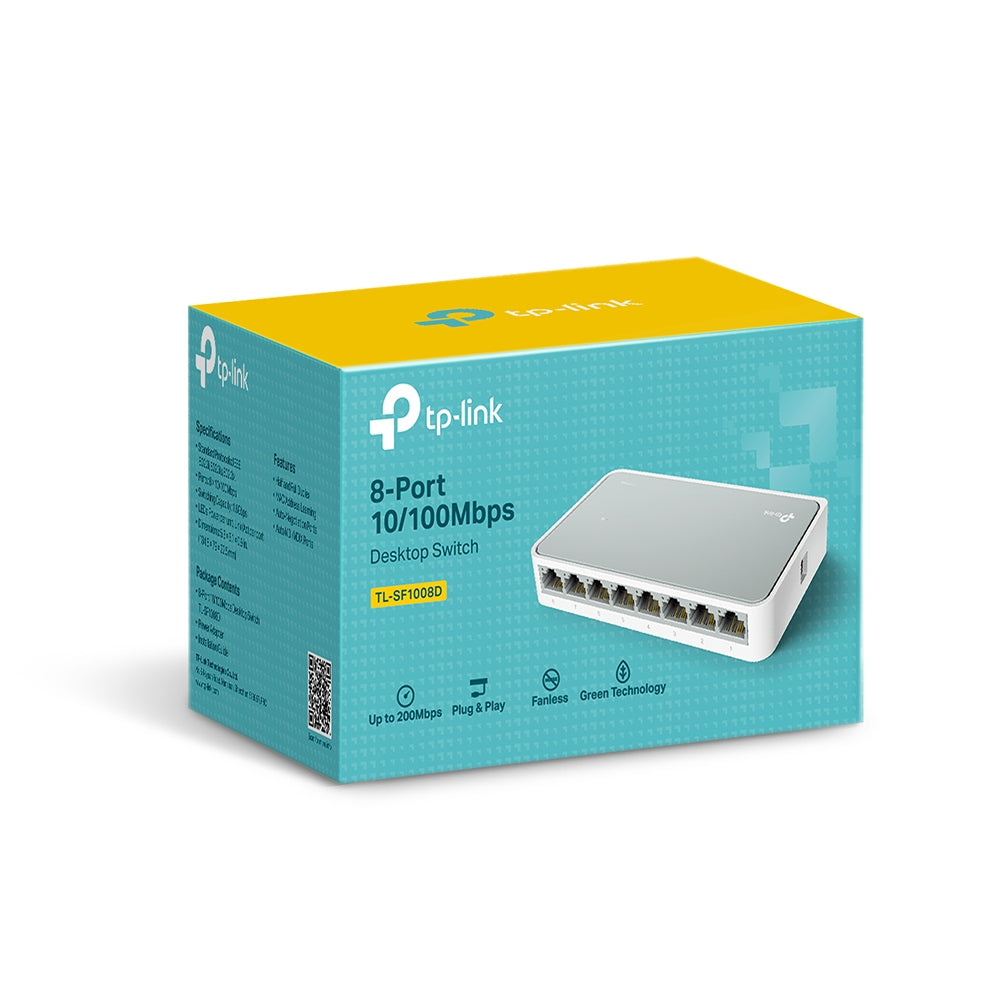

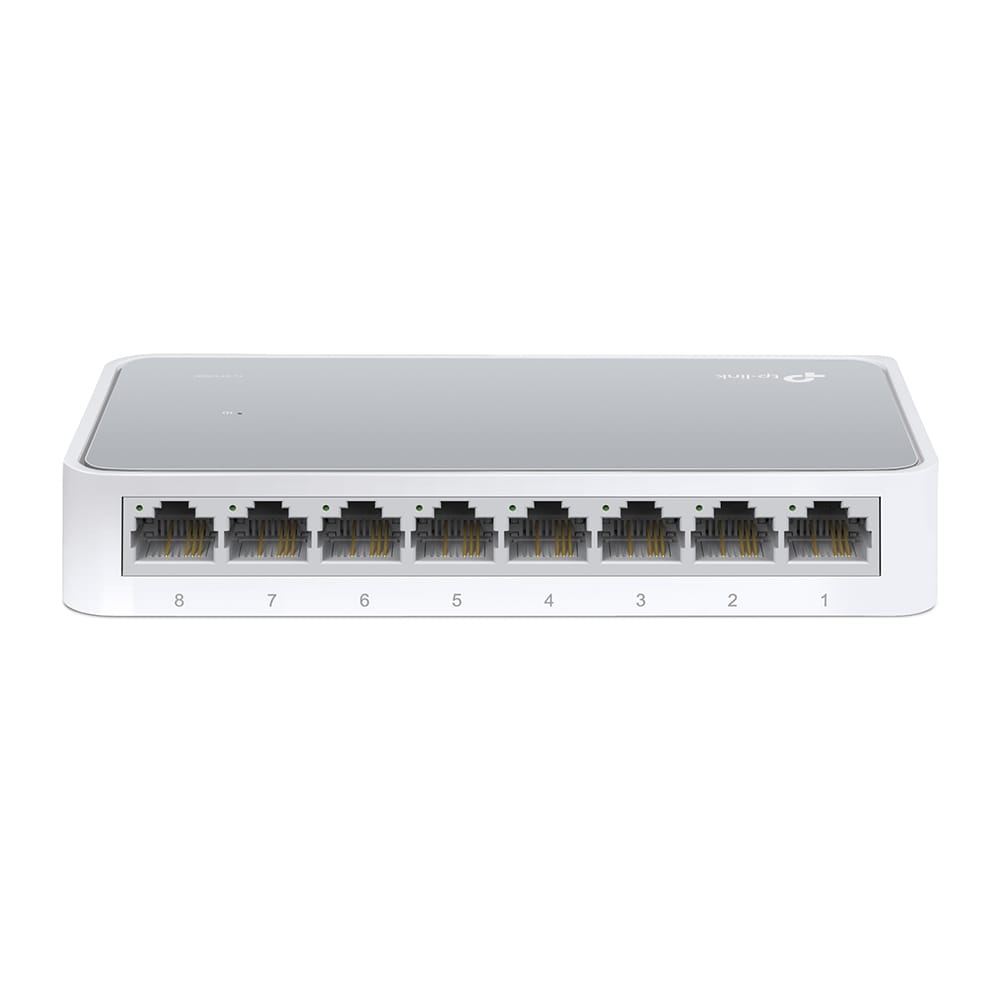

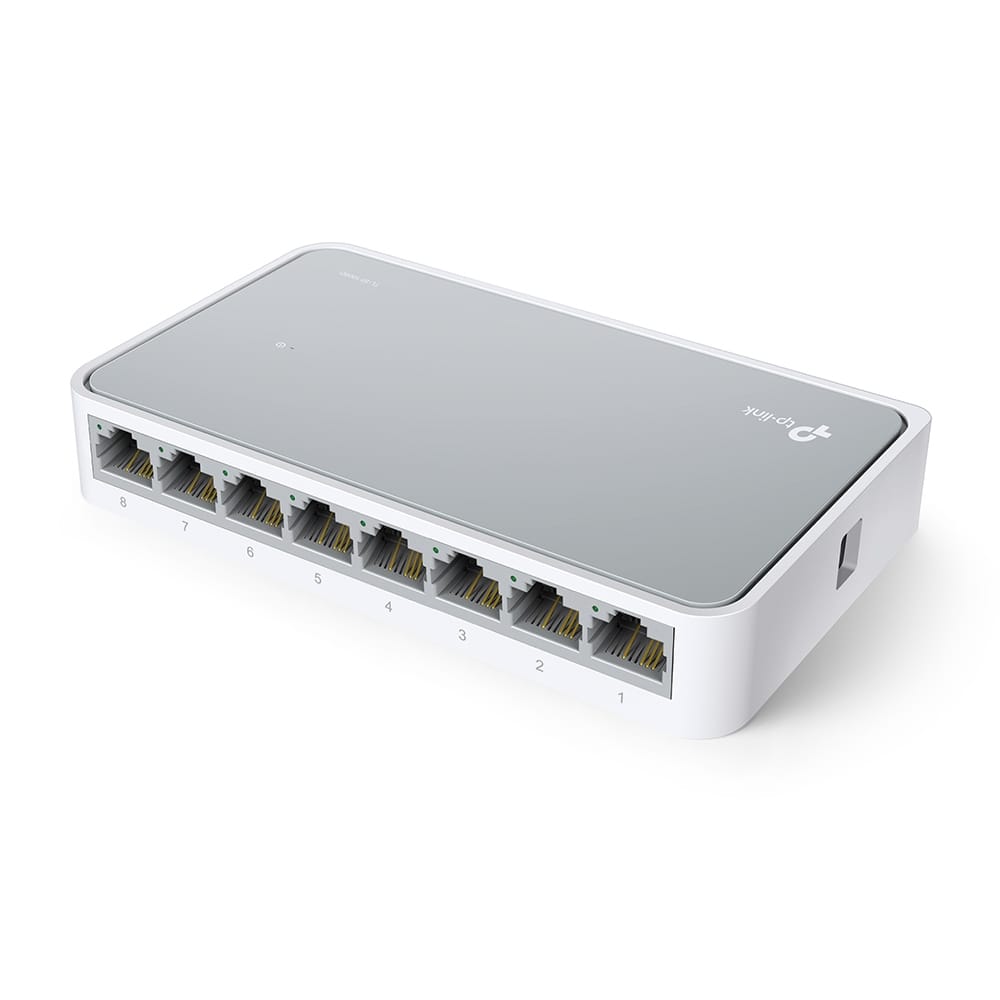

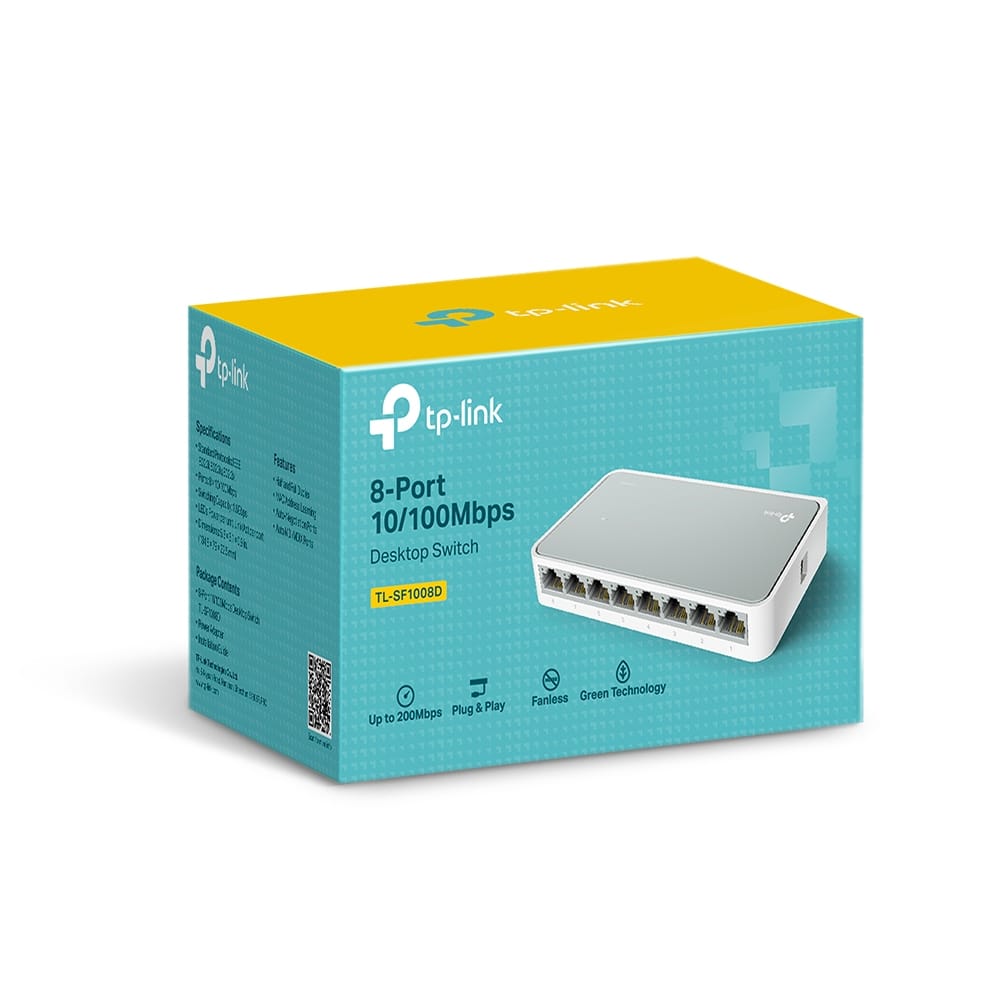

TP-Link 8-port 10/100M mini Desktop Switch | TL-SF1008D

TP-Link 8-port 10/100M mini Desktop Switch | TL-SF1008D

TL-SF1008D | 8-Port 10/100Mbps Desktop Switch

Description:

◆ 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX

◆ IEEE 802.3x flow control provides reliable data transfer

◆ Plastic case, desktop design

◆ Plug and play, no configuration required

What This Product Does

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

High Performance

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

TP-Link TL-SF1008D Specifications:

8-Port 10/100Mbps Desktop Switch

━━━━━━━━━━━━━━━━━━

Hardware Features

Standards & Protocols: IEEE 802.3 / 802.3u / 802.3x, CSMA/CD
Interfaces: 8 × 10/100Mbps Ports with Auto-Negotiation & Auto-MDI/MDIX
Fan: Fanless Design

Power Supply:
External Power Adapter (Output: 5.0V DC / 0.6A)
Input: 100–240VAC, 50/60Hz

LED Indicators: Power, Port 1–8

Buffer Size: 768Kb
Data Rates:
10/100Mbps (Half Duplex)
20/200Mbps (Full Duplex)

Max Power Consumption: 2.05W (220V / 50Hz)
Max Heat Dissipation: 6.99 BTU/h

Dimensions: 134.5 × 79 × 22.5 mm (5.3 × 3.1 × 0.9 in.)

━━━━━━━━━━━━━━━━━━

Software Features

Advanced Features: Green Technology
Flow Control: IEEE 802.3X Flow Control / Back Pressure
Transmission Method: Store and Forward

━━━━━━━━━━━━━━━━━━

Package Contents

8-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide

━━━━━━━━━━━━━━━━━━

Certifications

FCC, CE, RoHS

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Storage Temperature: -40°C – 60°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing
