TP-Link 8-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+, 66W | TL-SF1008P

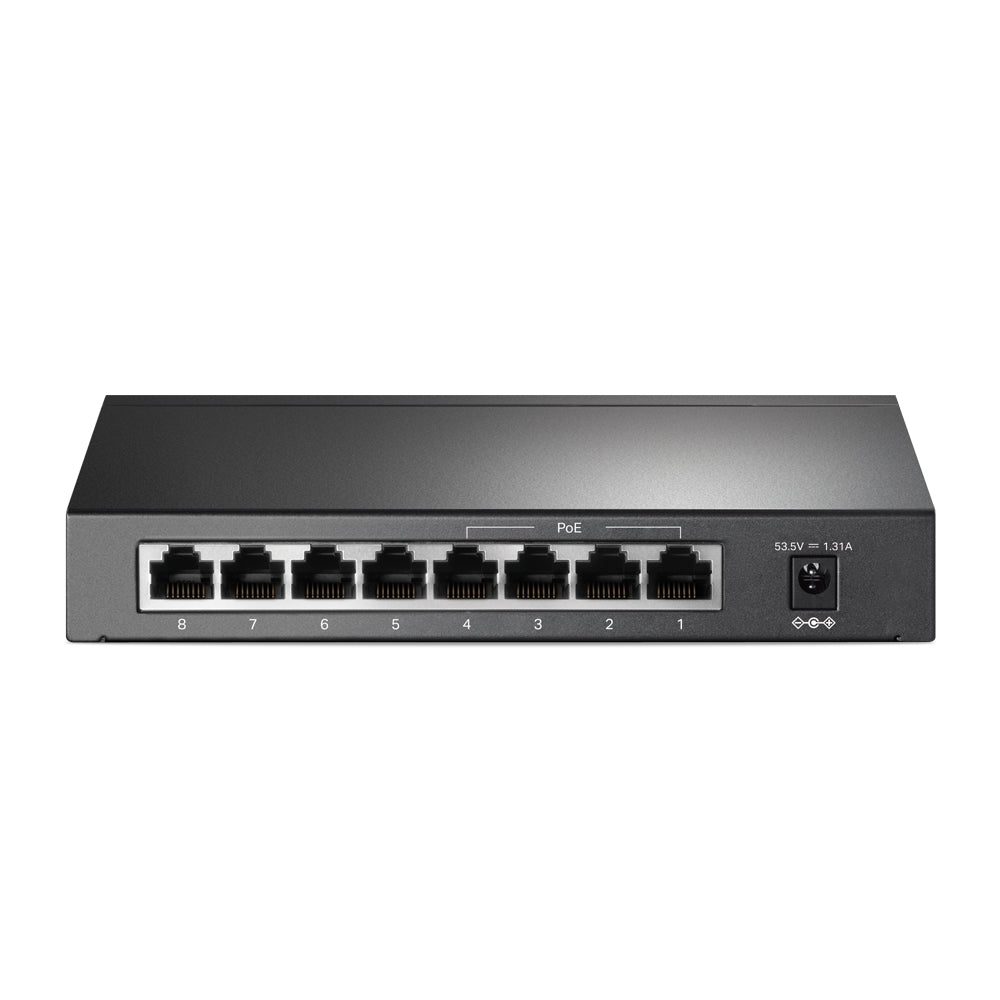

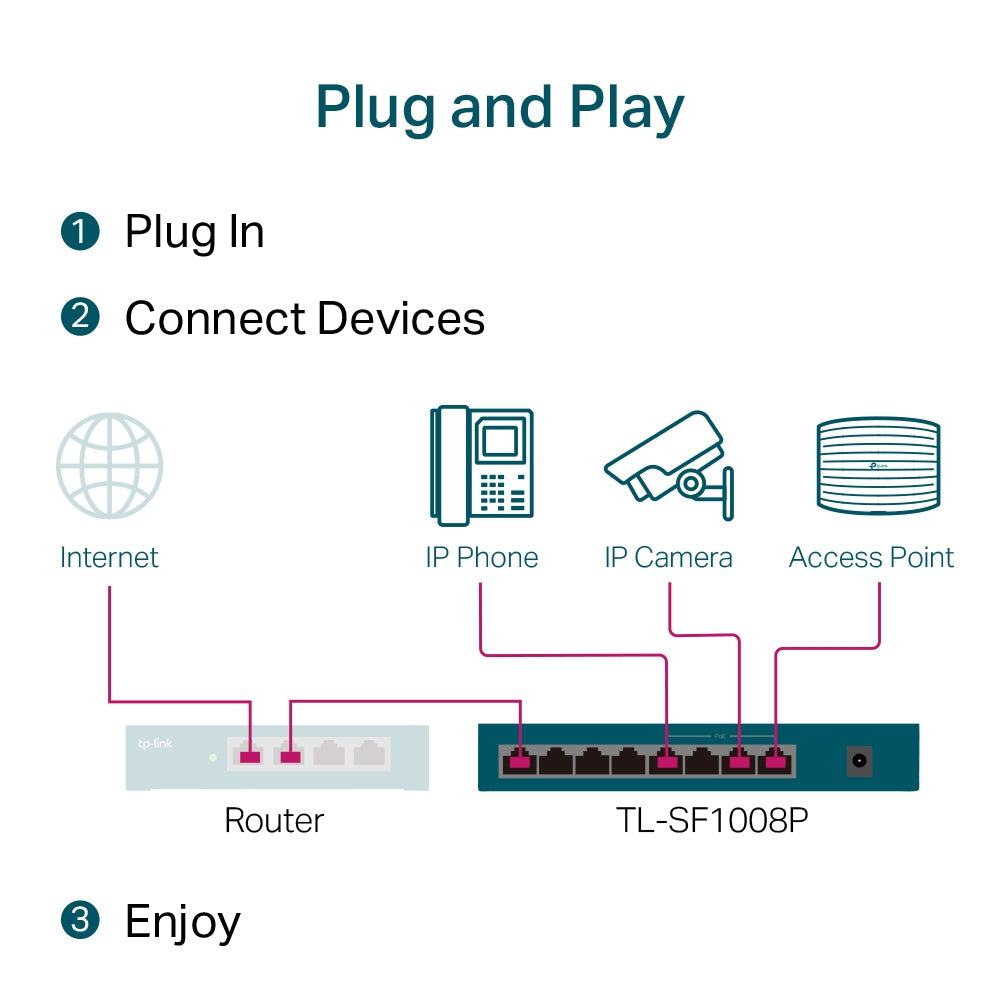

The TP-Link TL-SF1008P is a plug-and-play 8-port 10/100 Mbps desktop switch with four 802.3af/at PoE+ ports. It provides up to 30 W per PoE port with a 66 W total PoE budget*, a simple way to power up to four IP cameras, access points or IP phones over their network cables.

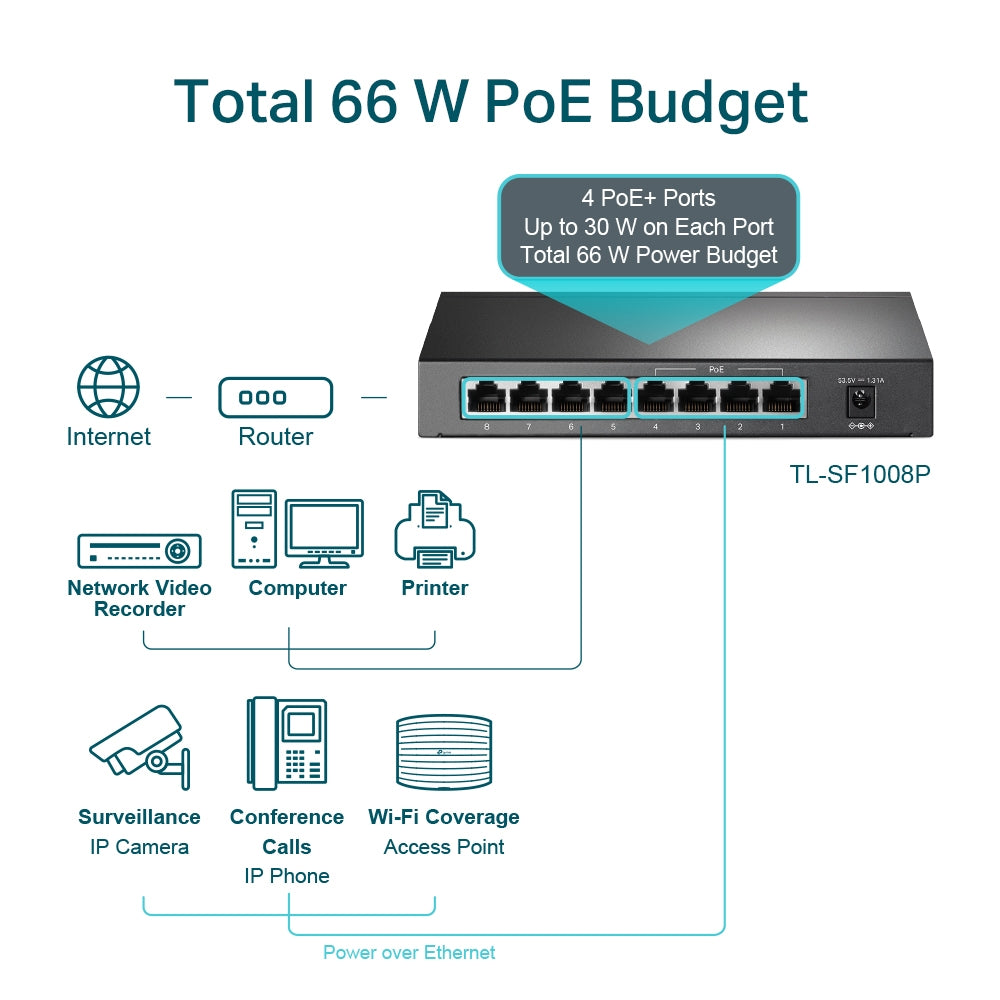

4 PoE+ Ports, 66 W: Ports 1–4 send data and power over one cable; when consumption exceeds 66 W, lower-priority ports are cut to protect the switch.

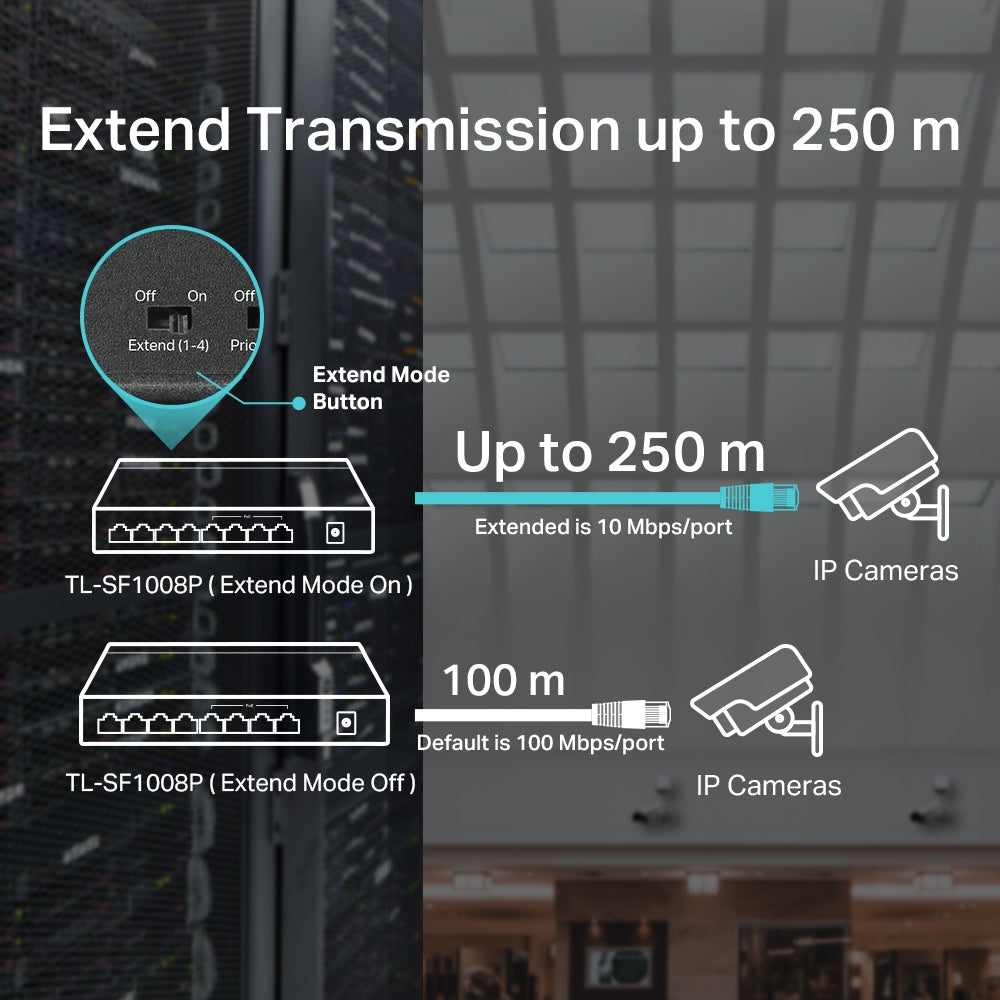

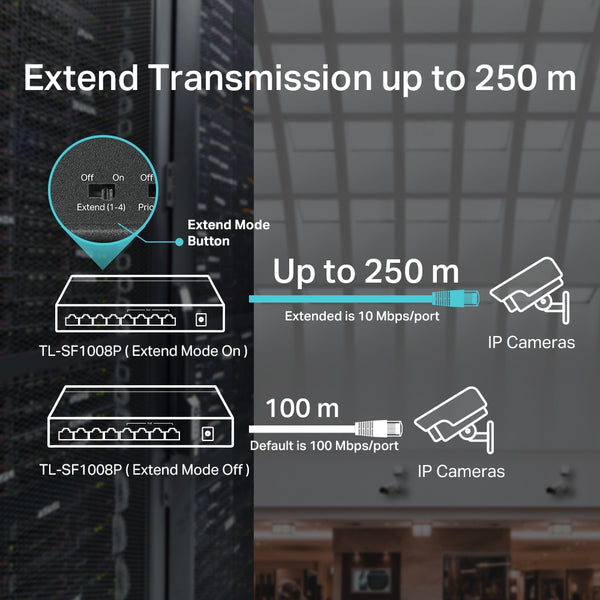

Extend Mode up to 250 m: Extend Mode on ports 1–4 carries data and power up to 250 m** for cameras far from the switch; in this mode the ports run at 10 Mbps.

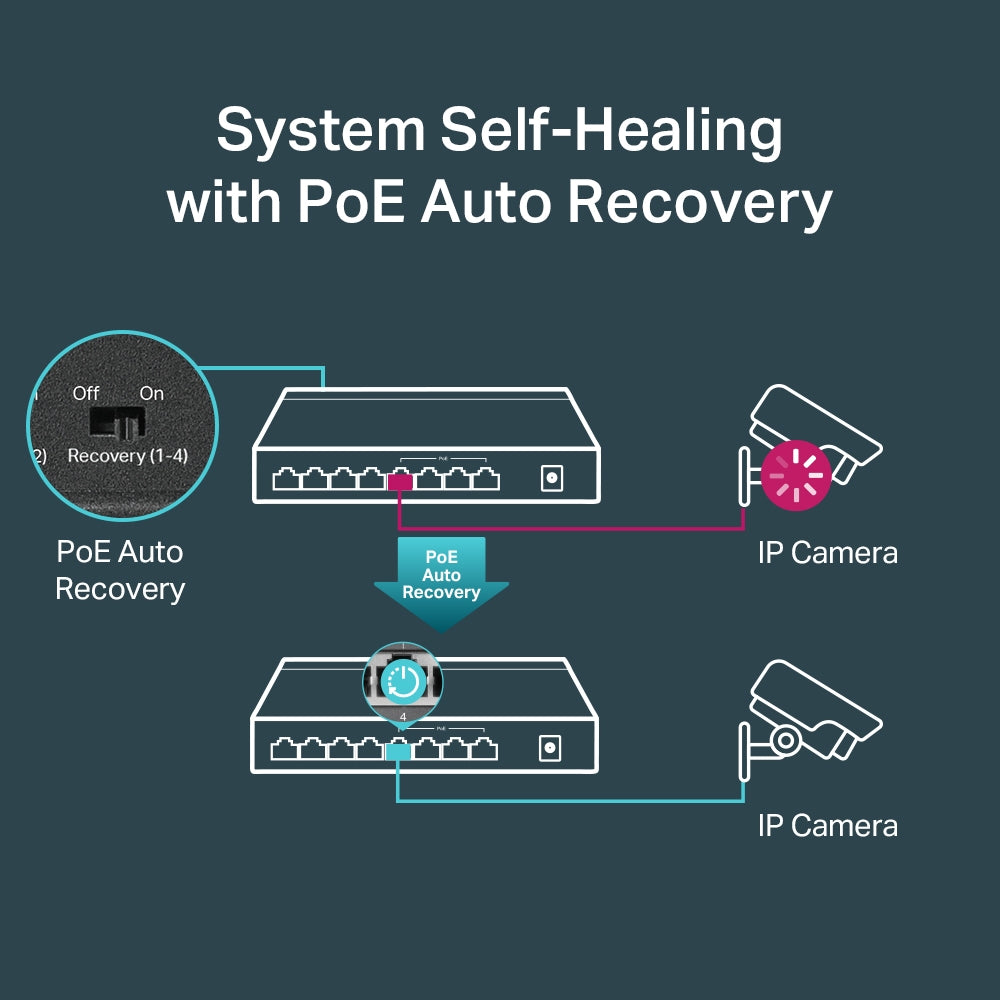

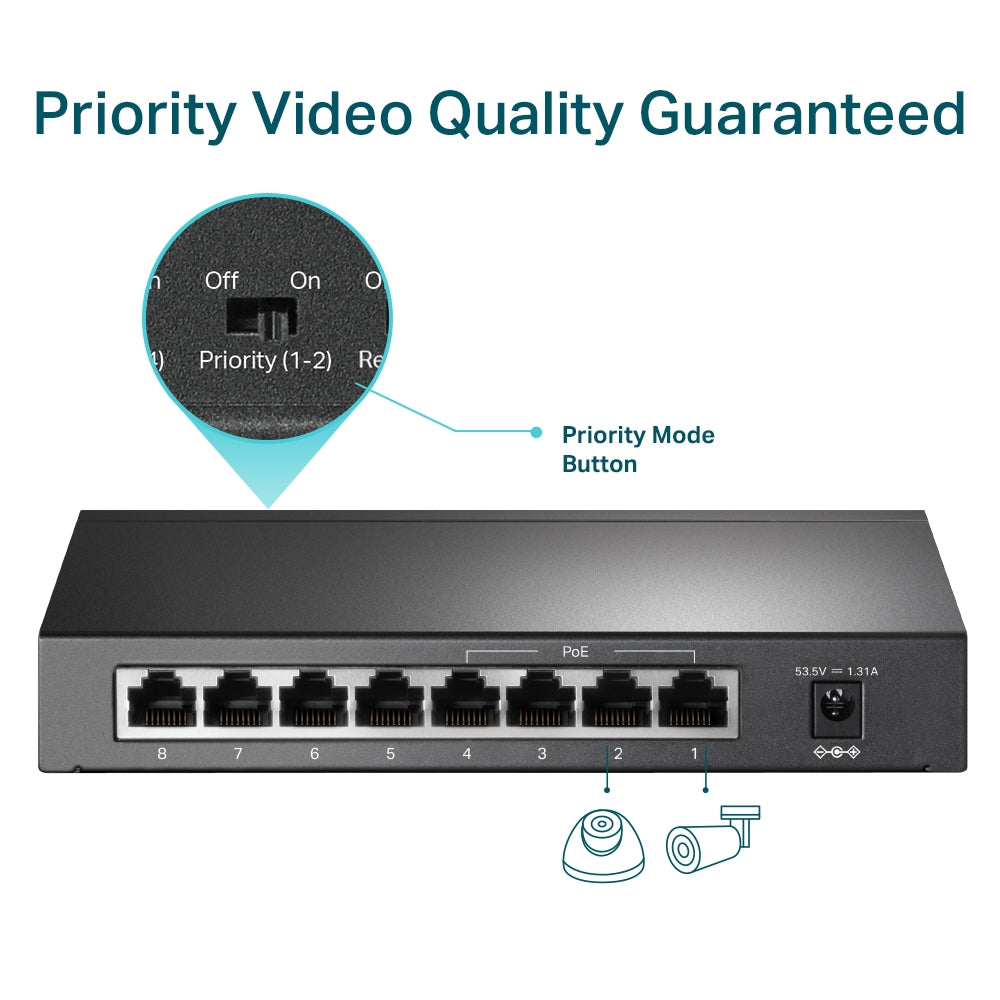

Priority Mode and PoE Auto Recovery: Priority Mode gives ports 1–2 higher priority for critical video, and PoE Auto Recovery (ports 1–4) reboots devices that freeze or drop offline.

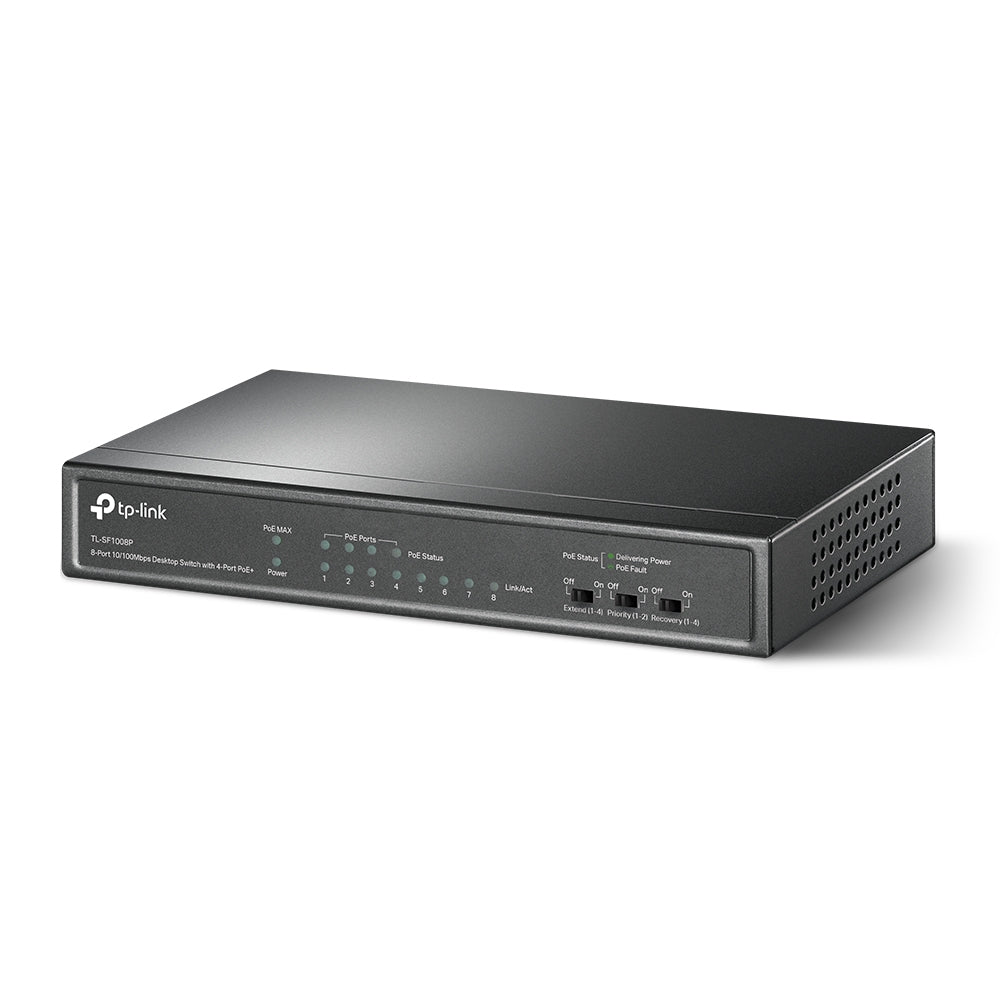

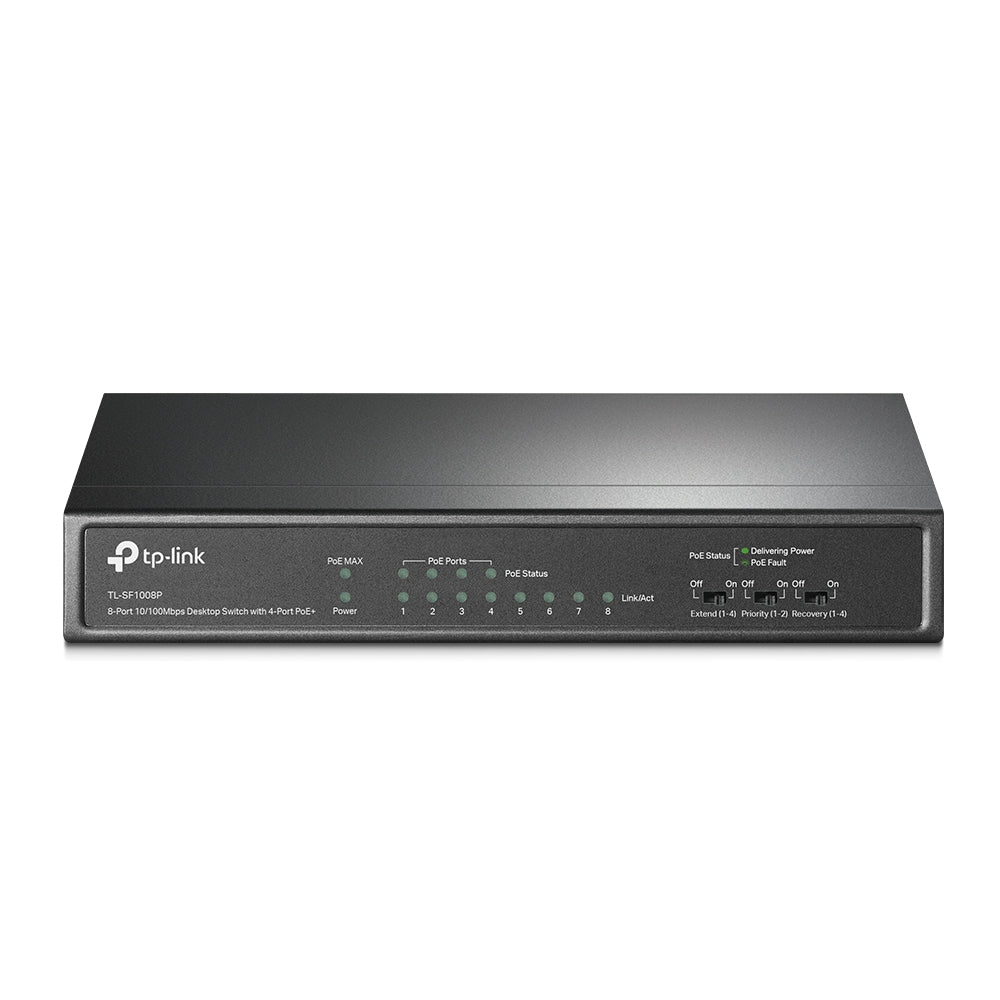

Fanless Metal Case: The fanless metal case works silently on a desk or wall, with no configuration needed.
Who it's for / Works with: Small CCTV systems (for example 4 IP cameras with an NVR) and small offices where 100 Mbps per port is enough.
Good to know: All ports are 10/100 Mbps (Fast Ethernet), not Gigabit. Unmanaged switch with no VLAN or web settings. Only ports 1–4 supply PoE. Power is from an external adapter (53.5 V DC / 1.31 A, included).
Technical Specifications
| Specification | TP-Link TL-SF1008P |
|---|---|
| Interface | 8× 10/100 Mbps RJ45 ports (4× 802.3af/at PoE+), Auto-Negotiation / Auto MDI/MDIX |
| PoE | 802.3af/at, ports 1–4, up to 30 W per port |
| Total PoE budget | 66 W* |
| Switching capacity | 1.6 Gbps |
| Forwarding rate | 1.1904 Mpps |
| MAC address table | 2K |
| Jumbo frame | 2 KB |
| Advanced features | Extend Mode (ports 1–4, up to 250 m**), Priority Mode (ports 1–2), PoE Auto Recovery (ports 1–4) |
| Power supply | External power adapter, output 53.5 V DC / 1.31 A |
| Max. power consumption | 2.27 W (no PD); 75.33 W (with 66 W PD) |
| Fan | Fanless |
| Mounting | Desktop / wall mounting |
| Dimensions (W×D×H) | 171 × 98 × 27 mm |
| Operating temperature | 0–40 °C |
| Certification | FCC, CE |
* PoE budget figures are based on TP-Link laboratory testing; the actual PoE budget is not guaranteed and varies with the connected devices and the environment.
** In Extend Mode the port speed drops to 10 Mbps, and the real distance depends on the cable quality and the power drawn by the device.
📄 Datasheet: Download the official TP-Link TL-SF1008P datasheet (PDF)
