TP-Link 8-Port Gigabit Desktop/Rackmount PoE Switch with 8-Port PoE+, 153W | TL-SG1008MP
The TP-Link TL-SG1008MP is a plug-and-play 8-port Gigabit switch in which every port is 802.3af/at PoE+. It supplies up to 30 W per port with a high 153 W total PoE budget*, enough to run eight PoE devices such as IP cameras, access points and IP phones from one desktop or rack-mounted unit.

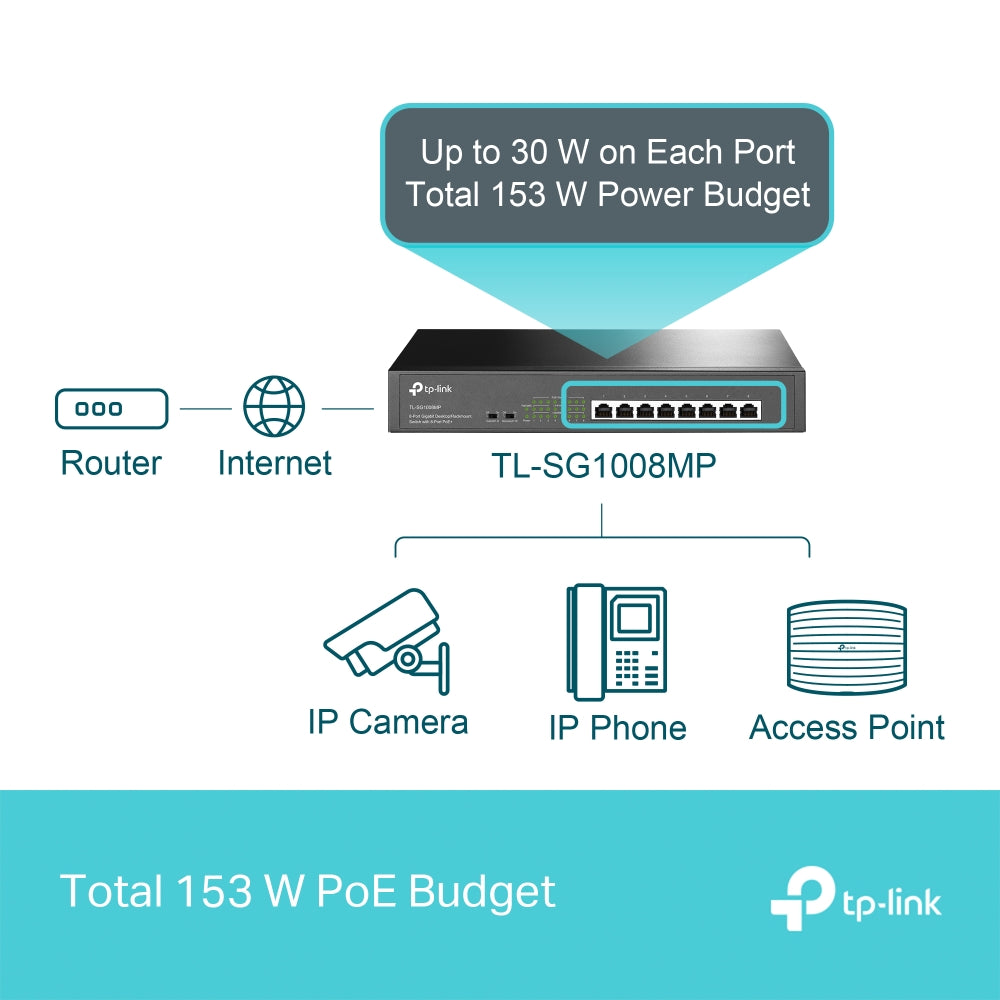

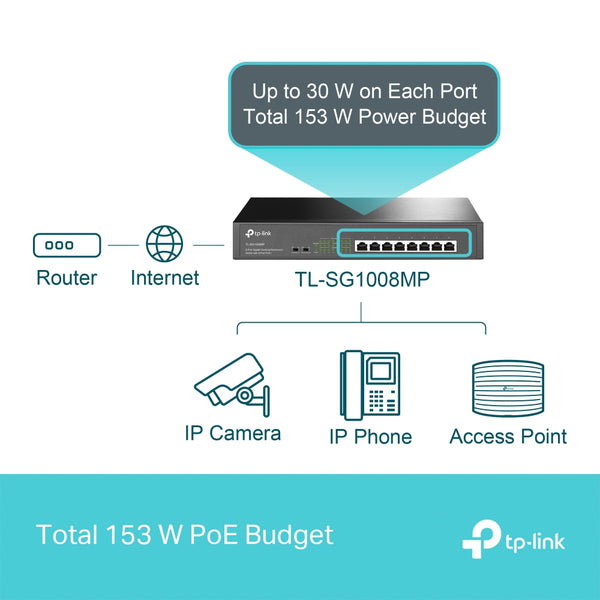

All 8 Ports PoE+, 153 W: Every Gigabit port can power a device. When total consumption exceeds 153 W, intelligent power management cuts the lower-priority ports first so higher-priority devices stay powered.

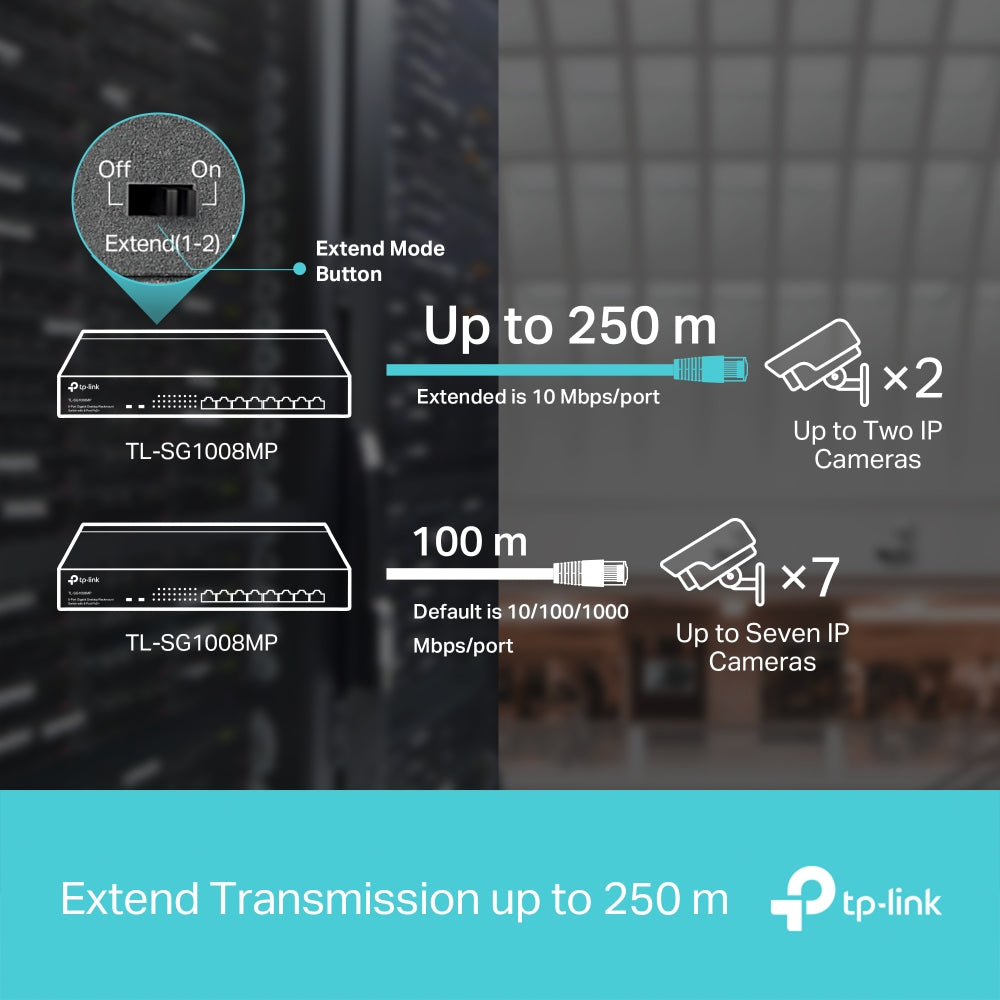

Extend Mode up to 250 m: With the Extend Mode switch on (ports 1–2), data and power reach up to 250 m**, useful for cameras far from the switch. In this mode those ports run at 10 Mbps.

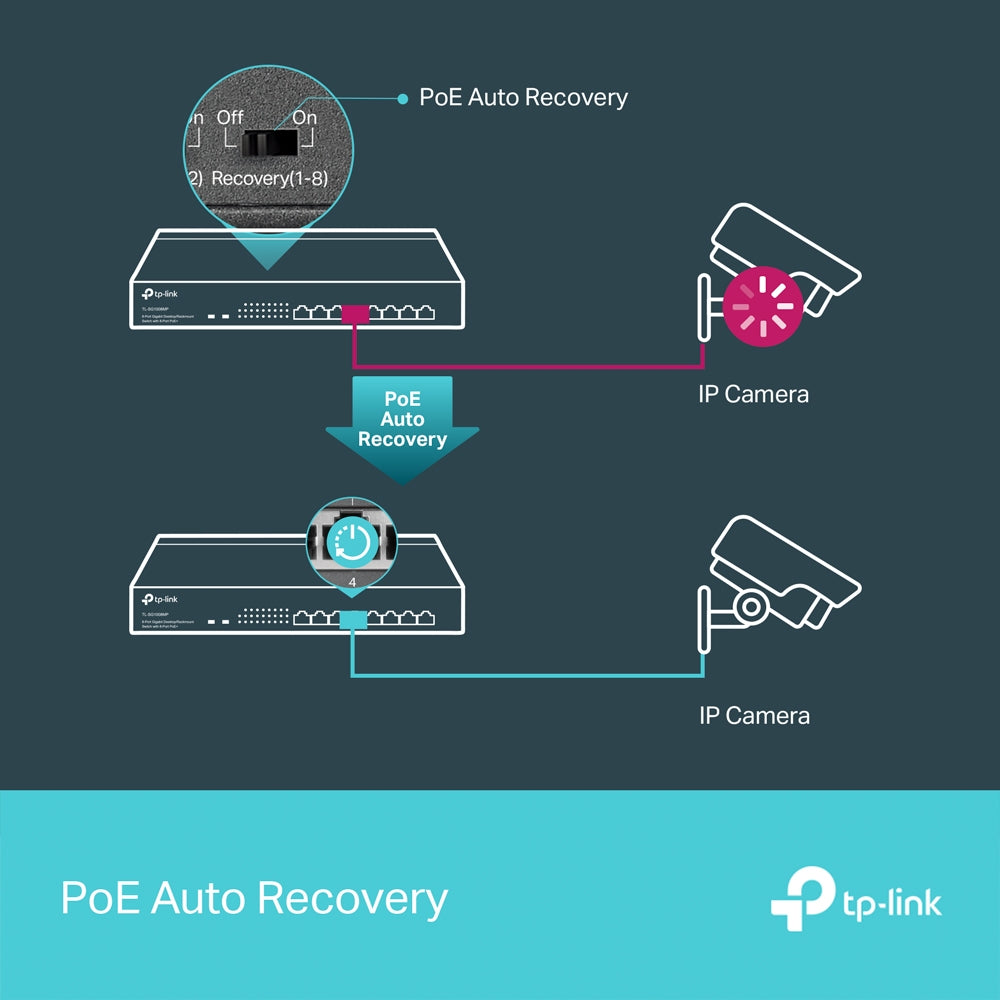

PoE Auto Recovery: Unresponsive or offline powered devices on ports 1–8 are detected and rebooted automatically.

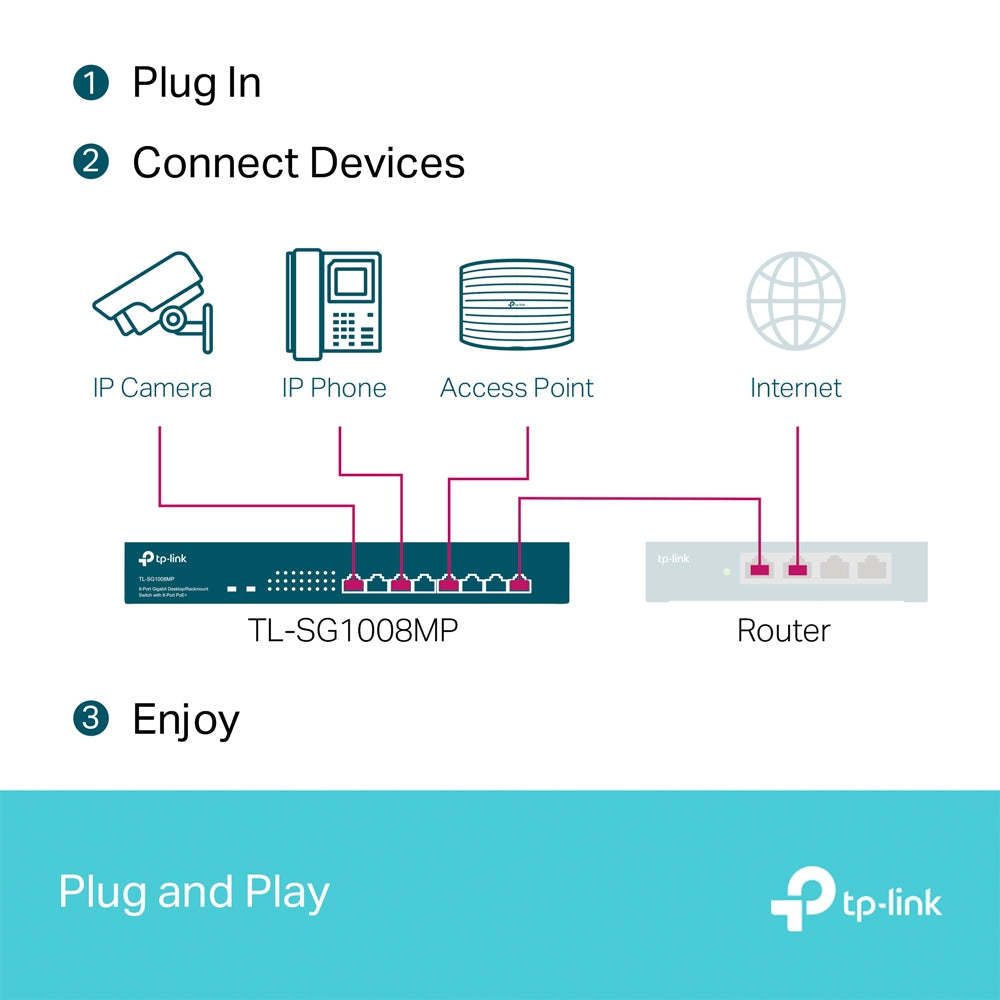

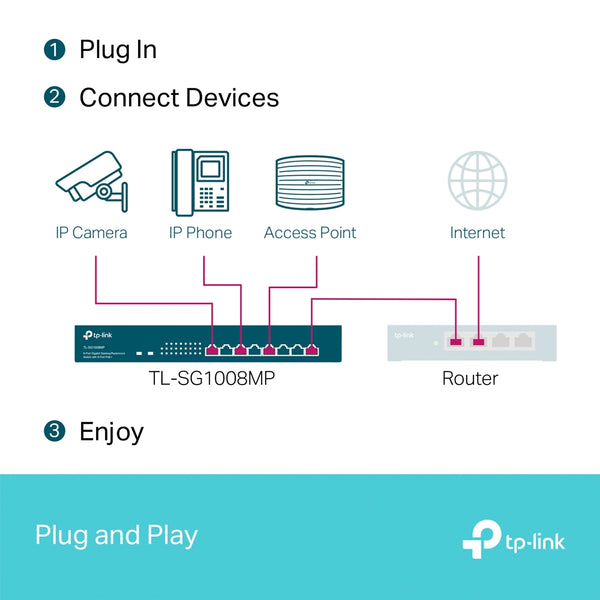

Plug and Play, Fanless Metal Case: No configuration is needed. The fanless metal case works silently on a desk or in a rack (rack kit included per TP-Link).
Who it's for / Works with: Homes, small offices and CCTV installations that need to power up to eight IP cameras, access points or IP phones from one switch.
Good to know: This is an unmanaged switch: no VLAN or web settings. Power is internal (100–240 V AC, power cord). There are no SFP ports.
Technical Specifications
| Specification | TP-Link TL-SG1008MP |
|---|---|
| Interface | 8× 10/100/1000 Mbps RJ45 ports, Auto-Negotiation / Auto MDI/MDIX |
| PoE | 802.3af/at, 8 PoE+ ports, up to 30 W per port |
| Total PoE budget | 153 W* |
| Switching capacity | 16 Gbps |
| Forwarding rate | 11.904 Mpps |
| MAC address table | 4K |
| Buffer | 1.5 Mbit |
| Jumbo frame | 16 KB |
| Advanced features | Priority function, IEEE 802.3x flow control, Extend Mode button (ports 1–2, up to 250 m**), PoE Auto Recovery (ports 1–8) |
| Power supply | 100–240 V AC, 50/60 Hz |
| Max. power consumption | 8.77 W (no PD); 172.49 W (with 153 W PD) |
| Fan | Fanless |
| Mounting | Desktop / rack mountable |
| Dimensions (W×D×H) | 294 × 180 × 44 mm |
| Operating temperature | 0–45 °C |
| Certification | FCC, CE |
* PoE budget figures are based on TP-Link laboratory testing; the actual PoE budget is not guaranteed and varies with the connected devices and the environment.
** In Extend Mode the port speed drops to 10 Mbps, and the real distance depends on the cable quality and the power drawn by the device.
📄 Datasheet: Download the official TP-Link TL-SG1008MP datasheet (PDF)
