TP-Link AC1200 Wi-Fi Wall Plugged Range Extender | RE305

TP-Link AC1200 Wi-Fi Wall Plugged Range Extender / RE305

TP-Link | AC1200 WiFi Range Extender | Up to 1200Mbps | Dual Band WiFi Extender, Repeater, Wifi Signal Booster, Access Point| Easy Set-Up | Extends Internet Wifi to Smart Home & Alexa Devices (RE305)

Description:

◆ Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at a combined speed of up to 1.2Gbps*

◆ Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience*

◆ Intelligent signal light helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength

◆ Works with any Wi-Fi router or wireless access point**

TP-Link RE305 V1

AC1200 Wi-Fi Range Extender

━━━━━━━━━━━━━━━━━━

Working Modes

Range Extender Mode
Access Point Mode

━━━━━━━━━━━━━━━━━━

Hardware Features

Standards & Protocols: IEEE 802.11ac / n / g / a / b
Plug Type: EU / UK / US
Interface: 1 × 10/100Mbps Ethernet Port (RJ45)
Buttons: WPS, Reset
Input Power: 100–240V ~ 50/60Hz
Max Power Consumption: 7.3W (Max)
Dimensions: 80 × 78 × 77 mm (3.1 × 3.0 × 3.0 in.)
Antennas: 2 × External Antennas

━━━━━━━━━━━━━━━━━━

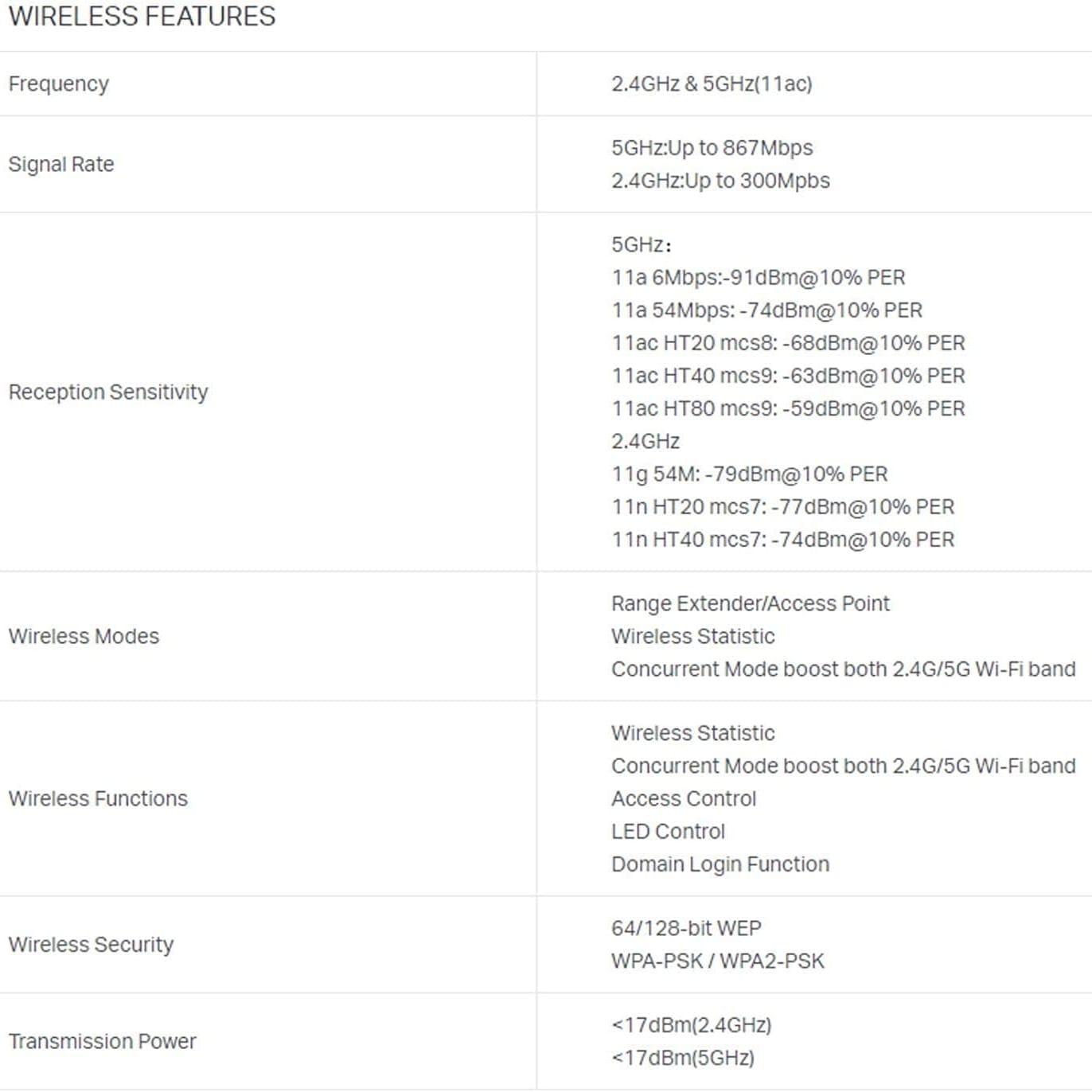

Wireless Performance

Wireless Standards:
IEEE 802.11ac/n/a (5GHz)
IEEE 802.11b/g/n (2.4GHz)

Frequency: Dual Band 2.4GHz & 5GHz
Speed: Up to 867Mbps (5GHz) + 300Mbps (2.4GHz)
Transmission Power: <17dBm (2.4GHz), <17dBm (5GHz)

Reception Sensitivity

5GHz:
11a 6Mbps: -91dBm @10% PER
11a 54Mbps: -74dBm @10% PER
11ac HT20 MCS8: -68dBm @10% PER
11ac HT40 MCS9: -63dBm @10% PER
11ac HT80 MCS9: -59dBm @10% PER

2.4GHz:
11g 54Mbps: -79dBm @10% PER
11n HT20 MCS7: -77dBm @10% PER
11n HT40 MCS7: -74dBm @10% PER

━━━━━━━━━━━━━━━━━━

Wireless Functions & Features

Range Extender / Access Point Modes
Wireless Statistics
Concurrent Mode (Boosts both 2.4GHz & 5GHz bands)
Access Control
LED Control
Domain Login Function

Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

━━━━━━━━━━━━━━━━━━

Certifications

CE, FCC, RoHS

━━━━━━━━━━━━━━━━━━

Package Contents

AC1200 Wi-Fi Range Extender RE305
Quick Installation Guide

Box Dimensions: 156.5 × 101.5 × 95 mm (6.15 × 4 × 3.7 in.)

━━━━━━━━━━━━━━━━━━

System Requirements

Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 10
Mac OS, NetWare, UNIX, Linux

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Storage Temperature: -40°C – 70°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing
