TP-Link AC750 WiFi Wall Plugged Range Extender | RE200

TP-Link AC750 WiFi Wall Plugged Range Extender / RE200

RE200 - AC750 Mesh Wi-Fi Range Extender

Description:

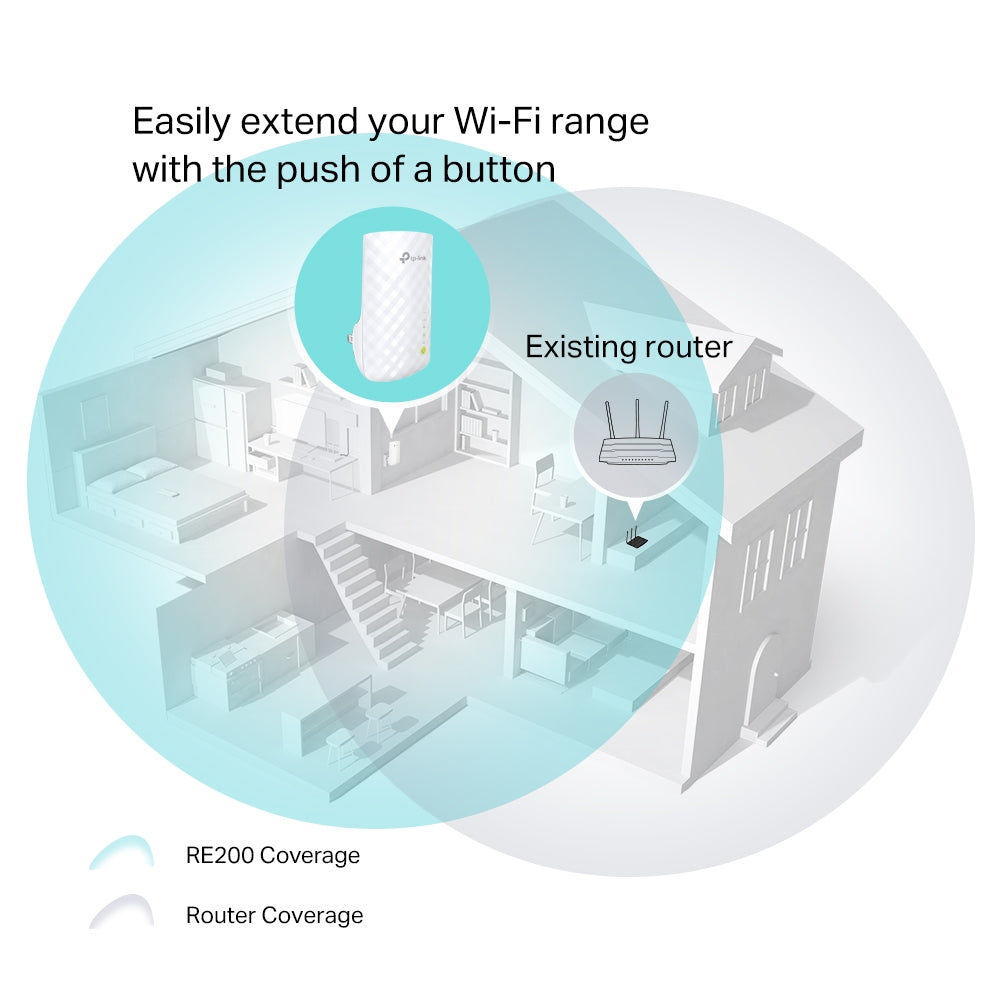

◆ Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly.

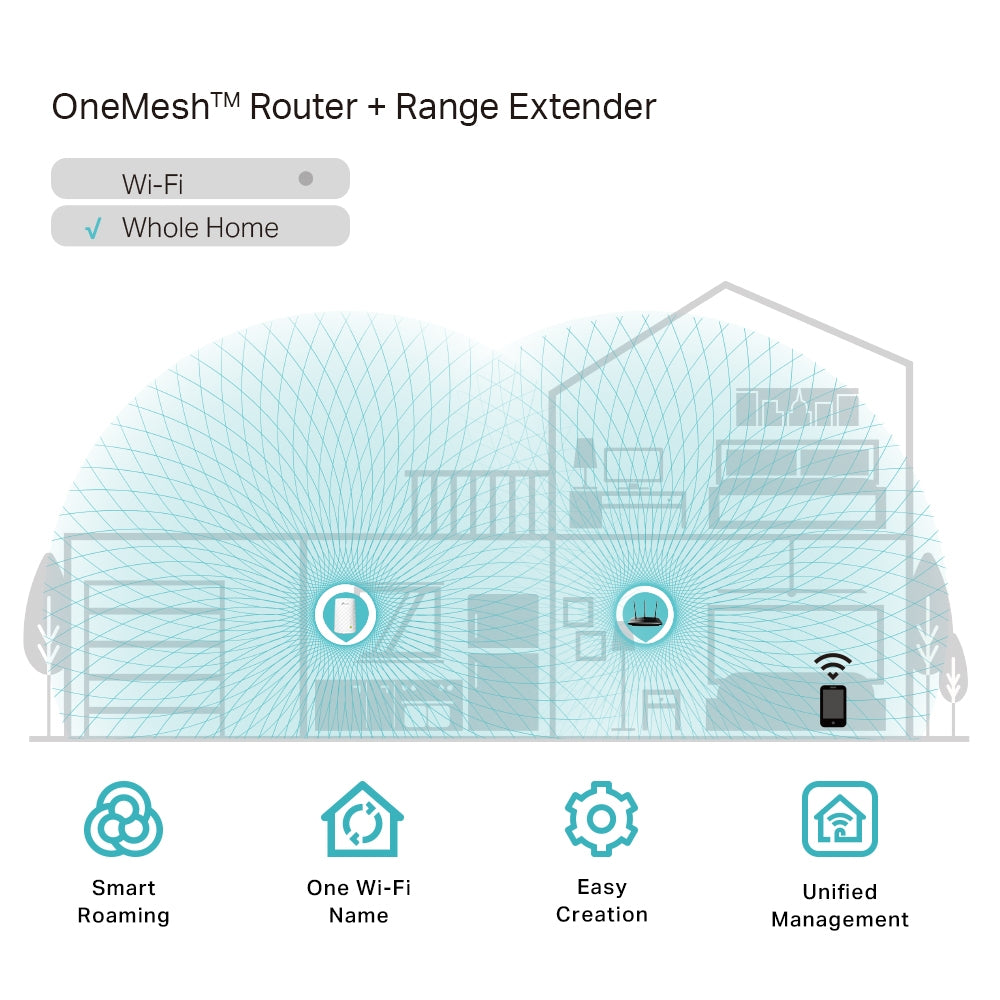

◆ Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.

◆ Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices

◆ Dual band speeds up to 750 Mbps

◆ Miniature size and wall-mounted design make it easy to deploy and move flexibly

◆ Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

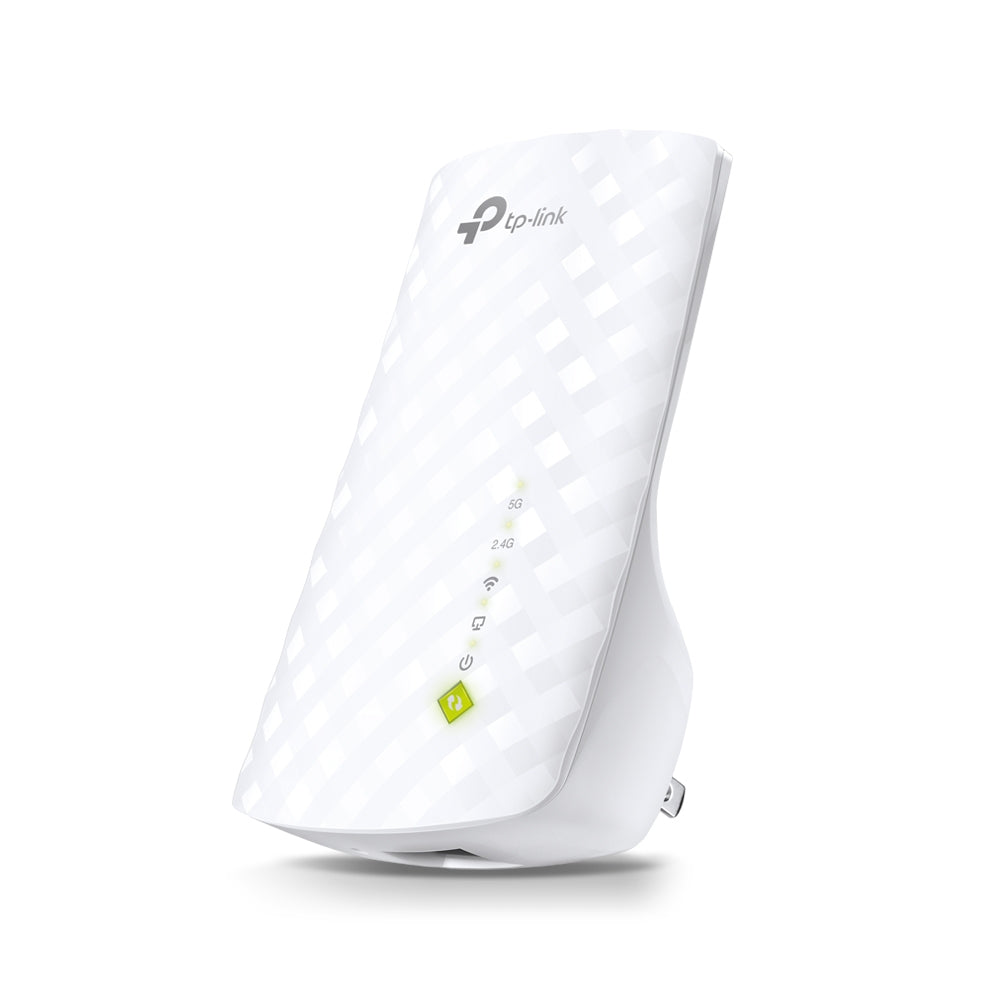

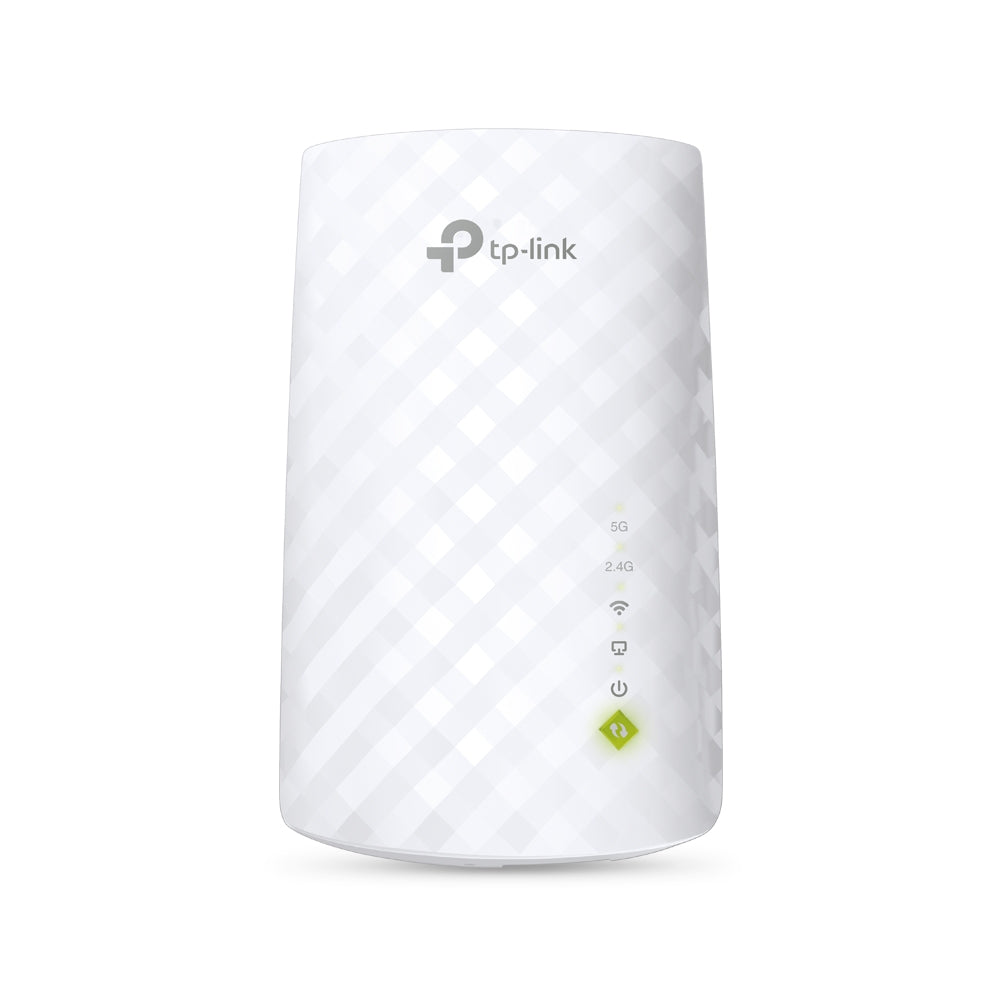

TP-Link RE200 V1

AC750 Wi-Fi Range Extender

━━━━━━━━━━━━━━━━━━

Hardware Features

Standards & Protocols: IEEE 802.11ac / n / g / b
Plug Type: EU / UK / US / AU

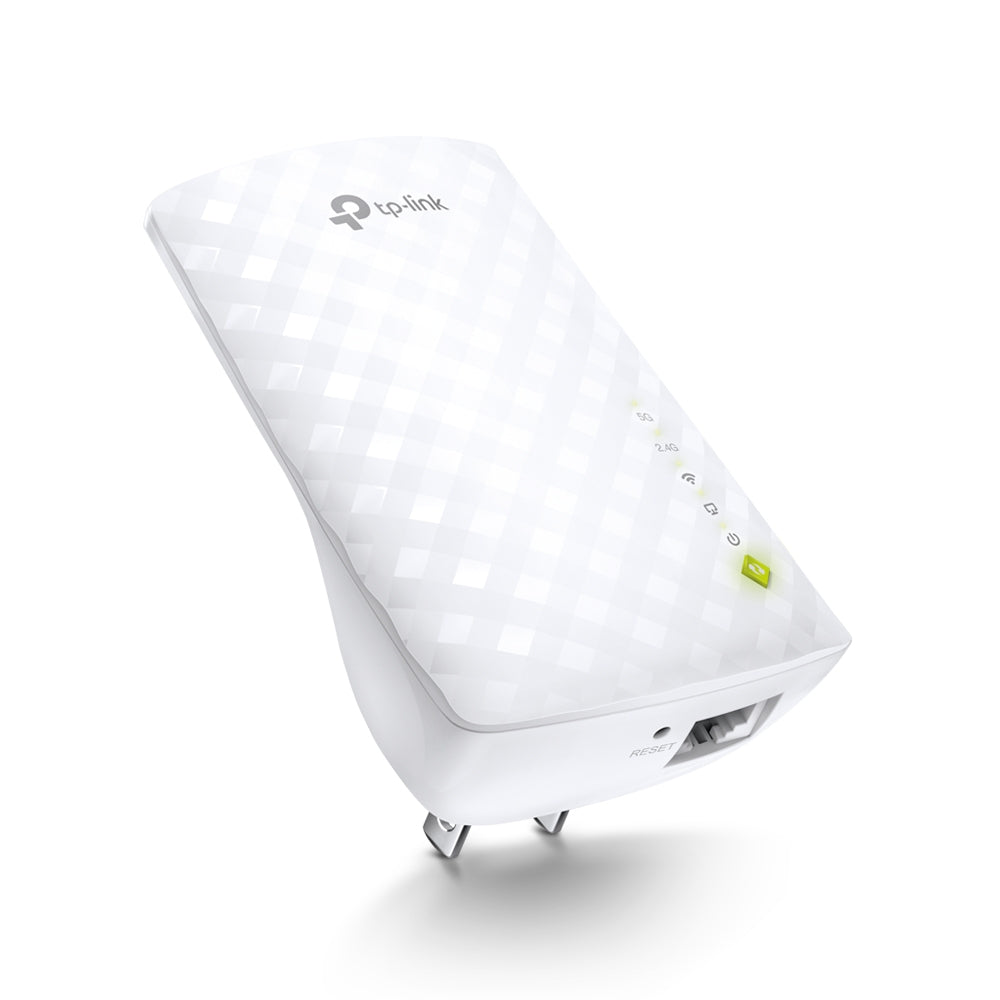

Interface: 1 × 10/100M Ethernet Port (RJ45)

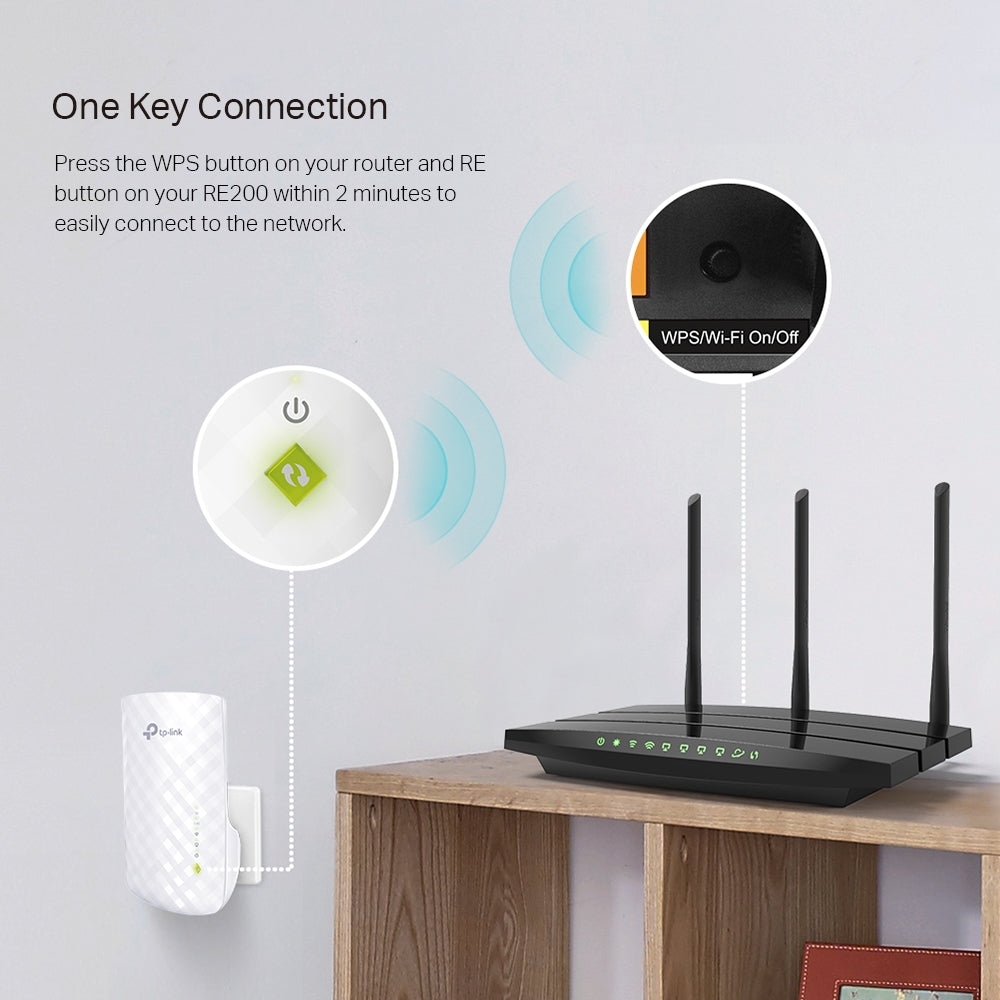

Buttons: RE (Range Extender), Reset
Input Power: 100–240V ~ 50/60Hz
Max Power Consumption: Approx. 6.5W
Dimensions: 110 × 65.8 × 75.2 mm (4.3 × 2.6 × 3.0 in.)
Antennas: 3 × Internal Antennas

━━━━━━━━━━━━━━━━━━

Wireless Performance

Frequency: Dual Band 2.4GHz & 5GHz
Speed: Up to 433Mbps (5GHz) + 300Mbps (2.4GHz)
Transmission Power: <20dBm (EIRP)

Reception Sensitivity

2.4GHz:
270M: -70dBm @10% PER
130M: -70dBm @10% PER
108M: -73dBm @10% PER
54M: -75dBm @10% PER
11M: -86dBm @8% PER
6M: -92dBm @10% PER
1M: -94dBm @8% PER

5GHz:
390M: -60dBm @10% PER
29.3M: -83dBm @10% PER
180M: -64dBm @10% PER
13.5M: -87dBm @10% PER
78M: -68dBm @10% PER
6.5M: -90dBm @10% PER
54M: -75dBm @10% PER
6M: -90dBm @10% PER

━━━━━━━━━━━━━━━━━━

Wireless Functions & Security

Wireless Modes: Range Extender / Access Point
Wireless Functions: WMM (Wi-Fi Multimedia), Wireless Statistics, Domain Login Function
Security: 64/128/152-bit WEP, WPA-PSK / WPA2-PSK

━━━━━━━━━━━━━━━━━━

Certifications

CE, FCC, RoHS

━━━━━━━━━━━━━━━━━━

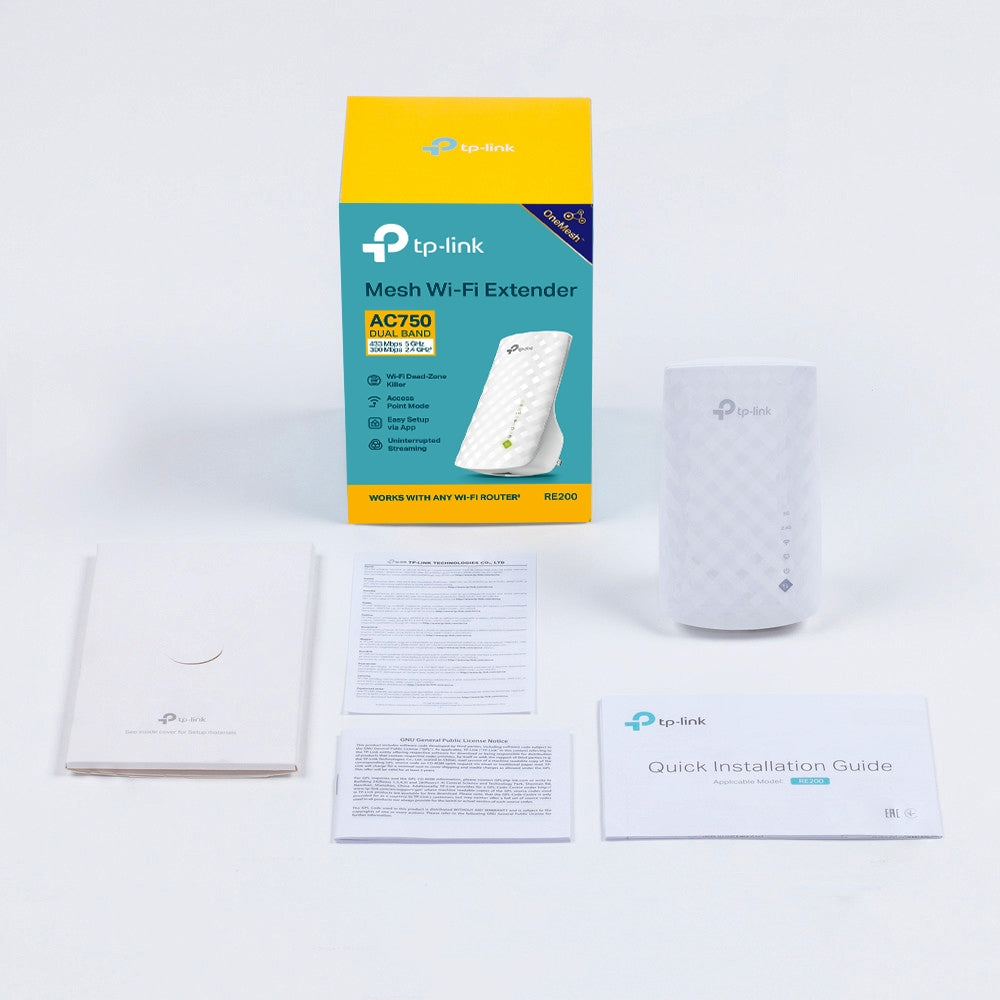

Package Contents

AC750 Wi-Fi Range Extender RE200
Quick Installation Guide

━━━━━━━━━━━━━━━━━━

System Requirements

Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 10
Mac OS, NetWare, UNIX, Linux

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Storage Temperature: -40°C – 70°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
