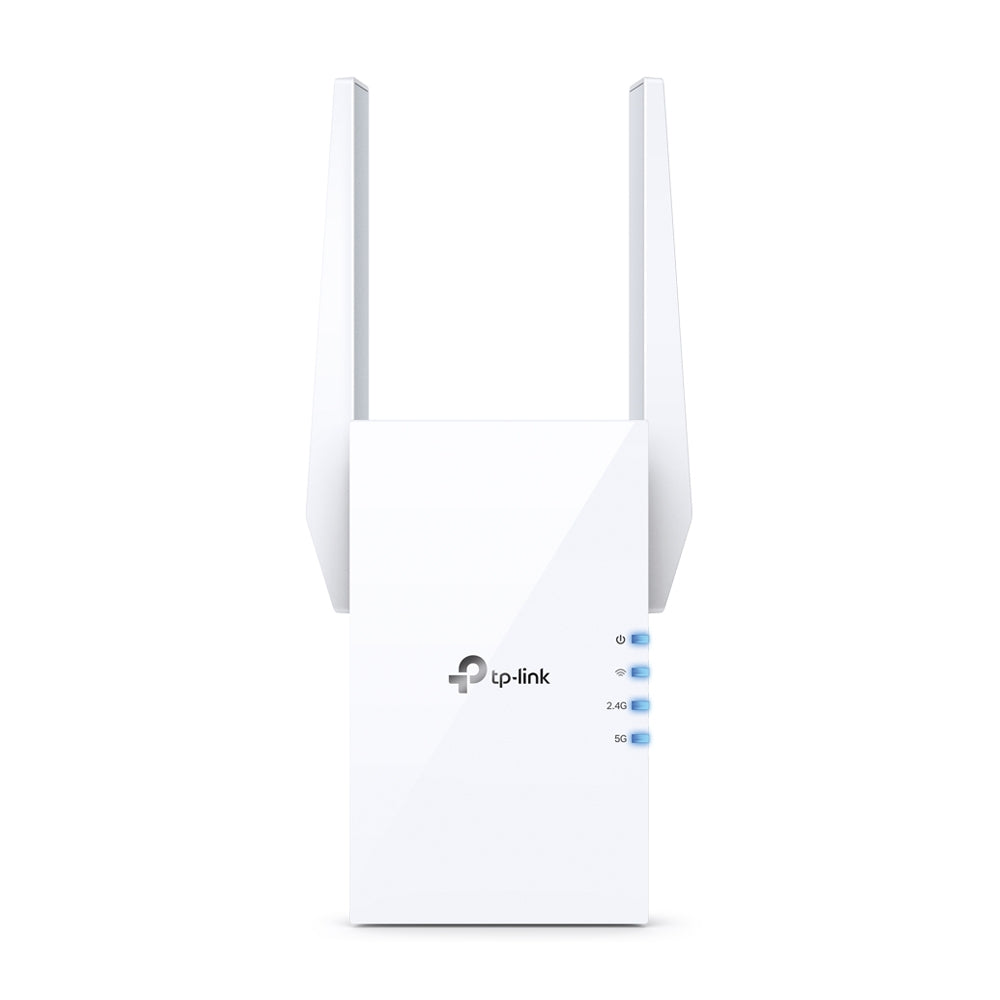

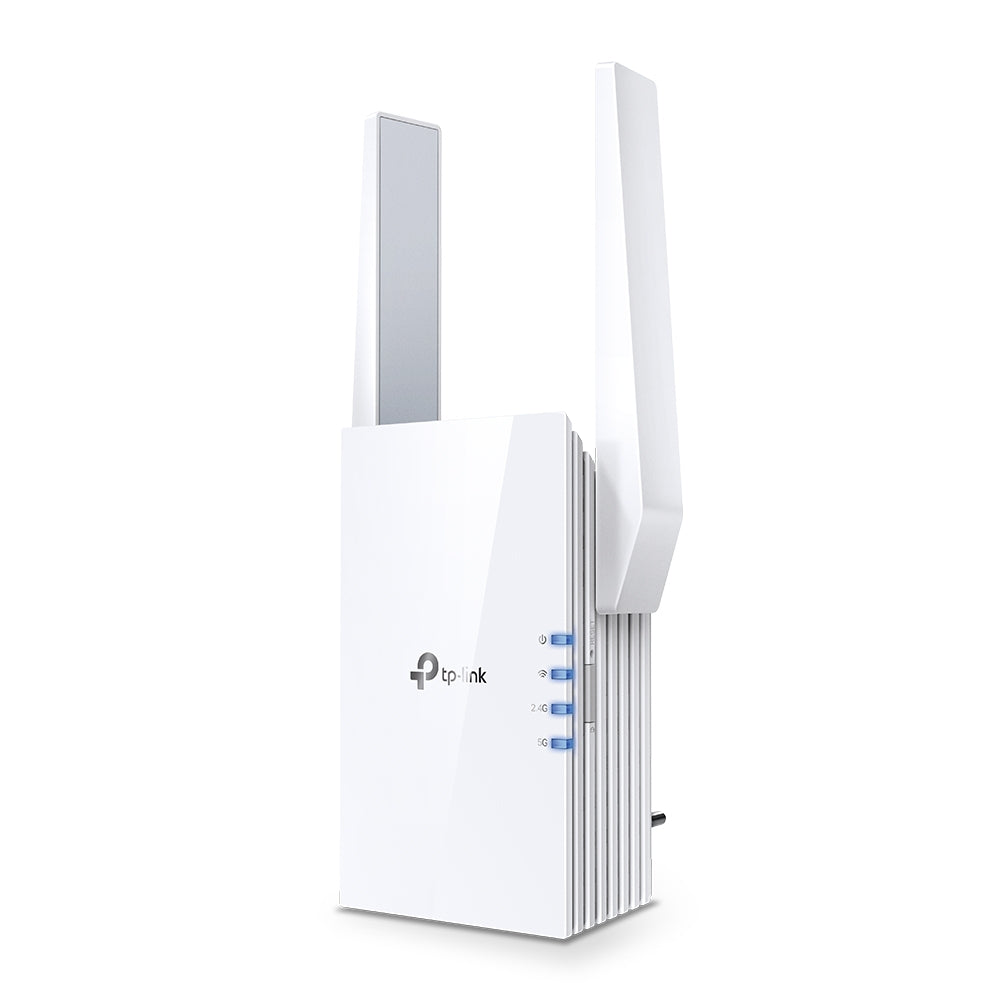

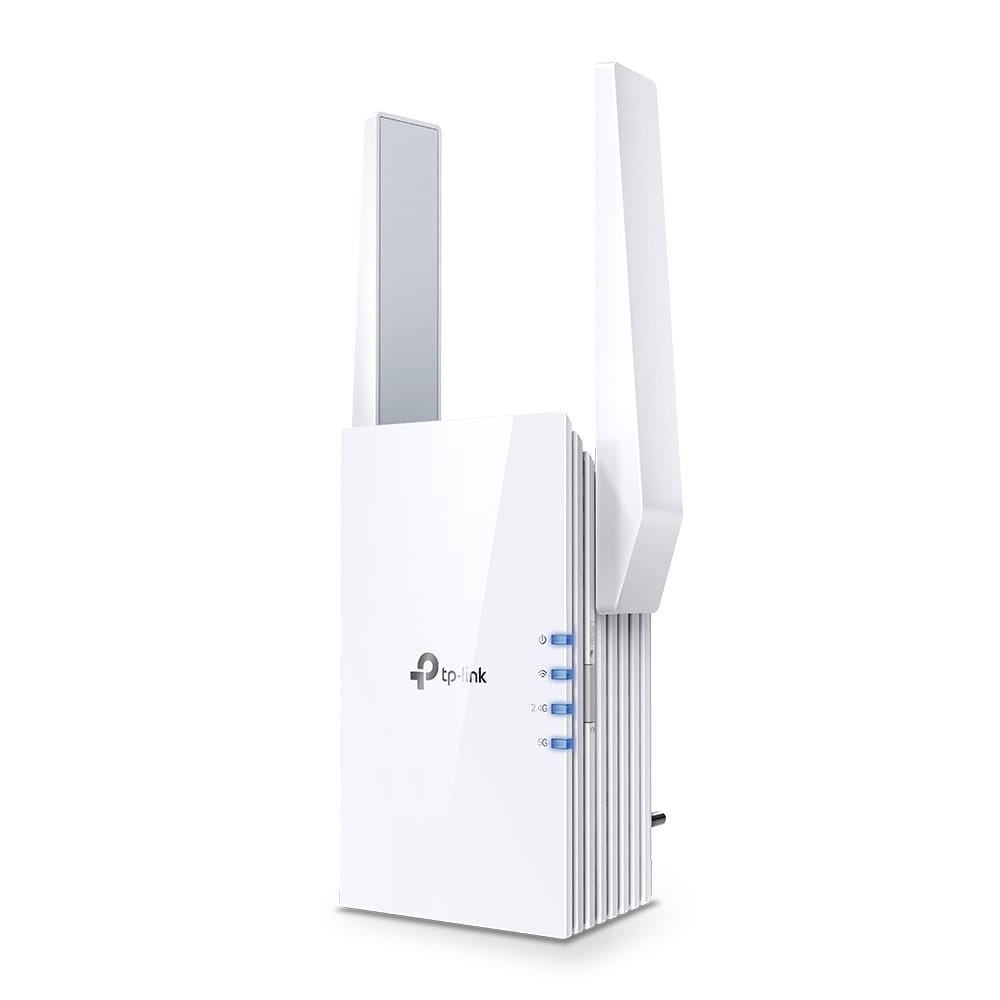

TP-Link AX1500 Wi-Fi Wall Plugged Range Extender | RE505X

◆ Extend WiFi Coverage: Eliminate WiFi dead zones by expanding high-performance WiFi using specially designed high-gain antennas.

◆ Wi-Fi 6 Speeds: Enjoy smoother and more reliable streaming, gaming, downloading, and more with dual-band WiFi speeds up to 1.5 Gbps.^{1 2}

◆ Connect More Devices to Your Network: Connect more devices that are out of range from your main router while eliminating poor performance.

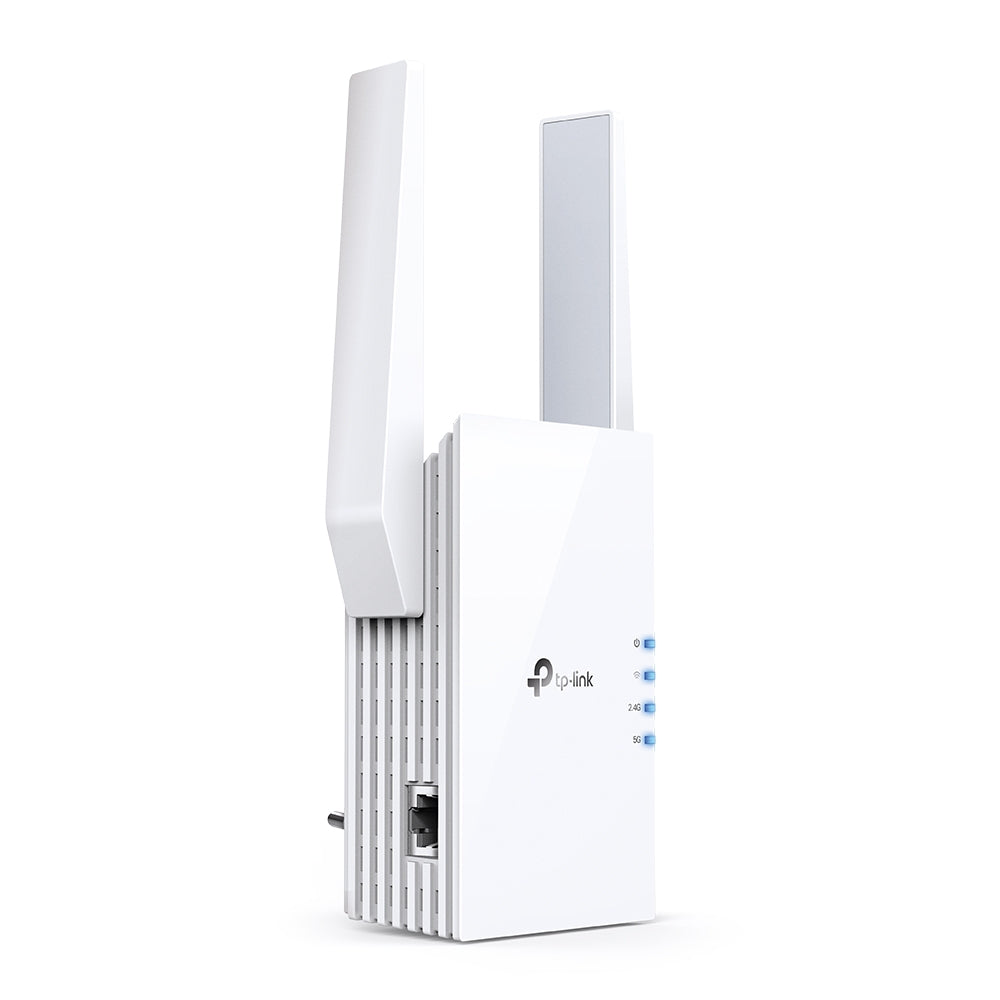

◆ Gigabit Ethernet Port: Experience wired speed and reliability anywhere in your home with the gigabit ethernet port.

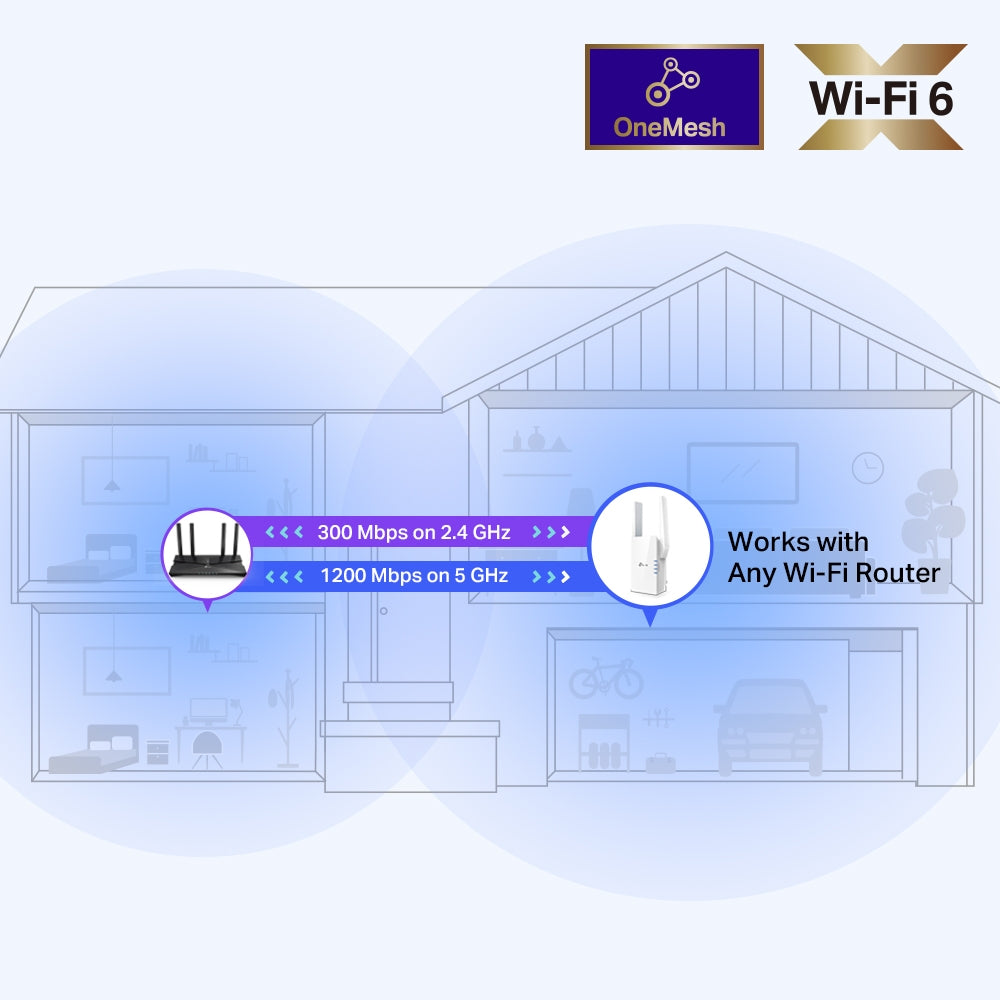

◆ TP-Link OneMesh™ Technology: Create a mesh network using compatible routers, like Archer A7, and range extenders so you never switch networks or lose signal. ³

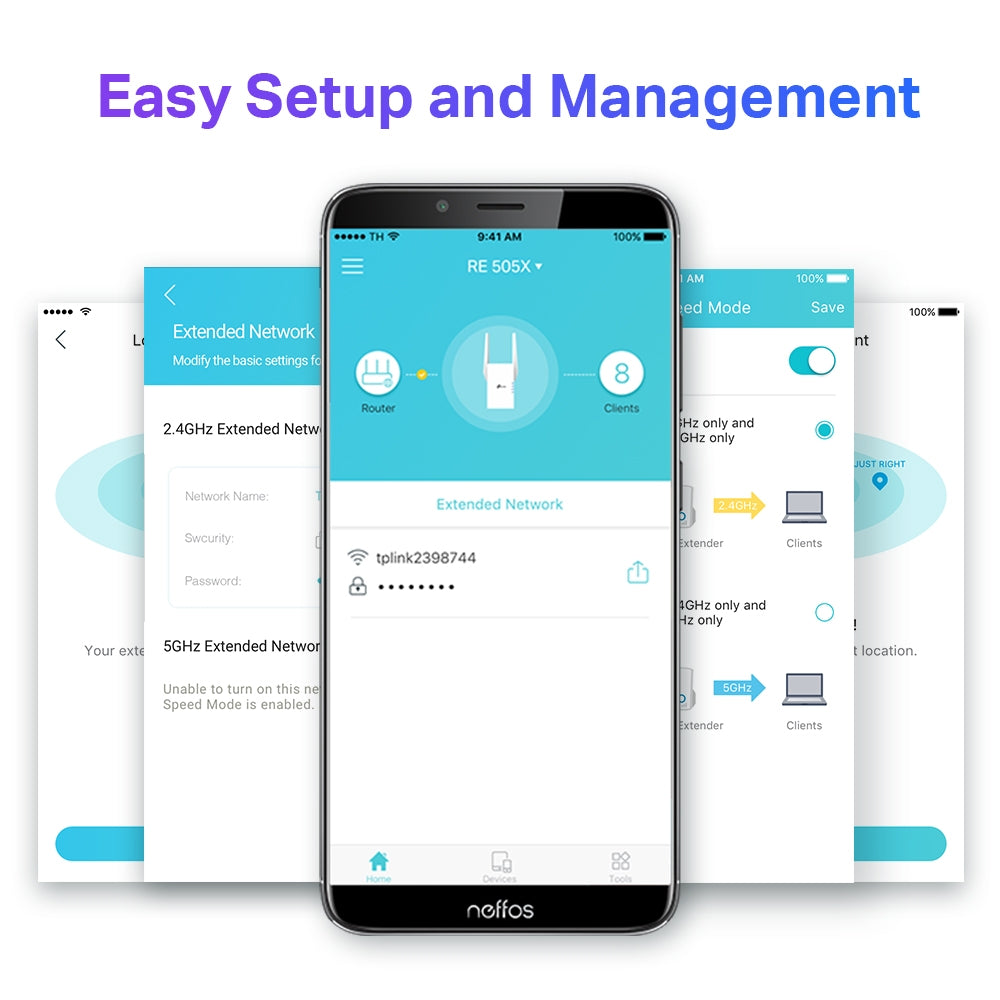

◆ Set Up in Minutes: Easily set up and manage your WiFi in a few quick and easy steps using the intelligent signal indicator and TP-Link Tether app (Android, iOS).

◆ Universal Compatibility: Compatible with all WiFi-enabled devices and routers or access points. It even supports new AX phones, laptops and other devices.⁴

TP-Link RE505X

AX1500 Wi-Fi 6 Range Extender

━━━━━━━━━━━━━━━━━━

Working Modes

Range Extender Mode
Access Point Mode

━━━━━━━━━━━━━━━━━━

Hardware Features

Interface: 1 × Gigabit Ethernet Port
Buttons: WPS, Reset
Input Power: 100–240V ~ 50/60Hz
Max Power Consumption: 10W
Dimensions: 74 × 46 × 124.8 mm (2.9 × 1.8 × 4.9 in.)
Antennas: 2 × External Antennas

━━━━━━━━━━━━━━━━━━

Wireless Performance

Wireless Standards:
IEEE 802.11ax/ac/n/a (5GHz)
IEEE 802.11n/g/b (2.4GHz)

Frequency: Dual Band 2.4GHz & 5GHz
Speed: 300Mbps (2.4GHz) + 1200Mbps (5GHz)
Transmission Power (CE): 2.4GHz ≤20dBm, 5GHz ≤30dBm

Reception Sensitivity

5GHz:
11a 6Mbps: -93dBm
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm
11ac HT80 MCS9: -62dBm

2.4GHz:
11g 54Mbps: -77dBm
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm

━━━━━━━━━━━━━━━━━━

Security & Wireless Functions

Security: 64/128-bit WEP, WPA/WPA2-PSK
Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics

━━━━━━━━━━━━━━━━━━

Certifications

FCC, RoHS

━━━━━━━━━━━━━━━━━━

Package Contents

RE505X Wi-Fi Range Extender
Quick Installation Guide

━━━━━━━━━━━━━━━━━━

System Requirements

Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10
Mac OS, NetWare, UNIX, Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Storage Temperature: -40°C – 70°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing
