TP-Link AX1800 Wi-Fi Wall Plugged Range Extender | RE605X

◆ RE605X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.

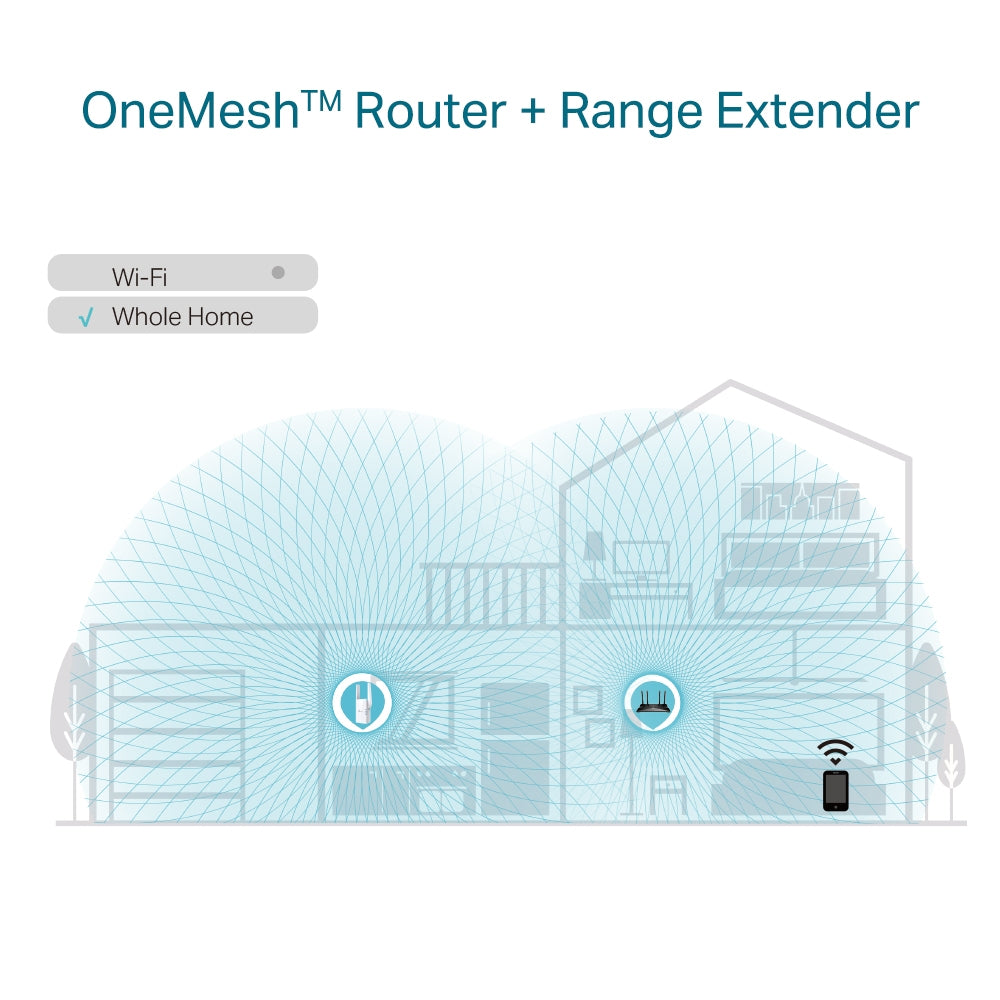

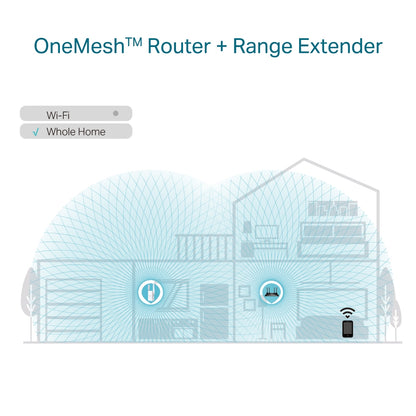

◆ Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.

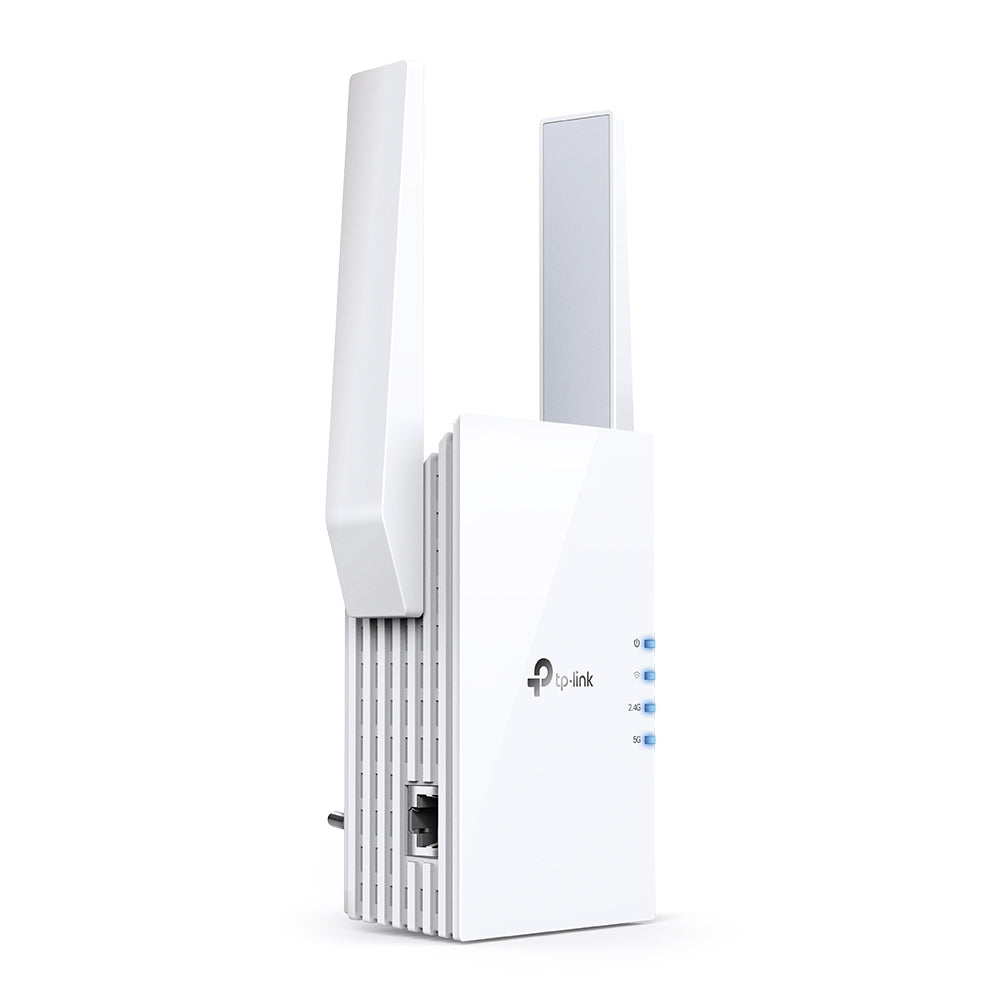

◆ Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles

◆ Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement

◆ AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

◆ TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device

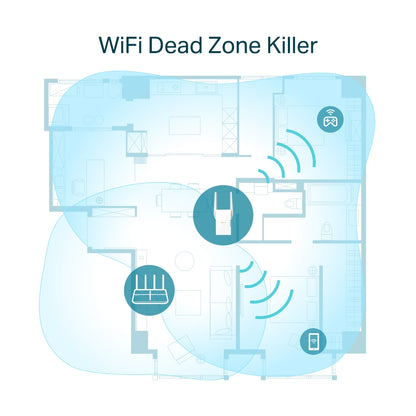

◆ Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

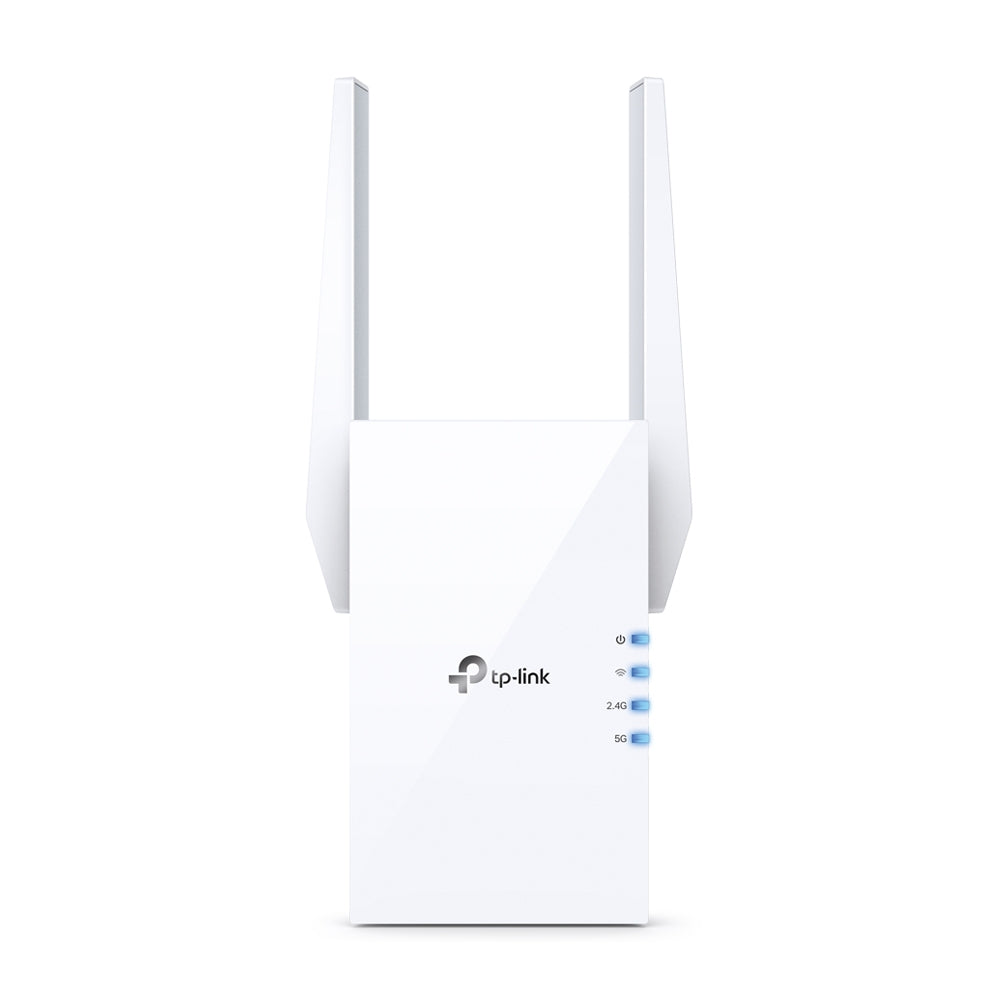

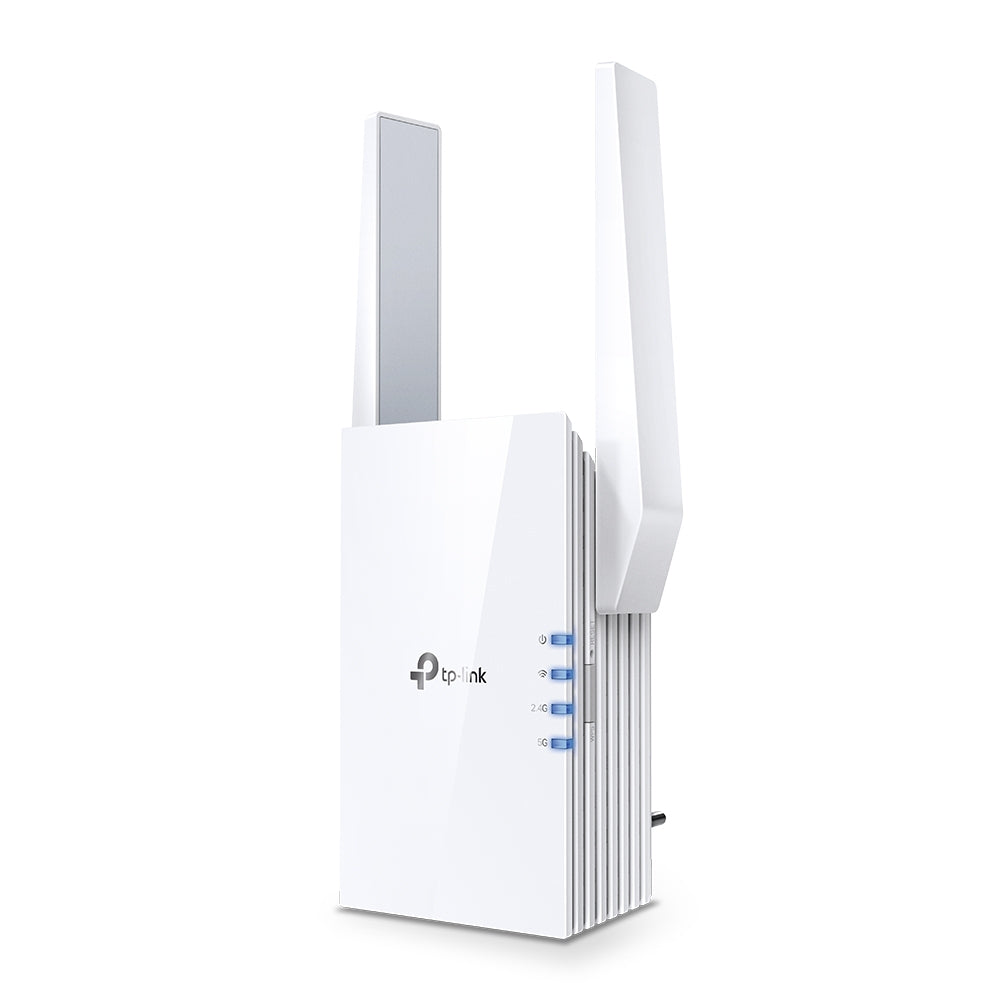

TP-Link RE605X

AX1800 Wi-Fi 6 Range Extender

━━━━━━━━━━━━━━━━━━

Working Modes

Range Extender Mode
Access Point Mode

━━━━━━━━━━━━━━━━━━

Hardware Features

Interface: 1 × Gigabit Ethernet Port
Buttons: WPS, Reset
Input Power: 100–240V ~ 50/60Hz
Max Power Consumption: 10W
Dimensions: 74 × 46 × 124.8 mm (2.9 × 1.8 × 4.9 in.)
Antennas: 2 × External Antennas

━━━━━━━━━━━━━━━━━━

Wireless Performance

Wireless Standards:
IEEE 802.11ax/ac/n/a (5GHz)
IEEE 802.11ax/n/g/b (2.4GHz)

Frequency: Dual Band 2.4GHz & 5GHz
Speed: 574Mbps (2.4GHz) + 1201Mbps (5GHz)
Transmission Power (CE): 2.4GHz ≤15dBm, 5GHz ≤21dBm
Mesh Technology: OneMesh

Reception Sensitivity

5GHz:
11ax HE80 MCS0: -87dBm
11ax HE80 MCS11: -56dBm
11a 6Mbps: -93dBm
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm
11ac HT80 MCS9: -62dBm

2.4GHz:
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -63dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm

━━━━━━━━━━━━━━━━━━

Security & Wireless Functions

Security: 64/128-bit WEP, WPA/WPA2-PSK
Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics

━━━━━━━━━━━━━━━━━━

Certifications

CE, FCC, RoHS

━━━━━━━━━━━━━━━━━━

Package Contents

RE605X Wi-Fi Range Extender
Quick Installation Guide

━━━━━━━━━━━━━━━━━━

System Requirements

Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10
Mac OS, NetWare, UNIX, Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Storage Temperature: -40°C – 70°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing
