TP-Link® LiteWave 24-Port Gigabit Desktop/Rackmount Switch | LS1024G
TP-Link® LiteWave 24-Port Gigabit Desktop/Rackmount Switch | LS1024G
Couldn't load pickup availability
TP-Link LiteWave 24-Port Gigabit Desktop/Rackmount Switch | LS1024G

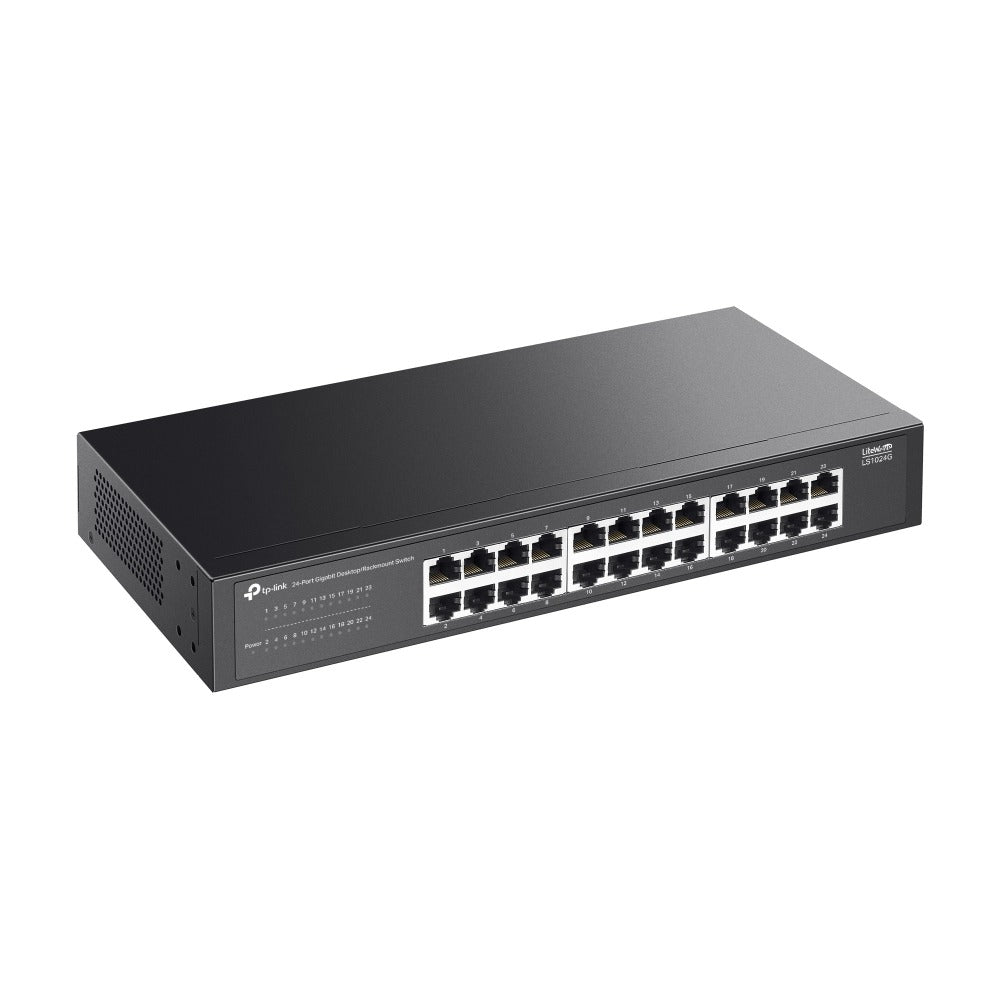

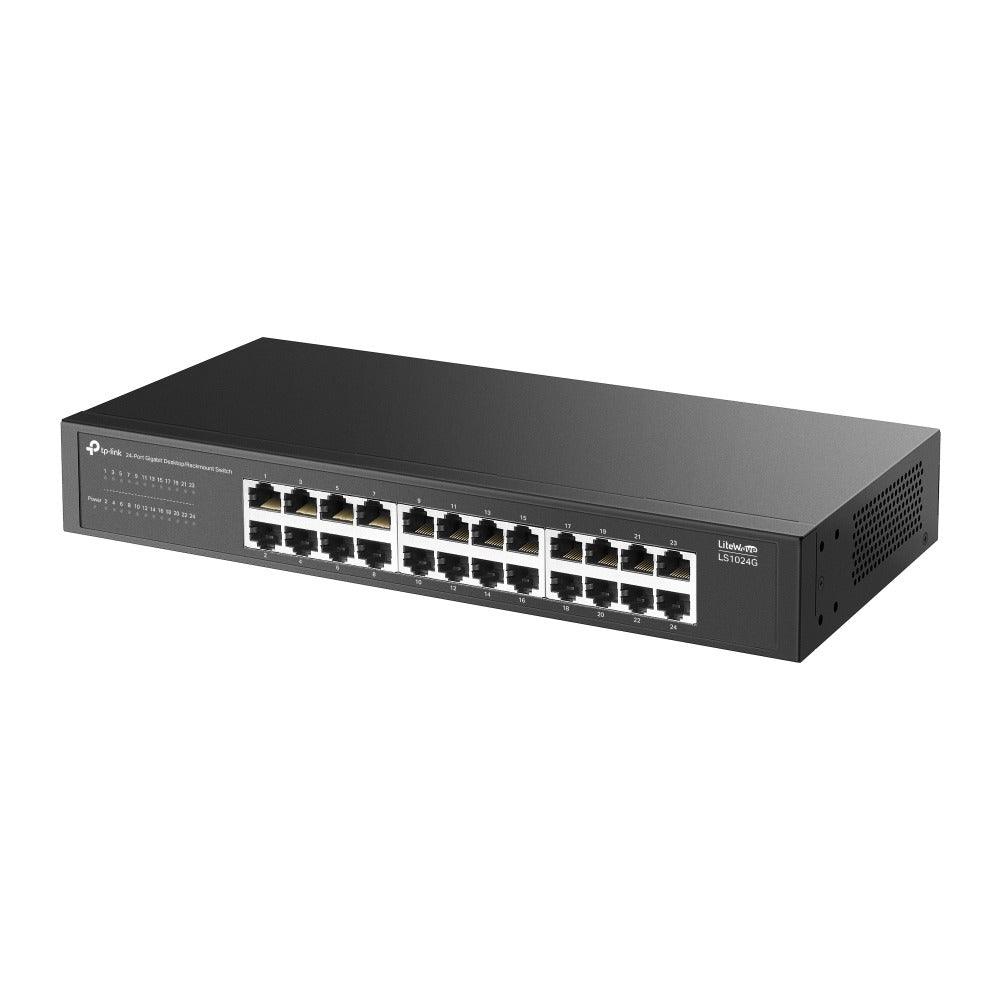

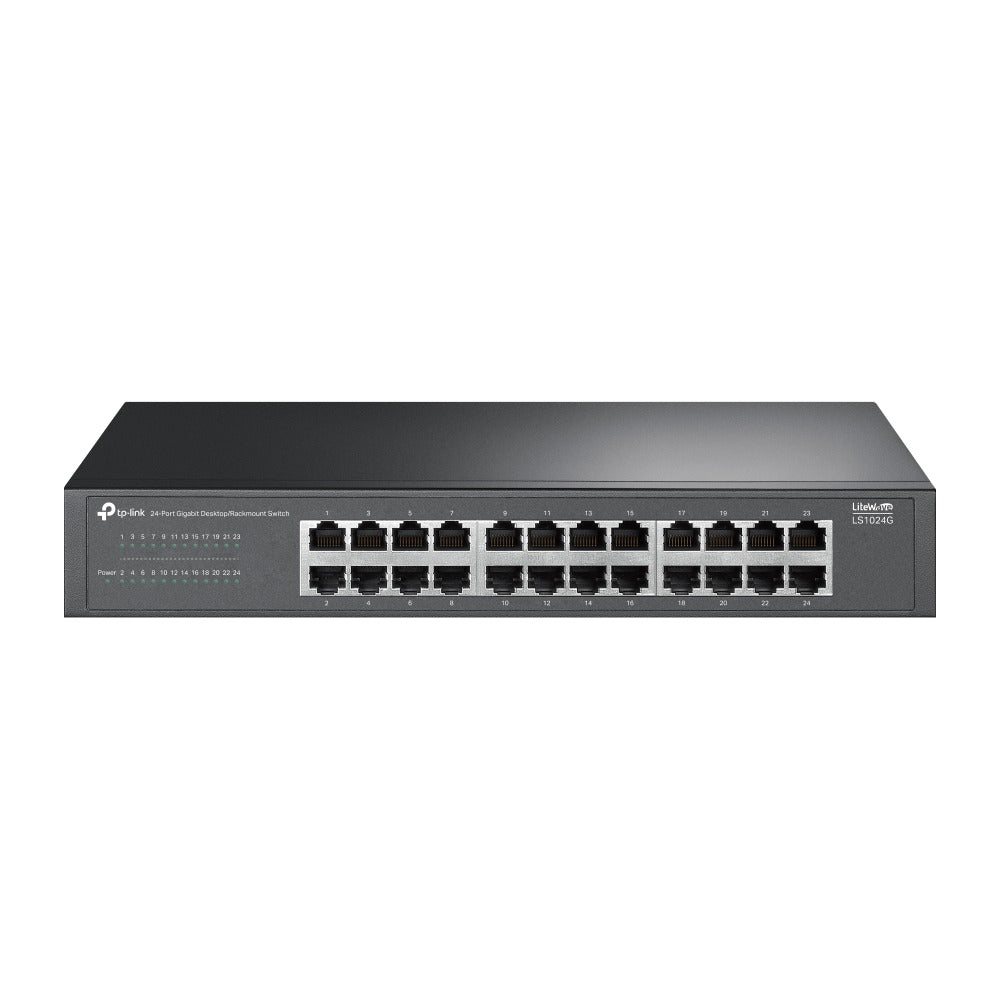

The TP-Link LiteWave LS1024G is a 24-port Gigabit unmanaged switch for the desk or the rack. It offers twenty-four 10/100/1000Mbps RJ45 ports, 48Gbps switching capacity, QoS for voice and video, energy-efficient technology, a durable metal case and a silent fanless design, all plug and play.
24 Gigabit Ports: Quickly expand your wired network with twenty-four 10/100/1000Mbps Ethernet ports, 10 times faster than regular 10/100Mbps ports according to TP-Link. It is compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles and more, and TP-Link's energy-efficient technology helps save power.
QoS for a Lag-Free Experience: QoS (Quality of Service) keeps traffic smooth for latency-sensitive applications such as voice and video when bandwidth is limited.
Durable, Silent and Flexible: The durable metal case improves heat dissipation and product life, the fanless design keeps it silent for noise-sensitive homes or offices, and you can place it on a desk or mount it in a rack with the included rackmount kit.
Plug and Play: No configuration is needed: connect power, connect your devices and it works. MAC address self-learning, Auto MDI/MDIX and auto-negotiation are supported.
Who it's for / Works with: Homes and businesses that need many Gigabit wired ports for IP phones, IP cameras, access points, computers and printers (as shown by TP-Link).
Good to know: This is an unmanaged switch with no web settings or VLAN. It does not support PoE (it cannot power cameras or access points) and has no SFP ports. Power is supplied through an AC power cord (internal power supply).

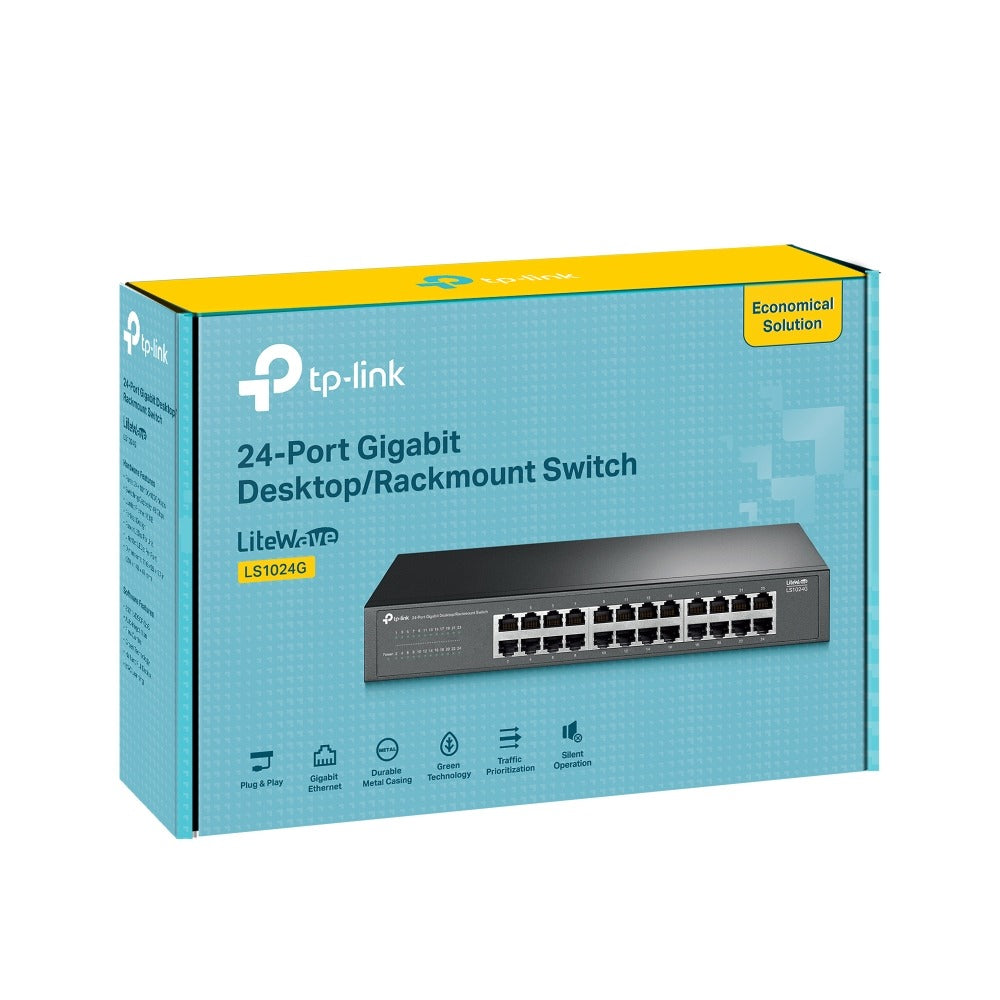

What's in the Box
◆ Switch
◆ Power cord
◆ Rackmount kits

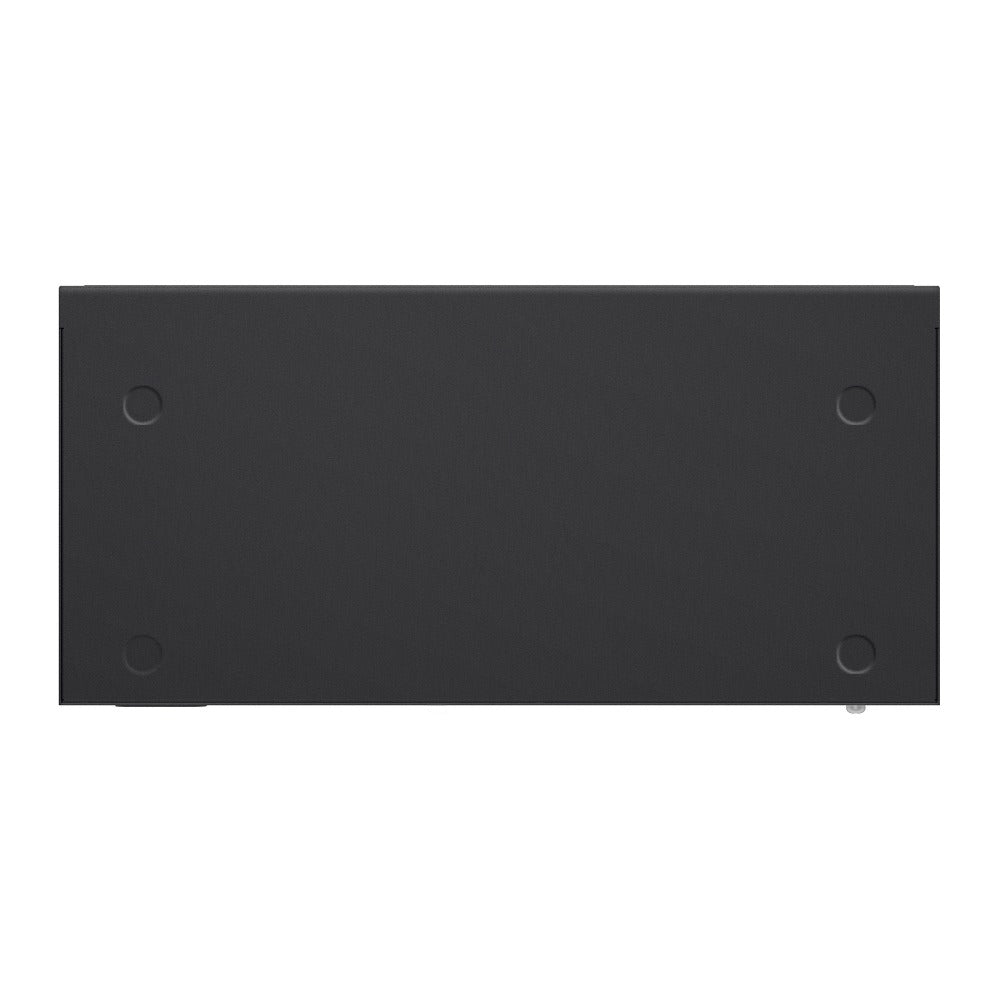

◆ Rubber feet
◆ Installation guide
Technical Specifications
| Specification | TP-Link LS1024G |
|---|---|
| Ports | 24 × 10/100/1000Mbps RJ45, auto-negotiation, auto MDI/MDIX |
| Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Type | Unmanaged, desktop or rack-mount |
| Housing | Metal |
| Switching capacity | 48Gbps |
| Packet forwarding rate | 35.7Mpps |
| MAC address table | 8K |
| Jumbo frame | 10KB |
| Transmission method | Store-and-forward |
| Fan | Fanless |

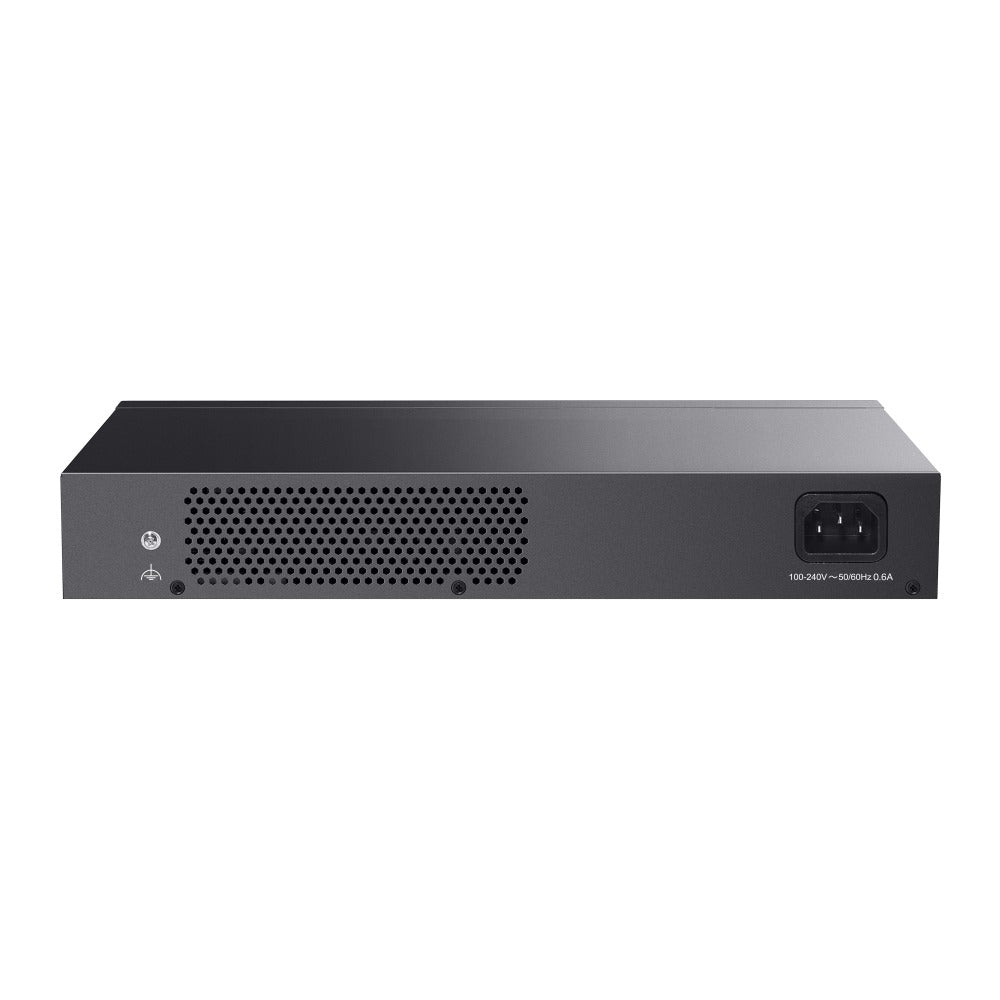

| Power supply | Internal, 100-240V~ 50/60Hz, 0.6A |
| Max power consumption | 12.6W (110V/60Hz) |
| Dimensions (W × D × H) | 294 × 140 × 44 mm |
| Certification | CE, FCC |
| Operating temperature | 0°C to 45°C |
📄 Datasheet: Download the official TP-Link LS1024G datasheet (PDF)
