TP-Link Omada 6-Port Gigabit Easy Managed PoE Switch with 4-Port PoE+, 65W | ES206GP

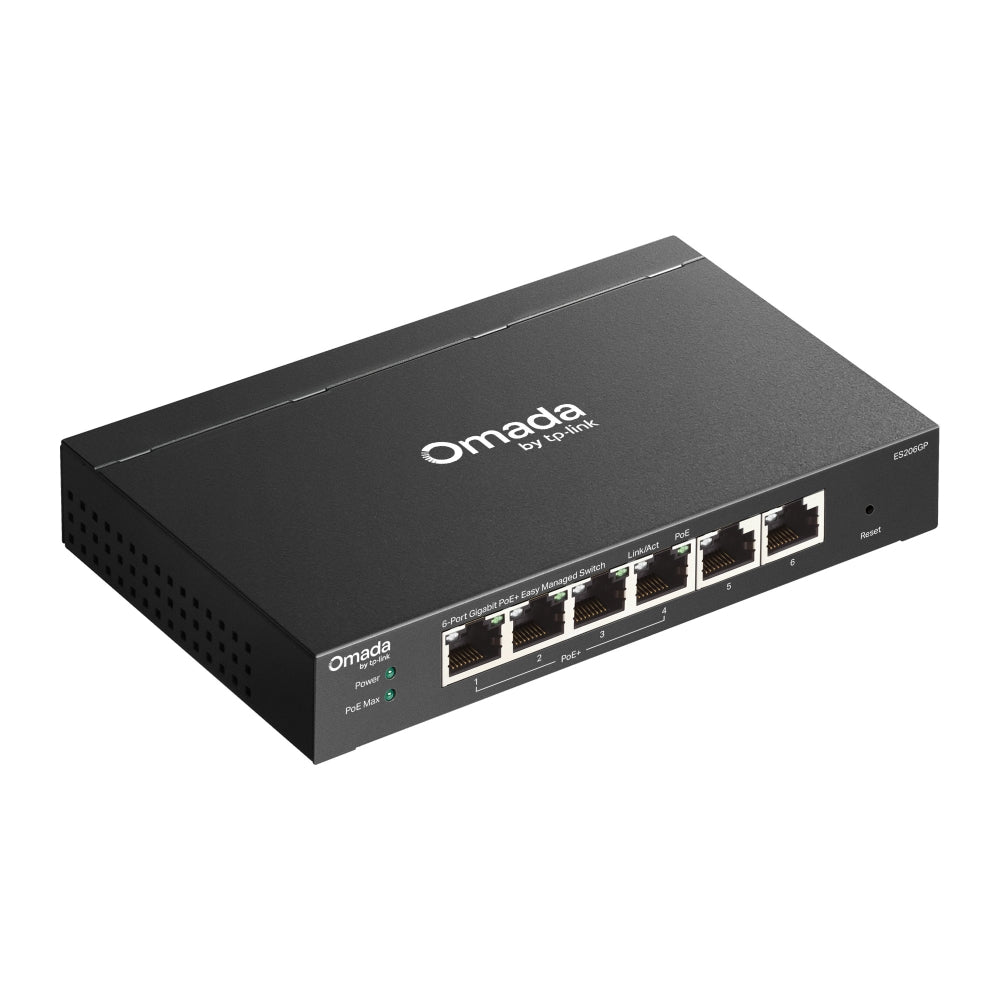

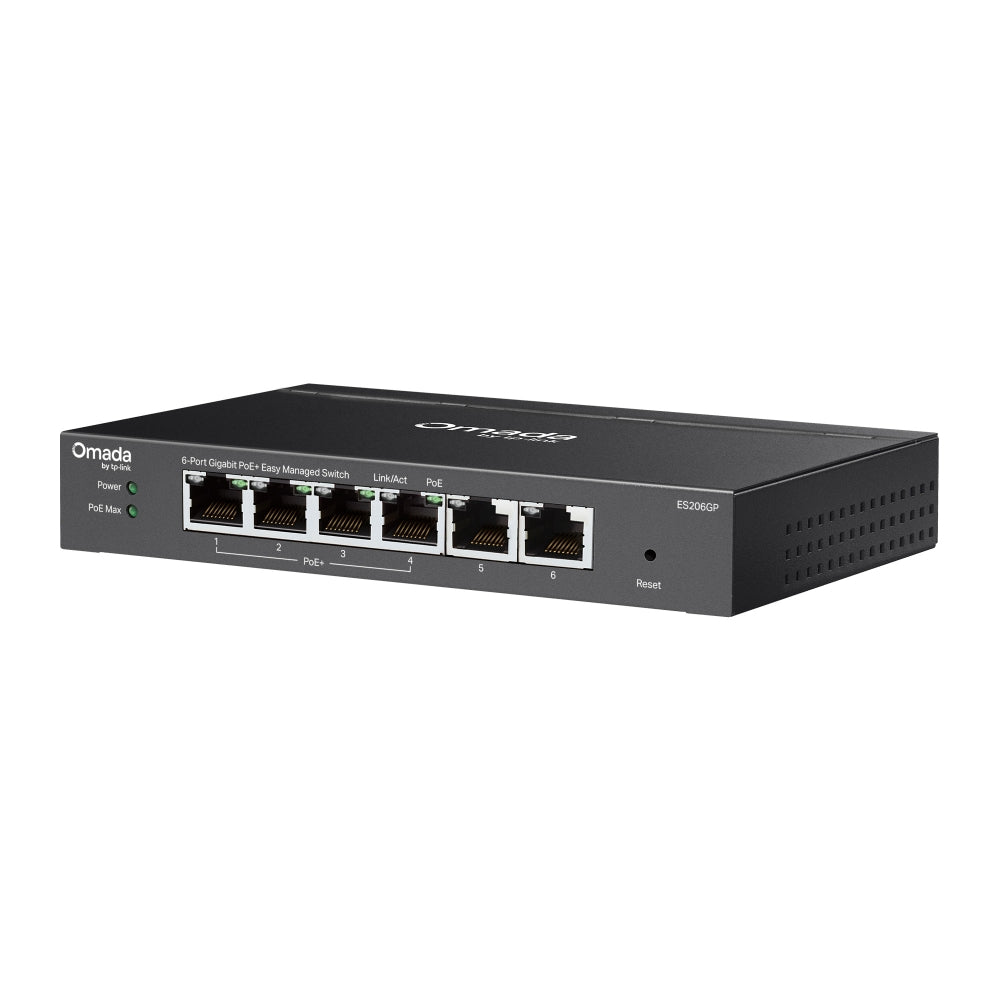

The TP-Link Omada ES206GP is a compact 6-port Gigabit Easy Managed switch with four 802.3af/at PoE+ ports. It provides up to 30 W per port and a 65 W total PoE budget*, and it can be managed on its own or through Omada for free cloud management, which suits small surveillance and office networks.

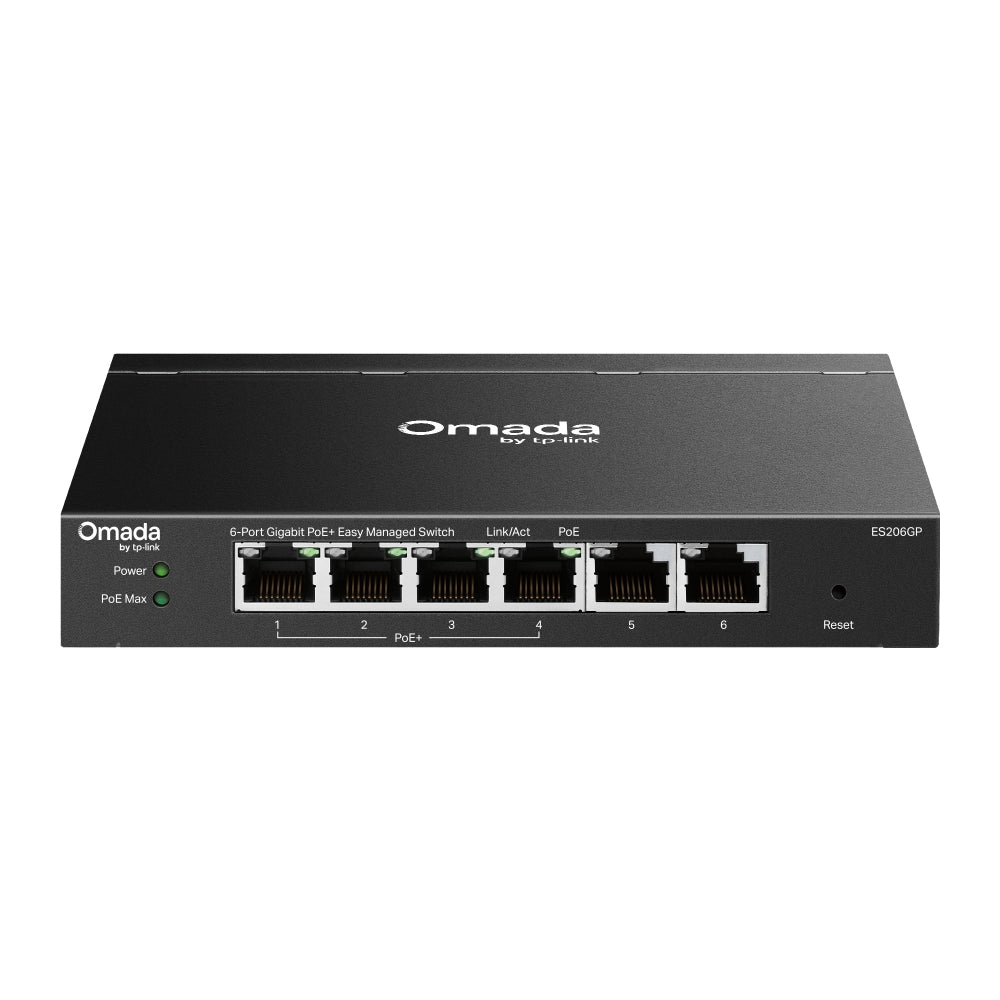

4 PoE+ Ports, 65 W: Ports 1–4 power IP cameras, access points or IP phones over one cable, with Fast PoE and Perpetual PoE. Ports 5–6 connect the router, NVR or other devices.
Up to 250 m PoE: PoE ports can reach up to 250 m**; in that mode the port speed is limited to 10 Mbps, which TP-Link states is adequate for sub-4K camera video.
Easy Managed Features: 802.1Q VLAN (up to 32 groups), port-based / 802.1p / DSCP QoS, IGMP Snooping, static link aggregation, loopback detection, port mirroring, cable test and PoE Auto Recovery.
Omada Cloud Management: With an Omada controller (built-in version 6.1.0 or later) you get centralized management, the Omada app, cloud access, remote camera reboot and Zero-Touch Provisioning (cloud-based controller).
Who it's for / Works with: Small CCTV systems, shops and offices with up to four PoE cameras, APs or phones, especially when the rest of the network is Omada.
Good to know: Only ports 1–4 supply PoE, and the 65 W budget is shared. Omada features need an Omada controller. Power is from an external AC/DC adapter (53.5 V DC / 1.31 A, included).
Technical Specifications
| Specification | TP-Link ES206GP |
|---|---|
| Interface | 6× 10/100/1000 Mbps RJ45 ports (4× 802.3af/at PoE+) |
| PoE | 802.3af/at, 4 ports, 30 W max per port, Fast PoE, Perpetual PoE, PoE Auto Recovery, up to 250 m** |
| Total PoE budget | 65 W* |
| Switching capacity | 12 Gbps |
| Forwarding rate | 8.93 Mpps |
| MAC address table | 8K |
| Packet buffer | 4 Mbit |
| Jumbo frame | 15 KB |
| L2 features | Static link aggregation, loopback detection, 802.3x flow control, port mirroring, 802.1ab LLDP, IGMP Snooping v1/v2/v3 |
| VLAN | 802.1Q tag VLAN, up to 32 VLAN groups, 4K VID |
| QoS | Port-based / 802.1p / DSCP, 8 priority queues, WRR, port rate limit, storm control |
| Management | Web GUI, cable diagnostics; Omada Hardware / Software / Cloud-Based Controller (6.1.0 or later), Omada app, ZTP (cloud controller) |
| Surge protection | ±6 kV |

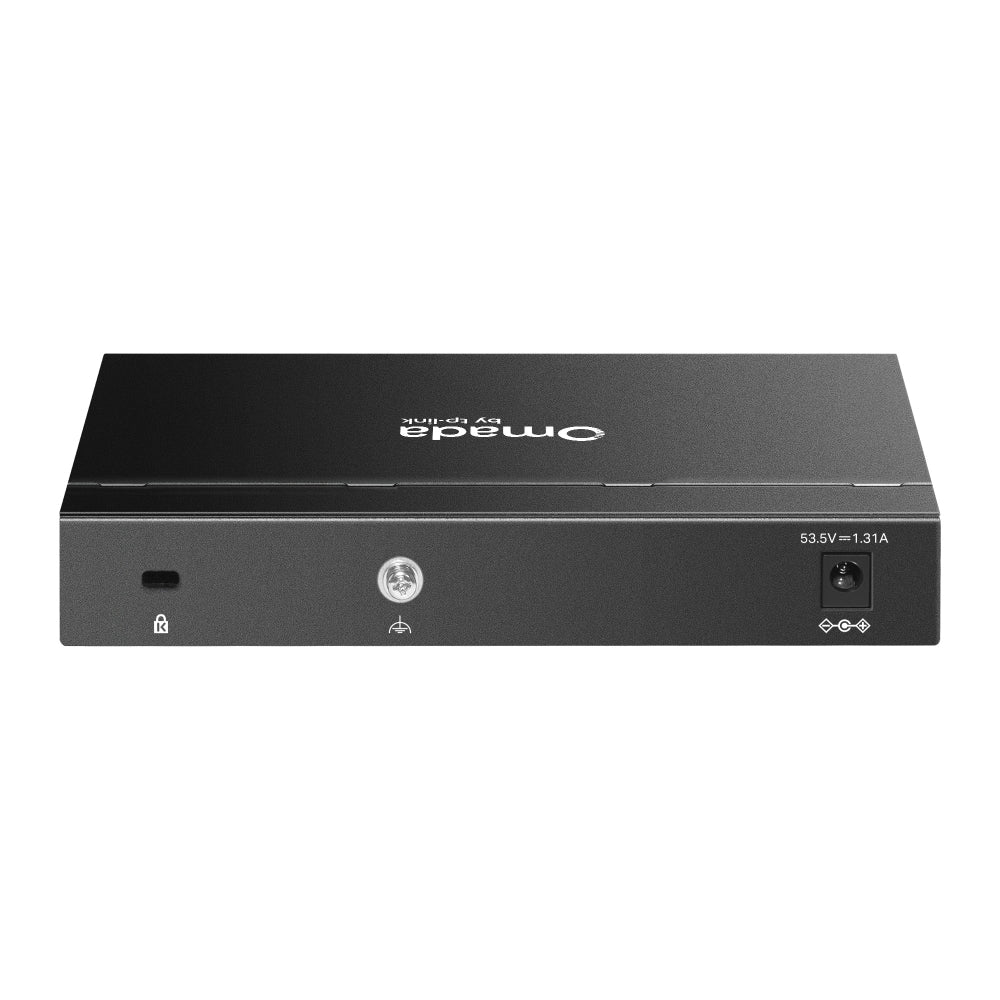

| Power supply | External AC/DC adapter, input 100–240 V AC, output 53.5 V DC / 1.31 A |
| Fan | Fanless |

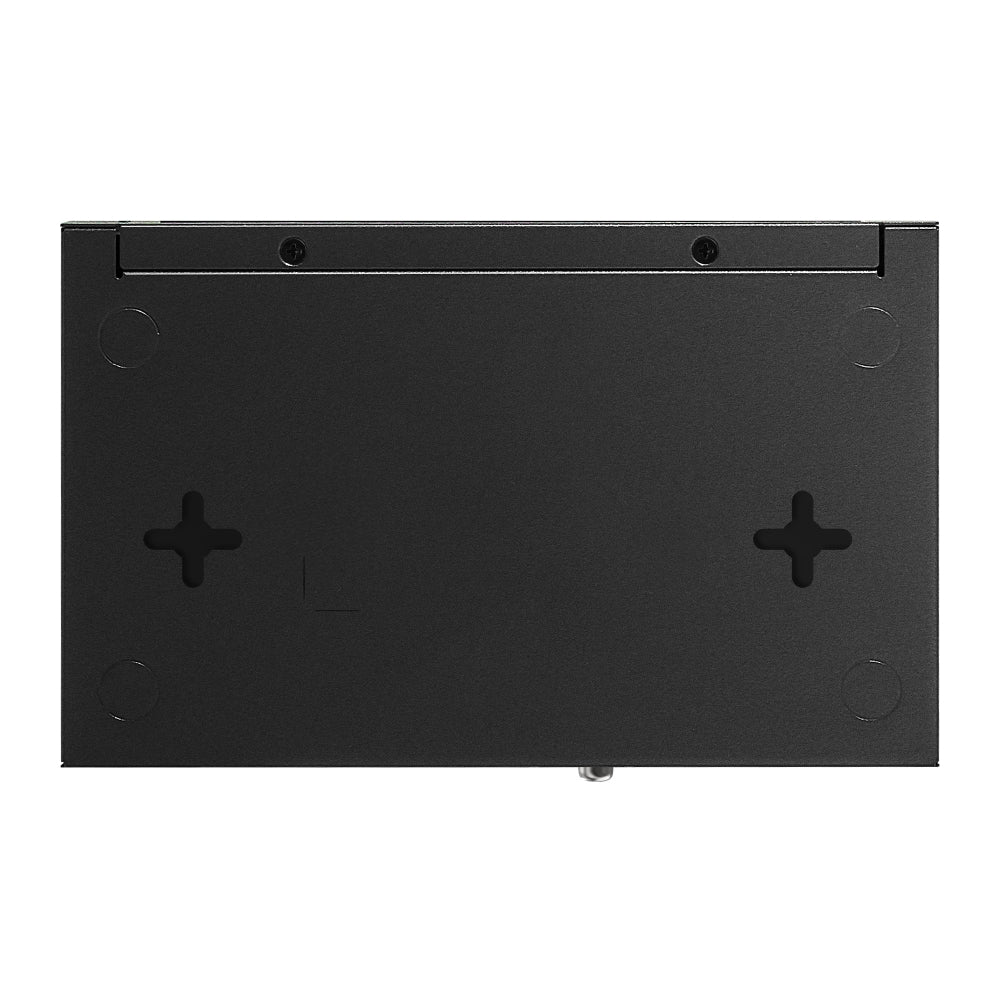

| Mounting | Desktop / wall mount |
| Dimensions (W×D×H) | 158 × 101 × 25 mm |
| Operating temperature | -5–40 °C |
| Certification | FCC, CE |
* PoE budget figures are based on TP-Link laboratory testing; the actual PoE budget is not guaranteed and varies with the connected devices and the environment.
** The speed of ports that run 250 m PoE drops to 10 Mbps; the real distance depends on cable quality.
📄 Datasheet: Download the official TP-Link ES206GP datasheet (PDF)
