TP-Link Omada 8-Port 2.5G Smart PoE Switch with 8-Port PoE+ and 2× 10G SFP+, 160W | SG2210XMP-M2

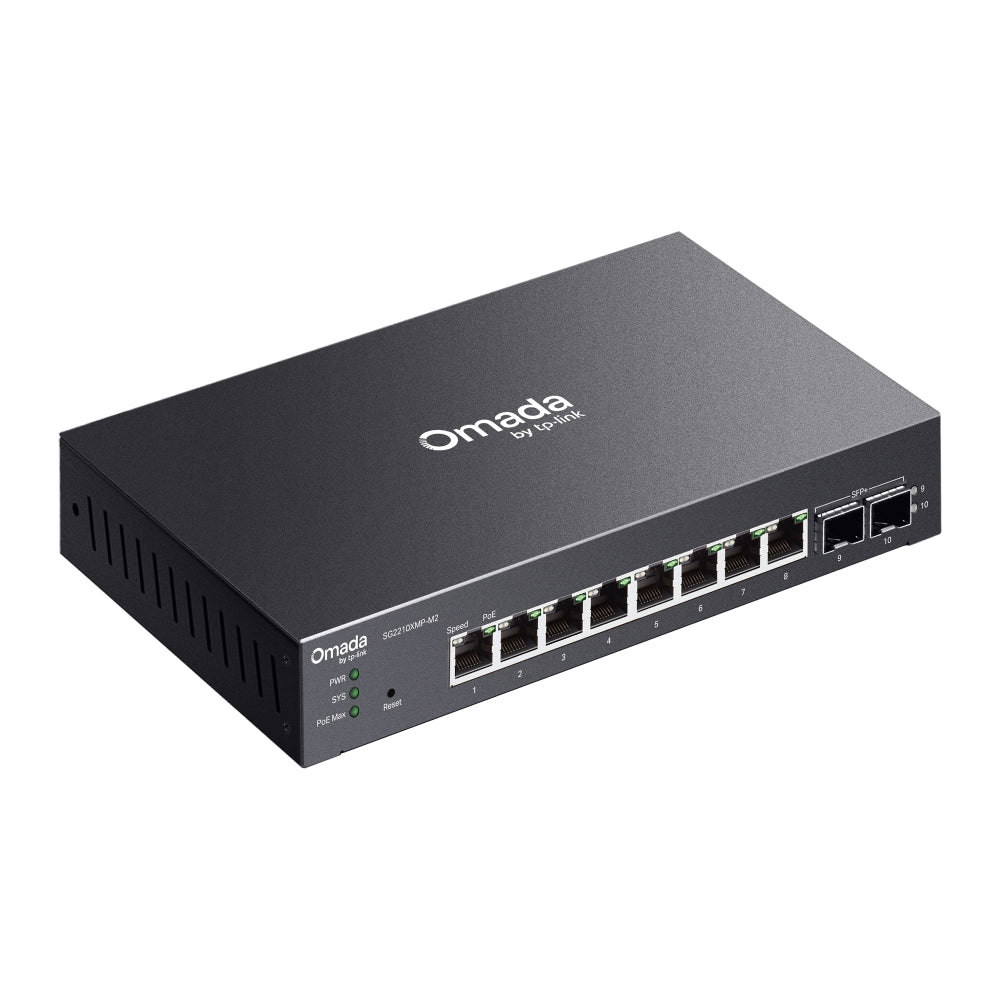

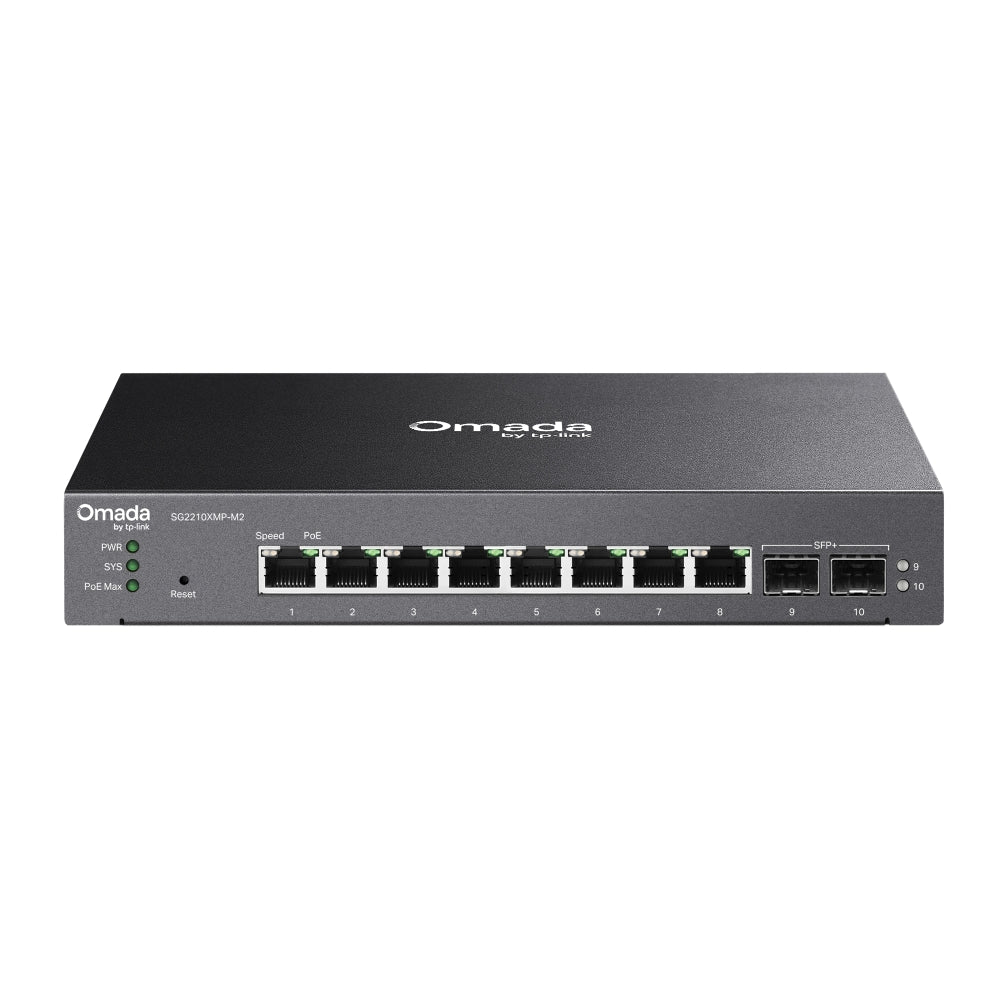

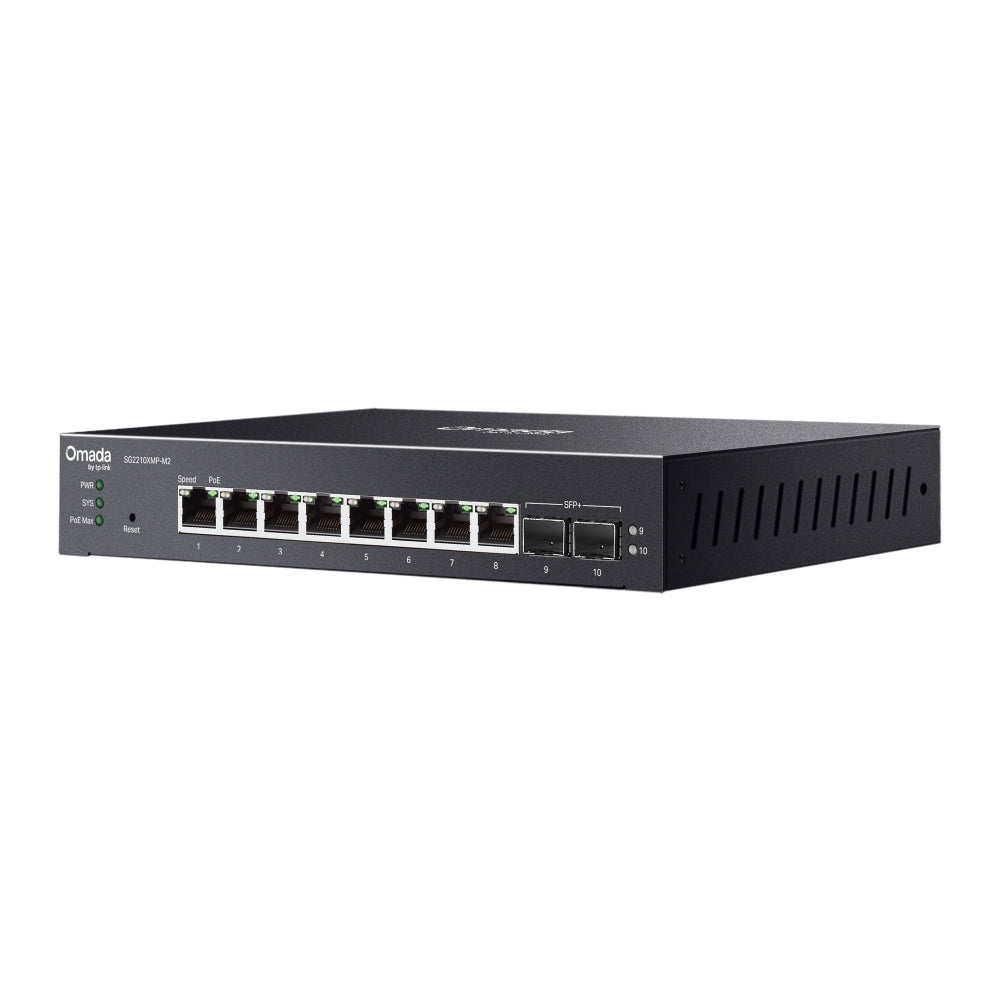

The TP-Link Omada SG2210XMP-M2 is a fanless smart switch with eight 2.5 Gbps RJ45 ports, all of them 802.3af/at PoE+, plus two 10G SFP+ slots for fast uplinks. It delivers up to 30 W per port within a 160 W total PoE budget*, which makes it a good match for Wi-Fi 7 / Wi-Fi 6 access points with 2.5G ports, as well as NAS units and workstations.
8× 2.5G PoE+ and 2× 10G SFP+: Each RJ45 port runs at 10/100/1000/2500 Mbps and supplies PoE+, while the two SFP+ slots connect to a 10G core switch, gateway or server. Switching capacity is 80 Gbps with a 59.52 Mpps forwarding rate.
Omada SDN Management: The switch can be managed on its own through the web GUI or CLI, or centrally through an Omada Hardware, Software or Cloud-Based Controller, which adds cloud access, the Omada app and Zero-Touch Provisioning (cloud controller).
L2+ Features: Static routing (32 IPv4/IPv6 routes), DHCP server and relay, 802.1Q VLAN, 8 QoS queues, ACL up to 230 entries, IGMP Snooping, link aggregation, STP/RSTP/MSTP and 802.1X give you real control over traffic and security.
Fast PoE and Perpetual PoE: Fast PoE and Perpetual PoE are supported for the PoE ports. The fanless design keeps it silent on a desk or wall.
Who it's for / Works with: Offices and homes upgrading to multi-gigabit Wi-Fi 7 / Wi-Fi 6 access points, 2.5G NAS or workstations, especially in Omada networks.
Good to know: SFP+ modules are not included. Centralized management, the Omada app and cloud access require an Omada controller. Power comes from the included external AC/DC adapter (53.5 V DC / 3.37 A).
Technical Specifications
| Specification | TP-Link SG2210XMP-M2 |
|---|---|
| Interface | 8× 10/100/1000/2500 Mbps RJ45 PoE+ ports, 2× 10G SFP+ slots |
| PoE | 802.3af/at, 8 PoE+ ports, up to 30 W per port, Fast PoE, Perpetual PoE |
| Total PoE budget | 160 W* |
| Switching capacity | 80 Gbps |
| Forwarding rate | 59.52 Mpps |
| MAC address table | 16K |
| Packet buffer | 12 Mbit |
| Jumbo frame | 9 KB |
| L2 / L2+ | Static routing (32 IPv4/IPv6 routes), DHCP server / relay, link aggregation, STP/RSTP/MSTP, LLDP, IGMP Snooping, MVR |
| VLAN | 802.1Q, up to 4K VLAN groups, MAC VLAN, Protocol VLAN, Voice VLAN, GVRP |
| QoS | 802.1p CoS / DSCP, 8 priority queues, SP / WRR, bandwidth control, storm control |
| Security | ACL (up to 230 entries), 802.1X, IP-MAC-Port binding, DHCP snooping, ARP inspection, port security, DoS defend, HTTPS / SSH |
| Management | Web GUI, CLI, SNMP v1/v2c/v3, RMON; Omada Hardware / Software / Cloud-Based Controller, Omada app, cloud access, ZTP (cloud controller) |
| Power supply | External AC/DC adapter, input 100–240 V AC, output 53.5 V DC / 3.37 A |
| Max. power consumption | 193.3 W (220 V/50 Hz, with 160 W PD connected) |
| Fan | Fanless |

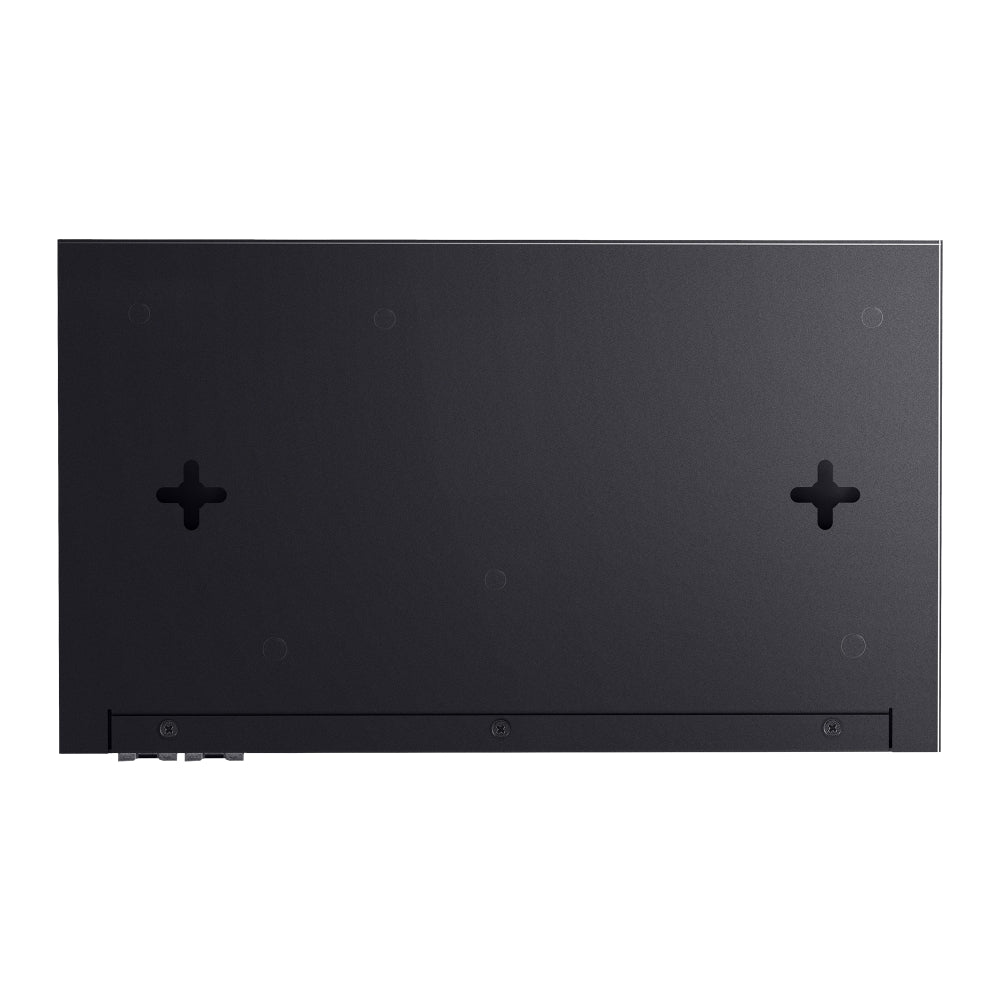

| Mounting | Desktop / wall mounting |
| Dimensions (W×D×H) | 226 × 131 × 35 mm |
| Operating temperature | -5–40 °C |
| Certification | CE, FCC |
* PoE budget figures are based on TP-Link laboratory testing; the actual PoE budget is not guaranteed and varies with the connected devices and the environment.
📄 Datasheet: Download the official TP-Link SG2210XMP-M2 datasheet (PDF)
