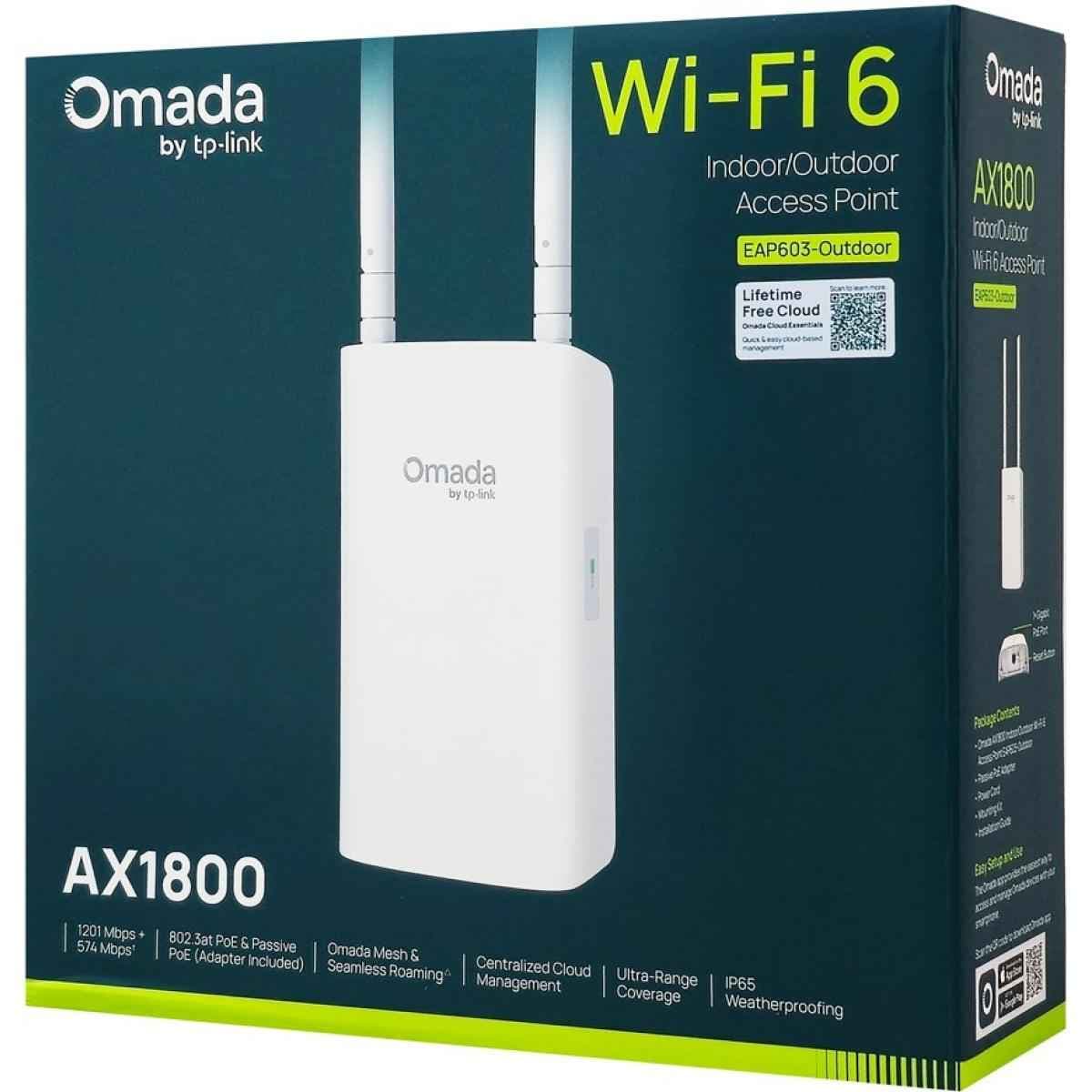

TP-Link Omada EAP603-Outdoor Long Range Outdoor Access Point

Description:

- Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.†

- Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.*

- PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included).

- Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.

- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup

- Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.

Hardware

Ethernet Interface

• 1 × 10/100/1000 Mbps Gigabit Ethernet Port (RJ45) with PoE In
• 1 × Grounding Terminal

Buttons

• 1 × Reset Button
  • Press and hold for more than 5 seconds to restore factory settings.

Power

• Power Input: IEEE 802.3at PoE+ (42.5–57 V DC, 0.36 A)
• Maximum Power Consumption: 15.8 W
• Idle Power Consumption: 4.8 W

Dimensions

• Device: 230 × 207.5 × 69.7 mm
• Package: 324 × 104 × 245 mm

Antennas

Wi-Fi Antennas

2.4 GHz

• 2 × External Omnidirectional Antennas
• 4 dBi Peak Gain (each)

5 GHz

• 2 × External Omnidirectional Antennas
• 5 dBi Peak Gain (each)

Bluetooth Antenna

• 1 × Internal Omnidirectional Antenna
• 4 dBi Peak Gain

Bluetooth

• Supported

Weather Protection

• IP66 (Wall Mount)
• IP65 (Pole Mount)

Mounting Options

• Pole Mount Kit Included
• Wall Mount Kit Included

Wireless Features

Wireless Standards

2.4 GHz

• IEEE 802.11b/g/n/ax

5 GHz

• IEEE 802.11a/n/ac/ax

Frequency Bands

• 2.4 GHz
• 5 GHz

Maximum Wireless Speed

• 2.4 GHz: Up to 573 Mbps
• 5 GHz: Up to 1201 Mbps

Wireless Coverage

• 2.4 GHz: Up to 200 m (656 ft)
• 5 GHz: Up to 300 m (984 ft)

Wireless Capacity

• Up to 16 SSIDs (8 per radio)
• Supports 250+ connected clients

Wireless Features

Network Functions

• Guest Network
• Automatic Channel Selection (ACS)
• Airtime Fairness
• Band Steering
• 802.11 Rate Control
• Rogue AP Detection
• URL Filtering
• WLAN Optimization
• Lock to AP
• SSID & Client Rate Limiting
• Load Balancing

Roaming

• 802.11k
• 802.11v
• 802.11r
• AI Roaming
• Non-Stick Roaming
• Ping-Pong Roaming Suppression

Traffic Optimization

• Quality of Service (QoS)
• Multicast-to-Unicast Conversion
• ARP-to-Unicast Conversion
• Multicast Filtering
• Broadcast Rate Limiting
• Multicast Rate Limiting

Wireless Security

Authentication

• 802.1X Authentication
• MAC-Based Authentication
• RADIUS Accounting

Access Control

• ACL
• MAC Filtering

Encryption

• WPA Personal
• WPA Enterprise
• WPA2 Personal
• WPA2 Enterprise
• WPA3 Personal
• WPA3 Enterprise
• Enhanced Open
• Open Authentication

PPSK

• PPSK without RADIUS
• PPSK with RADIUS
• EKMS
• Generic RADIUS (Bound/Unbound MAC)

Captive Portal

• No Authentication
• Simple Password
• Voucher Authentication
• Local User
• SMS Authentication
• RADIUS Authentication
• LDAP Authentication
• External Portal
• Pre-Authentication Access
• Authentication-Free Clients

Supported EAP Types

• EAP-TLS
• EAP-TTLS
• EAP-PEAP
• EAP-CHAP
• EAP-SIM
• EAP-AKA
• EAP-GTC
• EAP-FAST
• EAP-MD5
• EAP-MSCHAPv2
• PEAPv0
• PEAPv1

RF Performance

Maximum Transmit Power

CE (EIRP)

• 2.4 GHz: 20 dBm
• 5 GHz U-NII-1: 23 dBm
• 5 GHz U-NII-2A: 23 dBm
• 5 GHz U-NII-2C: 29 dBm

FCC

• 2.4 GHz: 25 dBm
• 5 GHz U-NII-1: 27 dBm
• 5 GHz U-NII-2A: 24 dBm
• 5 GHz U-NII-2C: 24 dBm
• 5 GHz U-NII-3: 27 dBm

Minimum Transmit Power

CE

• 2.4 GHz: 7 dBm
• 5 GHz: 6 dBm

FCC

• 2.4 GHz: 4 dBm
• 5 GHz: 4 dBm

Power Adjustment

• Adjustable in 1 dBm increments

Management

Supported Platforms

• Omada App
• Omada Hardware Controller
• Omada Software Controller
• Omada Central (Cloud)

Management Features

• Cloud Access
• Backup & Restore
• Firmware Upgrade
• Web Management
• SSH
• SNMP v1/v2c/v3
• NTP
• Email Alerts
• LED On/Off Control
• MAC Access Control

Environmental

Operating Conditions

• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% (Non-condensing)
• Storage Humidity: 5%–90% (Non-condensing)

Certifications

• CE
• FCC
• RoHS

Package Contents

• EAP603-Outdoor Access Point
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
