TP-Link Omada Gigabit Multi-Mode Media Converter, 550m | MC200CM
The TP-Link Omada MC200CM is a Gigabit media converter that converts 1000BASE-SX multi-mode fiber to 1000BASE-T copper and back. It uses an SC fiber connector, works at 850 nm, and reaches up to 550 m over 50/125 µm fiber.
Gigabit over multi-mode fiber: Connect a Gigabit copper network to a multi-mode fiber run at full wire speed: up to 550 m with 50/125 µm fiber or 220 m with 62.5/125 µm fiber.
Auto-negotiation and Auto MDI/MDIX: The RJ45 port negotiates half/full duplex automatically and works with straight or crossover cables.

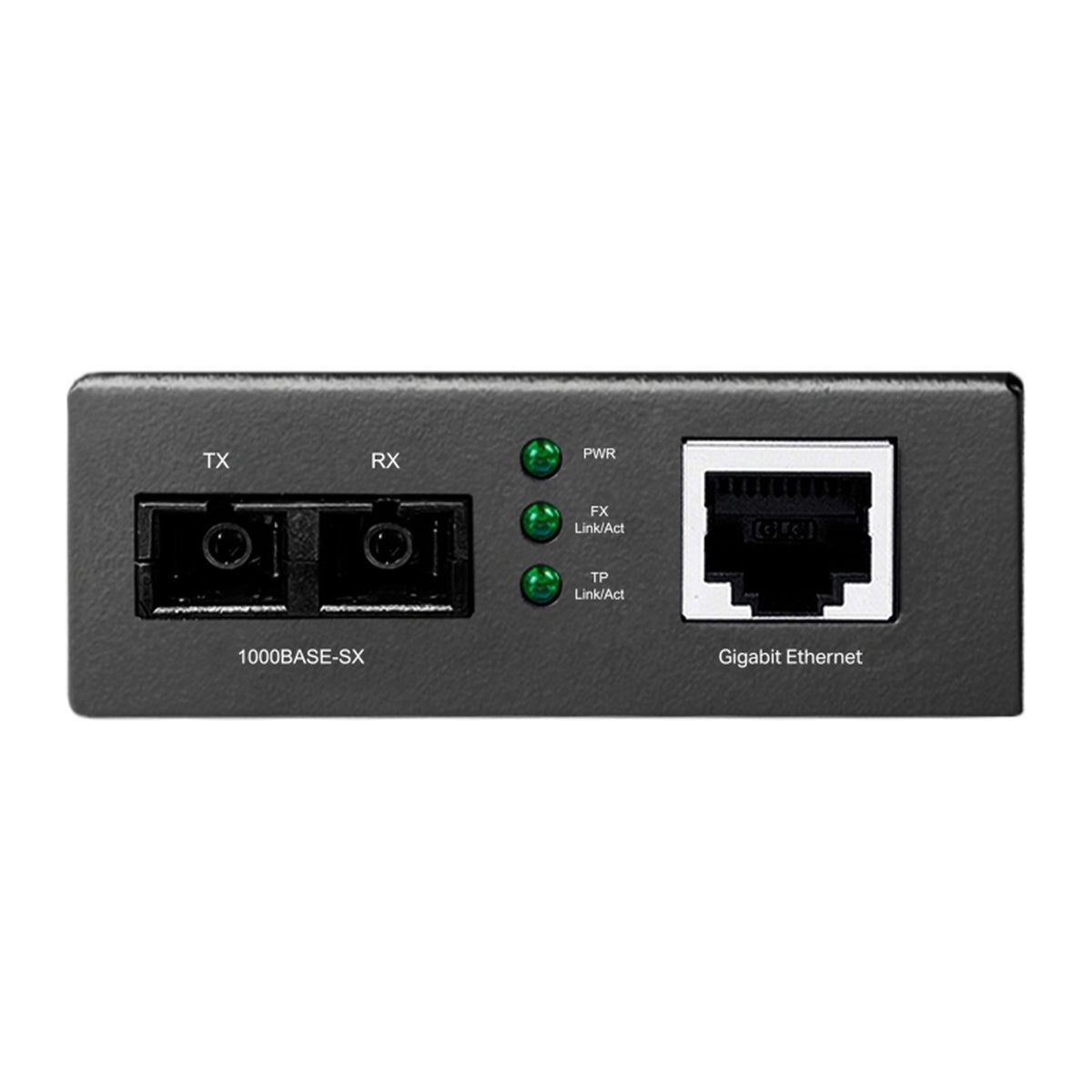

Standalone or in a chassis: Use it alone with its power adapter, or install it in the TP-Link MC1400 chassis. Front-panel LEDs show power and link activity.
Who it's for / Works with: Gigabit fiber links inside a building or campus over multi-mode fiber, usually as a pair of converters or into a switch with a matching 1000BASE-SX SFP.
Good to know: Multi-mode fiber only; the fiber cable is not included. For long distances between buildings use a single-mode converter such as the MC210CS.
Technical Specifications
| Specification | TP-Link MC200CM |
|---|---|
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3z (1000BASE-SX), 802.3x |
| Ports | 1 × 1000M SC/UPC fiber port (duplex); 1 × 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Fiber | Multi-mode: 50/125 µm or 62.5/125 µm |
| Wavelength | 850 nm |
| Max. fiber distance | 550 m (50/125 µm); 220 m (62.5/125 µm) |
| Copper cable | Up to 100 m (UTP Cat 5, 5e) |
| Power | External power adapter |
| LED | PWR, Link/Act |
| Dimensions (W × D × H) | 94.5 × 73.0 × 27.0 mm |
| Operating temperature | 0 °C to 50 °C |
| Certification | FCC, CE |
📄 Datasheet: Download the official TP-Link MC200CM datasheet (PDF)
