TP-Link Omada Gigabit VPN Router | ER605 | TB

TP-Link Omada Gigabit VPN Router | ER605

Tp link ER605-V2 Omada Gigabit Multi-wan Vpn Router

Description:

Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for convenience and easy management.

Five Gigabit Ports: High-speed wired connectivity.

Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.

One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.^‡

Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.

Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

TP-Link ER605 V2 (TL-R605) – Omada Gigabit VPN Router

Hardware Features

Standards & Protocols

◆ IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.1q
◆ TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS
◆ IPSec, PPTP, L2TP, OpenVPN, SNMP

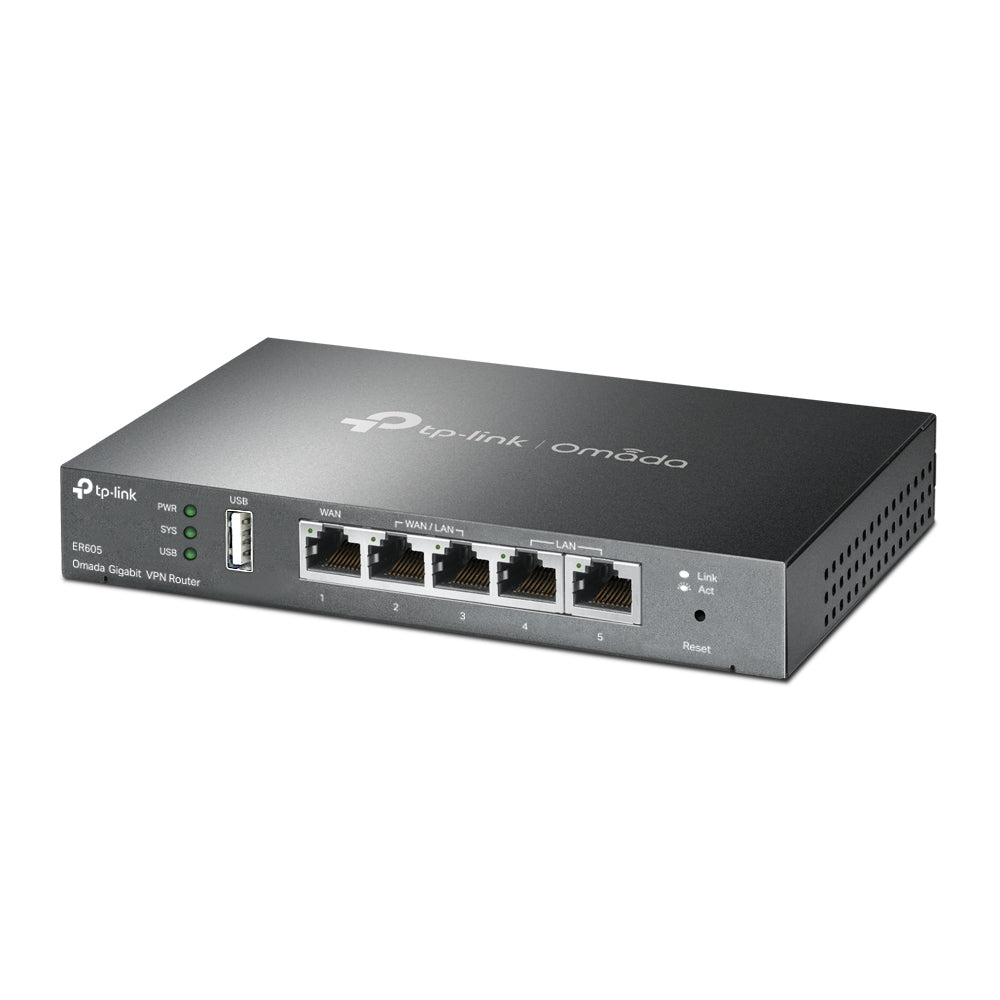

Interfaces

◆ 1× Fixed Gigabit WAN
◆ 2× Fixed Gigabit LAN
◆ 2× Changeable Gigabit WAN/LAN
◆ 1× USB 2.0 (4G/3G modem WAN backup)

Hardware Specs

◆ Flash: 128MB NAND
◆ DRAM: 256MB DDR
◆ LEDs: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
◆ Button: Reset

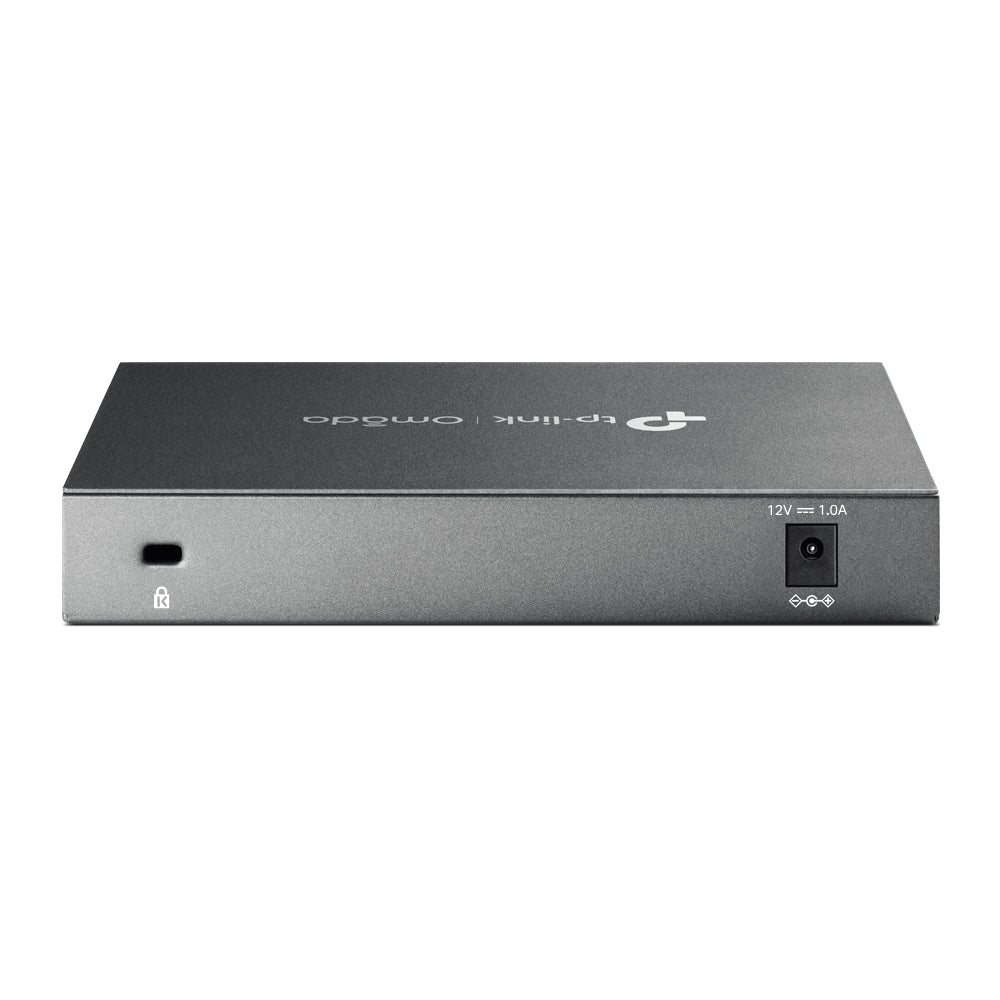

◆ Power: 12V / 1A
◆ Max Power Consumption: 7.94W
◆ Dimensions: 158 × 101 × 25 mm

Performance

◆ Concurrent Sessions: 150,000
◆ New Sessions/Second: 2,600

NAT Throughput

Static IP:
◆ Upload: 945.77 Mbps
◆ Download: 945.56 Mbps
◆ Bi-Directional: 1808.29 Mbps

DHCP:
◆ Upload: 945.93 Mbps
◆ Download: 945.43 Mbps

PPPoE:
◆ ~940 Mbps Upload/Download

L2TP:
◆ Up to 845.64 Mbps

PPTP:
◆ Up to 874.81 Mbps

VPN Throughput

◆ IPsec (AES256 SHA2): 248.04 Mbps
◆ OpenVPN: 21.70 Mbps
◆ L2TP (Encrypted): 47.11 Mbps
◆ PPTP (Encrypted): 76.65 Mbps

Basic Functions

◆ WAN Types: Static/Dynamic IP, PPPoE, PPTP, L2TP
◆ 4G/3G USB WAN Backup
◆ DHCP Server/Client + Reservation
◆ IPv6 Support
◆ 802.1Q VLAN
◆ IPTV (IGMP v2/v3 Proxy, Bridge Mode)

Advanced Features

◆ Load Balance (Intelligent / Link Backup / Failover)
◆ Policy Routing
◆ IP-Based Bandwidth Control
◆ One-to-One NAT / Multi-Net NAT
◆ Virtual Server / Port Triggering / DMZ
◆ ALG Support (FTP, SIP, IPSec, etc.)

VPN Capabilities

IPsec VPN

◆ 20 IPsec Tunnels
◆ IKEv1/v2
◆ AES128/192/256
◆ NAT-T, DPD, PFS

PPTP VPN

◆ PPTP Server
◆ 10 Clients
◆ 16 Tunnels

L2TP VPN

◆ L2TP Server
◆ 10 Clients
◆ 16 Tunnels

OpenVPN

◆ OpenVPN Server
◆ 10 Clients
◆ 16 Tunnels

Security

◆ SPI Firewall
◆ DoS Defense
◆ Flood Defense
◆ IP/MAC Binding
◆ Access Control (IP-Based)
◆ URL Filtering
◆ ARP Inspection
◆ VPN Passthrough

Authentication

◆ Local Authentication
◆ Hotspot (Voucher / SMS / Radius / Facebook)
◆ External Radius & Portal Support

Management

◆ Omada App Support (via OC200 / OC300 / Software / Cloud Controller)
◆ Cloud Access
◆ Zero-Touch Provisioning
◆ SNMP v1/v2c/v3
◆ Syslog Support
◆ Ping & Traceroute Diagnostics
◆ Config Backup/Restore

Environment

◆ Operating Temperature: 0°C – 40°C
◆ Storage Temperature: -40°C – 70°C
◆ Operating Humidity: 10–90% RH

◆ Certifications: CE, FCC, RoHS

Package Contents

◆ ER605 V2 Gigabit VPN Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
