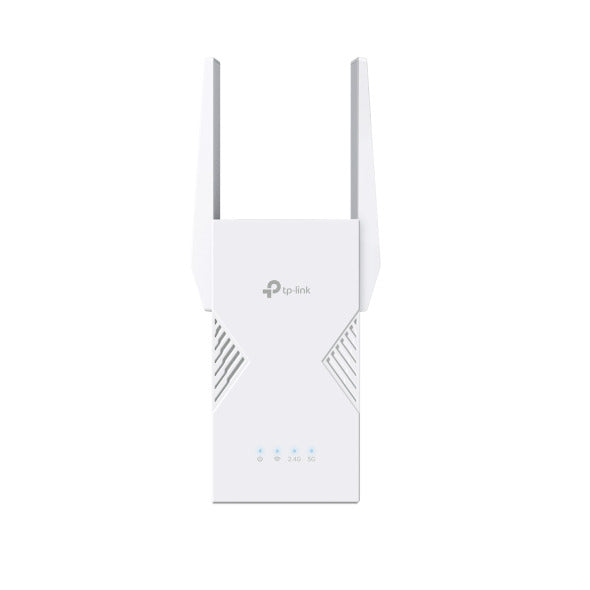

Tp-Link RE235BE | BE3600 Dual-Band Wi-Fi 7 Range Extender
Tp-Link RE235BE | BE3600 Dual-Band Wi-Fi 7 Range Extender
Couldn't load pickup availability
Tp-Link RE235BE | BE3600 Dual-Band Wi-Fi 7 Range Extender
Description:
Lightning-Fast 3.6 Gbps Dual-Band Wi-Fi 7: 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
2.5G Multi-Gigabit Ethernet Port: 1× 2.5 Gbps port ensures max flexibility and boosted throughput.
Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*
Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.
Hardware Features
Others
Interface
1× 2.5 Gbps Ethernet Port
Button
◆ WPS Button
◆ Reset Button
Input Power
100-240V~50/60Hz 0.3A
Max. Power Consumption
15W

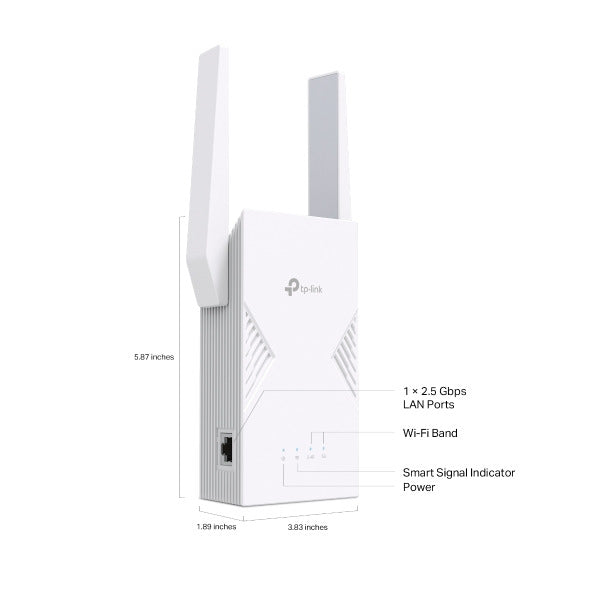

Dimensions ( W x D x H )
3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)
Antenna
2 External Antennas
Wireless Features
Wireless Standards
Wi-Fi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz
Frequency
◆ 5 GHz
◆ 2.4 GHz
Signal Rate
◆ 2882 Mbps at 5 GHz
◆ 688 Mbps at 2.4 GHz
Working Modes
Range Extender/Access Point
Reception Sensitivity
5GHz:
11be EHT20 MCS0:-96dBm
11be EHT40 MCS0:-94dBm
11be EHT80 MCS0:-91dBm
11be EHT160 MCS0:-88dBm
11be EHT20 MCS13:-59dBm
11be EHT40 MCS13:-57dBm
11be EHT80 MCS13:-54dBm
11be EHT160 MCS13:-51dBm
2.4GHz:
11be EHT20 MCS0:-95dBm
11be EHT40 MCS0:-93dBm
11be EHT20 MCS13:-58dBm
11be EHT40 MCS13:-56dBm
Wireless Security
◆ WPA/WPA2-PSK encryptions
◆ WPA2/WPA3
Advanced Features
◆ Multi-Link Operation (MLO)
◆ 160 MHz Channel
◆ 4K-QAM
◆ Multi-RUs
Transmission Power
FCC:
◆ 2.4GHz < 30dBm
◆ 5GHz < 30dBm
Mesh Technology
EasyMesh-Compatible
Wireless Function
◆ LED Control
◆ Access Control
◆ Power Schedule
◆ Wi-Fi Coverage
Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
◆ Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
◆ Port: 67 Protocol: UDP
App management
Manage and configure device through app
◆ Port: 20001 Protocol: TCP
◆ Port: 20002 Protocol: UDP
Certification
FCC, RoHS
Package Content
◆ Wi-Fi 7 Range Extender RE235BE
◆ Quick Installation Guide
System Requirements
Internet Explorer, Firefox, Chrome, Safari, or other
JavaScript-enabled browser
Environment
◆ Operating Temperature: 0℃~40℃ (32℉ ~104℉)
◆ Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
◆ Operating Humidity: 10%~90% non-condensing
◆ Storage Humidity: 5%~90% non-condensing
