TP-Link TX401 |10 Gigabit PCIe Network Adapter (Red)

TP-Link TX401 |10 Gigabit PCIe Network Adapter (Red)

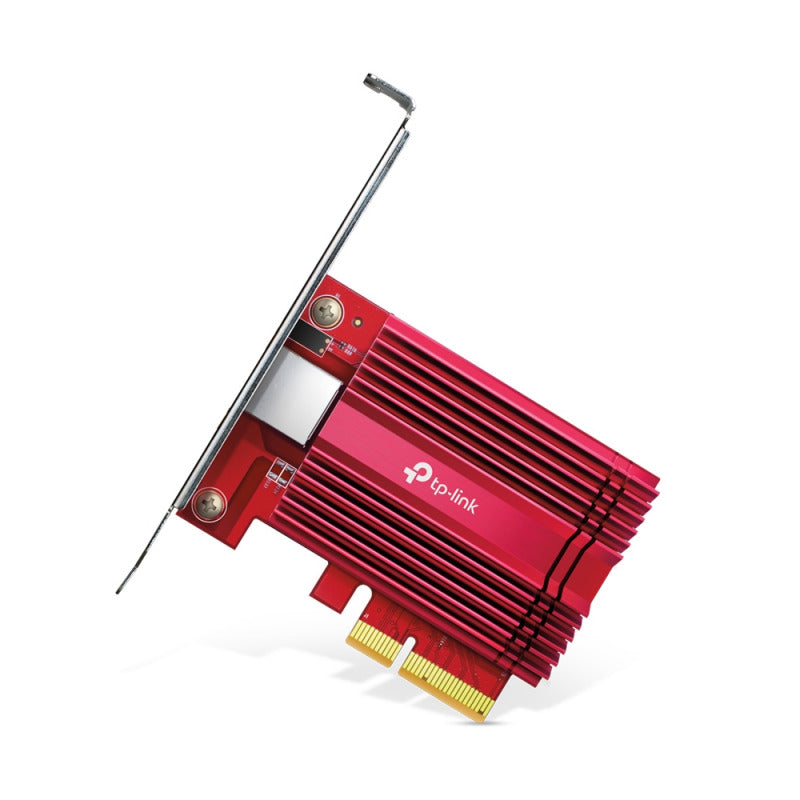

The TP-Link TX401 is a 10 Gigabit Ethernet card for a desktop PC or server. It installs in a PCI Express 3.0 x4 slot and adds one RJ45 port that runs at up to 10 Gbps, ten times faster than a standard Gigabit port, and it comes with a 1.5 m Cat6A cable rated for 10 Gbps.

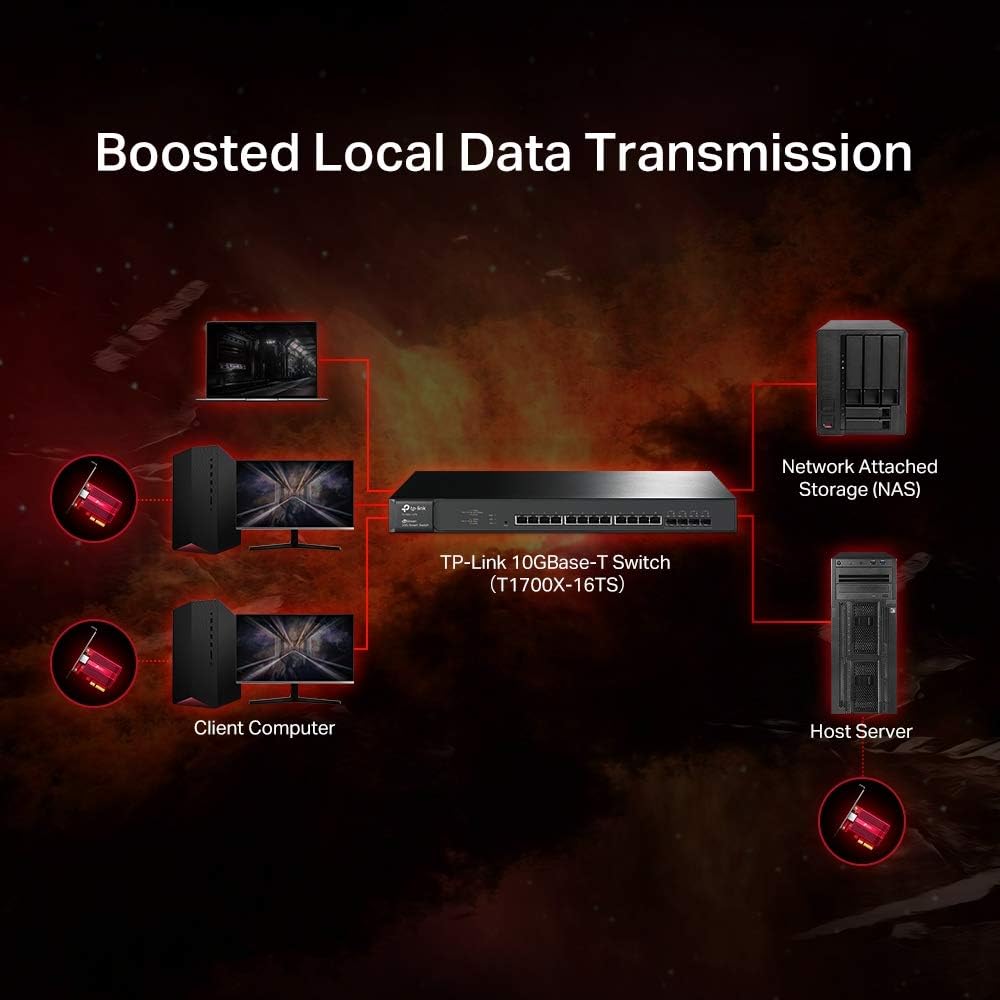

10 Gbps wired speed: Using 10GBASE-T, the TX401 reaches up to 10 Gbps over a copper network cable. This is useful for fast transfers to a 10G NAS or server, for a 10G internet line, and for moving large files between workstations on a local network.

Multi-speed compatibility: The port also works at 5 Gbps, 2.5 Gbps, 1 Gbps and 100 Mbps and negotiates the speed automatically, so it works with your current Gigabit router or switch today and with multi-gig equipment later.

PCI Express 3.0 x4: The card uses a PCIe Gen3 x4 interface, which gives enough bandwidth for a 10G connection. It needs a free x4 (or larger) PCIe slot on the motherboard.

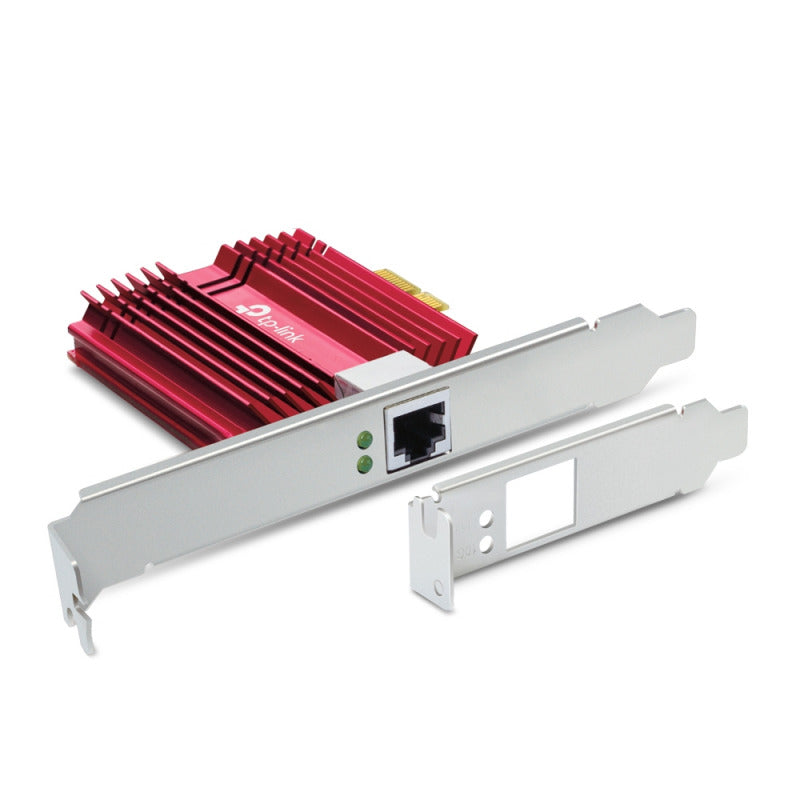

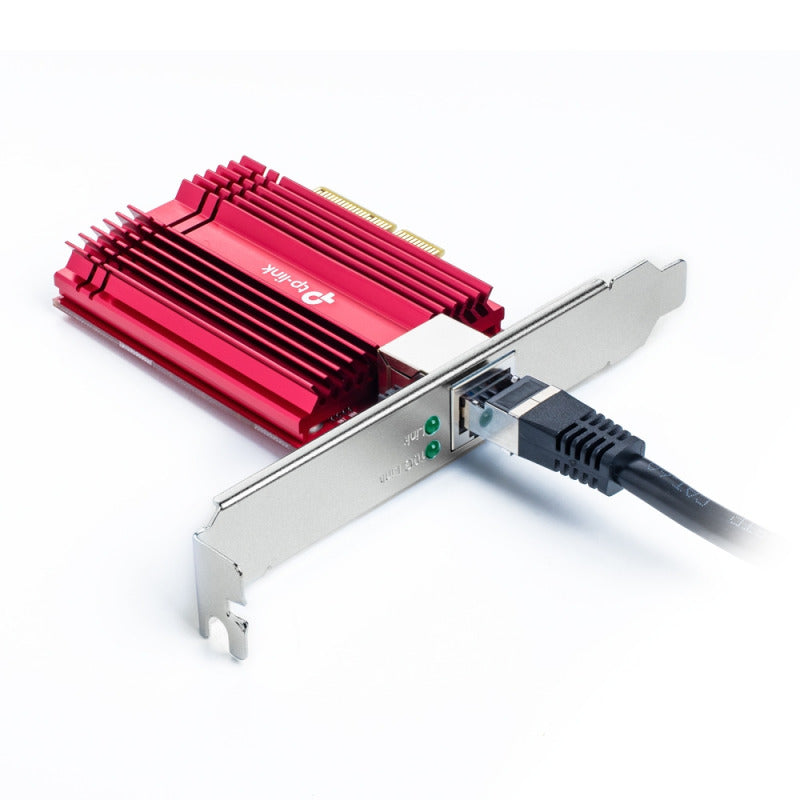

Cat6A cable and two brackets included: A 1.5 m Cat6A Ethernet cable rated for 10 Gbps is in the box, along with a standard bracket and a low-profile bracket for mini tower cases.

QoS for gaming: TP-Link's QoS support prioritizes bandwidth for games to help avoid network congestion on a busy connection.

Who it's for / Works with

Desktop PCs, workstations and servers with a free PCIe x4 slot, running Windows 10/8.1/8/7, Windows Server 2019/2016/2012 R2 or Linux, according to TP-Link's specifications.

Good to know

To get 10 Gbps, the other end (switch, NAS or router) must also have a 10G port and the cable must be Cat6A or better; on a Gigabit router the card runs at 1 Gbps. Drivers may need updating from TP-Link's download center after an operating system update. This is an internal card and does not fit laptops.

Technical Specifications
