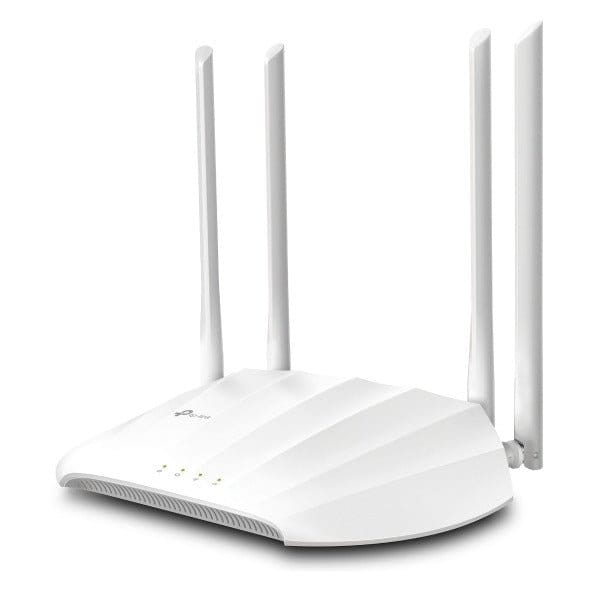

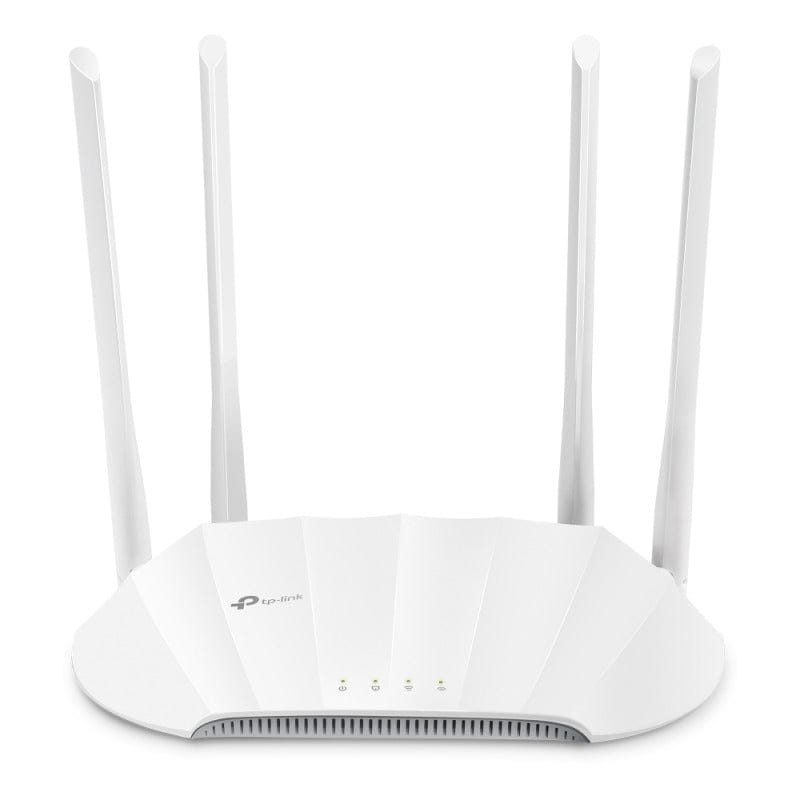

TP-Link WA1801-AX1800 Gigabit Wi-Fi 6 Access Point
Description:

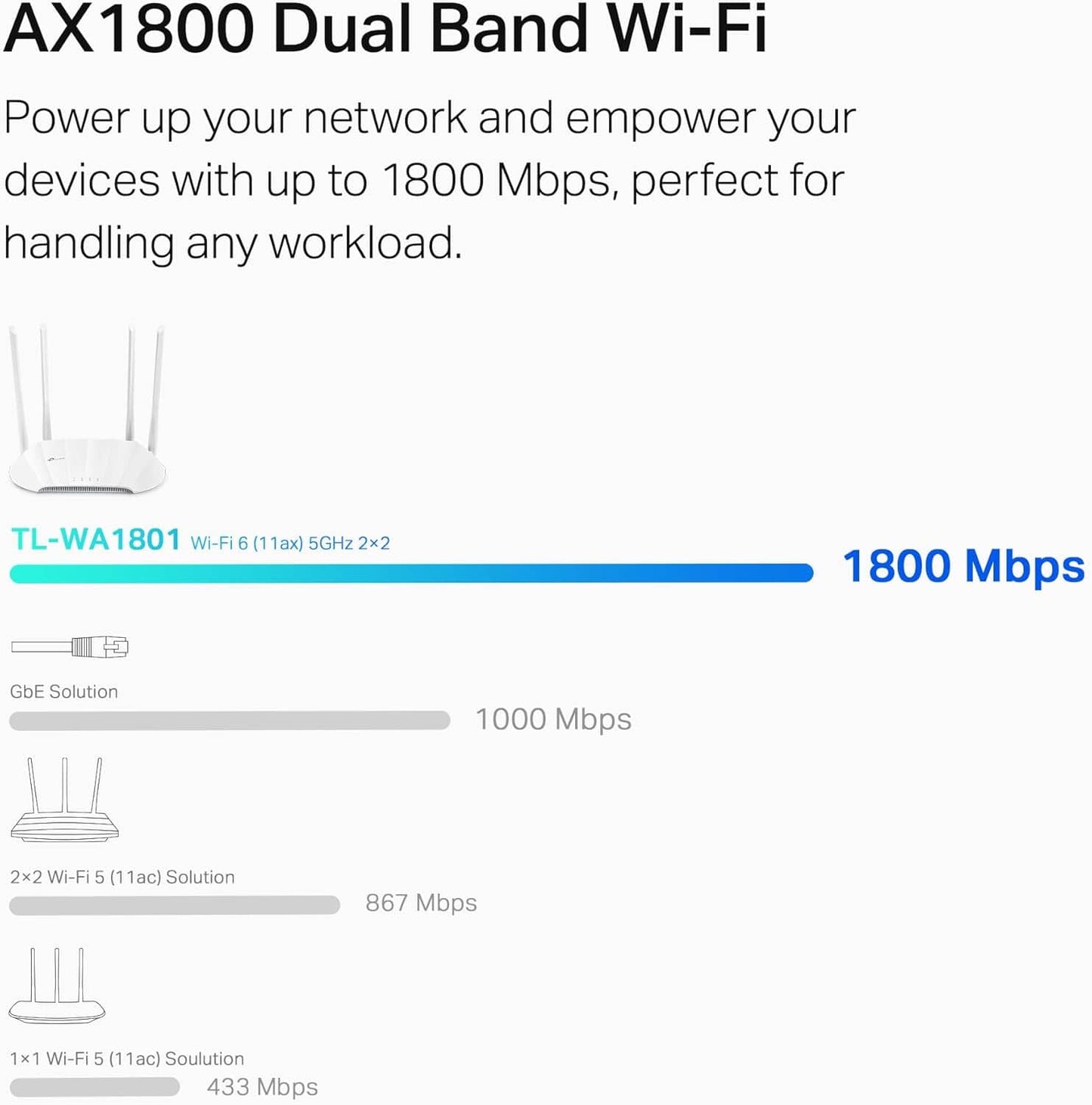

Gigabit WiFi 6 Speed – 1.8 Gbps Dual Band WiFi for faster browsing, streaming and downloading, all at the same time.†

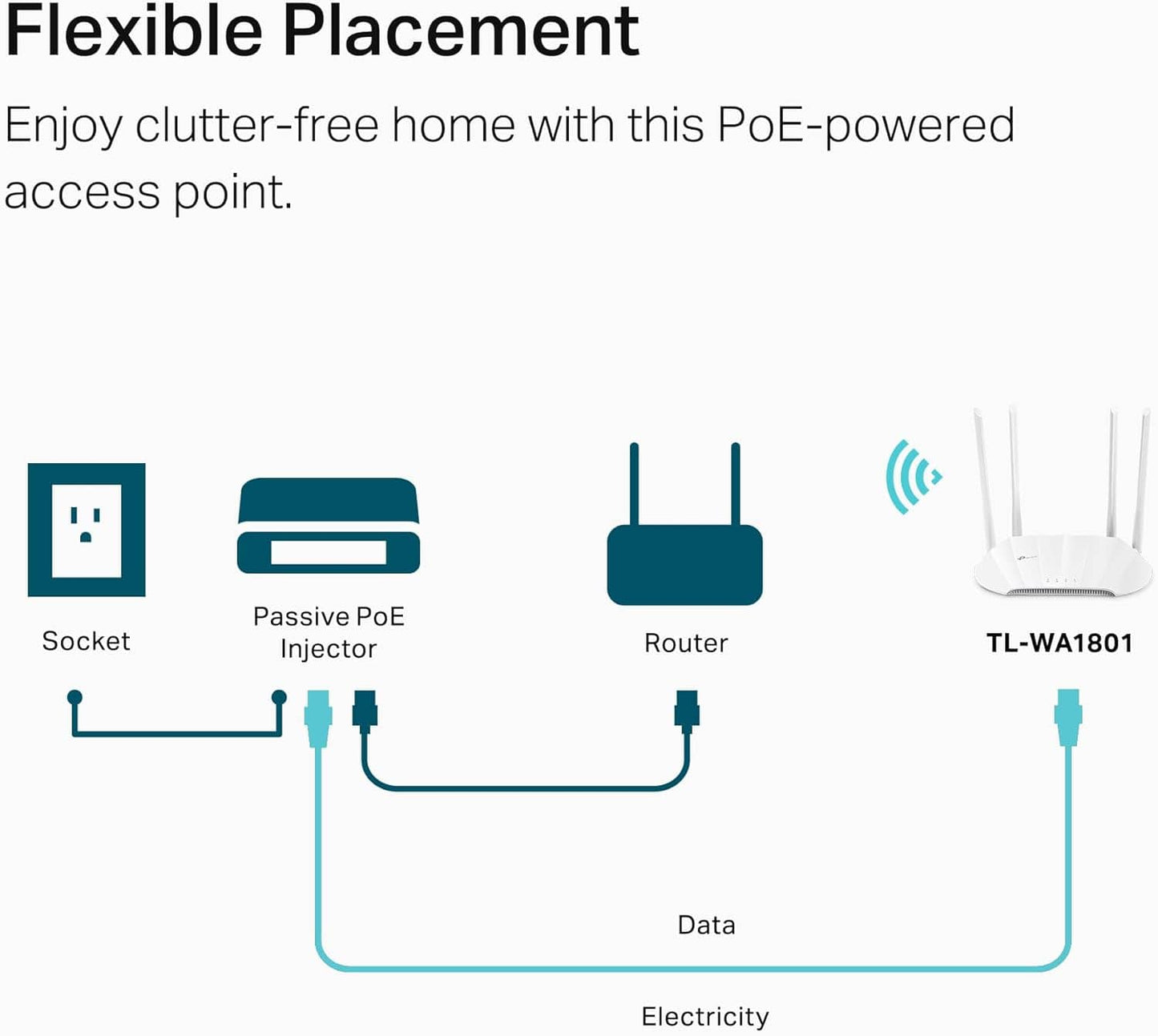

Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.

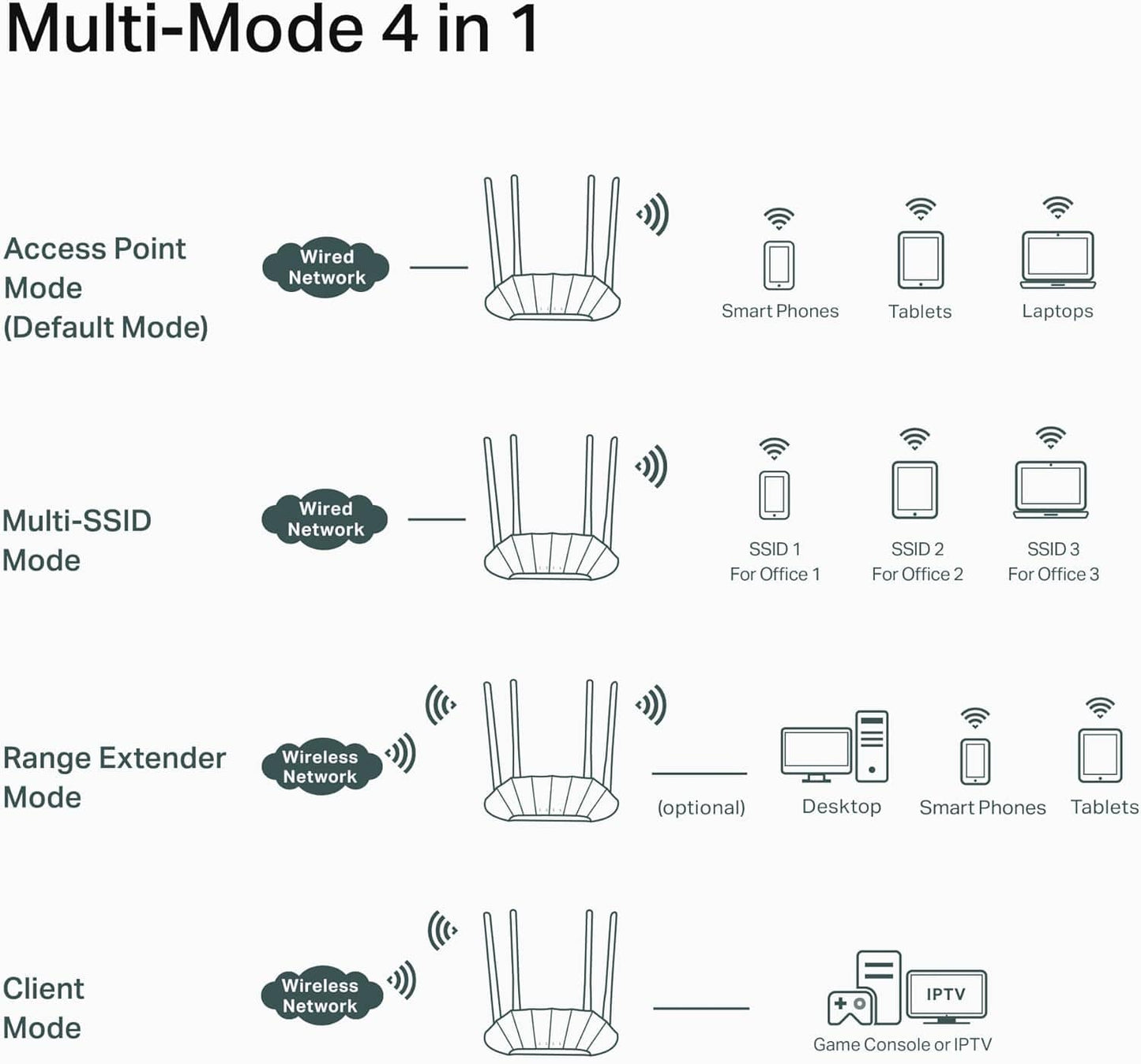

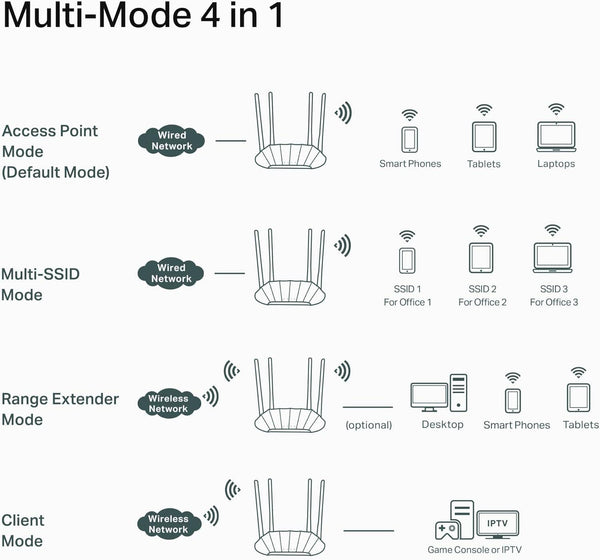

Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.

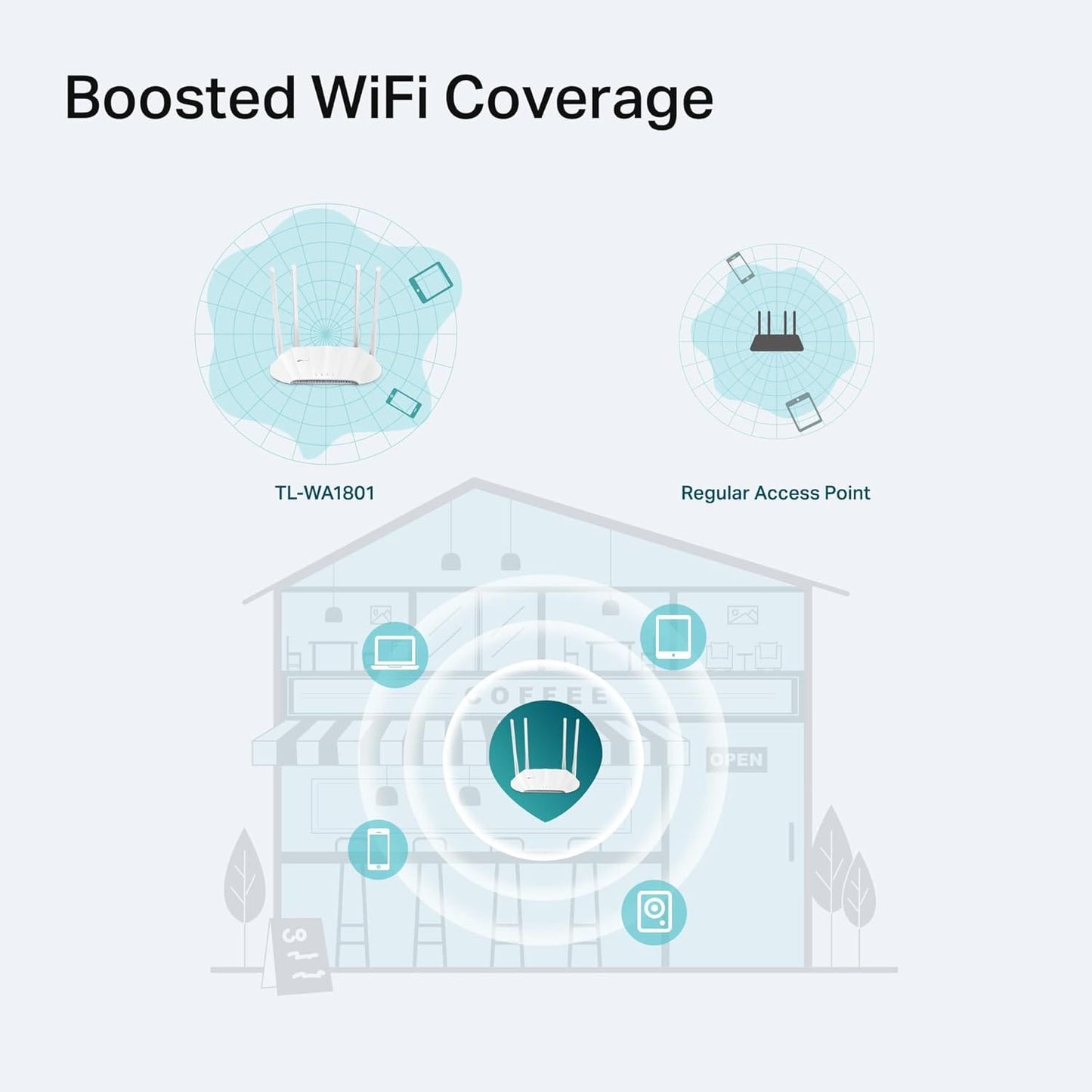

Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
Captive Portal – Offers a designed portal page for heightened security and marketing.
Hardware Features

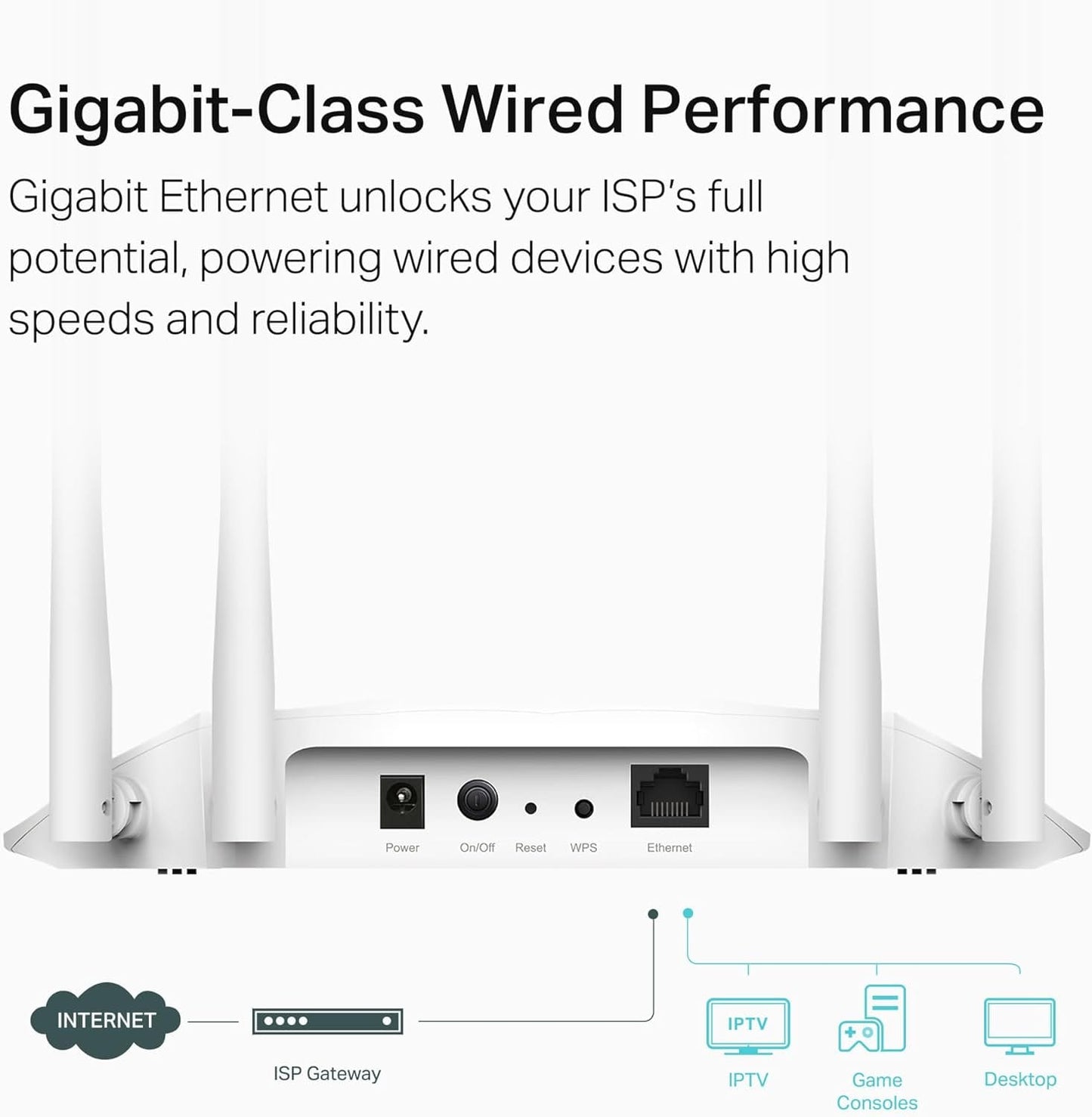

Interface: 1 × Gigabit Ethernet Port (Supports Passive PoE) Buttons: Power On/Off, WPS, Reset External Power Supply: 48V / 0.375A Antenna Type: 4 × External Antennas Dimensions (W × D × H): 8.9 × 5.7 × 1.5 in (225 × 145.5 × 37 mm) Wireless Standards IEEE 802.11b/g/n/ax (2.4 GHz) IEEE 802.11a/n/ac/ax (5 GHz) Frequency Bands 2.4 GHz 5 GHz Signal Rates 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps Reception Sensitivity 5 GHz 11a 6Mbps: −97 dBm 11a 54Mbps: −76 dBm 11ac VHT20 MCS0: −96 dBm 11ac VHT20 MCS8: −72 dBm 11ac VHT40 MCS0: −93 dBm 11ac VHT40 MCS9: −67 dBm 11ac VHT80 MCS0: −90 dBm 11ac VHT80 MCS9: −63 dBm 11ax HE20 MCS0: −96 dBm 11ax HE20 MCS11: −65 dBm 11ax HE40 MCS0: −93 dBm 11ax HE40 MCS11: −61 dBm 11ax HE80 MCS0: −90 dBm 11ax HE80 MCS11: −60 dBm 11g 6Mbps: −96 dBm 11g 54Mbps: −75 dBm 11ac VHT20 MCS0: −95 dBm 11ac VHT20 MCS8: −72 dBm 11ac VHT40 MCS0: −92 dBm 11ac VHT40 MCS9: −67 dBm 11ax HE20 MCS0: −95 dBm 11ax HE20 MCS11: −65 dBm 11ax HE40 MCS0: −92 dBm 11ax HE40 MCS11: −62 dBm Transmit Power FCC: < 30 dBm (2.4 GHz & 5.15–5.825 GHz) Wireless Functions Enable/Disable Wireless Radio WMM Wireless Statistics Access Control Wireless Security WPA / WPA2 / WPA3 WPA / WPA2-Enterprise Encryption Quality of Service: WMM Operating Modes: Access Point, Range Extender, Client, Multi-SSID System Tools: SNMP, Ping Watchdog DHCP: Server, DHCP Client List Protocols: IPv4, IPv6 Certification FCC RoHS Wireless Access Point (TL-WA1801) Power Adapter RJ45 Ethernet Cable PoE Power Injector Quick Installation Guide System Requirements Internet Explorer 11+ Firefox 12.0+ Chrome 20.0+ Safari 4.0+ Other JavaScript-enabled browsers Environment Operating Temperature: 0°C – 40°C (32°F – 104°F) Operating Humidity: 10% – 90% (Non-condensing)
Wireless Features
Software Features
Package Contents
