UGREEN DB9 RS232 Male To Female Adapter Cable | DB101

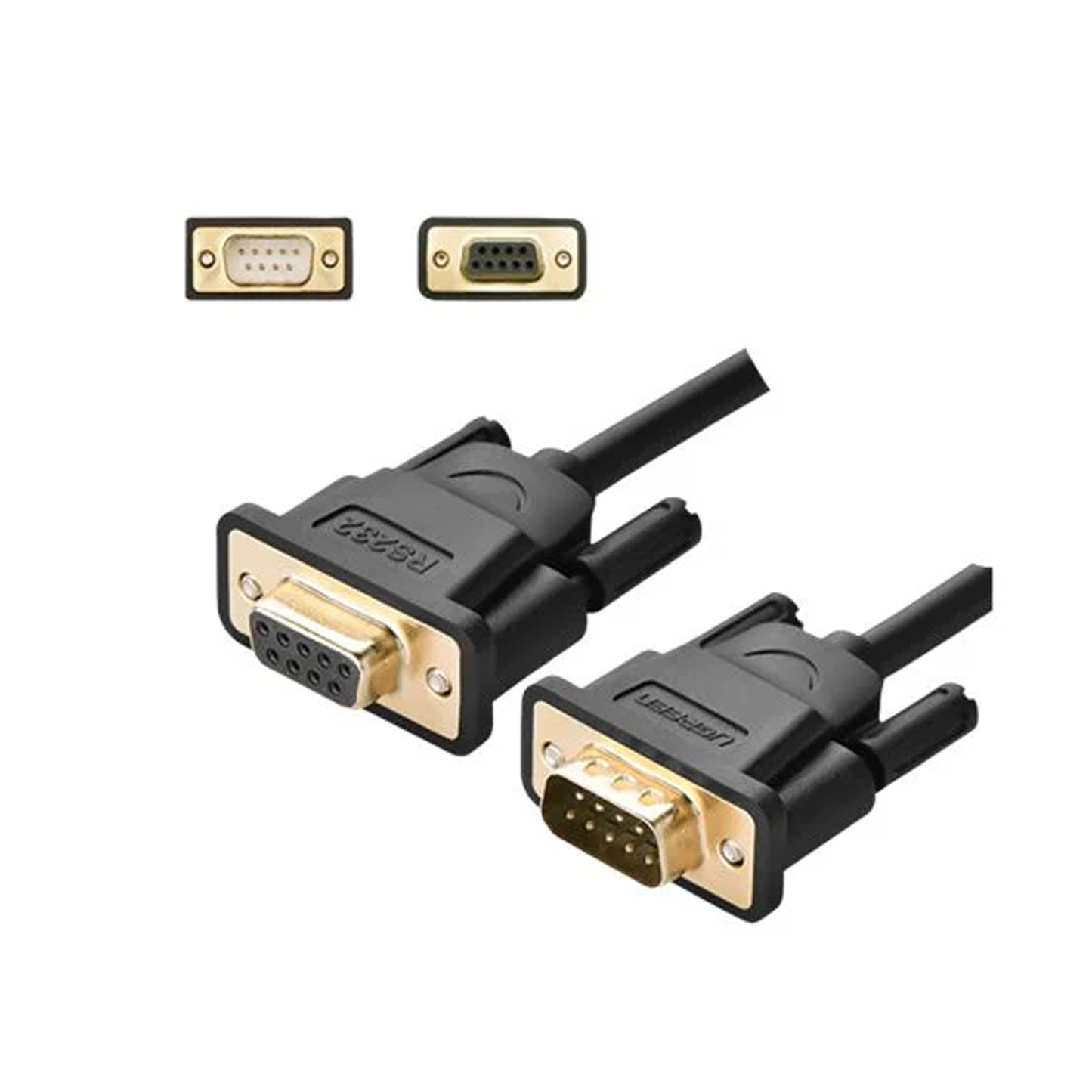

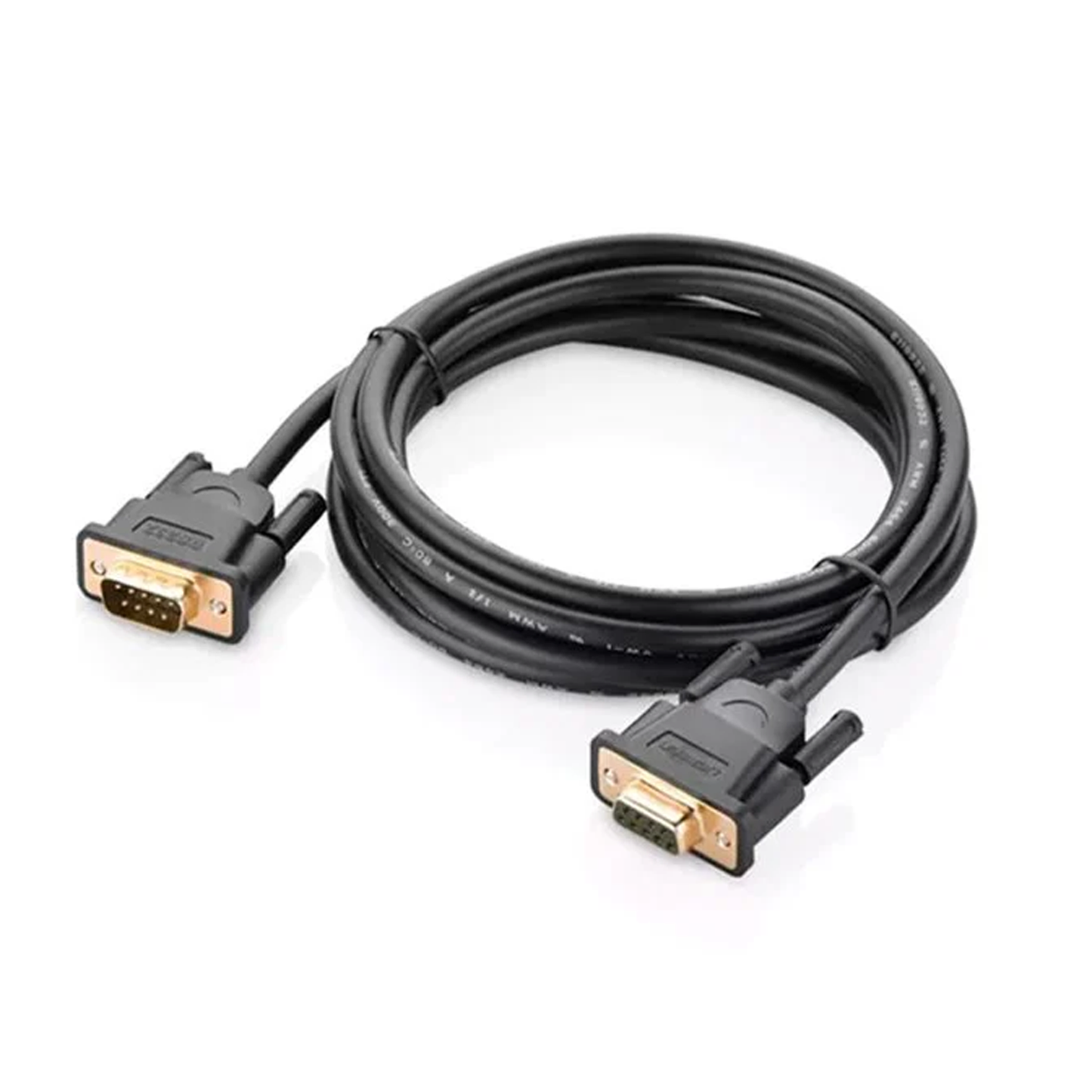

The UGREEN DB101 is a DB9 (9-pin) RS-232 serial cable with a male connector on one end and a female connector on the other. It is wired straight through, pin to pin, so it works as an extension cable between a computer's COM port and a serial device.
Available lengths: 1.5 m (#20145), 2 m (#20146) and 3 m (#20147), black.
Straight-through wiring: Each pin connects to the same pin on the other end (1-1, 2-2 ... 9-9). This is the standard wiring for extending an RS-232 link; it is not a null-modem (crossover) cable.

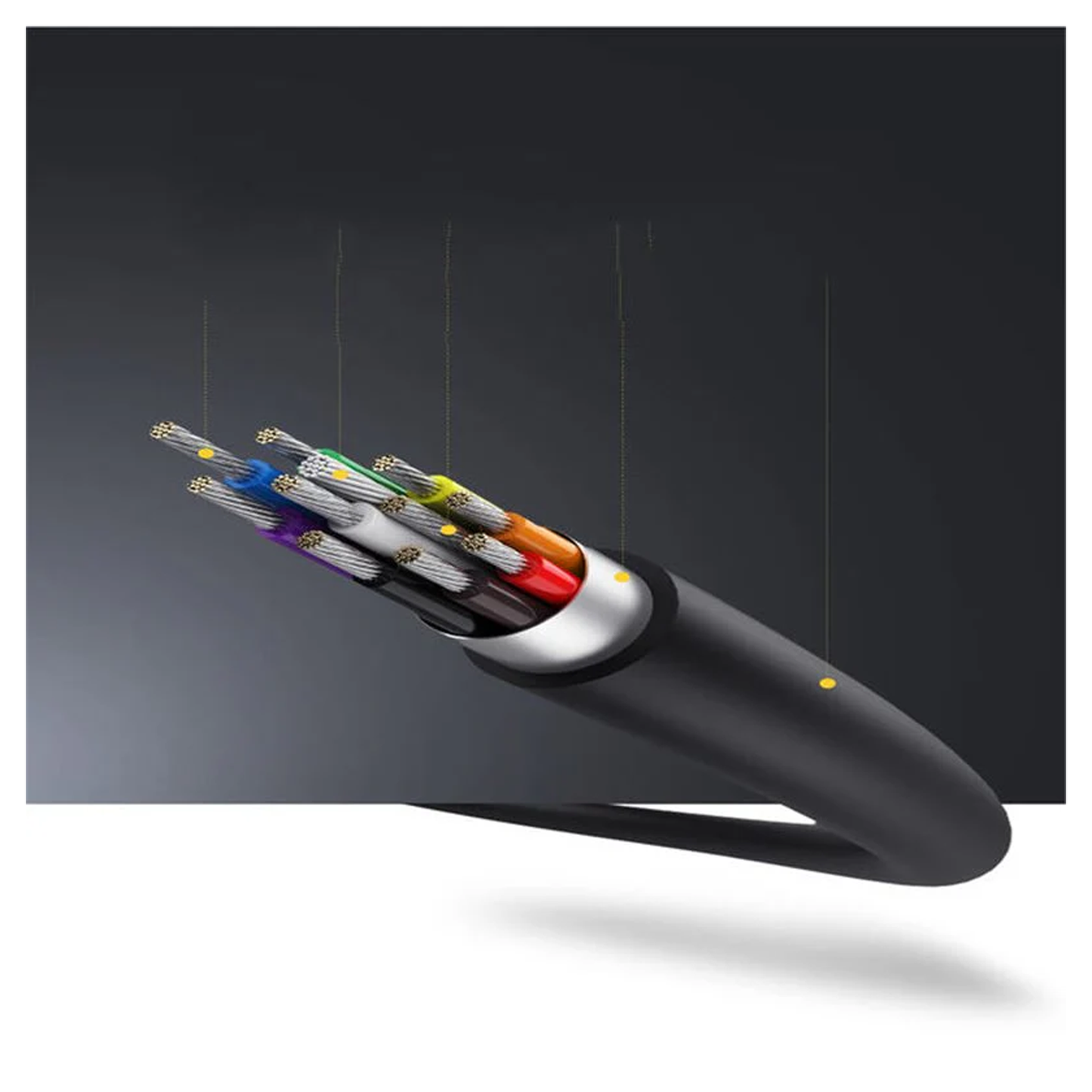

30AWG pure copper core: The conductors are 30AWG pure copper, which carries the serial signal reliably over the cable length.
Gold-plated contacts and foil shielding: Gold-plated contacts resist oxidation, and aluminium foil shielding reduces interference from nearby cables and equipment.
Screw-lock connectors: Both connectors have thumb screws, so the cable stays firmly fixed to the port and does not work loose.
Who it's for / Works with
PCs and RS-232 (COM) devices such as modems, routers and industrial machines.
Technical Specifications
| Model | DB101 |
| Item No. | 20145 (1.5 m), 20146 (2 m), 20147 (3 m) |

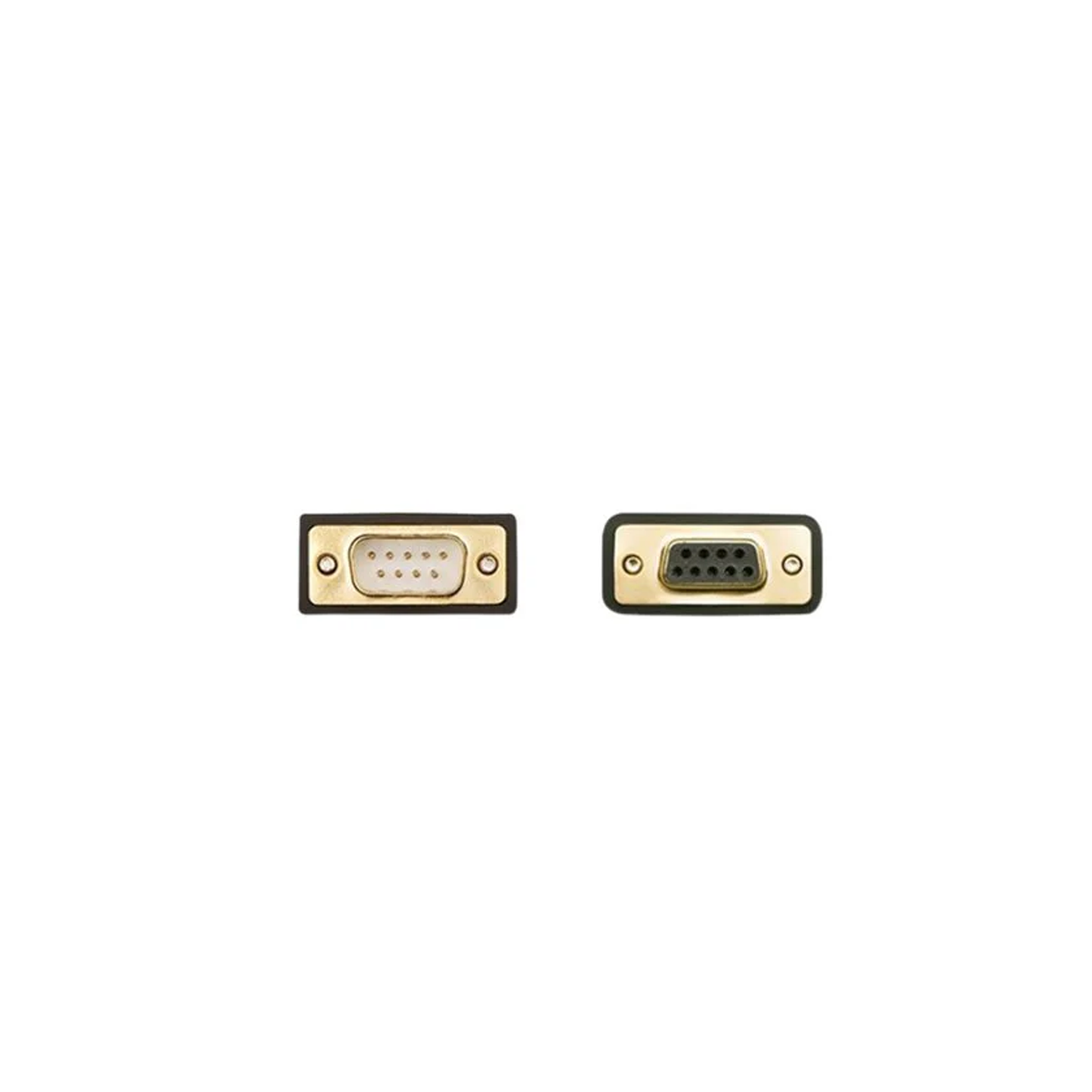

| Connectors | DB9 male to DB9 female |
| Wiring | Straight-through, pin to pin (1-1 ... 9-9) |
| Conductor | 30AWG pure copper |
| Contacts | Gold-plated |
| Shielding | Aluminium foil |

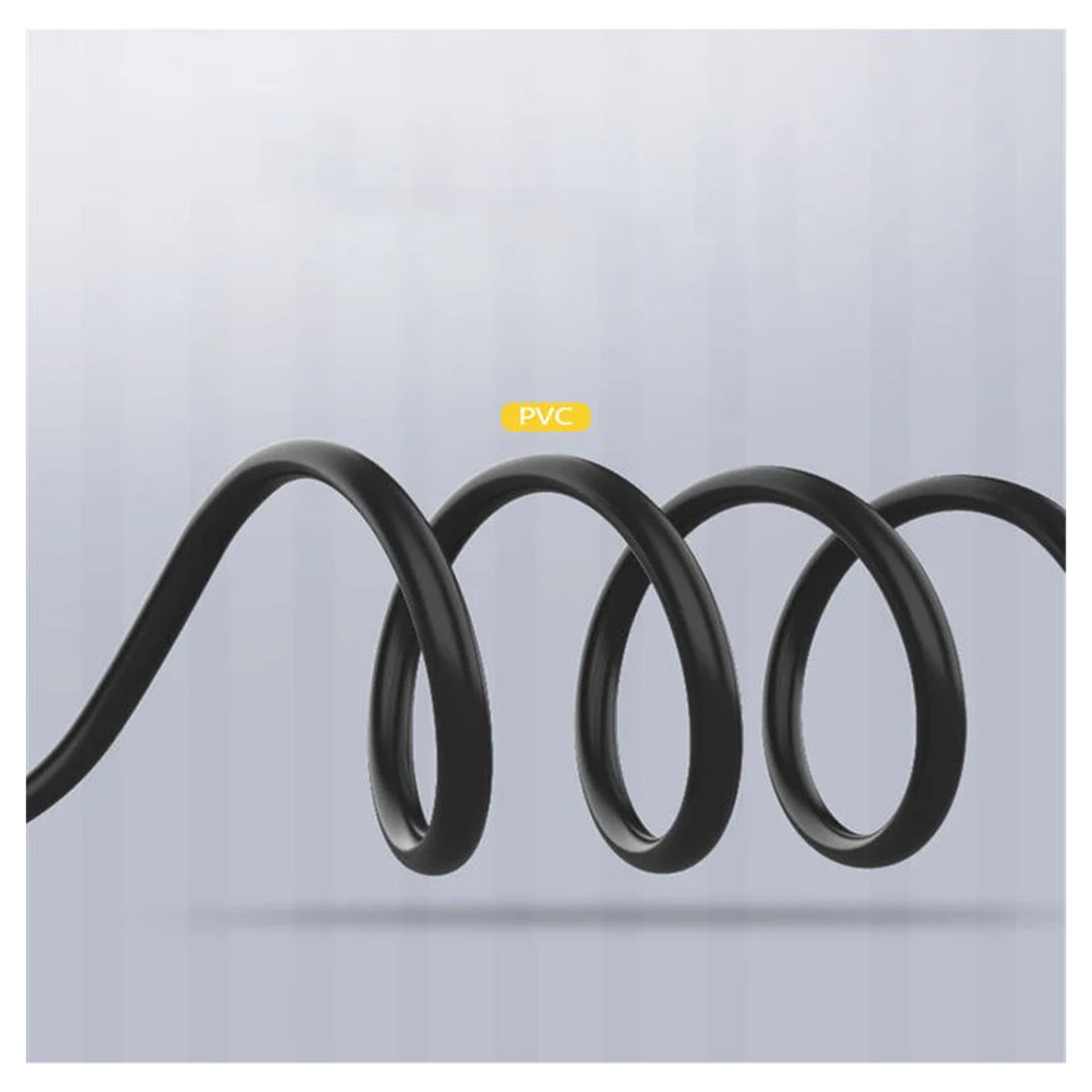

| Jacket | PVC |
| Fastening | Thumb screws on both connectors |
| Color | Black |
