UGREEN DisplayPort BI-Directional Switch | 60622

UGREEN DisplayPort BI-Directional Switch | 60622

The UGREEN CM430 (item 60622) is a small DisplayPort switch that works in two directions: it connects two DisplayPort sources to one monitor, or one source to two monitors, and you choose the active connection with one button. It supports DisplayPort 1.2, HDCP 2.2/1.4 and HDR, and reaches 4K@60Hz with short cables.

Two ways to use it: In 2-in-1-out mode, two computers (for example a desktop and a laptop) share one DisplayPort monitor. In 1-in-2-out mode, one computer can send its picture to either of two DisplayPort monitors. Only the selected screen shows a picture at a time, so it switches, it does not split.

Resolution depends on cable length: With short 30AWG cables (up to 2 m on the input and 3 m on the output) it passes 4K@60Hz. With longer 28AWG cables it supports 4K@30Hz (5 m input, 3 m output) or 1080P@60Hz (5 m input, 5 m output), so plan your cable runs according to the resolution you need.

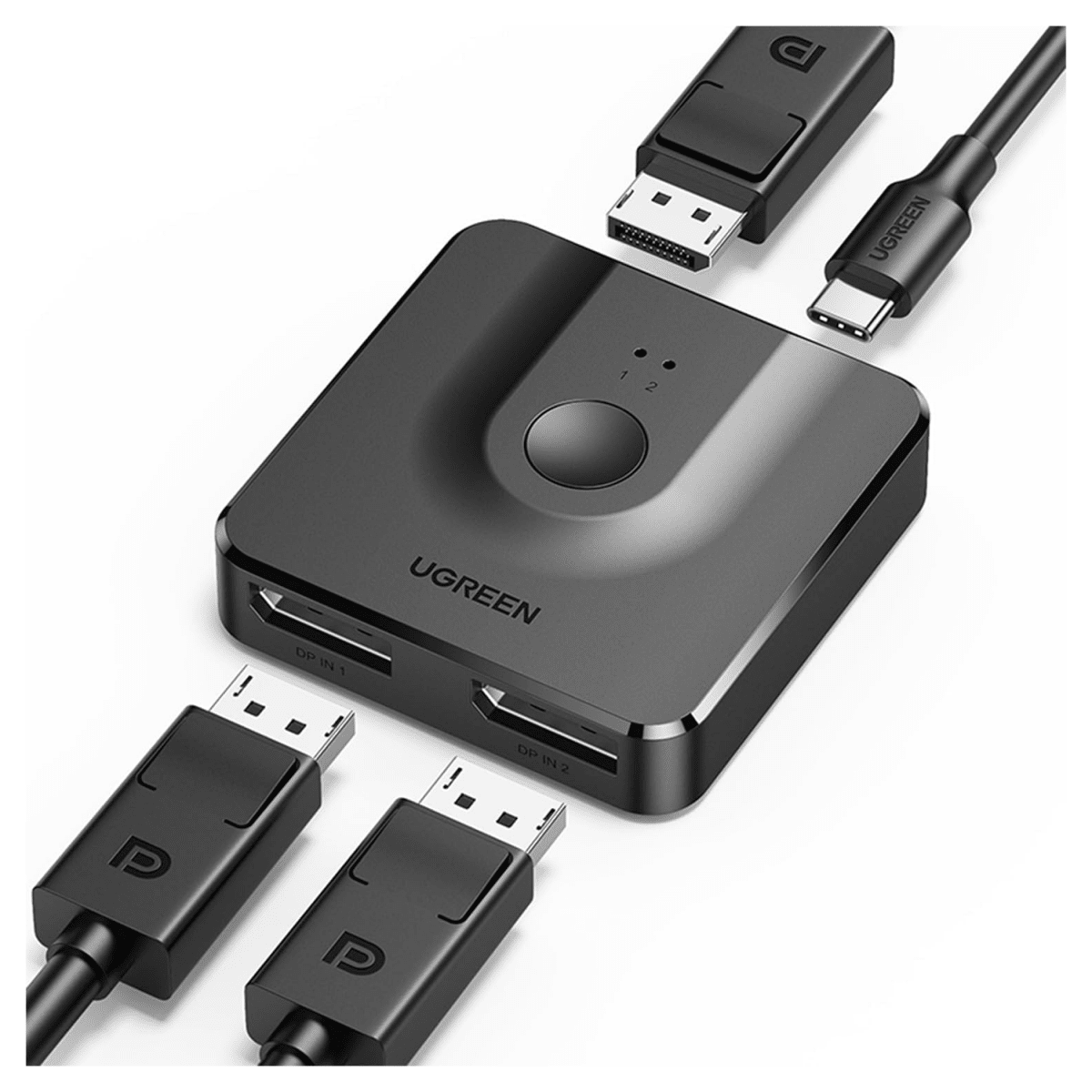

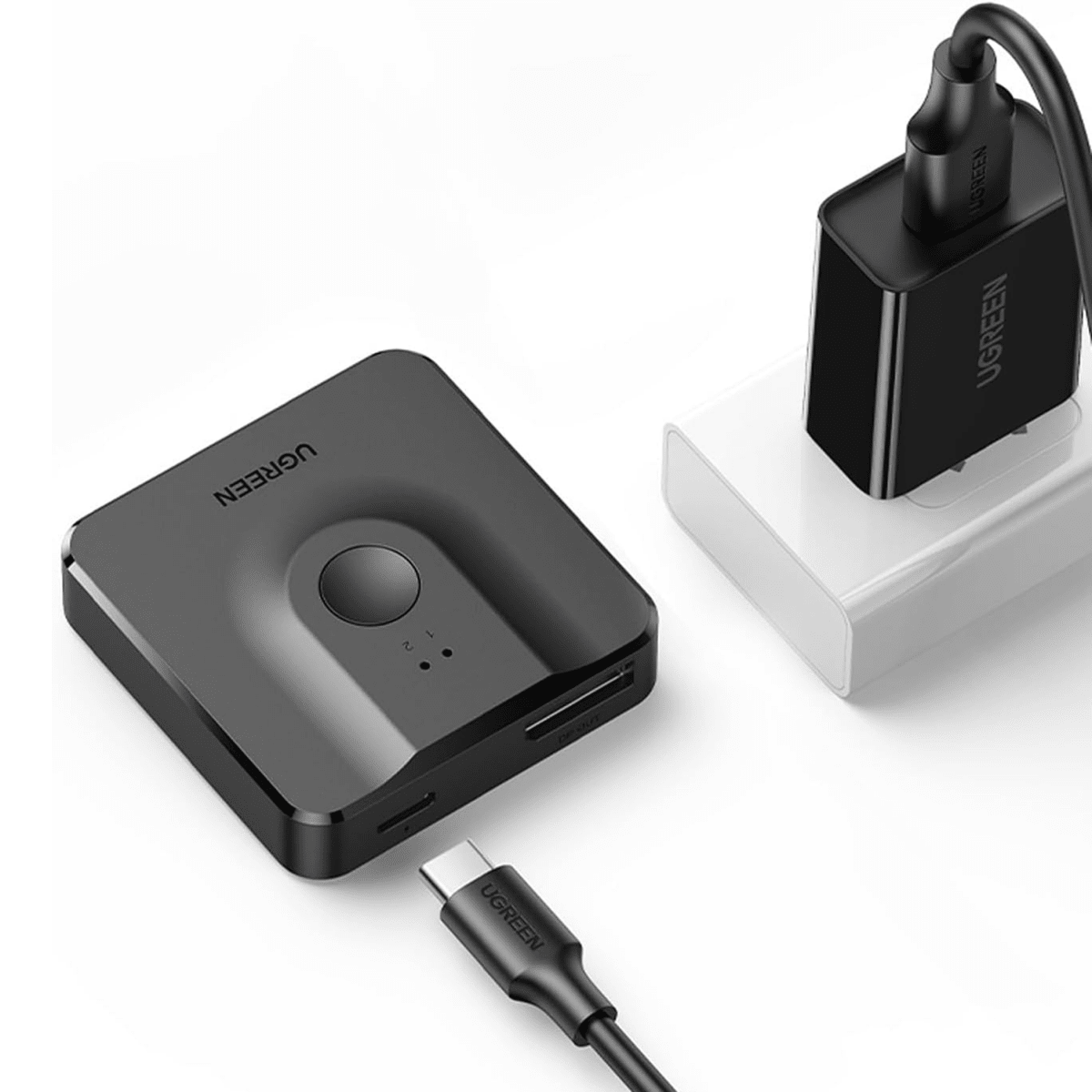

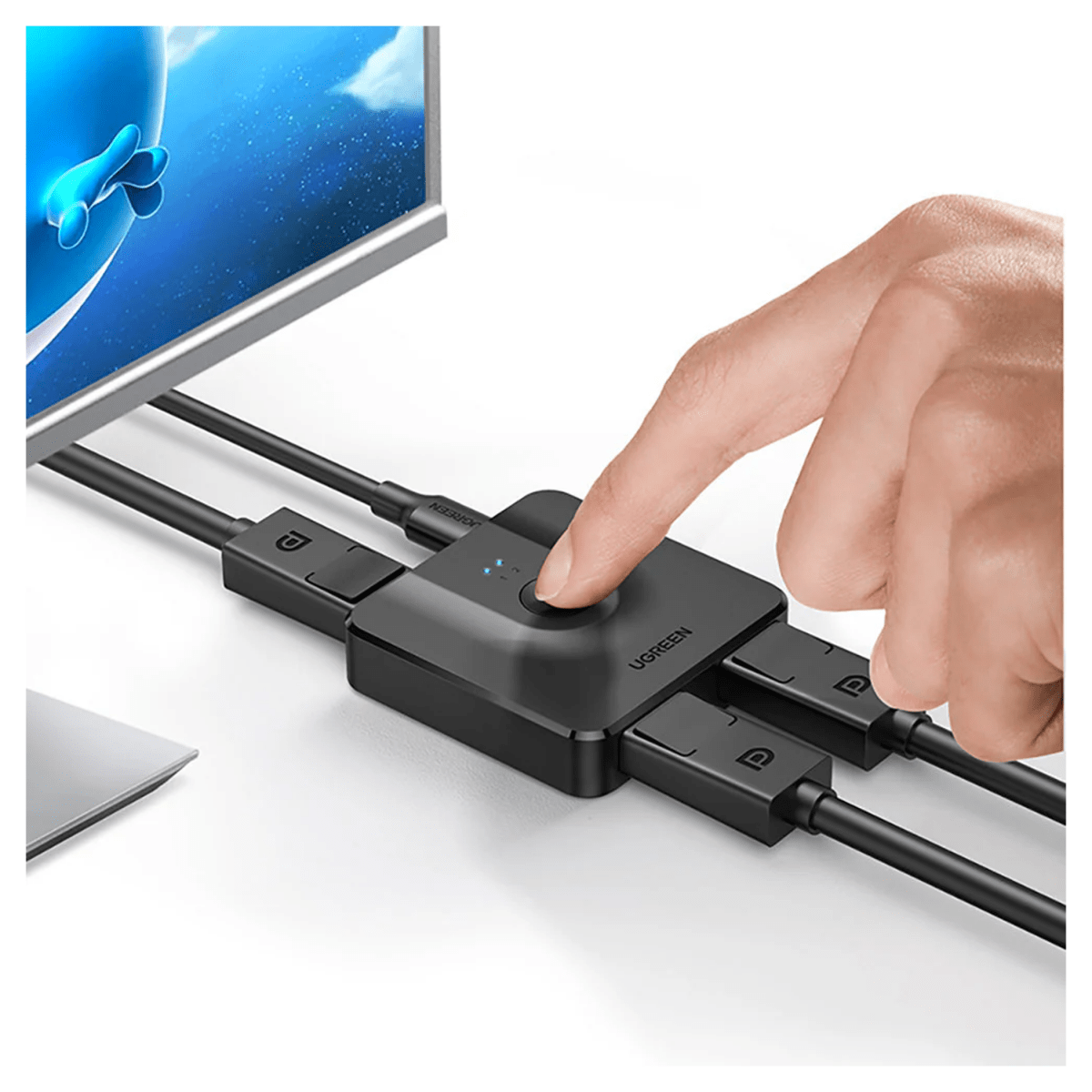

One-button switching and USB-C power: The button on top changes the active port, so you no longer need to unplug and replug DisplayPort cables. A USB-C port (5V/1A) is provided for power.

Who it's for / Works with

Devices with DisplayPort outputs (PCs, laptops, graphics cards, docking stations) and monitors with DisplayPort inputs.

Good to know

Only one screen or source is active at a time; it does not show the picture on two monitors at once and it does not extend the desktop. All three ports are DisplayPort, so other video types (HDMI, VGA) need a separate adapter.

Technical Specifications
