UGREEN Gigabit Cat6A Shielded Modular RJ45 Plug (10PCs) - 70316

UGREEN Gigabit Cat6A Shielded Modular RJ45 Plug (10PCs) - 70316

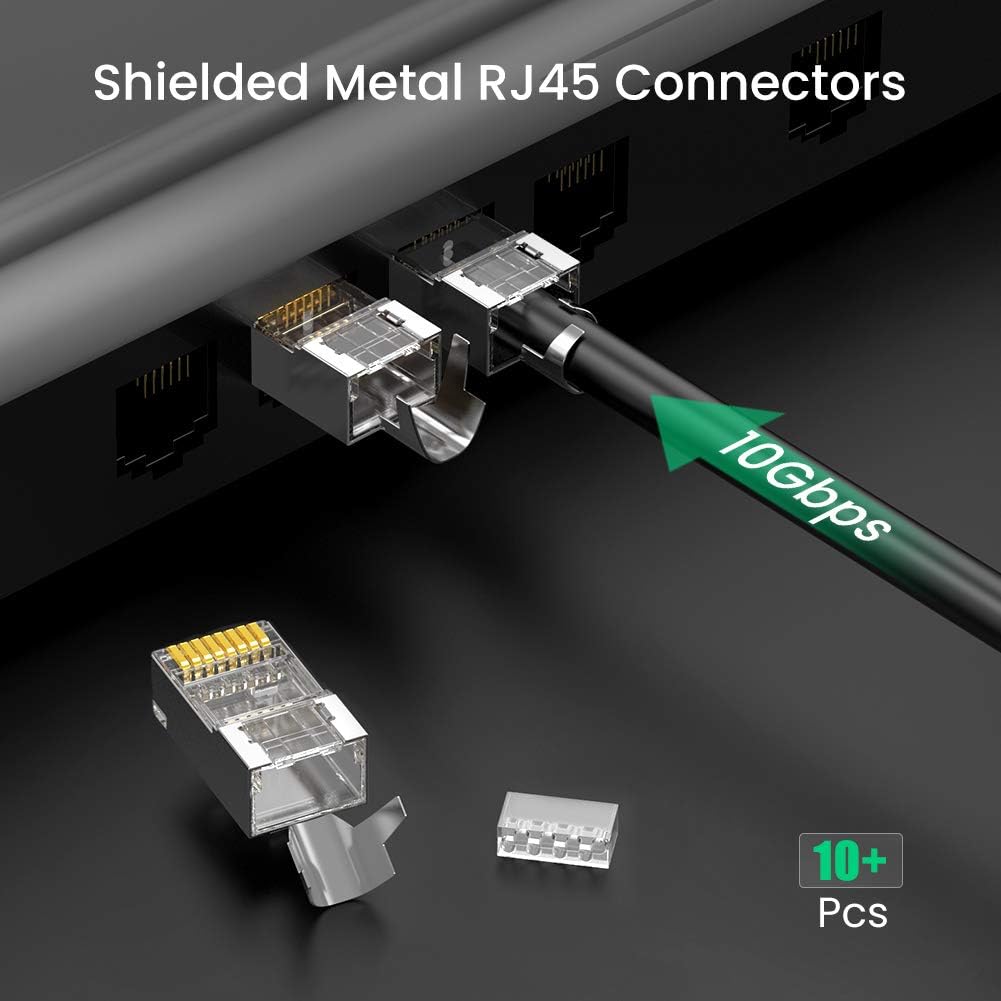

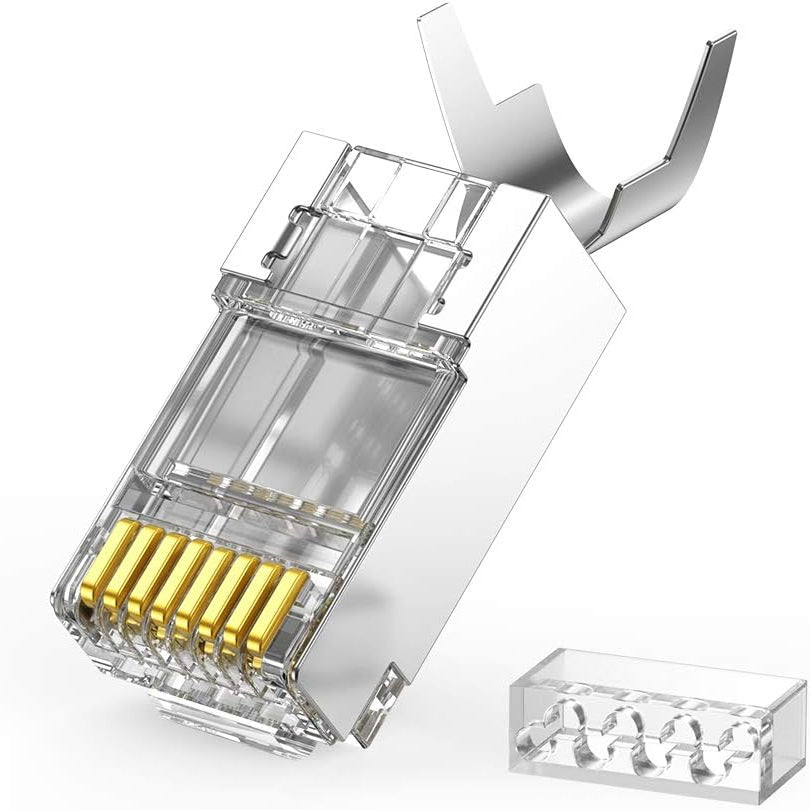

The UGREEN 70316 (model NW123) is a pack of 10 shielded RJ45 (8P8C) modular plugs for terminating Cat 6A and Cat 7 Ethernet cable. The metal shield supports speeds up to 10Gbps, and a wire loading bar makes it easier to put the wires in the right order before crimping.

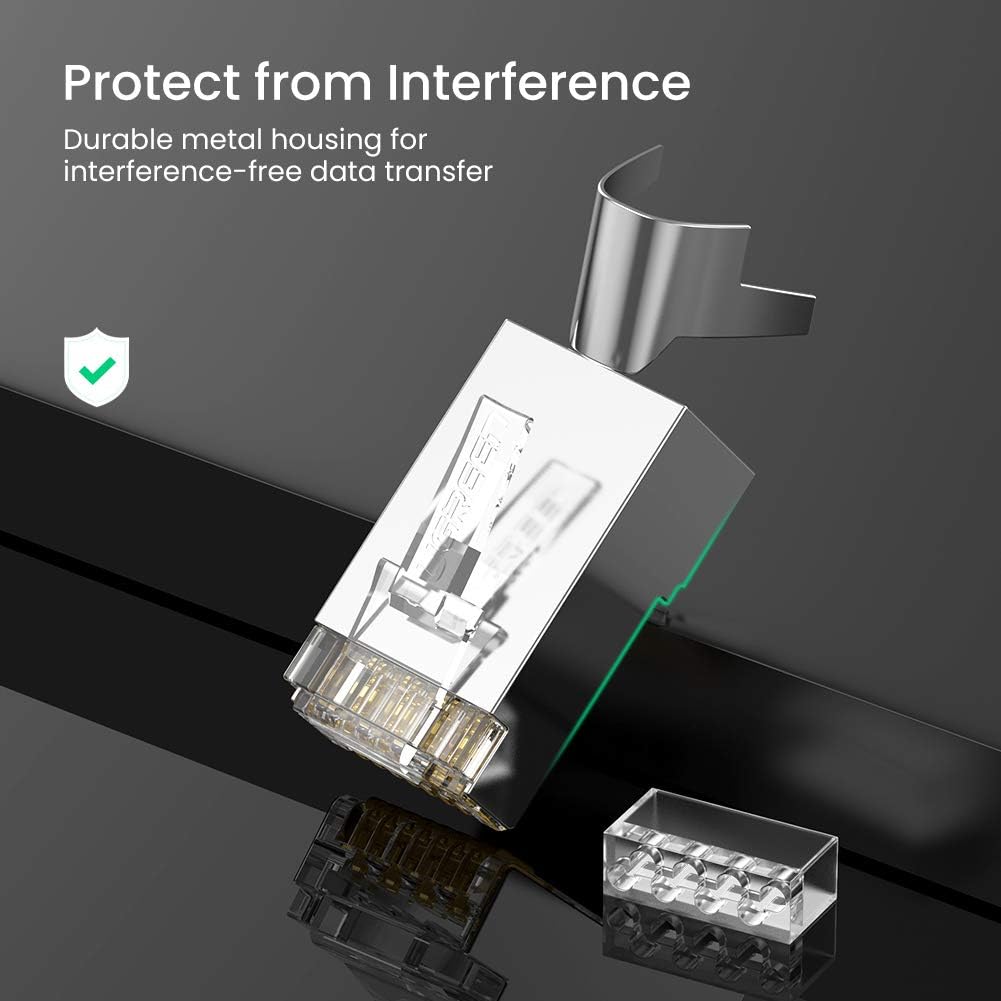

Shielded metal housing: Each plug has a clear PC body inside a nickel-plated copper shield. On a shielded cable, the shield helps protect the signal from outside interference, for speeds up to 10Gbps.

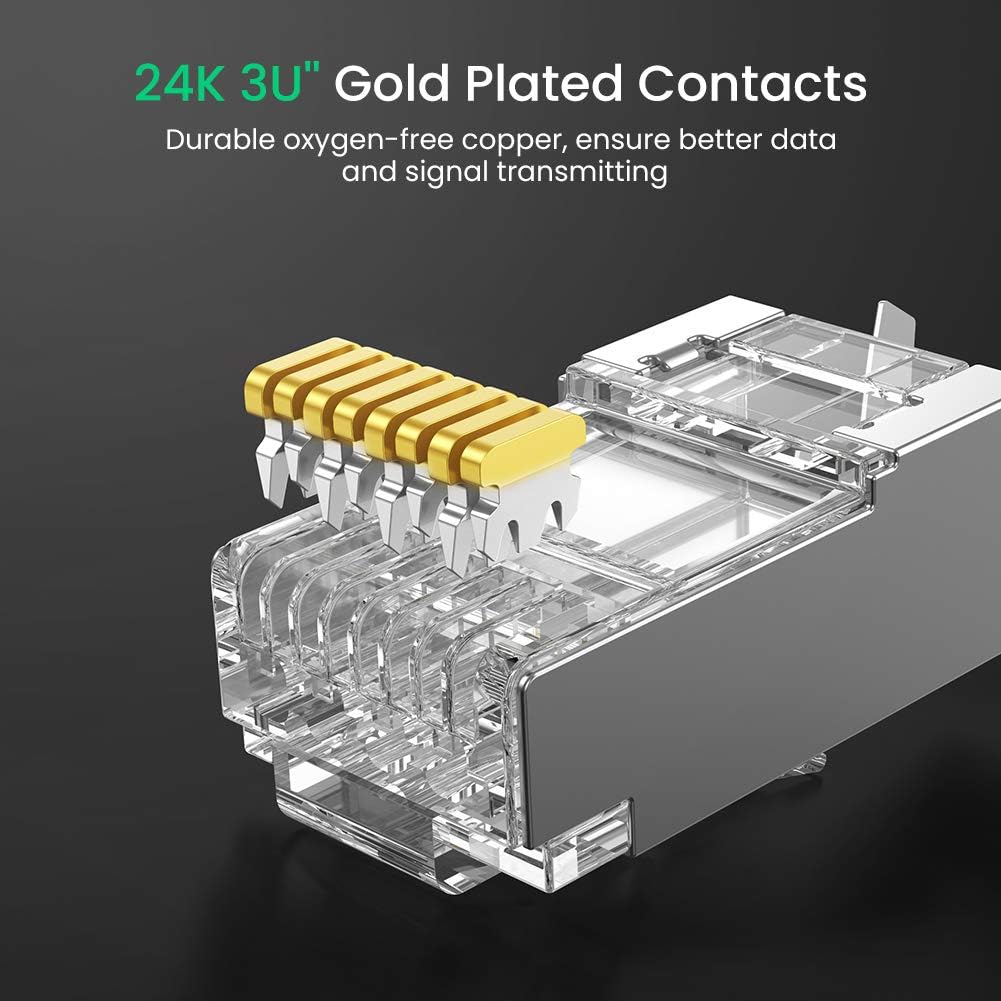

3U gold-plated contacts: The contacts are gold-plated (3U) to resist oxidation and keep a reliable connection over time.

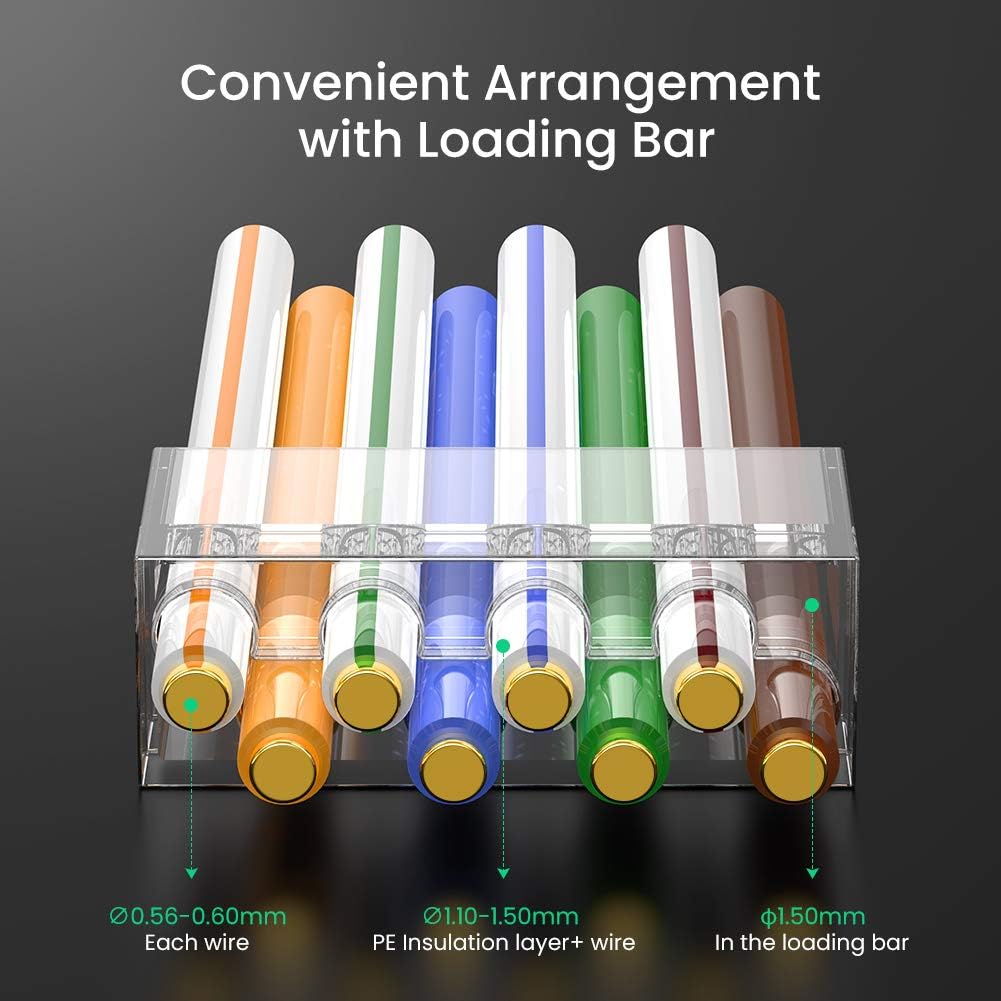

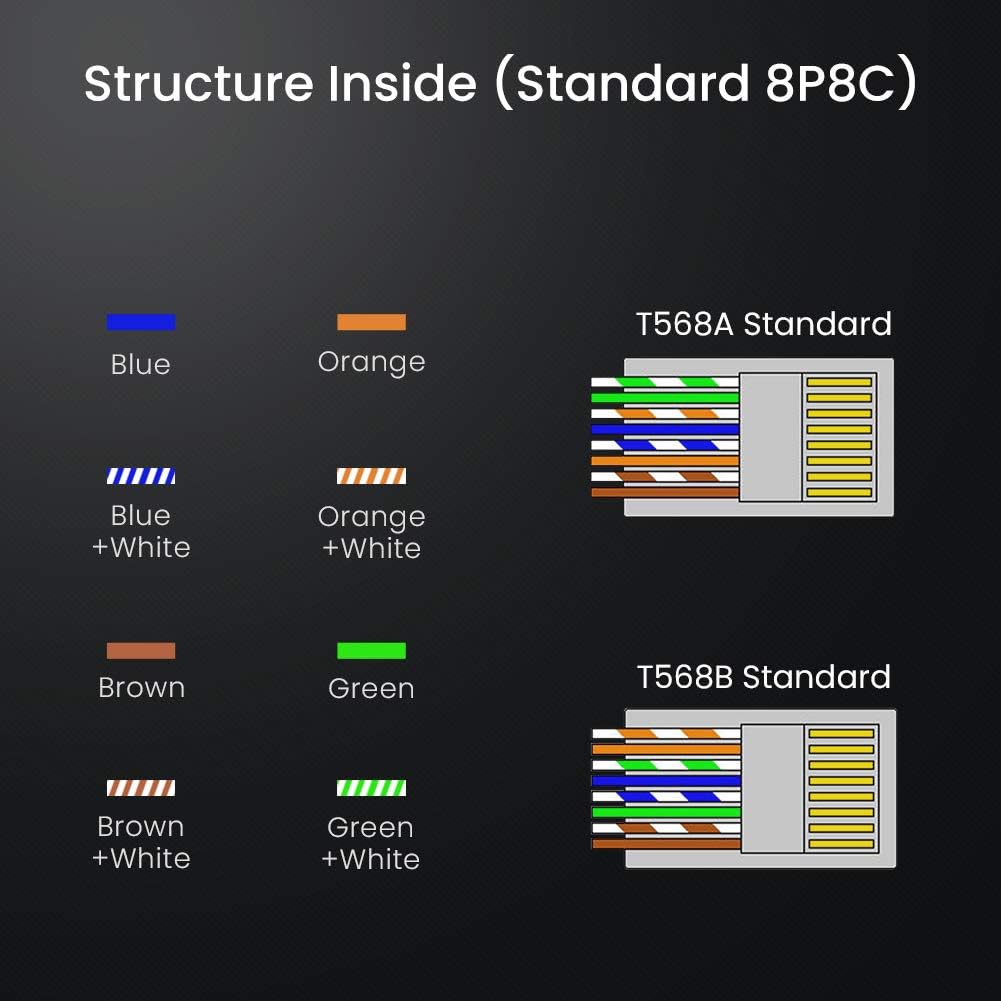

Two-piece design with loading bar: You first thread the wires through the loading bar, check the order against the T568A or T568B standard, and then push the bar into the plug. The bar has 1.5 mm wire holes.

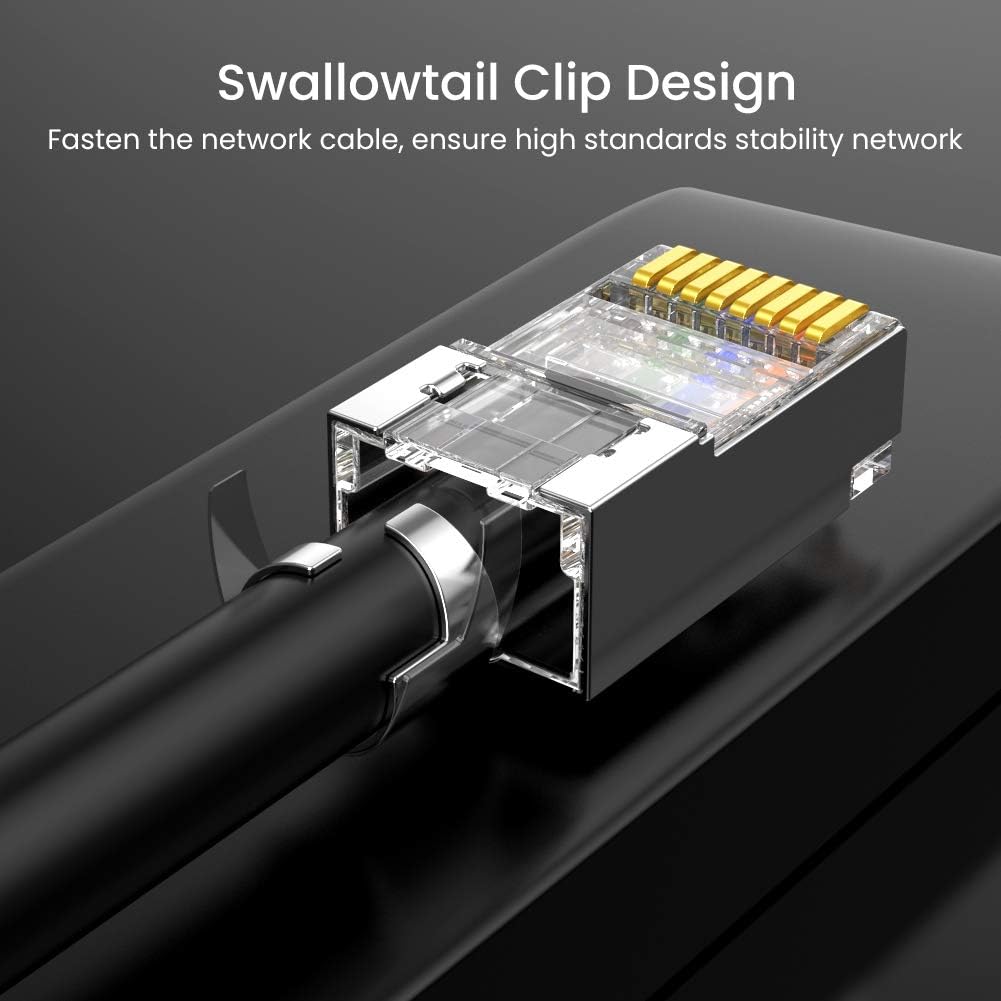

Tail clamp: A metal clamp at the back of the plug grips large-diameter shielded cable firmly, so the cable does not pull loose from the plug.

Who it's for / Works with

Installers and DIY users who make their own Cat 6A or Cat 7 patch cables or terminate shielded cable runs for PCs, routers, switches, modems and other network devices.

Good to know

You need an RJ45 crimping tool to fit these plugs. The plugs are for shielded cable whose insulated wires fit the 1.5 mm holes of the loading bar.

Technical Specifications
