UGREEN HDMI Splitter 1 In 4 Out | 90514

UGREEN HDMI Splitter 1 In 4 Out | 90514

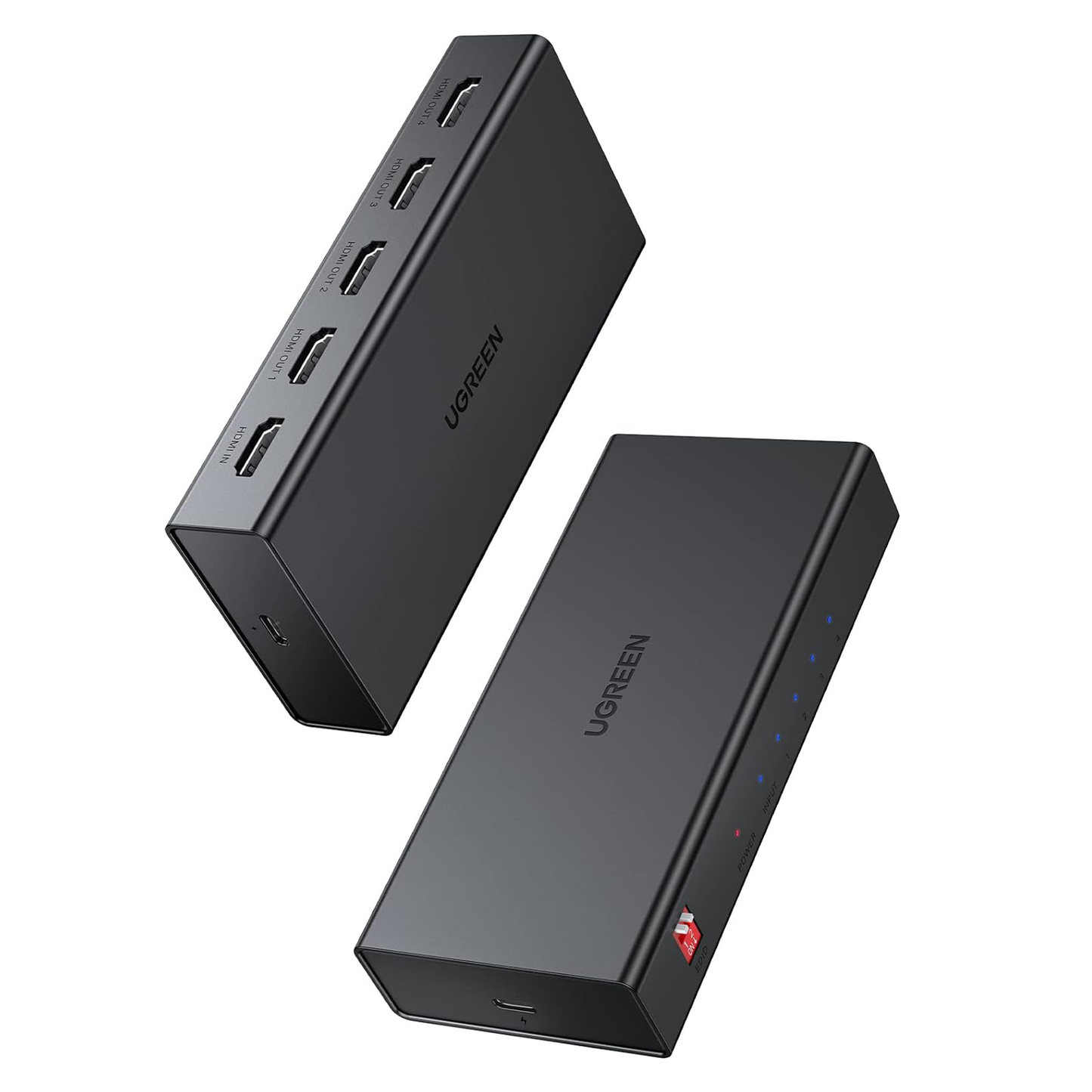

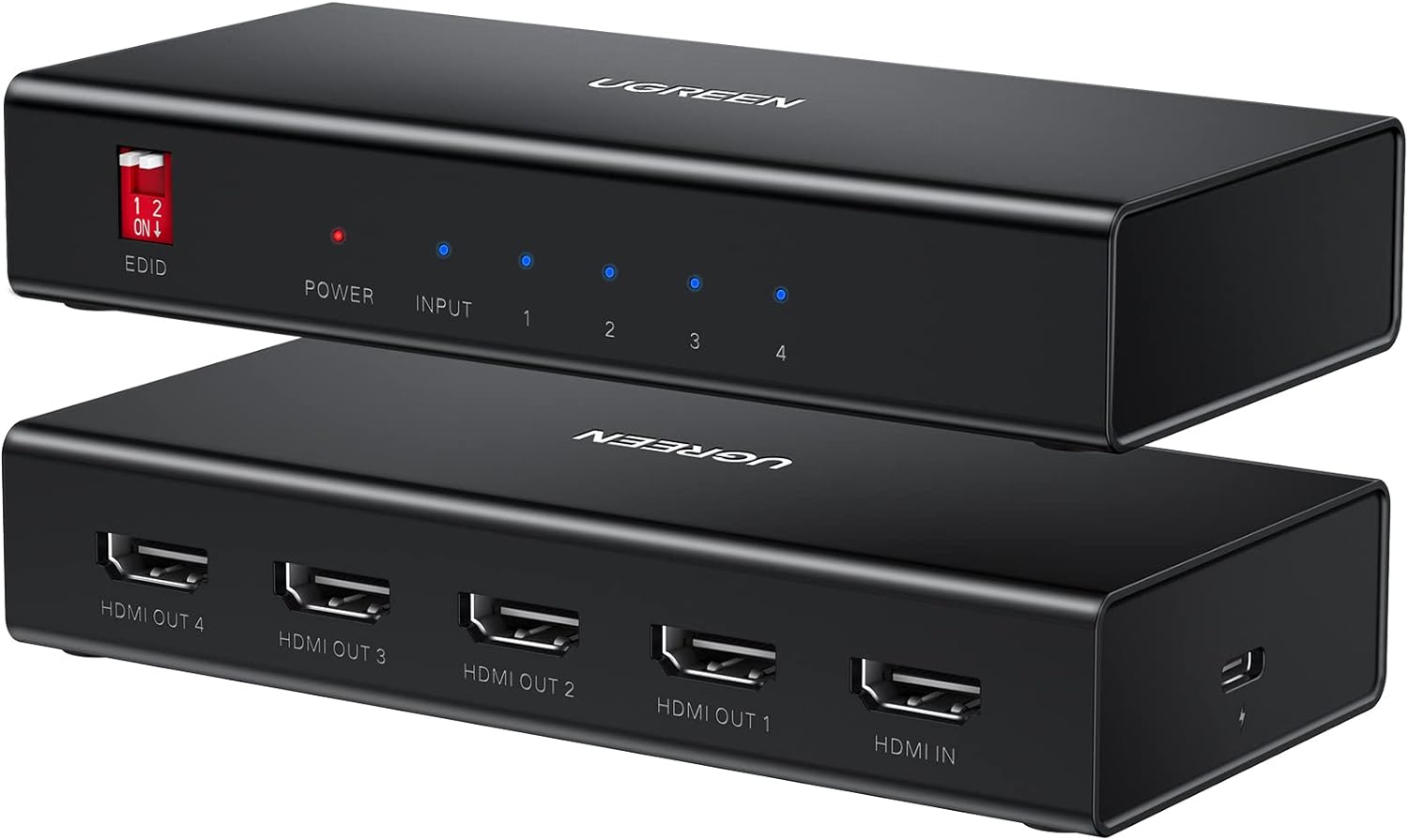

The UGREEN CM570 (item 90514) is a 1-in-4-out HDMI splitter: it takes the signal from one HDMI source and shows the same picture and sound on four displays at once. It supports 4K@60Hz, HDCP 2.2, 3D and HDR, and is powered over USB.

One source, four screens: Send a receiver, game console, PC or streaming box to up to four TVs or monitors in the same room or in different rooms. All screens show the same image (mirror mode only).

4K@60Hz with HDR: The splitter supports 4K@60Hz and also works at 4K@30Hz and 1080p@60Hz. With 18 Gbps bandwidth and HDMI 2.0 outputs it carries HDR, 3D and HDCP 2.2 content.

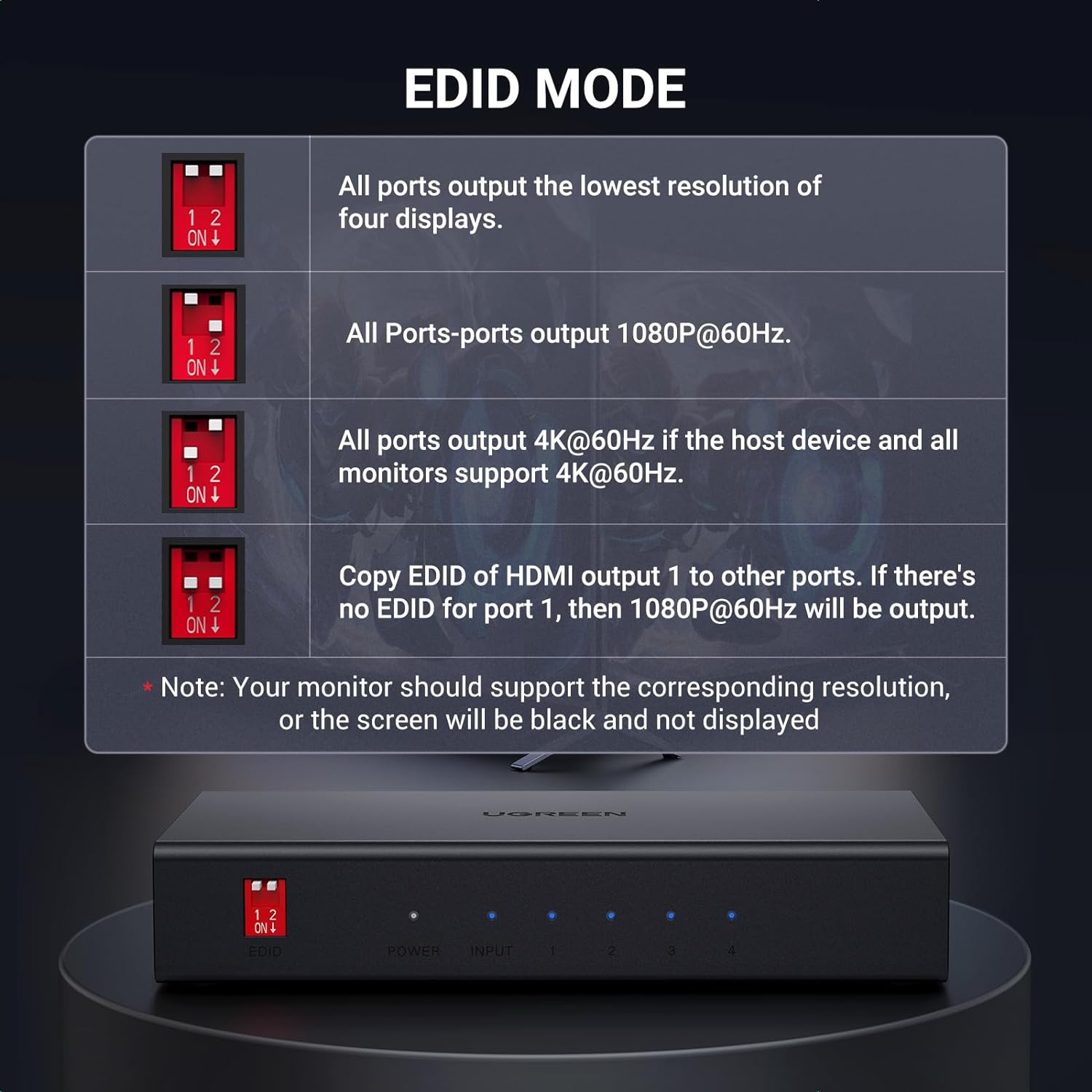

EDID setting: The EDID control lets you choose the EDID setting that suits your displays, which helps avoid black screens and flickering. If your displays have different resolutions, UGREEN recommends connecting the higher-resolution display to output 1.

CEC on output 1: HDMI output 1 supports CEC, so the display on that port can work with HDMI-CEC remote control functions.

Who it's for / Works with

HDMI sources such as Blu-ray and DVD players, Xbox, PS4, PS5, Nintendo Switch, AV receivers, Apple TV, Fire TV Stick, Roku, PCs and laptops, with HDTVs, monitors and projectors.

Good to know

It duplicates the same picture to all screens; it cannot show different content on each screen. Keep the splitter connected to its USB power while in use. Each screen must support the selected resolution, or it will show a black screen.

Technical Specifications
