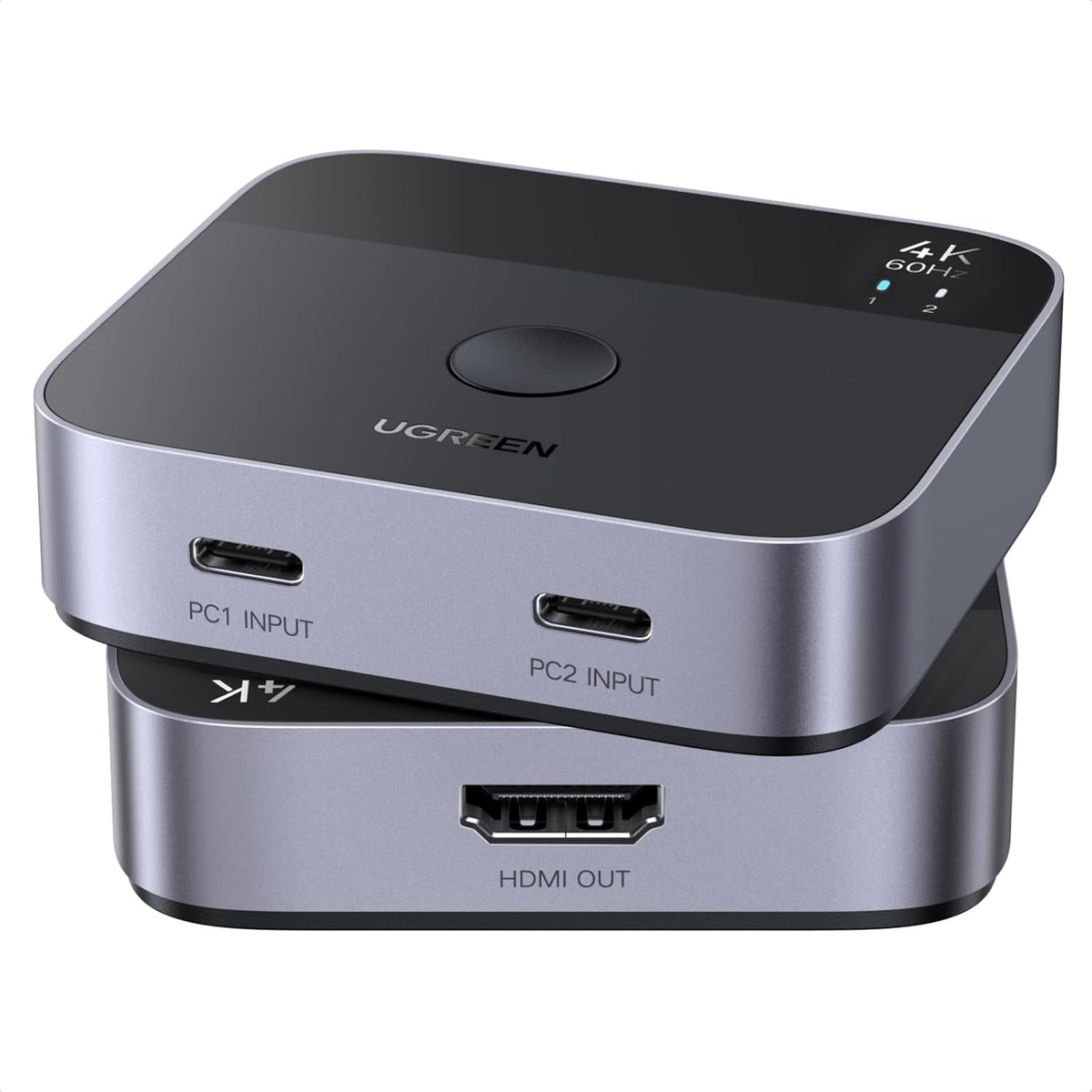

UGREEN USB-C Switch 2 In 1 Out to HDMI 4K@60Hz, 2 Computers Share 1 Monitor | AW502
Share one HDMI monitor, TV or projector between two USB-C computers or devices and switch between them at the press of a button, with 4K@60Hz output and no external power needed.
Description:

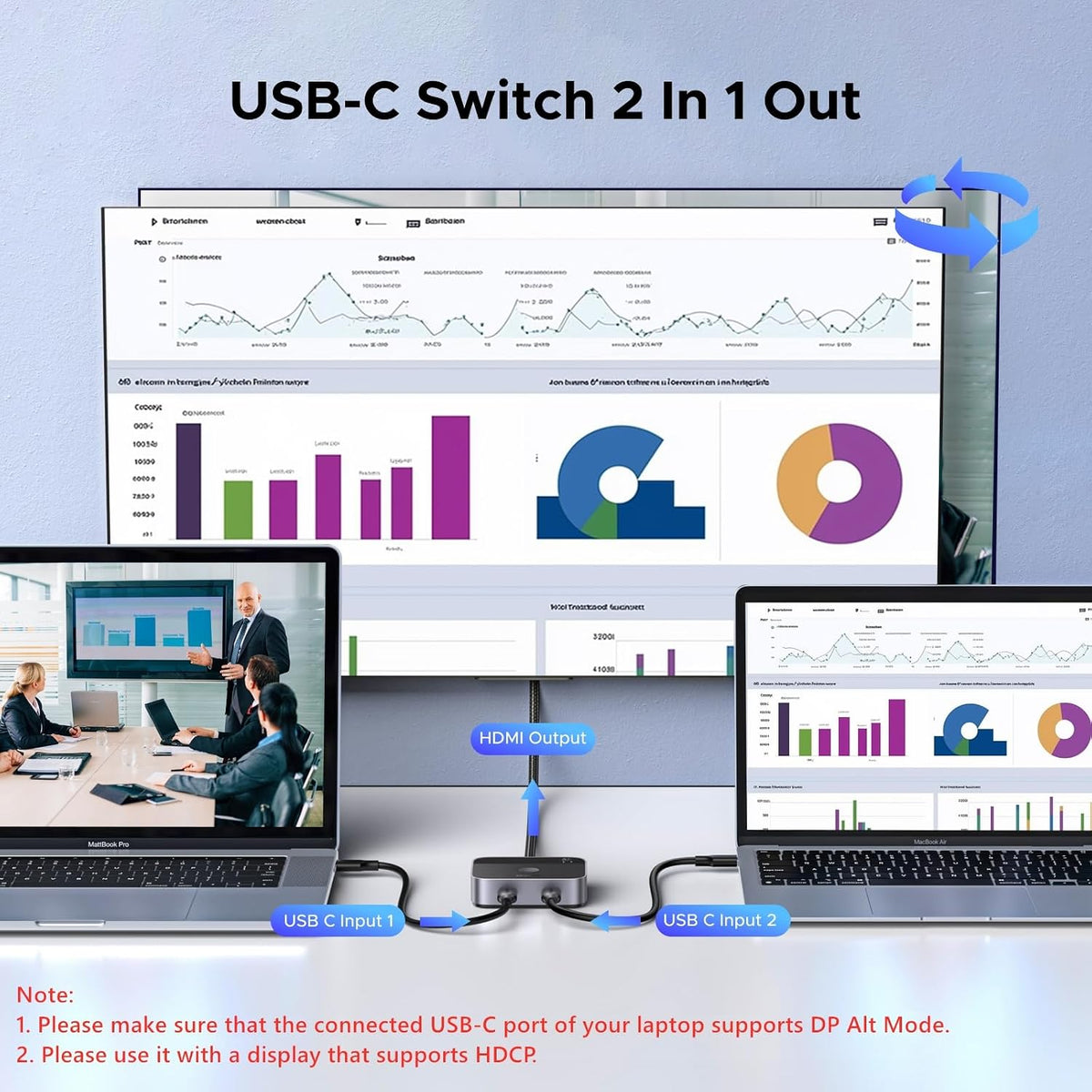

2 USB-C In, 1 HDMI Out Connect two USB-C laptops, tablets or phones (with DP Alt Mode) to one HDMI display and switch between them with one click, without re-plugging cables. Only one screen is displayed at a time.

4K@60Hz Ultra HD Delivers up to 4K@60Hz, with support for 4K@30Hz and 1080P up to 240Hz over an HDMI 2.0 output with 18Gbps bandwidth.

HDR10+ and Dolby Atmos Supports Dynamic HDR10+, HDCP 2.2/1.4 and Dolby Atmos audio for a richer picture and sound.

No Additional Power Required Powered by the USB-C source - just plug and play, no external power supply or drivers needed.

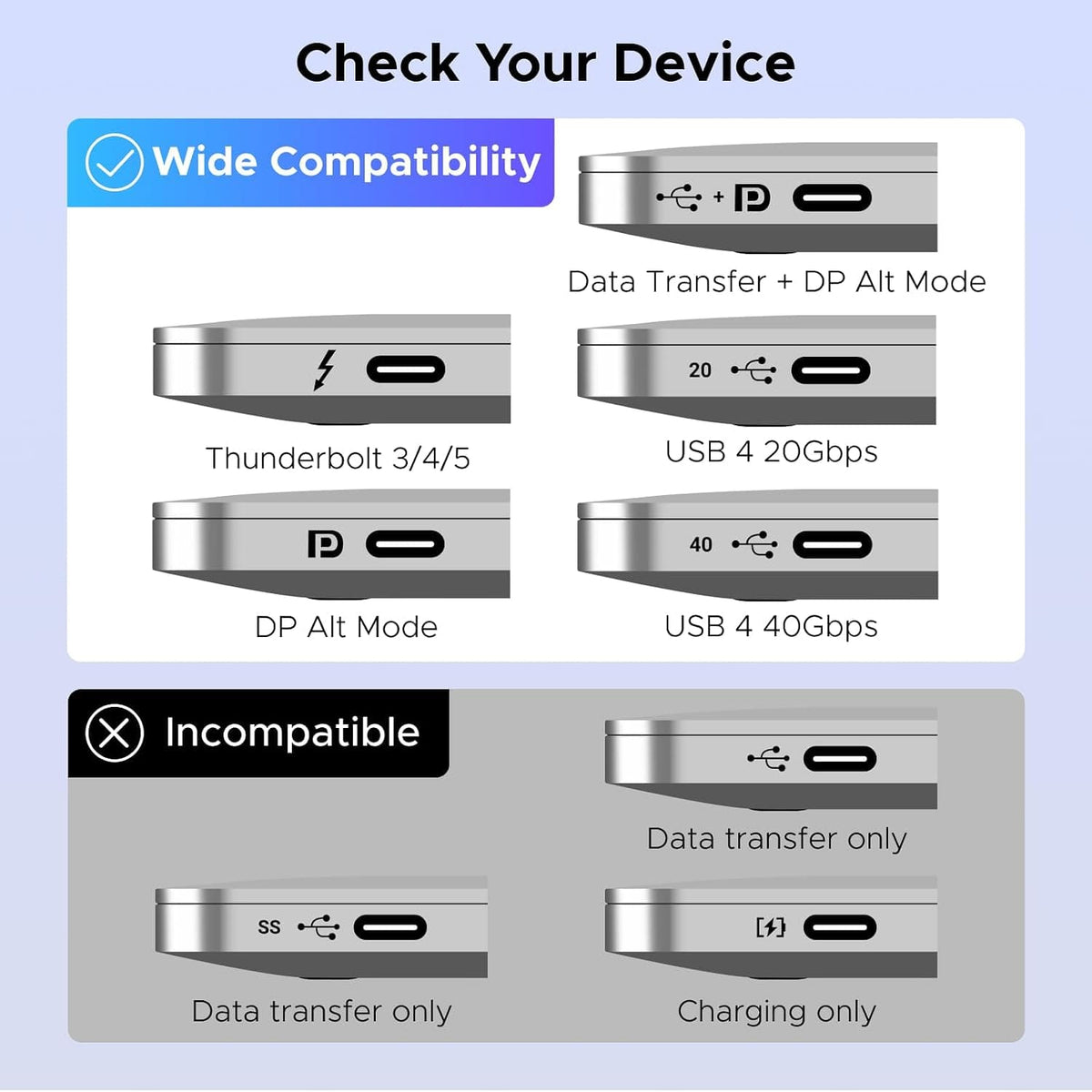

Wide Compatibility Works with USB-C ports supporting DP Alt Mode or Thunderbolt 3/4/5 (e.g. MacBook, Dell XPS, iPad Pro/Air, Steam Deck) and HDMI monitors, TVs and projectors on Windows, macOS, iOS and Linux.

Cable Length Guide For 4K@60Hz keep the USB-C input cable at 2m or shorter and the HDMI output cable at 3m or shorter.

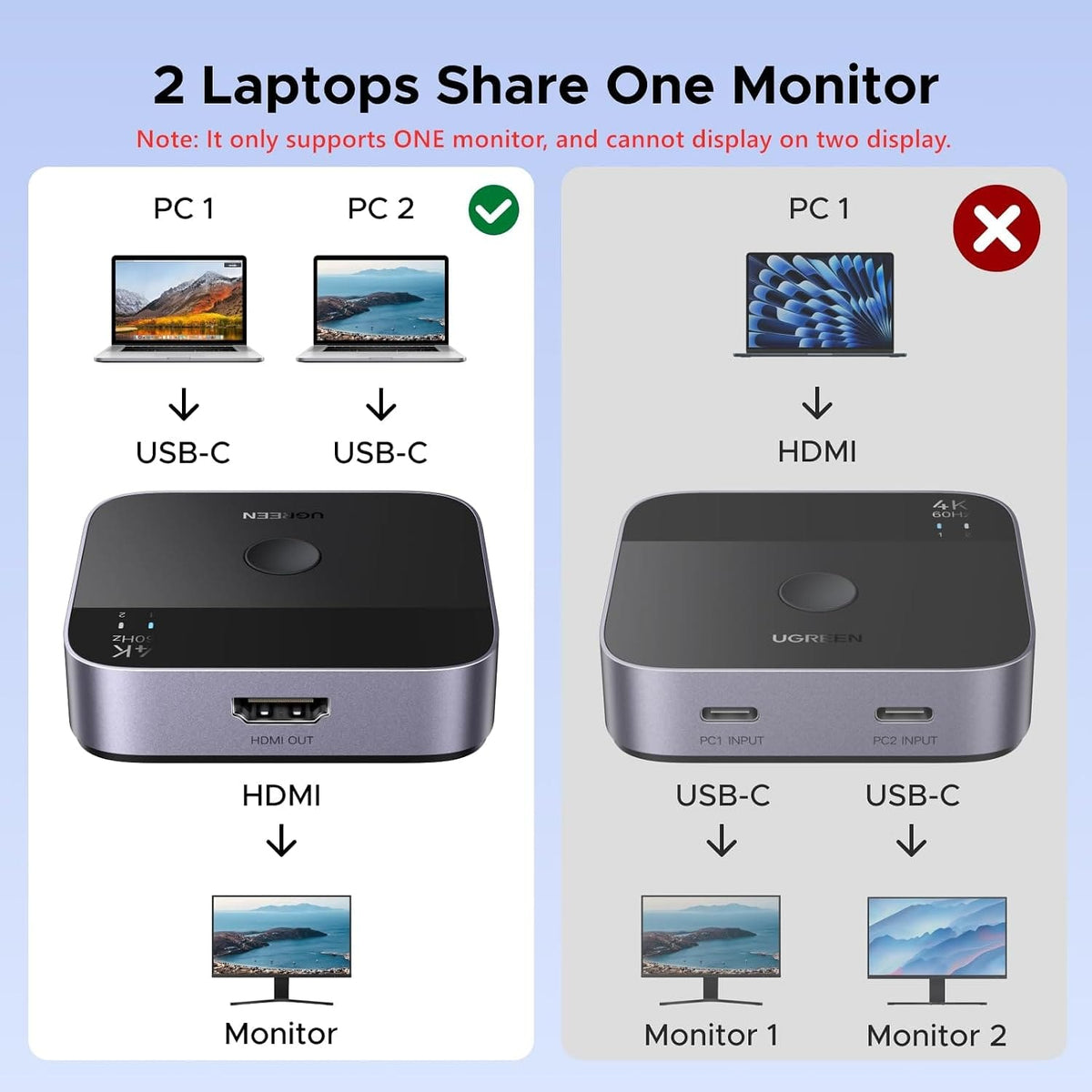

Note: Source USB-C ports must support DP Alt Mode (or Thunderbolt) video output; charging/data-only ports will not work. Only one monitor; not a splitter or bidirectional; no automatic switching; ARC, CEC and FreeSync not supported; USB-C inputs do not pass PD charging. Do not connect Thunderbolt docks or drive enclosures.
Specifications:
| Brand | UGREEN |
| Model | AW502 |
| Item No. | 55451 |

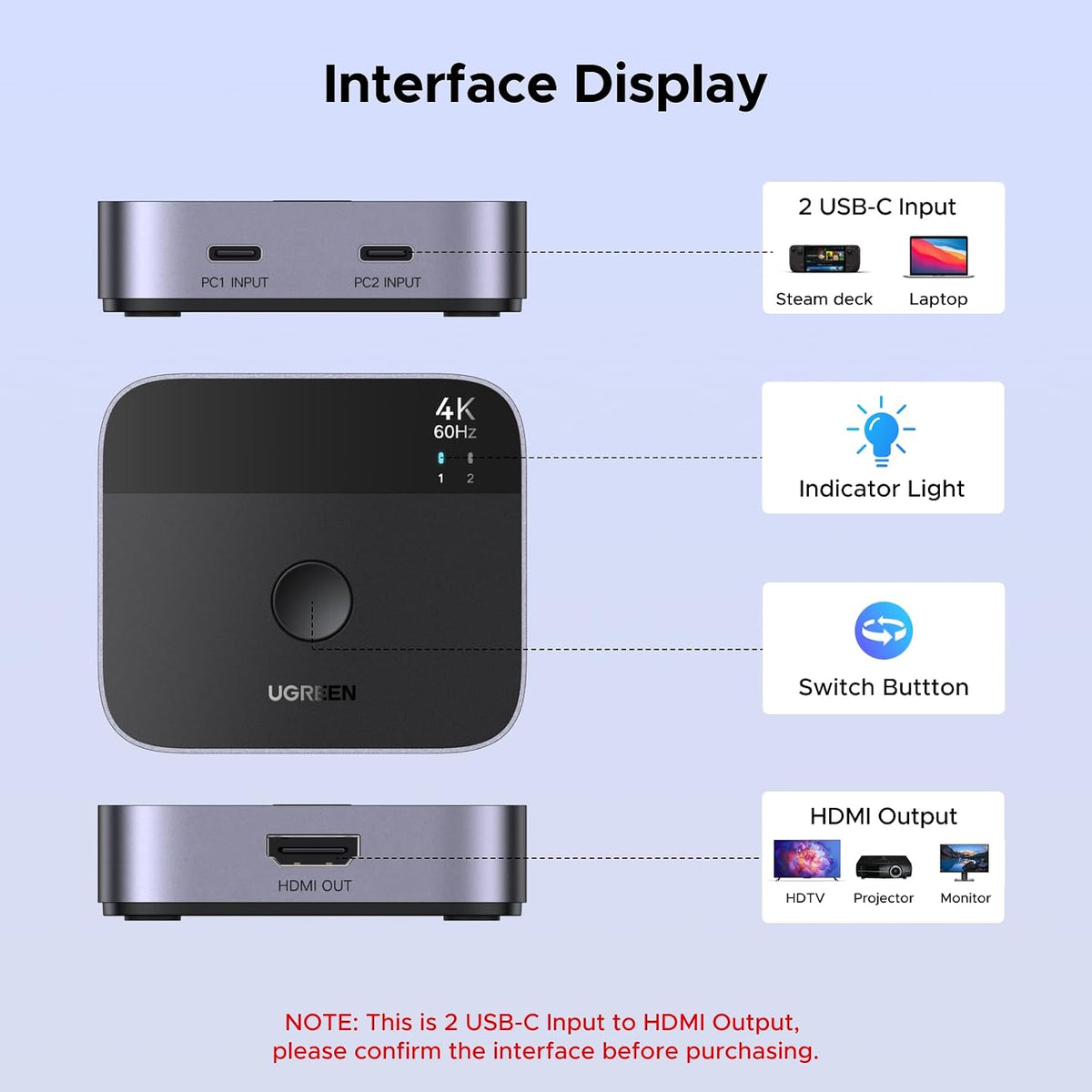

| Inputs | 2x USB-C (DP Alt Mode / Thunderbolt 3/4/5) |
| Output | 1x HDMI (HDMI 2.0) |
| Max Resolution | 4K@60Hz |
| Other Resolutions | 4K@30Hz, 1080P@240Hz/120Hz/60Hz |
| Bandwidth | 18Gbps |
| HDR / Audio | HDR10+, Dolby Atmos |
| HDCP | HDCP 2.2/1.4 |
| Switching | Manual one-click button (no auto switching) |
| Power | Powered by USB-C source, no external power needed |
| Housing | Aluminum |
| Direction | 2 inputs to 1 output only (not bidirectional) |
