Mercusys WiFi Extender 2.4GHz | Mercusys MW302R

Mercusys WiFi Extender 2.4GHz | Mercusys MW302R

Description:

Fast Wi-Fi for Daily Life — MW302R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps

Broader Coverage — Equipped with high gain external antennas to deliver strong Wi-Fi signals to every corner of your home

Multi-Mode — Four modes in one device to satisfy all application scenarios

Easy installation — Intuitive webpage guides you through the setup process in minutes

Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access

Compatible with IPv6 (Internet Protocol version 6)

Specifications

◆ Wireless
◆ Wireless Standards
IEEE 802.11b/g/n

◆ Frequency
2.4-2.4835GHz

◆ WiFi Speeds
◆ 11n: Up to 300Mbps (Dynamic)
◆ 11g: Up to 54Mbps (Dynamic)
◆ 11b: Up to 11Mbps (Dynamic)

◆ Reception Sensitivity
◆ 270M: -73dBm@10% PER
◆ 130M: -75dBm@10% PER
◆ 54M: -77dBm@10% PER
◆ 11M: -90dBm@10% PER
◆ 6 M: -94dBm@10% PER
◆ 1 M: -96dBm@10% PER

◆ Transmission Power
<20dBm (EIRP)

◆ Wireless Security
WPA-PSK / WPA2-PSK

◆ Wireless Functions
Enable/Disable Wireless Radio, WDS Bridging

◆ Hardware
◆ Dimensions
114 mm × 94 mm × 26 mm

◆ Button
Reset Button

◆ External Power Supply
5V/0.6A

◆ Antenna Type
2 * 5dBi

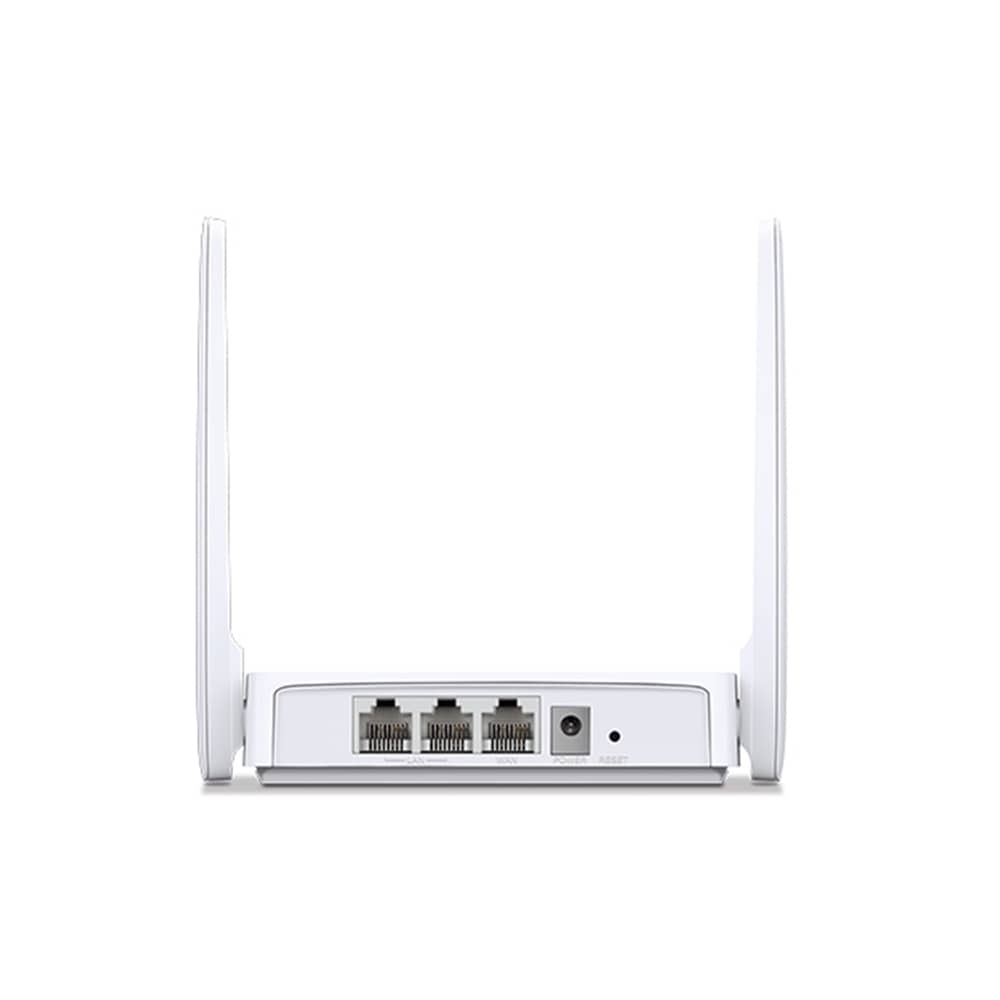

◆ Ethernet Ports
210/100Mbps LAN Ports &
110/100Mbps WAN Port

◆ Software
◆ WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP

◆ Management
Access Control, Local Management, Remote Management

◆ Port Forwarding
Virtual Server, UPnP, DMZ

◆ Firewall Security
IP and MAC Address Binding

◆ Protocols
IPv4, IPv6

◆ Guest Network
2.4GHz Guest Network

◆ DHCP
Server

◆ Others
◆ Package Contents
300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable

◆ Environment
◆ Operating Temperature: 0°C~40°C (32°F~104°F)
◆ Storage Temperature: -40°C~70°C (-40°F~158°F)
◆ Operating Humidity: 10%~90% Non-Condensing
◆ Storage Humidity: 5%~90% Non-Condensing
