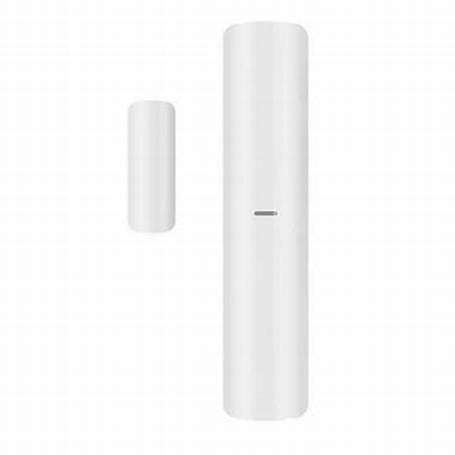

Hikvision Wireless Door Open Sensor /DS-PDMC-EG2-WB

The Hikvision DS-PDMC-EG2-WE is a wireless magnetic contact sensor designed to detect the opening of doors or windows, serving as an integral component of the Hikvision AX PRO alarm system. Its slim design ensures unobtrusive installation, making it suitable for various indoor environments.

Key Features:

• Detection Method: Utilizes an opening contact mechanism to monitor the status of doors or windows.

• Detection Gap: Capable of detecting gaps up to 43 mm, ensuring reliable performance in various installation scenarios.

• Tamper Protection: Equipped with both front and rear tamper protection to prevent unauthorized interference.

• Remote Configuration: Fully configurable via the Hik-Connect app, allowing for convenient remote adjustments.

• Multiple Enrollment Methods: Supports various enrollment methods, including power-up, remote ID, and QR code scanning, facilitating easy integration into the system.

• Frequency Hopping: Employs frequency hopping technology to counteract jamming attempts, ensuring reliable transmission.

Specifications:

• Transmission Technology: Tri-X Wireless

• Transmission Frequency: 868 MHz

• Transmission Range: Up to 1.6 km in open space

• Encryption: AES-128 encryption for secure communication

• Battery Type: CR123A (3V)

• Standard Battery Life: Up to 5 years under standard conditions

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Dimensions:

  • Main Body: 24 mm × 104 mm × 24.4 mm
  • Magnet: 13 mm × 34.4 mm × 11.4 mm

• Weight: 59 g

The DS-PDMC-EG2-WE is designed for indoor applications and offers a reliable solution for intrusion detection by monitoring entry points such as doors and windows. Its advanced features and secure communication protocols make it a valuable addition to any AX PRO alarm setup.
