Hikvision Wireless LED Keypad | DS-PK1-E-WB

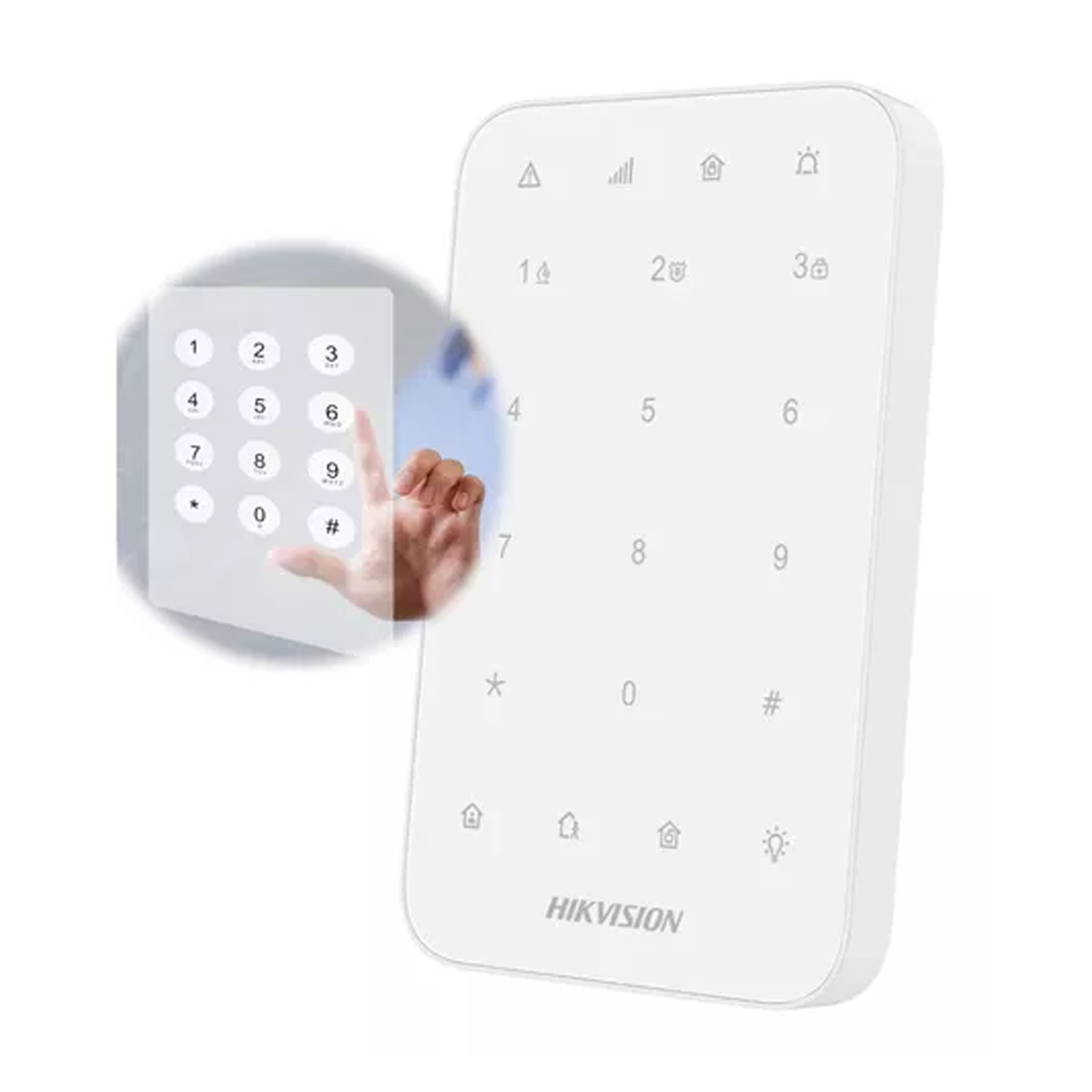

The Hikvision DS-PK1-E-WB is a wireless LED keypad that connects to the Hikvision AX PRO alarm panel for everyday arming, disarming and alarm control. It uses 433 MHz two-way wireless with a range of up to 900 m in open area and runs on four AA batteries.
Color: White
Key Features
Arming Control: Stay arm, away arm, disarm and clear alarms for a specified area or for all areas. LEDs show which area is programmed, so users can see the system state at a glance.
One-Push Emergency Alarms: Dedicated one-push fire, panic and medical alarms let users call for help quickly. Each alarm can be set as silent or audible.
Output Control: The keypad has an output key for controlling outputs set up in the alarm system. This lets users trigger them directly from the wall.
Backlit Touch Keys: A full touch key design with white LED backlight keeps the keypad easy to use in low light. The keypad also has a built-in buzzer to signal alarms.
Secure Two-Way Wireless: Tri-X 433 MHz two-way communication with AES-128 encryption and frequency hopping against jamming keeps the link to the panel reliable and secure. No cable has to be run between the keypad and the panel.
Easy Installation: Multiple enrollment methods, full remote configuration through the app, screw mounting and easily replaceable batteries keep setup and maintenance simple. Front and rear tamper switches protect against opening or removal.
Who it's for / Works with
The Hikvision AX PRO wireless alarm system (control panel sold separately).
Good to know
Runs on four AA batteries (1.5 V), which are easy to replace. The 900 m range is measured in open area.
Technical Specifications
| Model | DS-PK1-E-WB |
| Frequency | 433 MHz |
| Modulation | 2GFSK |
| Protocol | Tri-X, two-way communication |
| RF distance | 900 m (open area) |
| Encryption | AES-128 |
| Tamper switch | Front and rear |
| Buzzer | Yes |
| Indicators | Fault (orange), enrollment/signal (red/green), arm (blue), disarm (green), alarm (red) |
| Backlight | White |
| Keys | Number keys 0 to 9; *, #, stay arm, away arm, disarm and output |
| Power consumption | Quiescent 180 µA; max 251 mA |
| Battery | 4 x AA (1.5 V) |
| Operating temperature | -10 °C to +55 °C |
| Operating humidity | 10% to 90% (non-condensing) |
| Installation | Screw mounting |
| Dimensions (W x H x D) | 140 x 86 x 22 mm |
| Weight | 151 g without batteries |
| Color | White |
📄 Datasheet: Download the official Hikvision DS-PK1-E-WB datasheet (PDF)
