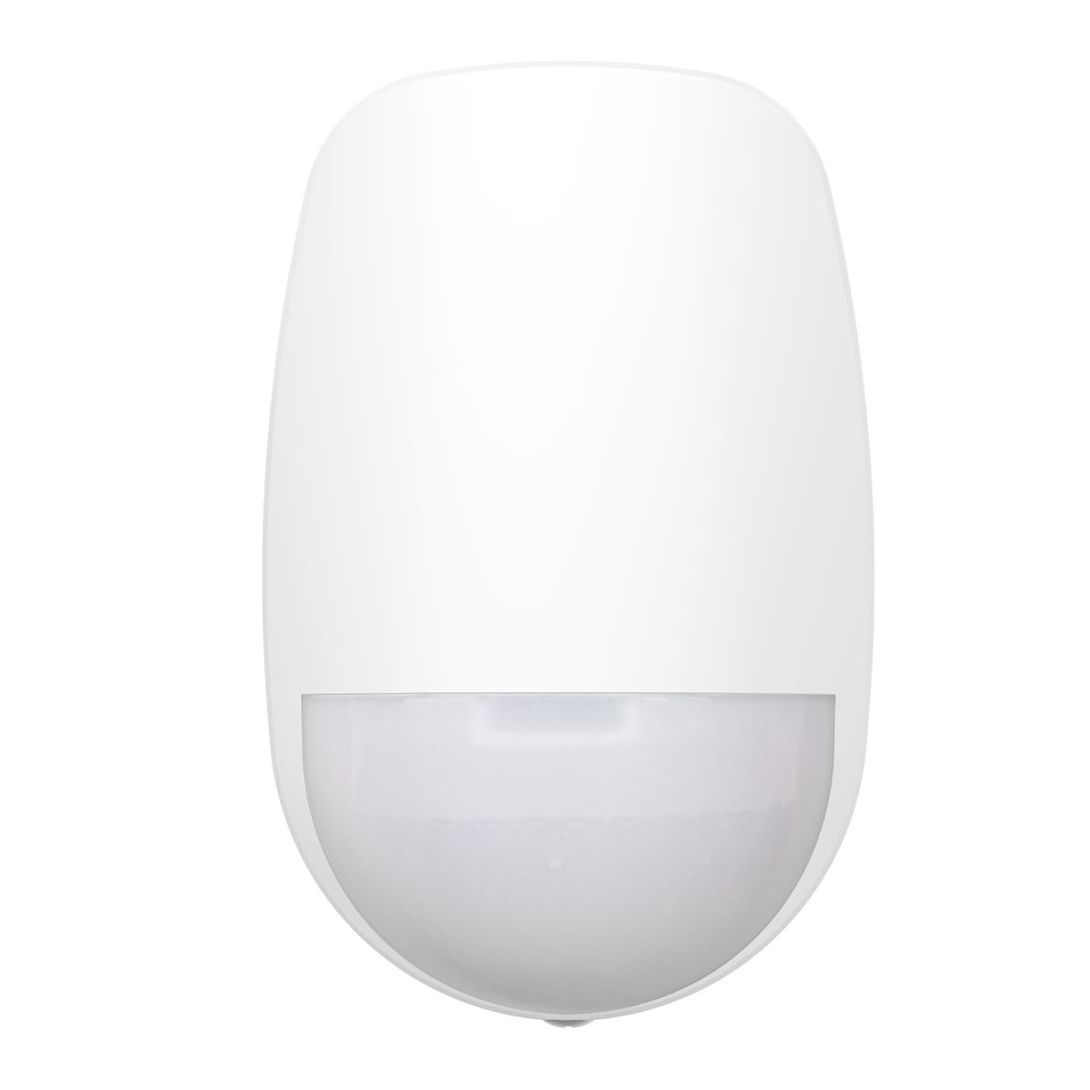

Hikvision Wireless PIR Detector | DS-PDP15P-EG2-WB
Hikvision Wireless PIR Detector | DS-PDP15P-EG2-WB
Couldn't load pickup availability
Hikvision Wireless PIR Detector | DS-PDP15P-EG2-WB
The Hikvision DS-PDP15P-EG2-WB is a fully supervised two-way wireless PIR motion detector for indoor use with the Hikvision AX PRO alarm system. It watches an area up to 15 m away with an 85.9° detection angle, ignores pets up to 30 kg, and runs for up to 5 years on a single CR123A battery.
Key Features
15 m Motion Detection: The passive infrared sensor detects movement up to 15 m away across an 85.9° angle, at walking speeds from 0.3 to 2 m/s. It is designed for wall mounting at a height of 1.8 to 2.4 m.
30 kg Pet Immunity: A Pet sensitivity mode lets the detector ignore animals up to 30 kg while still recognising people from the first step. Pets at home are far less likely to trigger false alarms.
SEC Smart Environmental Control: Digital signal processing and 3D optics work together with digital temperature compensation, a 6500 lux white light filter, creep zone protection and sealed optics. These help the detector keep working reliably as room conditions change.
Tri-X Two-Way Wireless: The detector talks to the panel over 433 MHz two-way RF with AES-128 encryption and frequency hopping against jamming, with a free-space range of up to 1.2 km. Being two-way and supervised, the system knows if the detector goes offline.
Tamper and Battery Alerts: Front and rear tamper protection reports any attempt to open or remove the detector. The detector also reports a low battery, so you know when to replace it.
Easy Setup: Enroll it by power-up, remote ID or QR code and configure it fully from the app. The battery is easy to replace, and the PCB is protected during battery changes.
Who it's for / Works with
The Hikvision AX PRO wireless alarm system (control panel sold separately).
Good to know
Indoor use only, wall mounted at 1.8 to 2.4 m. Wall and ceiling brackets are optional accessories sold separately.
Technical Specifications
| Model | DS-PDP15P-EG2-WB |
| Detection method | Passive infrared (PIR) |
| Detection range | 15 m |
| Detectable speed | 0.3 to 2 m/s |
| Sensitivity | Auto, High, Pet |
| Pet immunity | Up to 30 kg |
| White light filter | 6500 lux |
| Tamper protection | Front and rear |
| LED indicator | Blue (alarm) |
| Transmission | Tri-X wireless, two-way RF |
| Frequency | 433 MHz |
| Encryption | AES-128 |
| Range (free space) | 1.2 km |
| Frequency hopping | Yes |
| Enrollment | Power-up, remote ID, QR code |
| Battery | 1 x CR123A (3 V) |
| Battery life | Up to 5 years (standby) |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -20 °C to 60 °C |
| Operating humidity | 10% to 90% |
| Dimensions (W x H x D) | 65.5 x 103 x 48.5 mm |
| Weight | 128 g |
| Mounting | Wall |
| Application | Indoor |
📄 Datasheet: Download the official Hikvision DS-PDP15P-EG2-WB datasheet (PDF)
