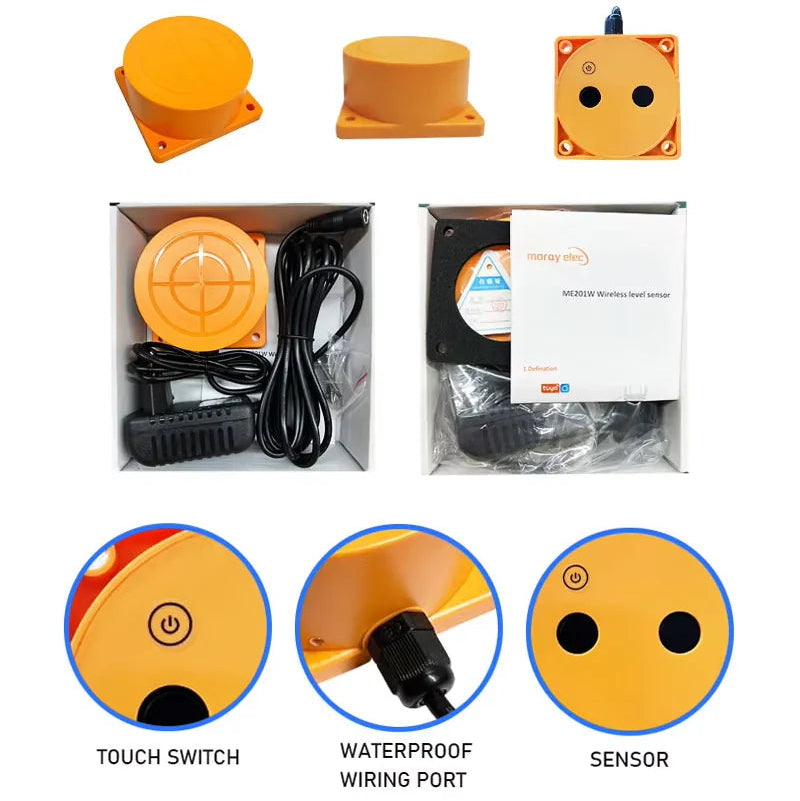

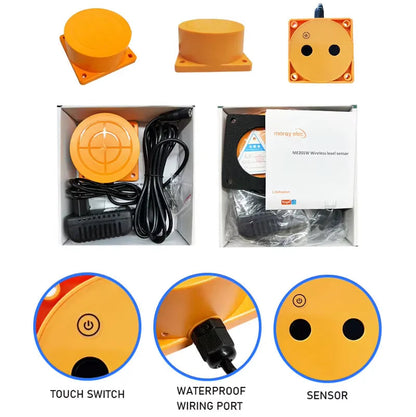

Wireless Tank Level Meter WiFi | internal Antenna | Moray ME201W

📡 Smart Ultrasonic Water Tank Liquid Level Monitor – Up to 3.5m Depth

The smart water tank liquid level monitor is a high-performance monitoring solution designed to give you full control and peace of mind. Using advanced ultrasonic sensing technology, it continuously measures the liquid level inside your tank without manual checking, helping you avoid shortages, overflows, and unexpected interruptions.

This system is ideal for water, diesel, oil, and other non-corrosive liquids, and provides real-time visibility through your mobile phone using smart remote monitoring.

---

✨ Automatic & Unattended Monitoring

◆ Fully automatic liquid level detection without human intervention
◆ Ultrasonic sensor measures level from the top of the tank
◆ Continuous real-time monitoring for higher accuracy and efficiency
◆ Eliminates the need for frequent manual inspections

---

📏 High-Precision Ultrasonic Measurement

◆ Measurement range from 10 cm up to 3.5 meters
◆ Accurate and stable ultrasonic detection
◆ Suitable for shallow and deep tanks
◆ Reliable readings help prevent running out of liquid or overfilling

---

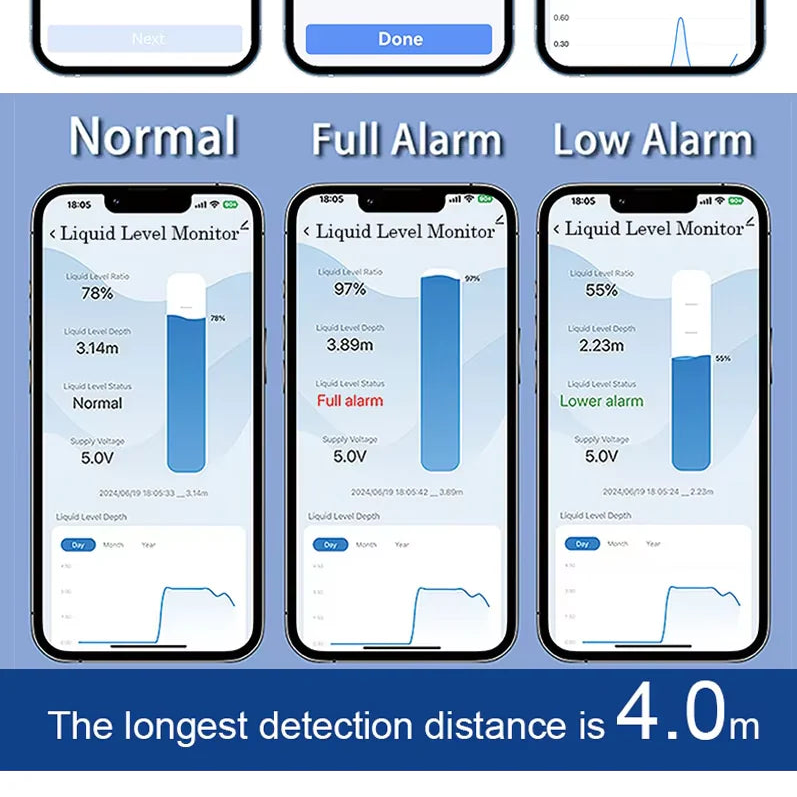

📱 Smart Remote Monitoring

◆ Monitor tank level anytime through Tuya Smart Life App
◆ Supports monitoring of up to 10 tanks from one account
◆ View liquid level data remotely via mobile phone or smart devices
◆ Ideal for homes, farms, buildings, and industrial sites

---

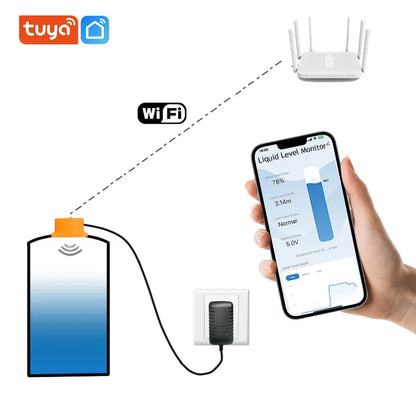

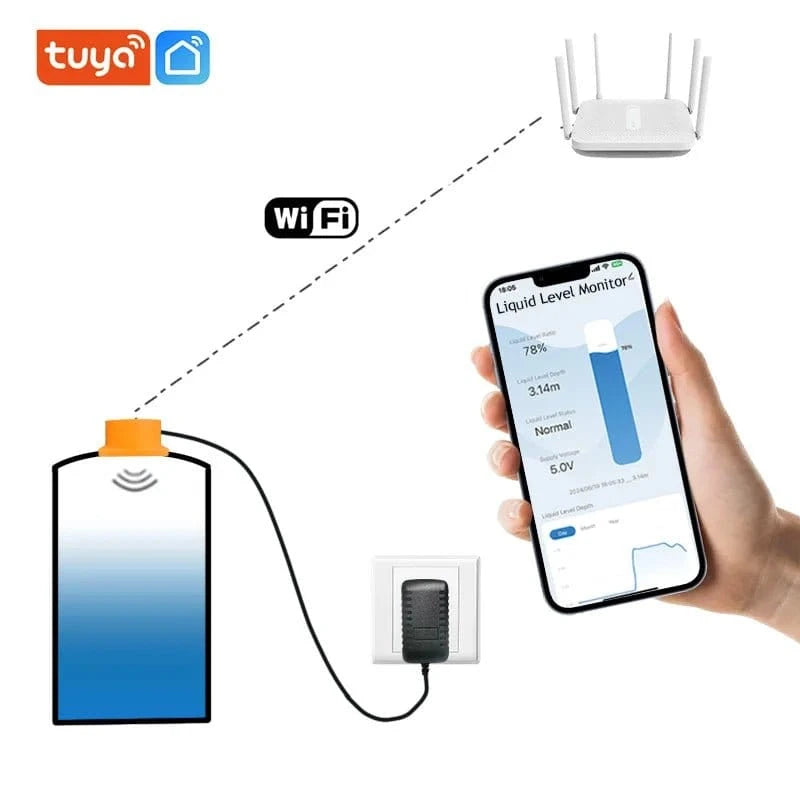

📶 Stable Wireless Connectivity

◆ Uses 2.4G Wi-Fi to connect to your home network
◆ Wi-Fi signal range up to 30 meters in open space
◆ Compatible with Tuya smart ecosystem and smart home gateways
◆ Ensures stable data transmission for real-time monitoring

---

🚨 Smart Alerts & Notifications

◆ Instant alerts for low level or full tank
◆ Custom alarm limits can be easily configured
◆ Helps prevent water shortages, fuel outages, or overflow damage
◆ Improves daily tank management and planning

---

🛡 Durable & Weather-Resistant Design

◆ IP65 waterproof sensor for outdoor use
◆ Resistant to dust, rain, and harsh environments
◆ Operating temperature range from -10°C to +70°C
◆ Certified with CE, RoHS, and REACH standards

---

🔌 Power Supply & Installation

◆ Sensor powered by 5V DC adapter
◆ Can also be powered by a solar panel (sold separately)
◆ Simple top-mount installation on the tank
◆ Comes with all required mounting accessories
◆ Easy setup with low installation cost

---

🏠 Ideal Applications

◆ Water tanks
◆ Diesel and fuel tanks
◆ Agricultural irrigation systems
◆ Residential and commercial buildings
◆ Industrial and utility storage tanks

---

✅ Why Choose This Liquid Level Monitor

◆ Accurate and reliable ultrasonic sensing
◆ Remote monitoring anytime, anywhere
◆ Smart alerts prevent costly surprises
◆ Easy installation and daily operation
◆ Designed for long-term stable performance

Product Installation

Product installation steps and precautions

🔌 Product Connection & Setup Guide

◆ Connect the AC/DC power adapter and power on the sensor
◆ Wait until the indicator light turns on, confirming the device is powered

📱 Install the Mobile App

◆ Download Tuya Smart App or Smart Life App on your mobile phone
◆ Install and open the app to begin setup

🔄 Reset Network Mode

◆ Press and hold the reset button for 5 seconds
◆ Release the button when the LED indicator starts flashing rapidly
◆ This indicates the network has been reset and the device is ready for pairing

📶 Connect Sensor to the App

◆ Enable Wi-Fi and Bluetooth on your mobile phone
◆ Open the app and select Add Device
◆ Follow the on-screen instructions to complete the connection
