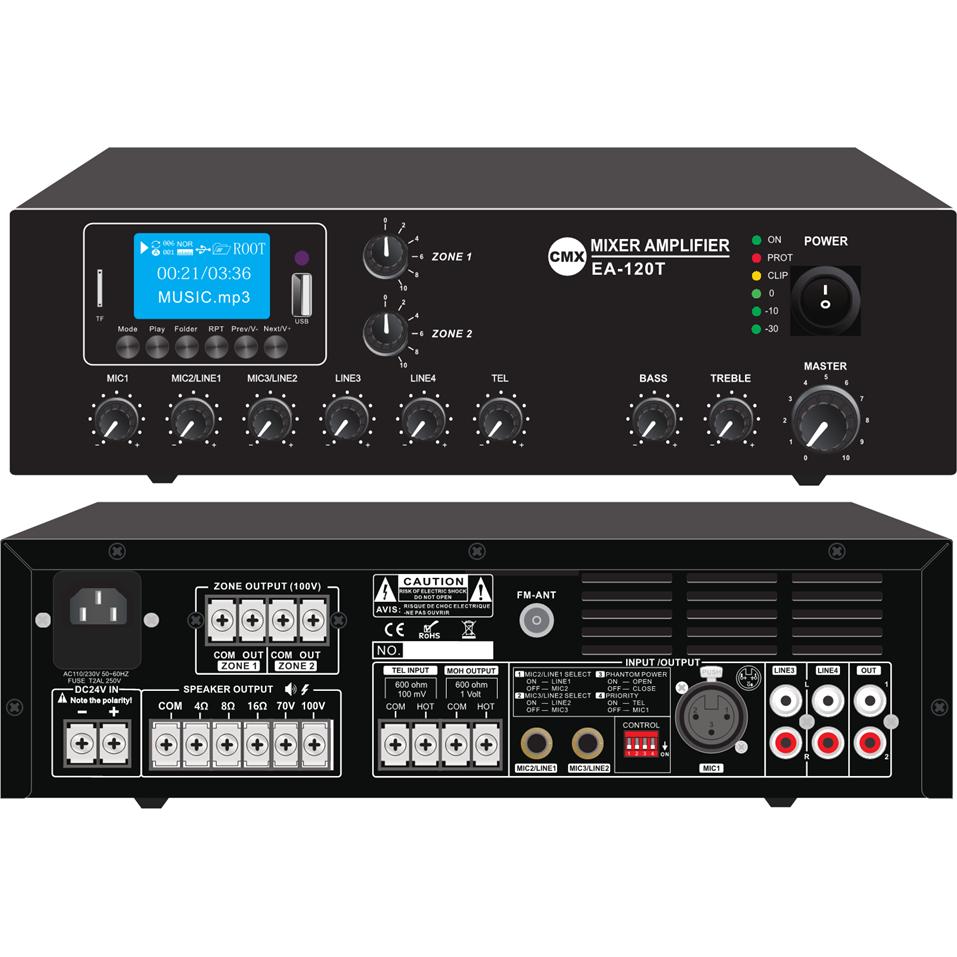

CMX EA-120T 2-Zone Mixer Amplifier | 120W Bluetooth PA Amplifier
The CMX EA-120T is a professional 2-zone mixer amplifier designed for commercial PA systems, background music distribution, paging, and multi-zone audio installations. Featuring Bluetooth streaming, USB/SD MP3 playback, FM radio, microphone inputs, independent zone control, and support for both high-impedance and low-impedance speaker systems, the EA-120T is ideal for schools, offices, mosques, restaurants, supermarkets, and hospitality environments.
Key Features
◆ 120W RMS power output
◆ 2 independent speaker zones with separate controls
◆ Built-in Bluetooth wireless audio streaming
◆ USB and SD card MP3 playback
◆ Integrated FM radio tuner
◆ Supports 70V / 100V and 4Ω / 8Ω / 16Ω speaker systems
◆ Front LCD multimedia display with playback controls
◆ Multiple microphone and line inputs
◆ Mic 1 balanced XLR input with phantom power
◆ Telephone paging input with VOX priority function
◆ Independent zone selector buttons
◆ Bass, treble, and master volume adjustment
◆ LED indicators for signal, clip, protection, and power
◆ Short-circuit, overload, overheating, and clip protection
◆ AC and 24V DC dual power operation
◆ Compact desktop / tabletop installation design
Technical Specifications
| Specification | Details |
|---|---|
| Model | EA-120T |
| Amplifier Type | 2-Zone Mixer Amplifier |
| Rated Power Output | 120W |
| Zones | 2 Zones |
| Speaker Outputs | 70V / 100V / 4Ω / 8Ω / 16Ω |
| Audio Sources | Bluetooth, USB, SD Card, FM Radio |
| Mic Inputs | 3 |
| Line Inputs | 2 |
| Telephone Paging Input | Yes |
| Mic 1 Connector | Balanced XLR with Phantom Power |
| Frequency Response | 60Hz – 15kHz |
| THD | <0.5% |
| Signal-to-Noise Ratio | Line ≥85dB / Mic ≥72dB |
| Cooling System | Forced Air Cooling |
| Protection | Short Circuit, Overload, Overheat, Clip |
| Power Supply | AC 110–240V & 24V DC |
| Installation Type | Desktop / Tabletop |
Applications
◆ Public address systems
◆ Background music systems
◆ Schools and educational facilities
◆ Mosques and prayer halls
◆ Restaurants and cafés
◆ Retail stores and supermarkets
◆ Hotels and hospitality venues
◆ Paging and announcement systems
◆ Commercial multi-zone audio installations
Package Contents
◆ CMX EA-120T Mixer Amplifier
◆ Remote Control
◆ Power Cable
◆ User Manual
Additional Information
Brand: CMX Audio
Model: EA-120T
Type: 2-Zone Mixer Amplifier
Official Website: CMX Audio
Official Product Series: EA Series Mixer Amplifiers
