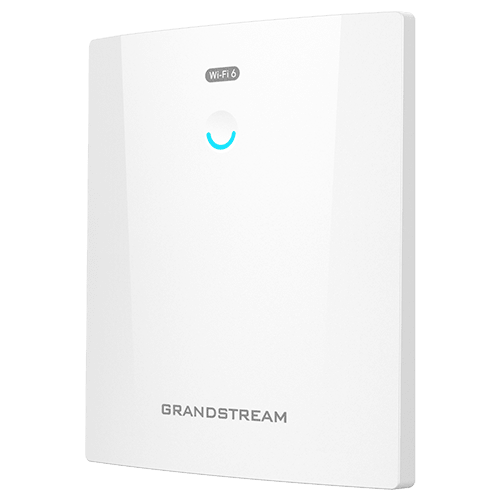

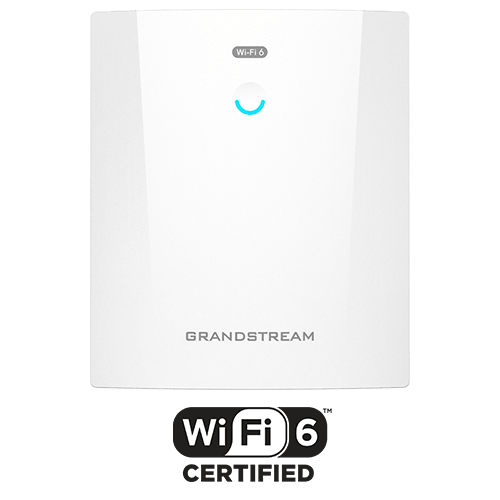

Grandstream GWN7660ELR Outdoor AX3000 Wi-Fi 6 Long-Range Access Point with 2.5G SFP and PoE
Grandstream GWN7660ELR Outdoor AX3000 Wi-Fi 6 Long-Range Access Point with 2.5G SFP and PoE
تعذر تحميل توفر الاستلام
Product Description
The Grandstream GWN7660ELR is an enterprise-grade outdoor Wi-Fi 6 access point designed to deliver high-performance wireless connectivity across large outdoor environments and high-density deployments.
Powered by dual-band 802.11ax technology with 2x2:2 MU-MIMO and OFDMA, the GWN7660ELR provides aggregate wireless throughput up to 3Gbps while supporting up to 256 concurrent wireless clients.
Designed for challenging outdoor installations, the access point features a rugged weatherproof enclosure and supports long-range wireless coverage up to 300 meters, making it ideal for campuses, warehouses, parking lots, industrial facilities, resorts, schools, farms, and public outdoor areas.
The device supports centralized cloud and on-premise management through GWN.Cloud, GWN Manager, and the built-in controller interface. It also includes a Gigabit Ethernet port and a high-speed 2.5G SFP uplink for fiber backhaul deployments.
Key Features
✦ Outdoor AX3000 Wi-Fi 6 Access Point
✦ Dual-band 2x2:2 MU-MIMO with OFDMA
✦ Up to 2976Mbps aggregate wireless throughput
✦ Up to 300-meter wireless coverage range
✦ Supports 256 concurrent Wi-Fi clients

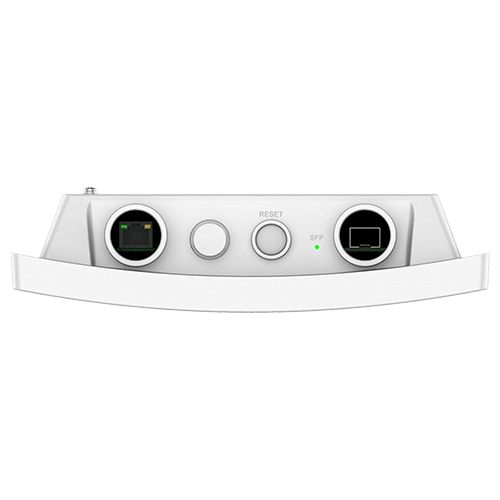

✦ 1x Gigabit Ethernet RJ45 port
✦ 1x 2.5G SFP uplink port
✦ PoE / PoE+ support
✦ Weatherproof outdoor enclosure
✦ WPA/WPA2/WPA3 wireless security
✦ Integrated BLE 5.2 support
✦ Mesh networking support
✦ Centralized cloud and local management support
Technical Specifications
| Specification | Details |
|---|---|
| Wi-Fi Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Wi-Fi Generation | Wi-Fi 6 |
| Frequency Bands | 2.4GHz & 5GHz |
| Max Wireless Throughput | 2976Mbps |
| 2.4GHz Throughput | 573.5Mbps |
| 5GHz Throughput | 2403Mbps |
| MIMO Technology | 2x2:2 MU-MIMO |
| Coverage Range | Up to 300m |
| Concurrent Clients | 256 |
| Ethernet Port | 1x Gigabit RJ45 |
| Fiber Port | 1x 2.5G SFP |
| PoE Support | 802.3af / 802.3at |
| Bluetooth | BLE 5.2 |
| Security | WPA/WPA2/WPA3 |
| Mesh Support | Yes |

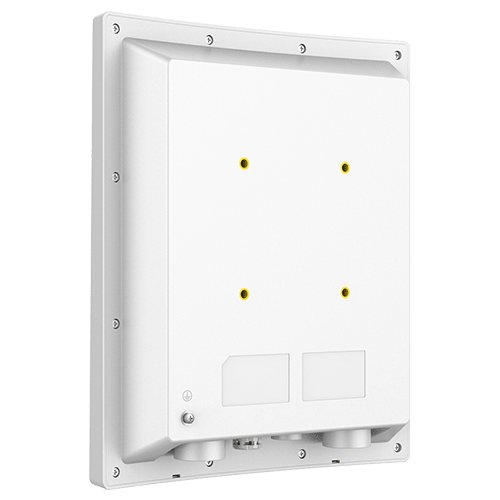

| Mounting Options | Pole / Wall Mount |
| Operating Temperature | -30°C to 60°C |
Box Contents (Verified)
✦ Grandstream GWN7660ELR Access Point
✦ Mounting Kits
✦ Quick Installation Guide
Note:
PoE injector and power adapter are not included.
