Hikvision 240W 6-Zone Analog Amplifier | DS-QAE0A240G1-VB6

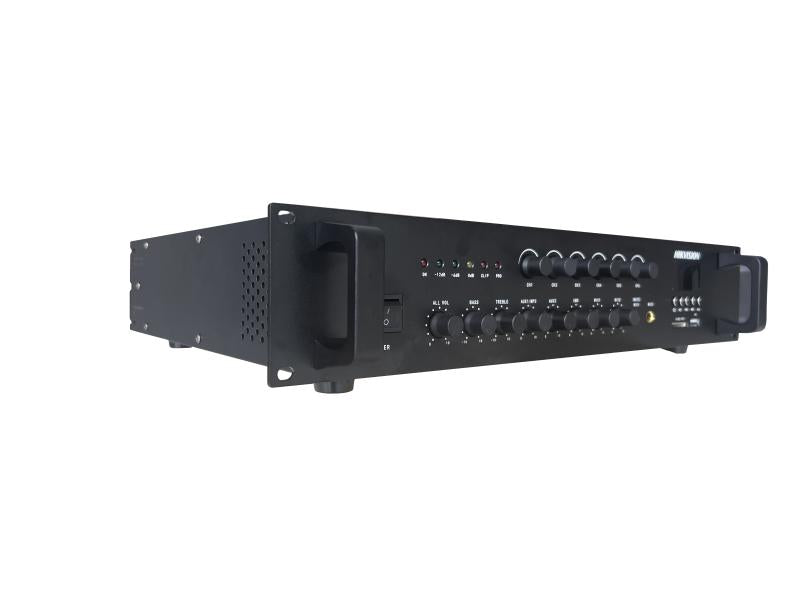

The Hikvision DS-QAE0A240G1-VB6 is a 240 W analog public address amplifier with six zone outputs, made for cabinet (rack) installation. It takes an emergency (EMC) input, two microphones and two AUX line inputs, and has built-in Bluetooth, USB and SD card playback for background music.
Color: Black
Key Features:

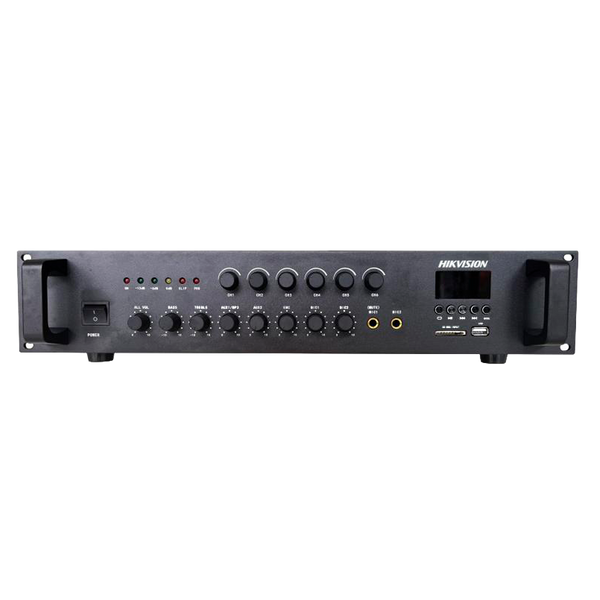

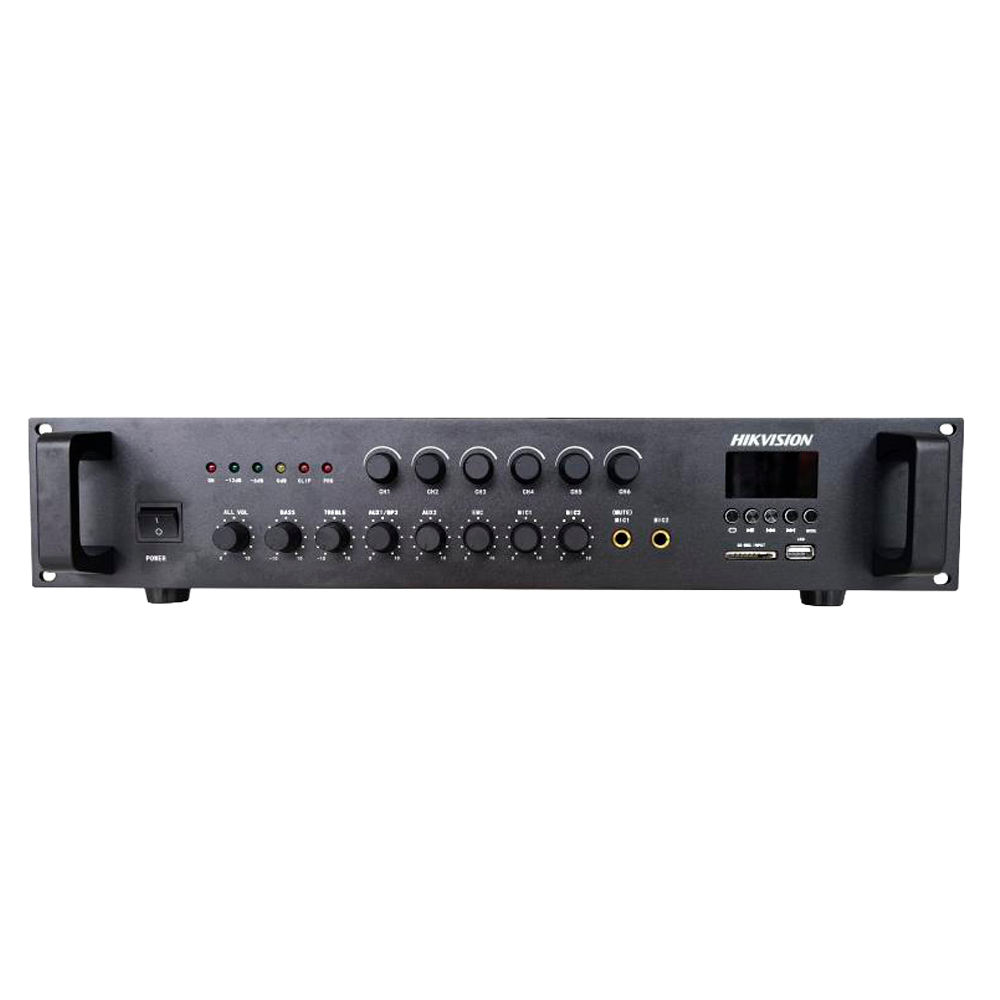

Six Zones with Their Own Volume: Six zone outputs, each with its own volume knob, plus a master volume knob. You can run music and announcements to six areas and set a different level for each one.
Many Audio Sources: One EMC input, two 6.5 mm microphone inputs and two AUX line inputs, plus a built-in Bluetooth/MP3 module that plays from a phone, a USB 2.0 drive or an SD card. No separate music player is needed.
Priority for Announcements: Mic 1 and the EMC input have the highest priority and can cut the other audio inputs, so live and emergency announcements are heard over the music. Mic 2, Line 1, Line 2 and MP3 are mixed together.

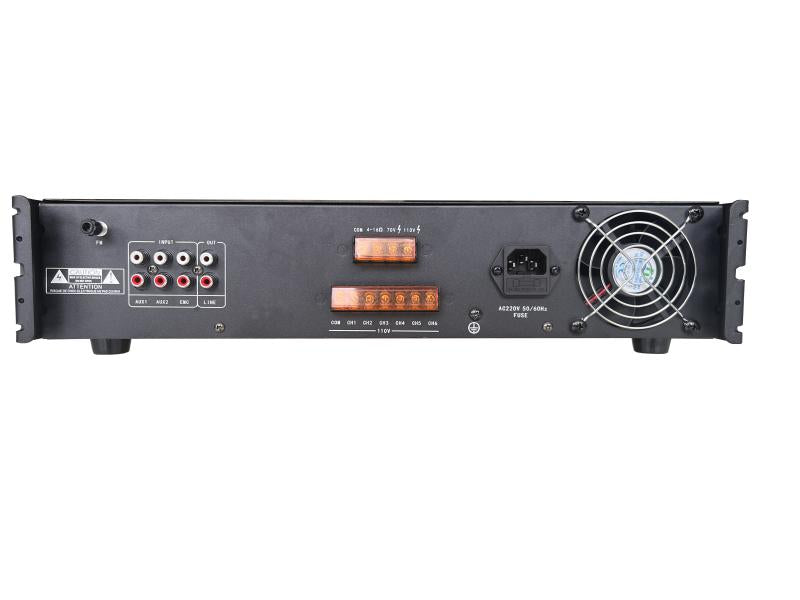

Flexible Outputs: Constant-voltage outputs (110 V and 70 V), a 4–16 Ω constant-impedance output and a line output that can feed (cascade to) another power amplifier when you need more power.
Tone Control and Protection: Bass and treble knobs let you shape the sound. Short-circuit, overheating and overload protection, plus amplitude limiting that stops the amplifier from over-driving your speakers. A fan-cooled design allows long continuous operation.
Good to know: This is an analog (non-network) amplifier; speakers and microphones are sold separately. It runs on 200–230 V~ mains power and is designed for cabinet installation. The official datasheet lists one unit and one power cord in the box.
Technical Specifications:
| Model | DS-QAE0A240G1-VB6 |
| Rated power | 240 W |
| Zones | 6 partition outputs (110 V COM), each with volume knob |
| Sensitivity | Line: -10 dB; EMC: -10 dB; MIC: -40 dB |
| Frequency response | 80 Hz – 18 kHz (±3 dB) |
| THD / SNR | THD ≤ 0.5% / SNR ≥ 75 dB |
| Audio inputs | EMC in ×1, 6.5 mm microphone ×2, AUX in ×2, Bluetooth, USB 2.0, SD card |
| Audio outputs | Constant voltage ×1 (110 V COM), constant voltage ×1 (70 V COM), constant impedance ×1 (4–16 Ω COM), partition outputs ×6 (110 V COM), line out ×1 |
| Volume knobs | MIC ×2, partition ×6, all (master) ×1, bass ×1, treble ×1, AUX1/MP3 ×1, AUX2 ×1, EMC ×1 |
| Power supply | 200–230 V~, 50/60 Hz |
| Material | Iron |
| Dimensions | 484 × 88 × 360 mm |
| Weight | Approx. 10.3 kg (22.71 lb) |
| Weight with package | Approx. 11 kg (24.25 lb) |
| Color | Black |
| Operating conditions | -10 to +40 °C, 20%–80% relative humidity |
| Installation | Cabinet installation |
| Packing list | One unit, one power cord |
📄 Datasheet: Download the official Hikvision DS-QAE0A240G1-VB6 datasheet (PDF)
