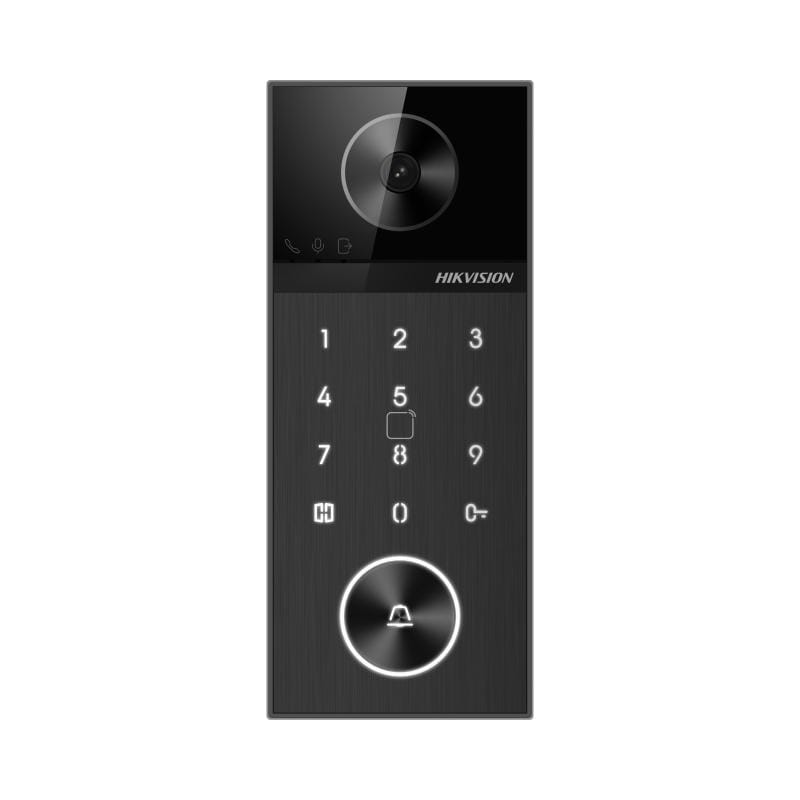

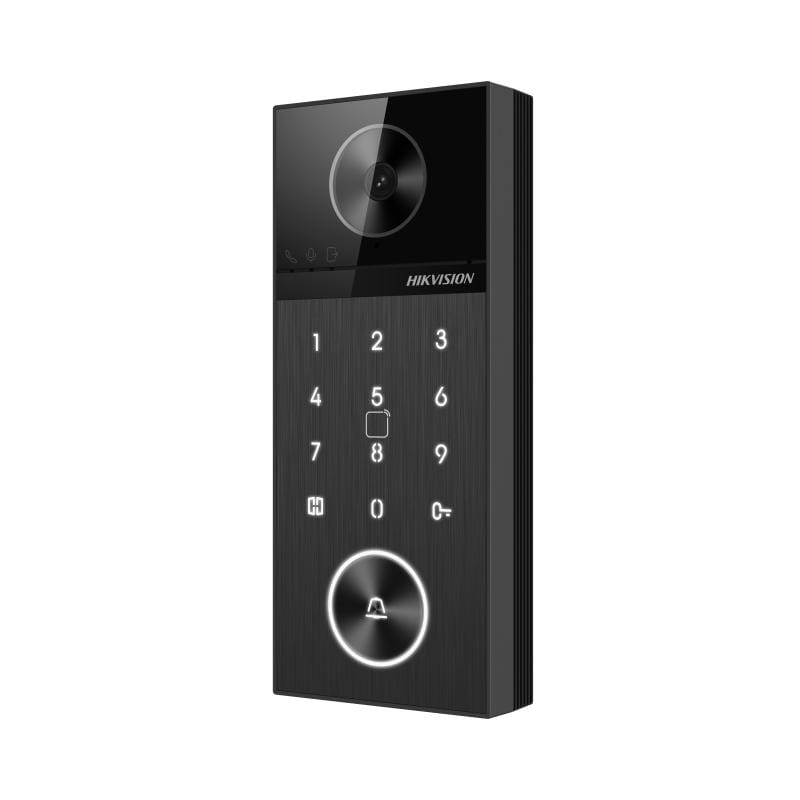

Hikvision 4MP Villa Door Station with Keypad & Card Reader | DS-KV6124-WBE1
The Hikvision DS-KV6124-WBE1 is a 4MP IP villa door station with a keypad and card reader, Wi-Fi 6 and Bluetooth. Its 150° wide-angle camera, multiple unlocking methods and IP65 outdoor design make it a complete smart entrance solution.
Color: Black
Key Features:
4MP Wide-Angle Camera: 4MP (2688 × 1520) camera with a 150° horizontal and 75° vertical field of view, plus IR supplement light up to 3 m.
Multiple Unlocking Methods: Card (13.56 MHz M1), PIN code, Bluetooth, Hik-Connect app or indoor station.
2 Lock Control: Two relay outputs to control two locks.
Wi-Fi 6 & PoE: 2.4 GHz Wi-Fi 6 (IEEE 802.11b/g/n/ax), or standard IEEE 802.3at PoE power.
Recording & Playback: Video recording and playback via Hik-Connect or PC web, with TF card support up to 128 GB.
Built for Outdoors: IP65 protection and -40 °C to 60 °C operating temperature.
Technical Specifications:
| Model | DS-KV6124-WBE1 |
| Operating system | Linux |
| RAM | 512 MB |
| ROM | 4 GB |
| Main stream resolution | 4MP (2688x1520), 2MP (1920x1080), 1MP (1280x720) |
| Sub stream resolution | 2MP (1920x1080), 1MP (1280x720), 0.3MP (640x480) |
| Field of view (FOV) | Horizontal 150°, vertical 75° |
| Video compression | H.264, H.265, MJPEG |
| Supplement light | IR light, up to 3 m |
| Audio performance | 50 cm: 80 dB (maximum 83 dB) |
| User capacity | 2000 |
| Wi-Fi | 2.4 GHz, Wi-Fi 6 (IEEE 802.11b/g/n/ax) |
| Bluetooth | Supported |
| Card reading frequency / type | 13.56 MHz, M1 card |
| Card reading distance | M1 card: 2 to 2.5 cm |
| Mobile app | Hik-Connect |
| Network interface | 1 x RJ-45, 10/100 Mbps self-adaptive |
| Lock control | 2 relay outputs, max. 30 VDC 2 A |
| Exit button input | 1 |
| Door contact input | 1 |
| Alarm input | 4 (includes exit button and door contact input) |
| RS-485 | 1 |
| Tamper | 1 |
| TF card | Up to 128 GB (FAT32, exFAT) |
| Indicators | 3 |
| Power consumption (door station) | < 10 W |
| Operating temperature (door station) | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating humidity (door station) | 10% to 90% (non-condensing) |
| Application environment | Outdoor |
| Dimensions (W x H x D) (door station) | 164 x 69 x 24.7 mm |
| Protection level (door station) | IP65 |
| Installation | Surface mounting |
| Weight (door station) | 273 g without package; 431 g with package |
| Power supply (door station) | 12 VDC 1.2 A or IEEE 802.3at PoE |
| Power supply output | Max. 12 VDC, 1 A |
| Smart features | Sound classification detection: scream, glass breaking, crying (recommended distance 3 m) |
| Motion detection / playback / call elevator | Supported |
| Network protocol (door station) | TCP/IP, RTSP, IPv6, ONVIF |
📄 Datasheet: Download the official Hikvision DS-KV6124-WBE1 datasheet (PDF)
