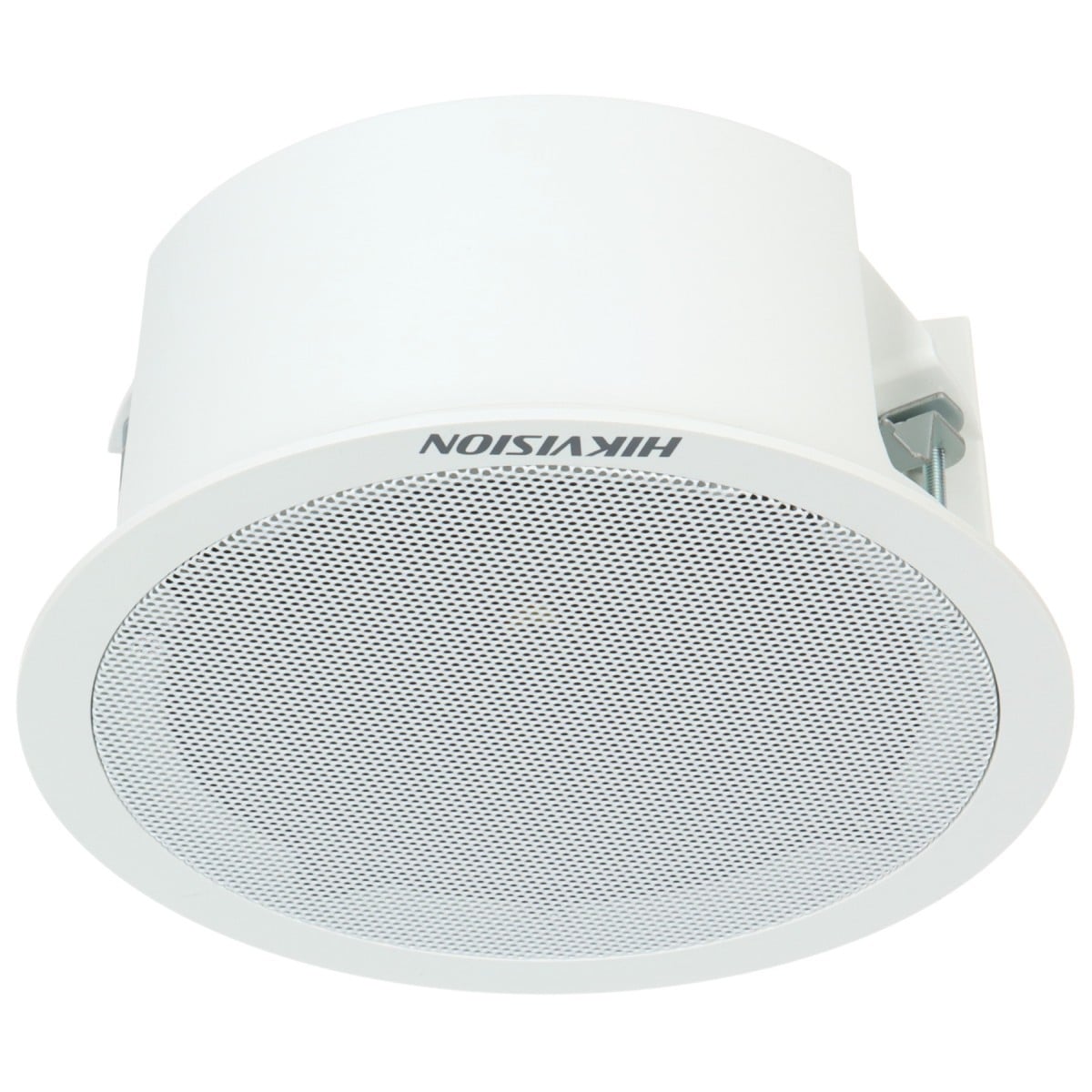

Hikvision-C 6W Ceiling Secondary Speaker | DS-QAZ0206G1-S

Hikvision 6W Ceiling Secondary Speaker | DS-QAZ0206G1-S

The Hikvision DS-QAZ0206G1-S is a 6 W ceiling secondary speaker that is wired to a Hikvision network primary speaker to extend sound coverage. It has a fixed-resistance 8 Ω input, reaches up to 100 dB SPL and covers 300 Hz to 15 kHz.

Color: White

Key Features:

Extends a network speaker: This speaker has no network port of its own. It connects to the fixed-resistance output of a 6 W / 8 Ω network primary speaker and plays the same audio, so one IP speaker can cover a larger room.

Matched to the primary speaker: Rated 6 W at 8 Ω with 93 dB sensitivity and up to 100 dB SPL, the same acoustic ratings as the 6 W network primary speaker.

Omnidirectional sound: The speaker radiates in all directions with a 300 Hz to 15 kHz frequency response and 82 dB signal-to-noise ratio.

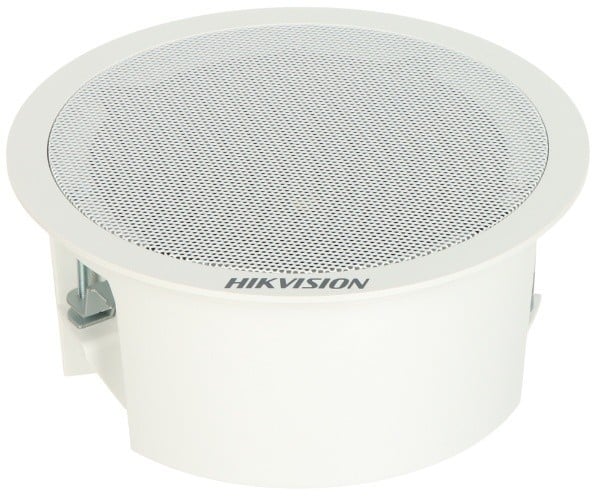

Same ceiling design: Plastic body with a metal mesh cover, Ø 179 mm, for a 160 mm ceiling hole, so it matches the look and cut-out of the primary network speaker.

Who it's for / Works with: Use it with a 6 W / 8 Ω Hikvision network ceiling speaker such as the DS-QAZ1206G1-BE; the datasheet states that one 6 W primary speaker can be connected to 1 secondary speaker (6 W, 8 Ω).

Good to know: This is a secondary (passive) speaker: it does not connect to the network, has no PoE and does not work on its own. It needs a 6 W / 8 Ω Hikvision network primary speaker, which supports 1 secondary speaker.

Technical Specifications:

📄 Datasheet: Download the official Hikvision DS-QAZ0206G1-S datasheet (PDF)
