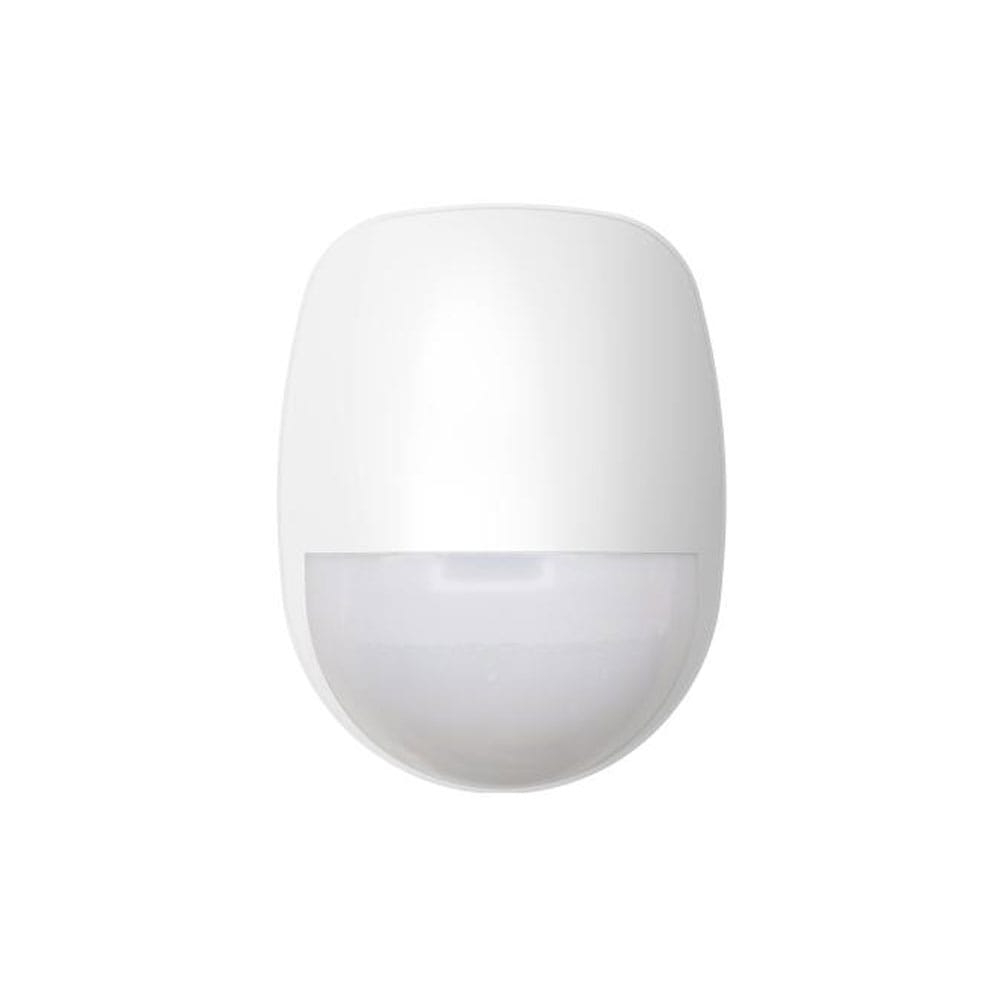

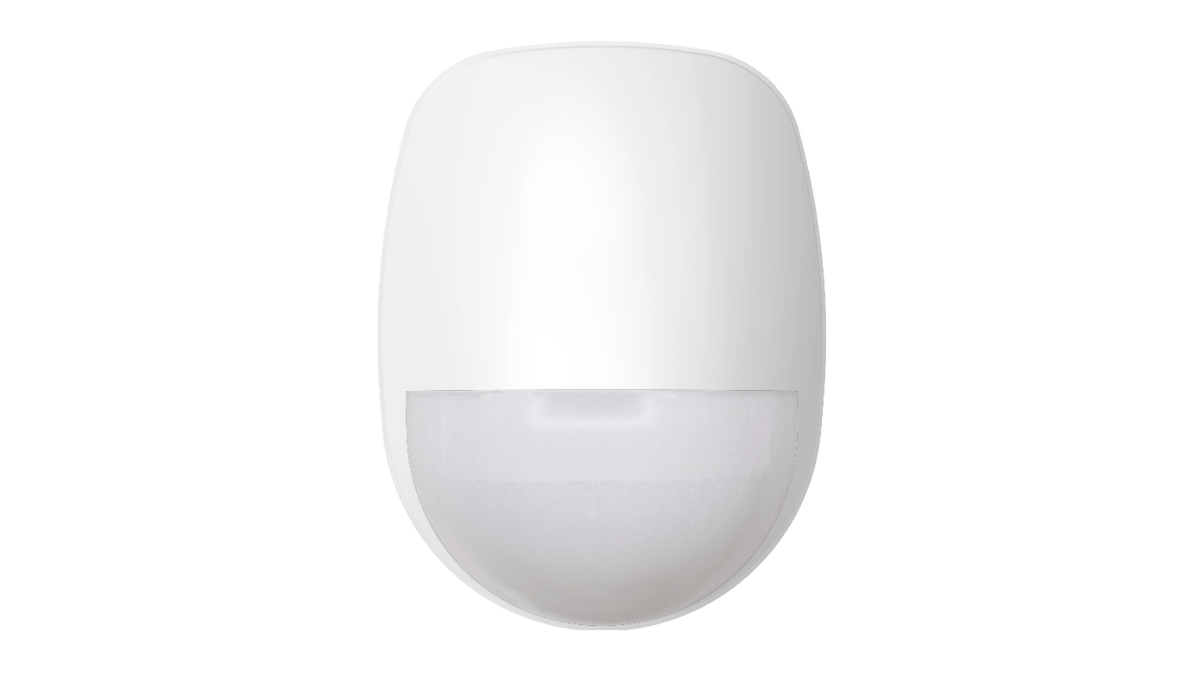

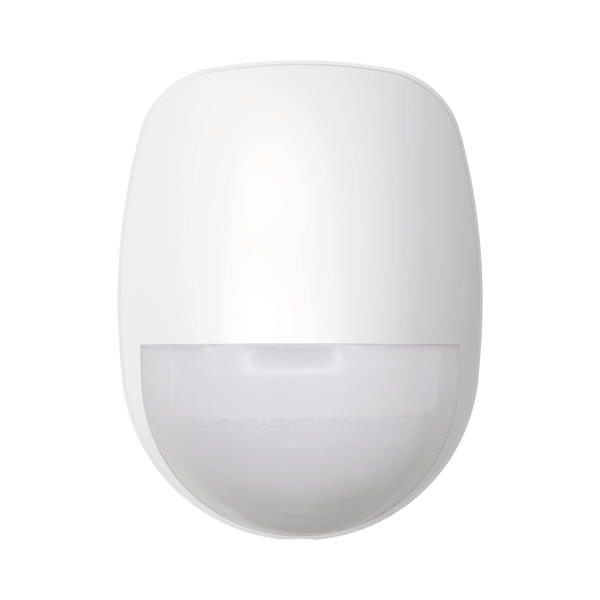

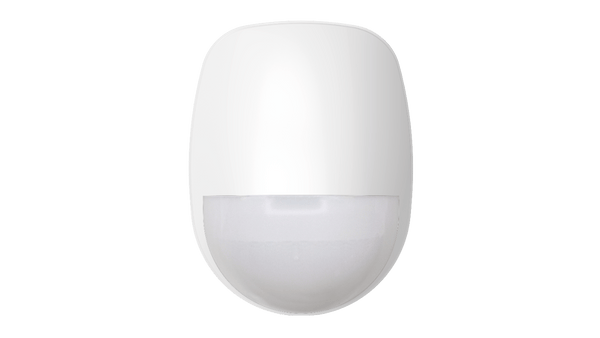

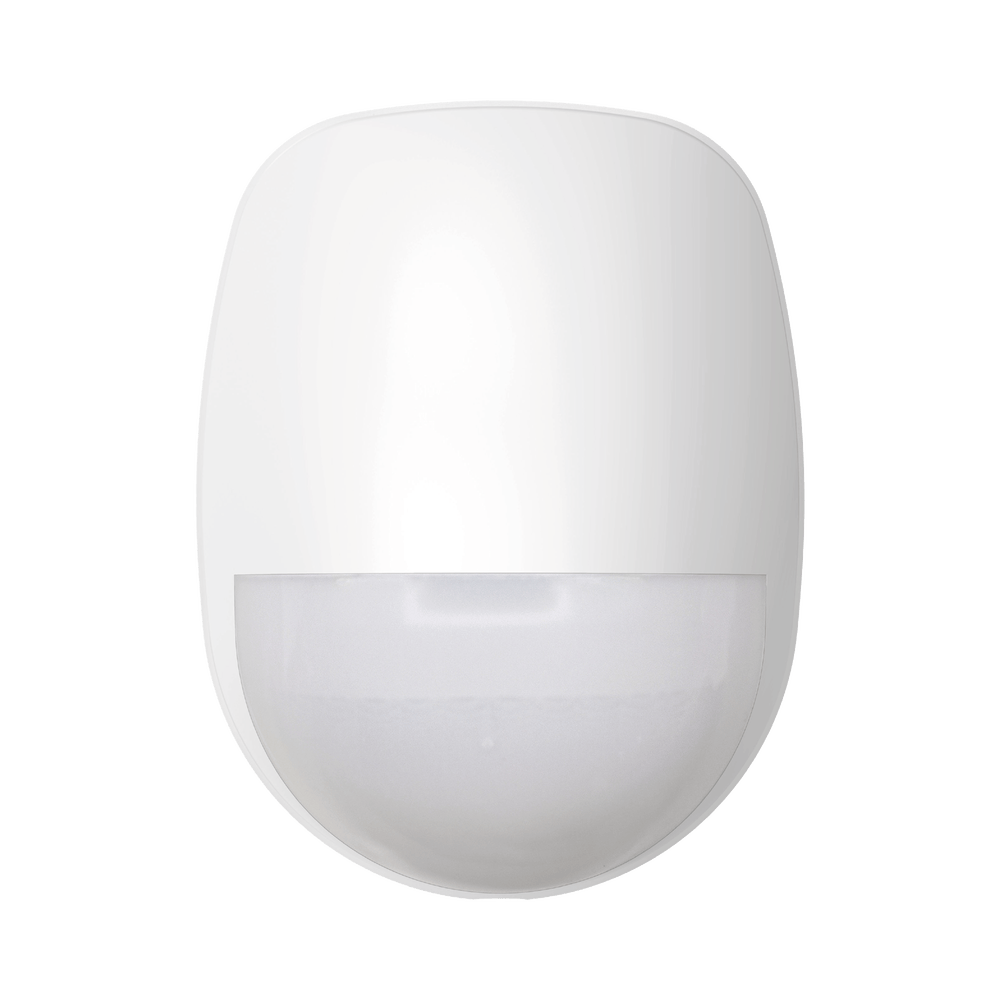

Hikvision Wired 18 m PIR Motion Detector | DS-PDP18-EG2
The Hikvision DS-PDP18-EG2 is a wired indoor PIR motion detector with an 18 m detection range, adjustable pet immunity and selectable EOL resistors for wired alarm panels.
Color: White
Key Features:
18 m Detection: Volumetric PIR detection up to 18 m, with 3D optics to improve detection of moving targets.
Automatic Sensitivity: Self-adapts to environmental conditions, with High / Auto / Low sensitivity settings.
Configurable Pet Immunity: 5 / 10 / 15 kg pet immunity levels.
IFT Technology: Auto-adjusts alarm thresholds against electromagnetic and electrical interference to reduce false alarms.
Digital Temperature Compensation: Maintains detection range when the background temperature is close to body temperature.
Creep-Zone & Anti-Insect Protection: Covers the blind spot below the detector and protects against insects and air movement.
Flexible Wiring: Selectable alarm and tamper EOL resistors, with wide 9–16 V input and reverse-polarity protection.
Technical Specifications:
| Model | DS-PDP18-EG2 |
| Detection range | 18 m (volumetric) |
| Detection speed | 0.3 to 2 m/s |
| Sensitivity adjustment | High / Auto / Low |
| Pet immunity | High (5 kg) / Auto (10 kg) / Low (15 kg) |
| White light filter | 6500 lux |
| Tamper protection | Front |
| LED indicator | Blue (alarm) |
| Power supply | 12 VDC standard, 9 to 16 VDC |
| Power consumption | 12 mA max |
| Alarm EOL resistor options | 1K, 2K2, 4K7, 5K6, 8K2 |
| Tamper EOL resistor options | 1K, 2K2, 4K7, 5K6 |
| Application | Indoor |
| Dimensions (W x H x D) | 65.4 x 86.8 x 45.5 mm |
| Weight | 68 g |
| Operating temperature | -10 °C to 55 °C (-10 °C to 40 °C certified) |
| Storage temperature | -20 °C to 60 °C |
| Operating humidity | 10% to 90% |
| Installation height | 1.8 to 2.4 m |
| Bracket | Optional wall and ceiling bracket (sold separately) |
| Housing material | PC + ABS |
Compatibility: Wired detector for wired alarm panels, with selectable EOL resistors.
