Hikvision Wired Sounder | DS-PS1-B

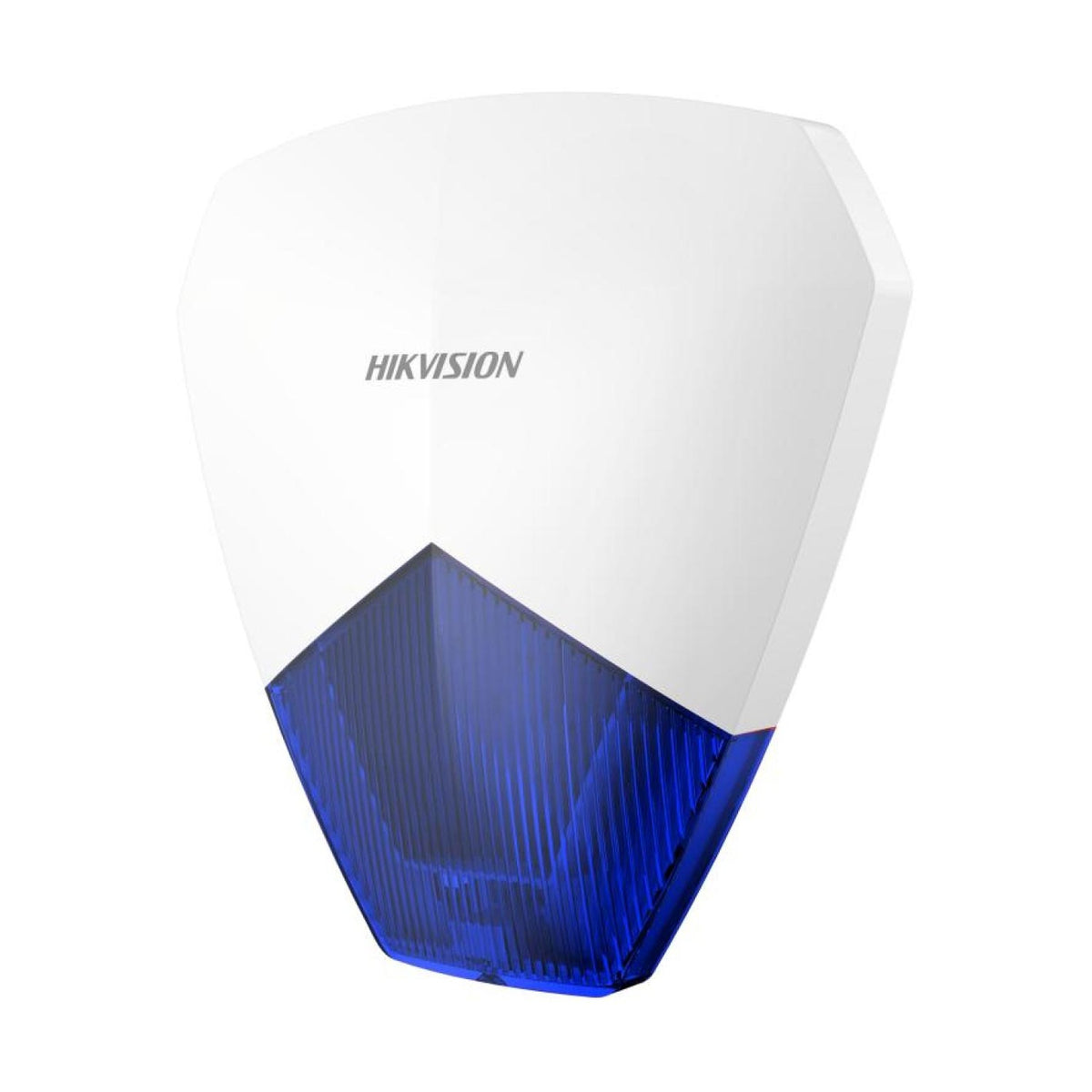

The Hikvision DS-PS1-B is a wired alarm sounder with a blue LED flash. It connects to a wired alarm control panel and, powered from the panel's 12 V output, sounds up to 105 dB at 30 cm.
Color: Blue
Key Features:
Loud Alarm: Sound pressure of 105 dB at 30 cm, so an alarm is clearly heard.
Sound and Flash Set Separately: The LED flash and the sounder indication can be configured separately, so you can choose how the alarm is signalled.
Indoor or Outdoor: Hikvision states the sounder can be used both internally and externally. The housing is rated IP54 and made of PC+ABS.
Easy Installation: A newly designed structure makes the sounder easy to install.
Works with: Wired alarm control panels, using the panel's 12 V output (listed by Hikvision in the AX Hybrid PRO wired range).
Good to know: Wired device: it needs a power and trigger connection from the alarm panel (8 to 16 VDC).
Technical Specifications:
| Model | DS-PS1-B |
| Sound pressure | 105 dB at 30 cm |
| Power supply | 8 to 16 VDC |
| IP rating | IP54 |
| Operating temperature | -20 °C to 60 °C |
| Operating humidity | 10% to 90% |
| Dimensions (W x H x D) | 140 x 134 x 33 mm |
| Shell material | PC + ABS |
| Color | Blue |
| Weight | 185 g |
📄 Datasheet: Download the official Hikvision DS-PS1-B datasheet (PDF)
