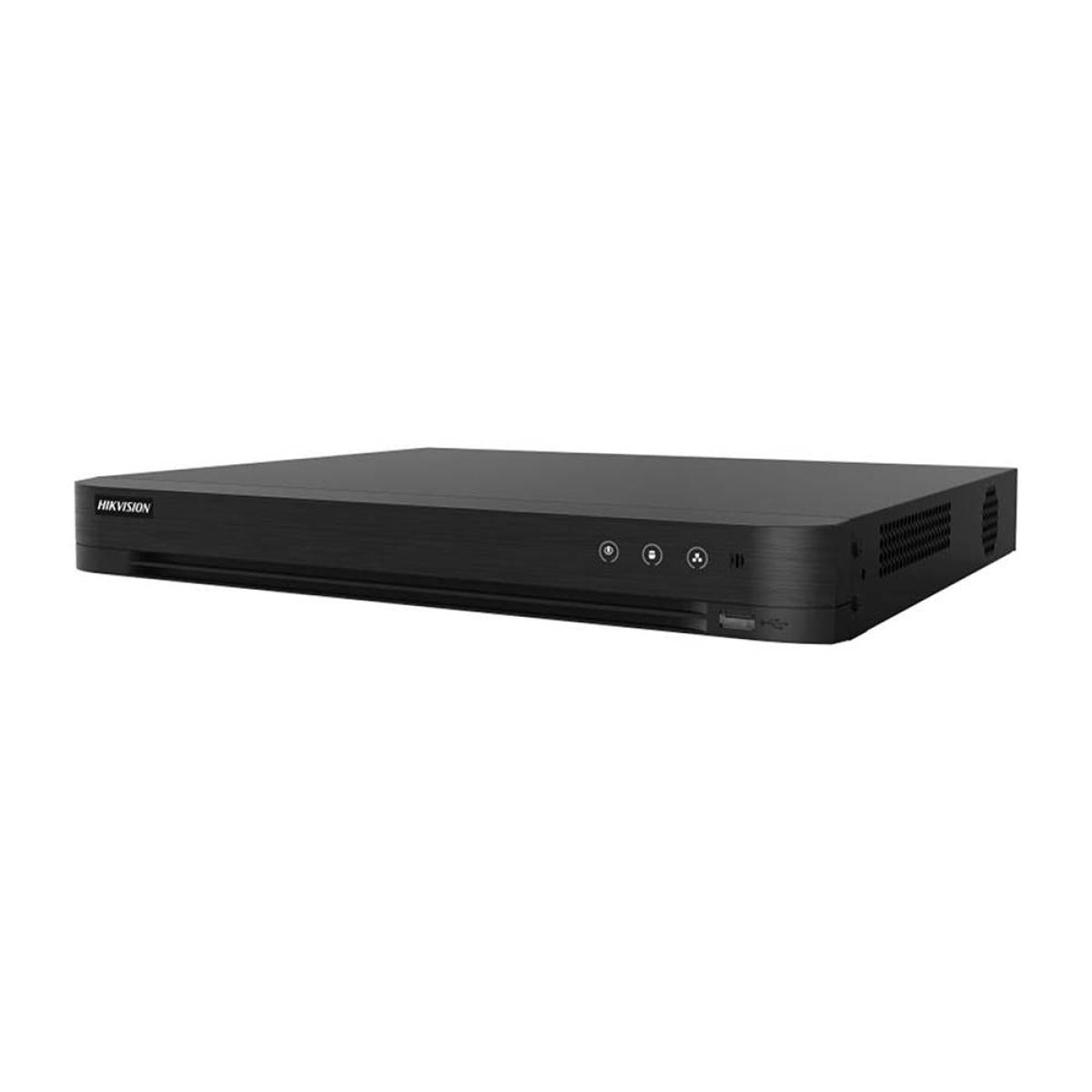

HIKVISION iDS-7232HQHI-M2/XT 32-ch 1080p 1U H.265 AcuSense DVR
32 channels and 2 HDD 1U AcuSense DVRSupport 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithmSupport 8-ch AcuSearch TechnologyEfficient H.265 pro+ compression technologyEncoding ability up to 3K/ 5MP Lite@12fpsUp to 40 channels IP camera inputs, each channel up to 6MPUp to 24*1080P@30fps decoding ability5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)Support All channels Motion Detection TechnologySupport All channels HDTVI Two-Way Audio Technology
Specifications
| Video & Audio | |
|---|---|
| Analog Video Input | 32-ch BNC interface (1.0 Vp-p 75 Ω) supporting coaxitron connection |
| Motion Detection | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels it can classify human and vehicle and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Network | |
| Total Bandwidth | 256 Mbps |
| Network Protocol | TCP/IP PPPoE DHCP Hik-Connect DNS DDNS NTP SADP NFS iSCSI UPnP™ HTTPS ONVIF ISUP |
| Remote Connection | 128 |
| Network Interface | 1 RJ45 10M/100M/1000 |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 12 TB |
| USB Interface | Front panel: 1 × USB 2.0
Rear panel: 2 × USB 3.0 |
| Alarm In/Out | N/A (optional to support) |
| General | |
| Data Sheet | 📄 Download Datasheet |
| Physical Specifications | |
| Width X Depth X Height | 313.00mm x 384.00mm x 52.00mm |
