Hikvision IP66 Analog Column Speaker 20W | DS-QAE0420G1-V

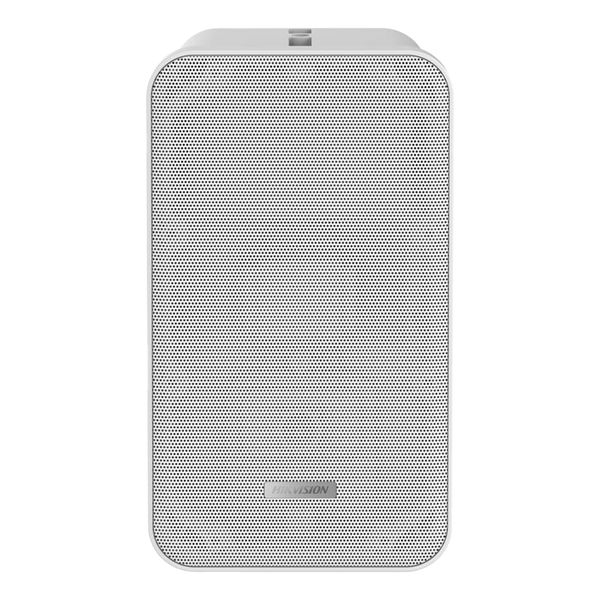

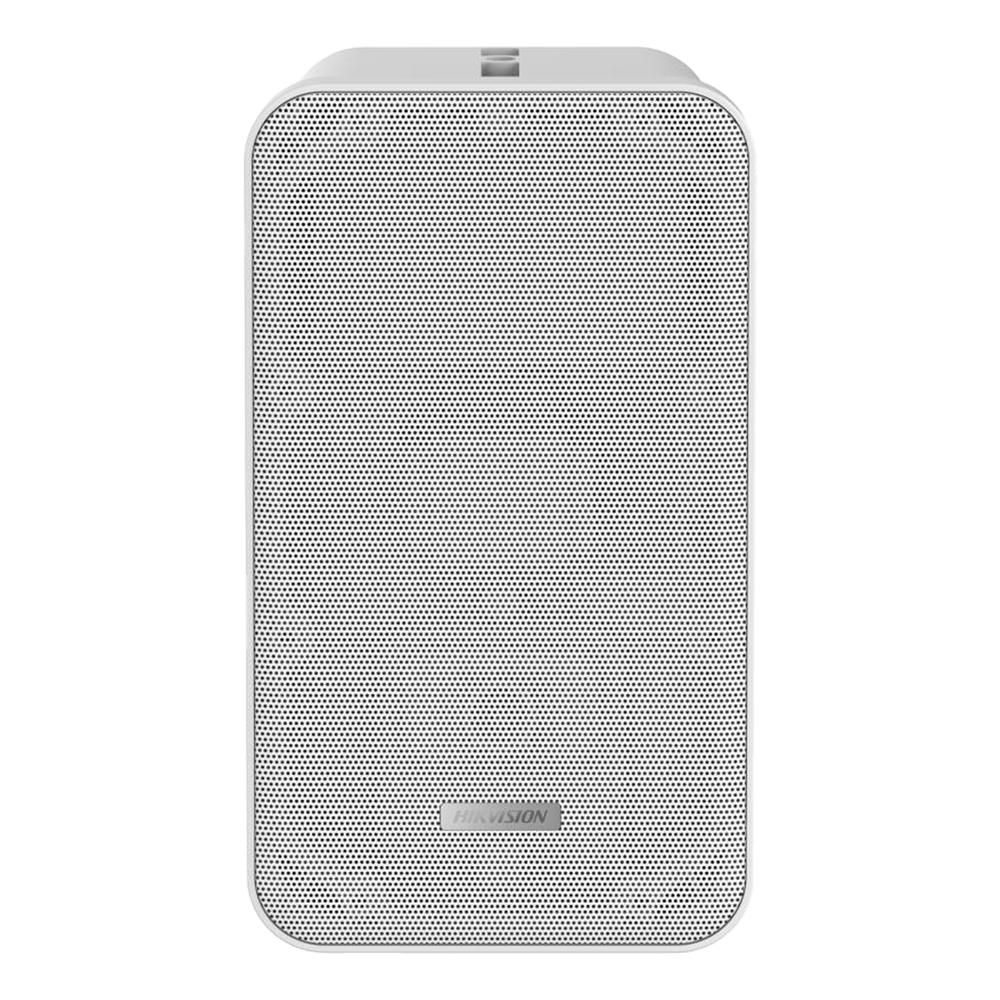

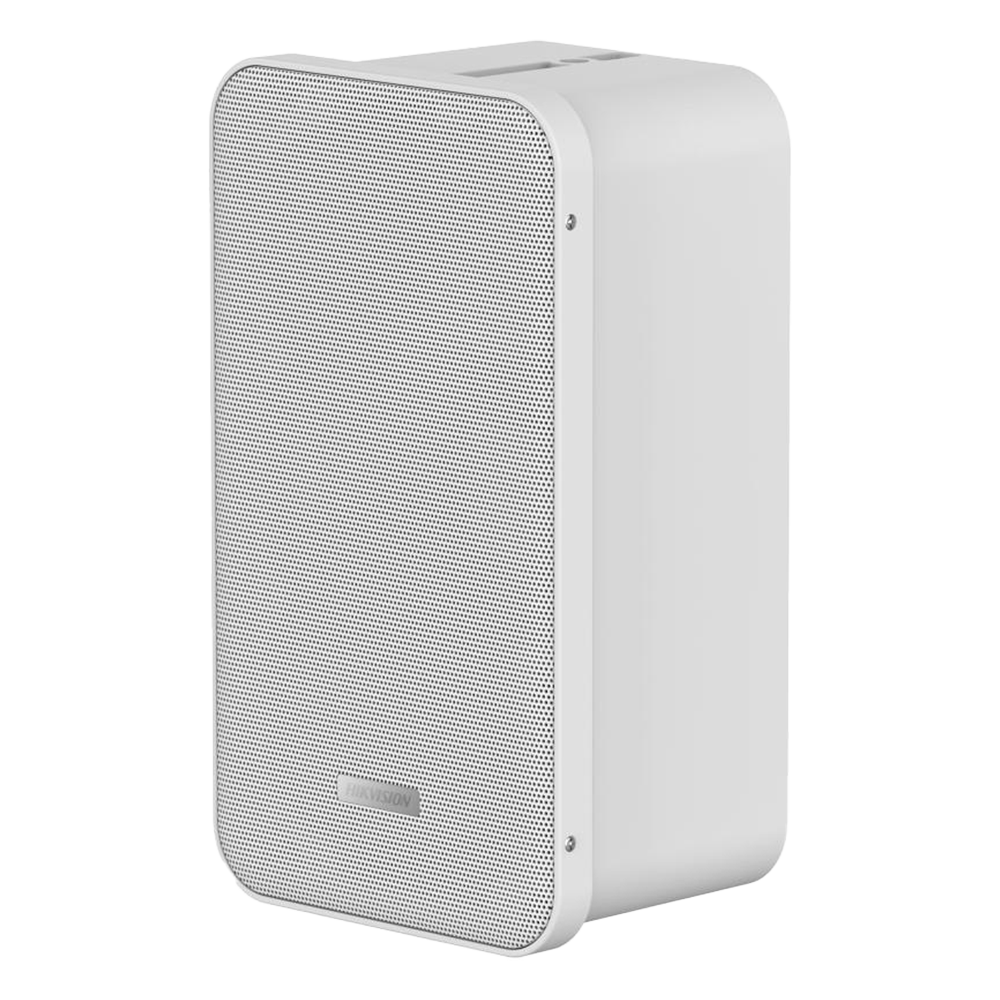

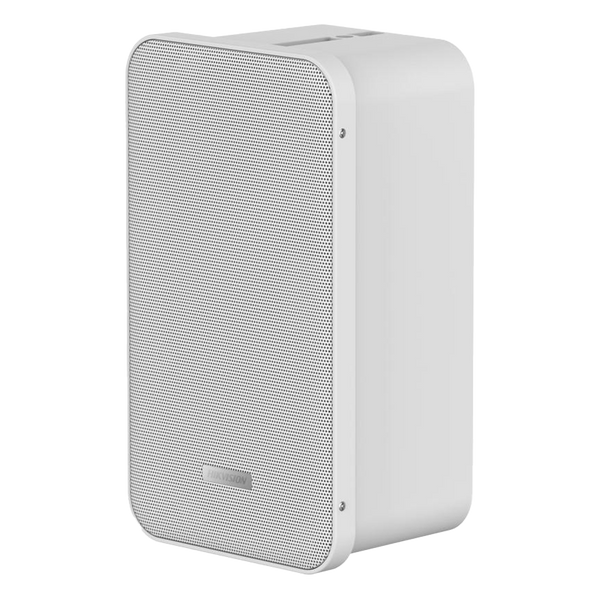

The Hikvision DS-QAE0420G1-V is a white analog column speaker with IP66 waterproof protection for public address systems. It combines a 4-inch full-range driver with a 0.75-inch high-frequency driver, connects to a 100 V constant-voltage line, and is rated at 20 W with a maximum sound pressure of 96 dB SPL and a frequency response of 100 Hz to 20 kHz.
Color: White
Key Features:
IP66 waterproof design: The integrated housing is rated IP66, and the speaker works from -25 °C to 55 °C, so it can be installed in locations exposed to dust and water jets.
Two-way speaker: A 4-inch full-range driver and a 0.75-inch high-frequency driver together cover 100 Hz to 20 kHz, with a sensitivity of 89.5 dB ± 3 dB (1 m, 1 W) and a maximum of 96 dB SPL.
Wide coverage: The coverage angle is 150° horizontally and 160° vertically, spreading sound over a wide area in front of the speaker.
Adjustable L-bracket mounting: Two L-brackets are included; they let you adjust the angle of the speaker to the mounting surface during installation.
100 V line input: Connects with a green terminal block to a 100 V constant-voltage line (100 V and COM), the standard used in PA installations.
Good to know: This is an analog (passive) speaker. Hikvision states it must be used together with an amplifier; the 100 V PA amplifier is sold separately. The steel-mesh front cover and plastic back cover weigh about 1.86 kg in total.
Technical Specifications:
| Model | DS-QAE0420G1-V |
| Type | Analog column speaker |
| Speaker Unit | Full frequency 4″ × 1, high frequency 0.75″ × 1 |
| Rated Power | 20 W |
| Impedance | 8 Ω |
| Sensitivity (1 m, 1 W) | 89.5 dB ± 3 dB |
| Max. Acoustic Pressure | 96 dB SPL |
| Frequency Response | 100 Hz to 20 kHz |
| Coverage Angle | Horizontal 150°, vertical 160° |
| Audio In | Green terminal block, constant-voltage input 100 V, COM |
| Protection | IP66 |
| Material | Front cover: steel mesh; back cover: plastic |
| Dimensions | 280 × 161.9 × 119.8 mm |
| Weight | Approx. 1862 g |
| Operating Temperature | -25 °C to 55 °C |
| Operating Humidity | < 90% (no condensation) |
| Packing List | Speaker × 1, screw pack × 1, L-bracket × 2, regulatory and safety information × 1 |
| Color | White |
📄 Datasheet: Download the official Hikvision DS-QAE0420G1-V datasheet (PDF)
