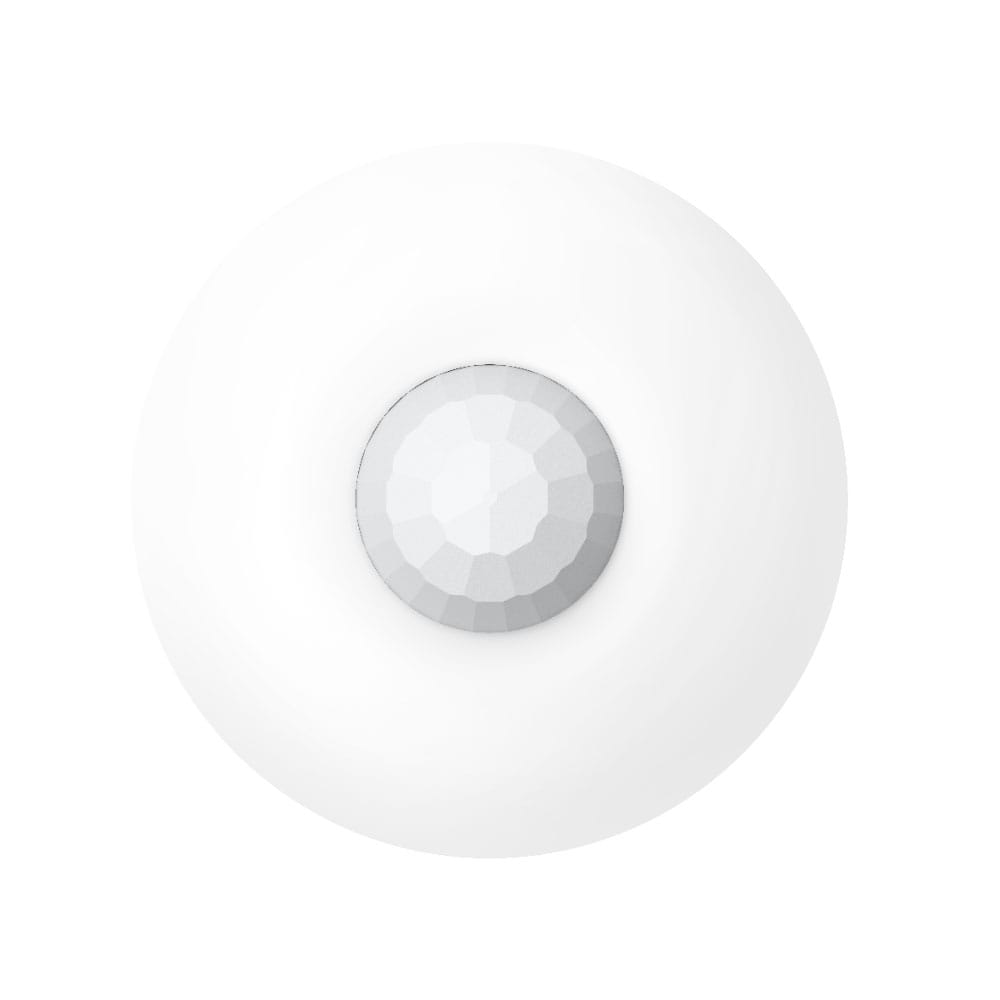

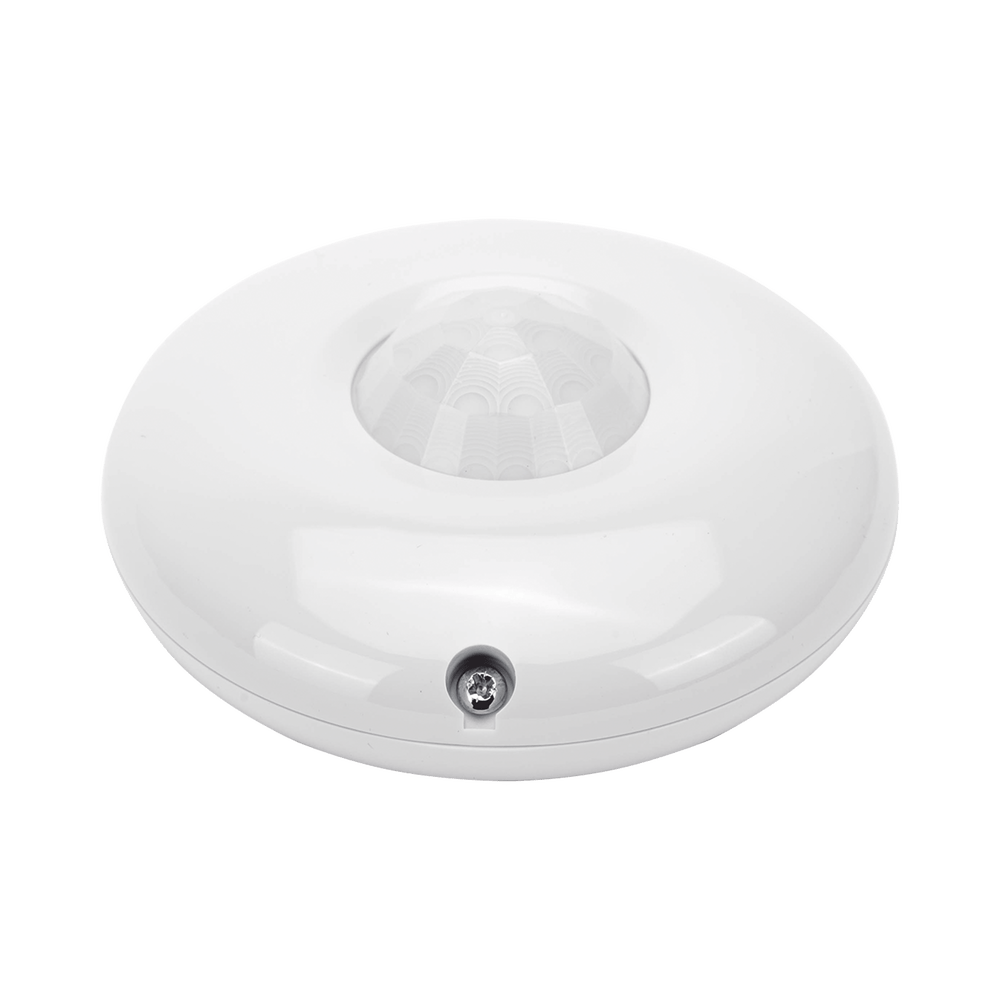

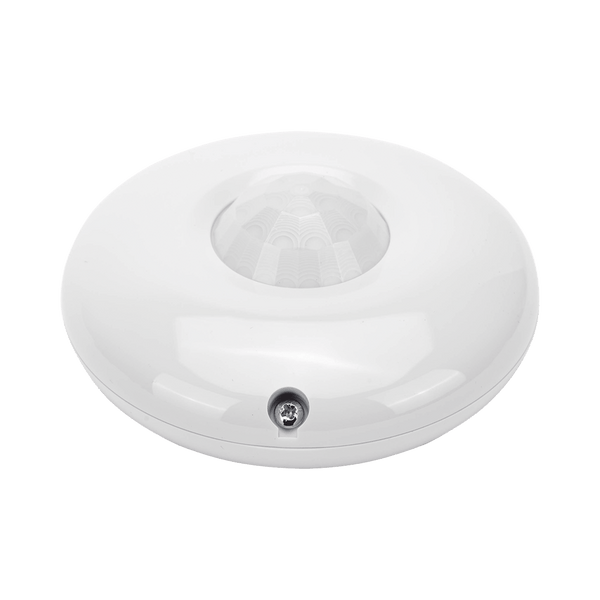

Hikvision Wired 360° Ceiling PIR Detector | DS-PDCL12-EG2
The Hikvision DS-PDCL12-EG2 is a wired ceiling-mounted PIR detector with 360° coverage and a 12 m detection range, part of the Hikvision AX Hybrid PRO wired range.
Color: White
Key Features:
360° Coverage: Ceiling-mounted PIR with 360° detection angle, 12 m range and 172 detection zones.
Digital Quad Pyro Sensor: With automatic sensitivity and digital processing.
Anti-Crawl Protection: Creep zone protection and digital temperature compensation.
Flexible Wiring: On-board EoL resistor selection (jumper) for alarm and tamper circuits.
Technical Specifications:
| Model | DS-PDCL12-EG2 |
| Detection method | Passive infrared (PIR) |
| Detection range | 12 m |
| Detection angle | 360° |
| Detection zones | 172 |
| Detectable speed | 0.3 to 2 m/s |
| Sensitivity | Auto / Low |
| White light filter | 6500 lux |
| Digital temperature compensation | Supported |
| Creep zone (anti-crawl) protection | Supported |
| Sealed optics / digital processing | Supported |
| Tamper protection | Front tamper |
| Alarm output | Normally closed (NC) relay |
| LED indicator | Blue (alarm) |
| Power supply | 9 to 16 VDC (typical 12 VDC) |
| Power consumption | 13 mA max. |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating humidity | 10% to 90% |
| Dimensions | Ø101.2 mm x 32.9 mm |
| Mounting height | 2.4 to 4 m |
| Mounting method | Ceiling |
| Application scenario | Indoor |
Compatibility: Part of the Hikvision AX Hybrid PRO wired alarm range (NC relay output).
📄 Datasheet: Download the official Hikvision DS-PDCL12-EG2 datasheet (PDF)
