Hikvision Wireless Emergency Button | DS-PDEB1-EG2-WB

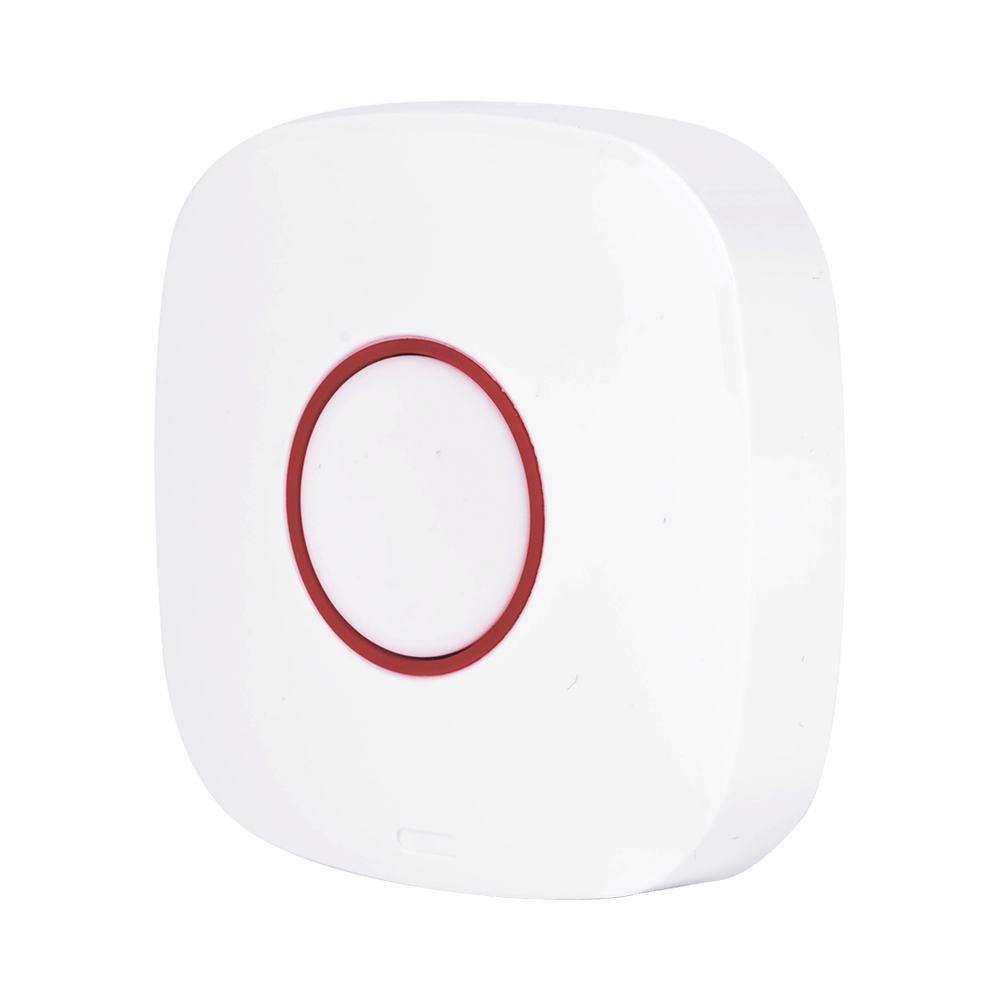

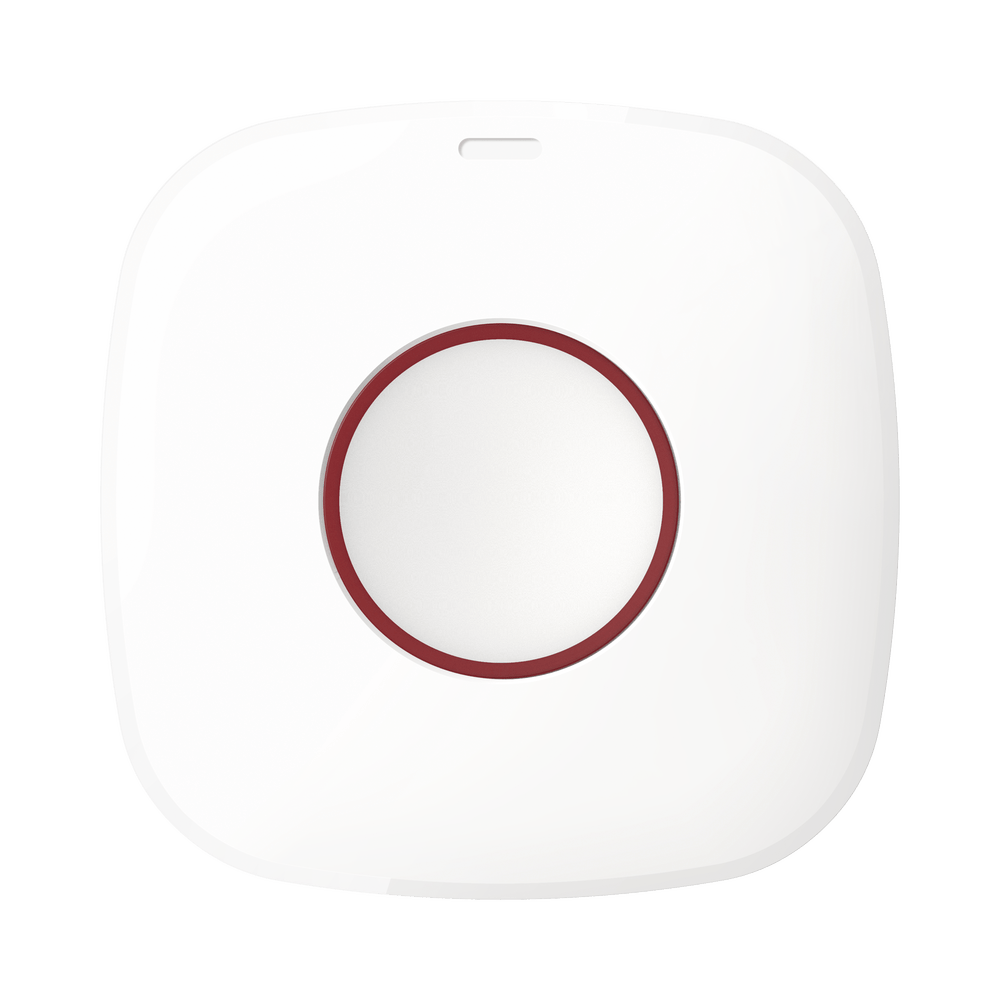

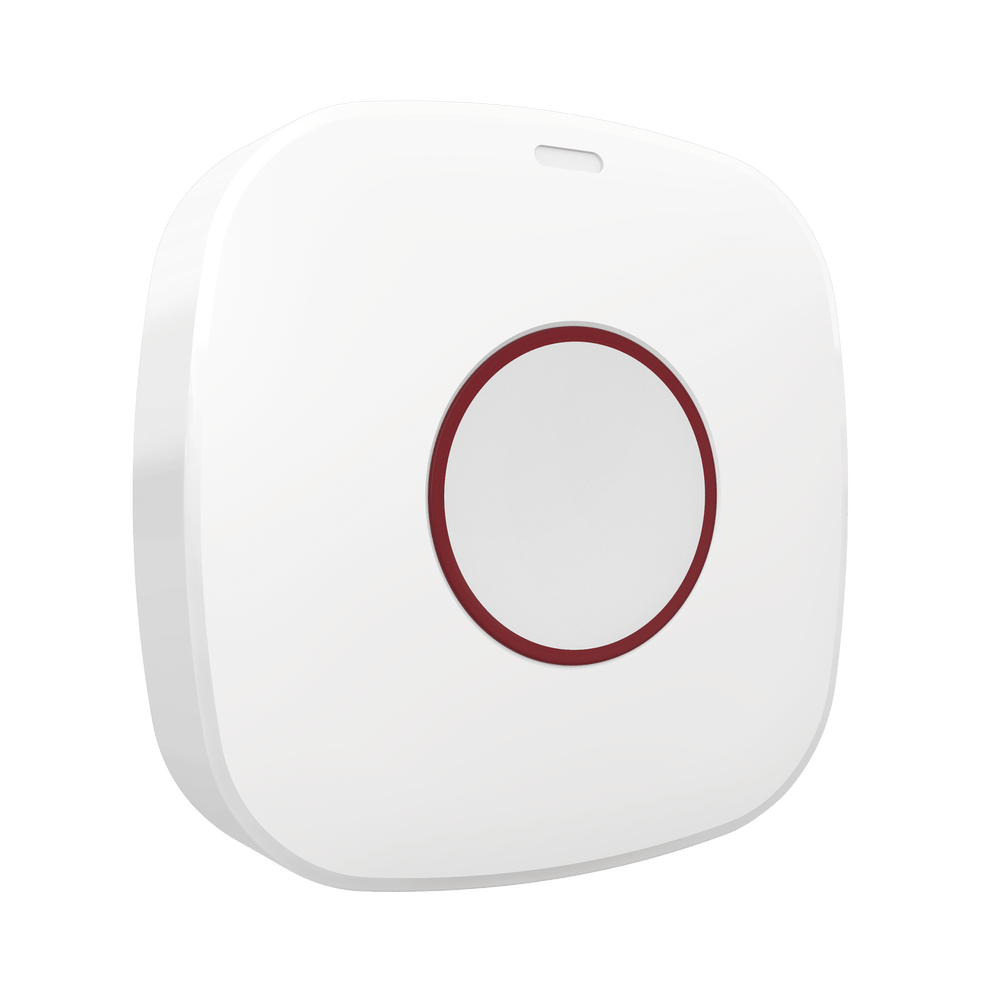

The Hikvision DS-PDEB1-EG2-WB is a wall-mounted wireless panic button for the Hikvision AX PRO alarm system. One press sends an emergency alarm over secure two-way Tri-X wireless.
Color: White
Key Features:
Emergency Alarm: A single emergency button to trigger a panic alarm.
Secure Wireless: Tri-X two-way wireless at 433 MHz with AES-128 encryption, frequency hopping against jamming and up to 800 m range in open space.
IP66 Water-Proof: Suitable for use in strongly humid environments.
Easy Setup: Fully remote configuration through the app, with power-up, remote ID or QR code enrollment.
Tamper Protection: Front and rear tamper protection, with temperature and signal strength indicators.
Technical Specifications:
| Model | DS-PDEB1-EG2-WB |
| Number of buttons | 1 |
| Tamper protection | Front and rear |
| Indicators | Environment temperature indicator, signal strength indicator, blue alarm LED |
| Wireless technology | Tri-X Wireless, two-way RF |
| Frequency | 433 MHz |
| Encryption | AES-128 |
| Wireless range (free space) | 800 m |
| Frequency hopping | Supported |
| Enrollment methods | Power up, Remote ID, QR code |
| Power supply | Battery powered, 1 x CR2450, 3 V typical |
| Battery life | Up to 3 years |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating humidity | 10% to 90% |
| IP rating | IP66 |
| Dimensions (W x H x D) | 63.8 x 63.8 x 18.4 mm |
| Weight | 57.5 g |
| Mounting | Wall mount |
| Application | Indoor, suited to humid environments |
Compatibility: Works with the Hikvision AX PRO wireless alarm system (control panel sold separately).
📄 Datasheet: Download the official Hikvision DS-PDEB1-EG2-WB datasheet (PDF)
